Toyota COROLLA HEV 逆变器 — Figure 8431

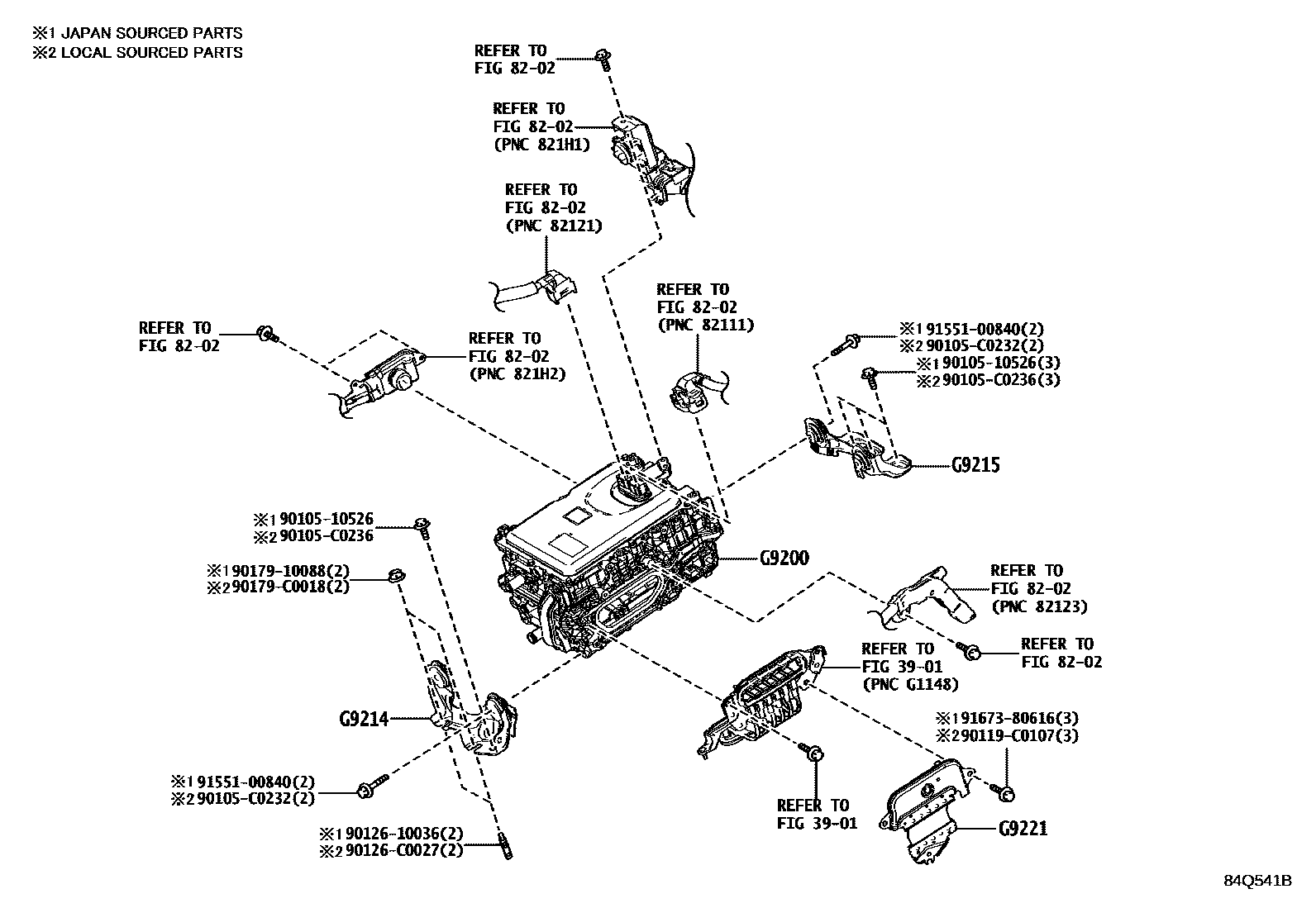

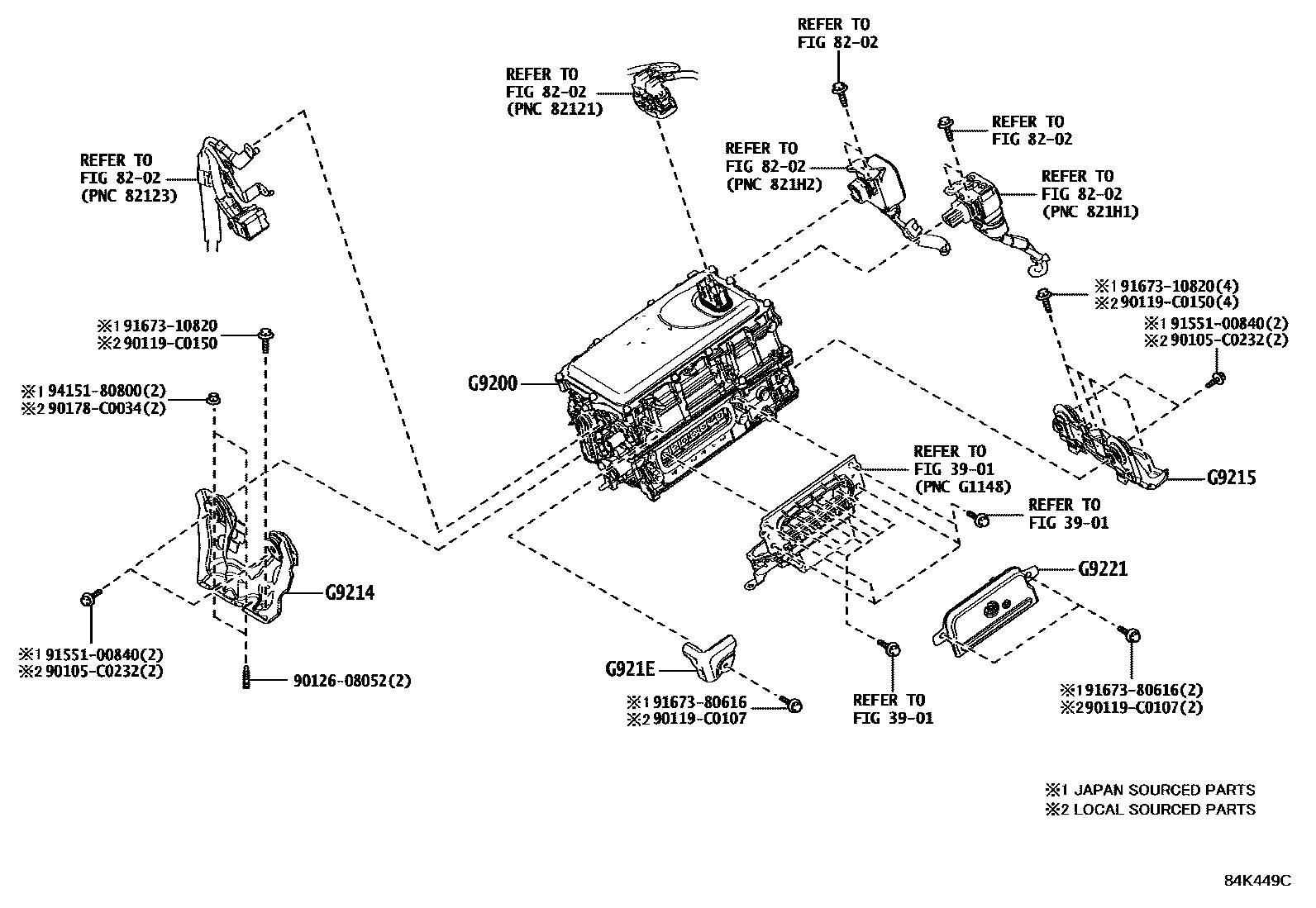

Toyota COROLLA EPC diagram 8431, HEV 逆变器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| G9200 | Inverter assembly with converter | G92A0-02030 · G92A0-02031 · G92A0-02050 |
| G9214 | No. 1 inverter bracket | G9214-02070 · G9214-02090 · G9214-28090 · G9214-47070 |
| G9215 | No. 2 inverter bracket | G9215-02060 · G9215-02080 · G9215-28050 · G9215-47050 |
| G921E | Inverter protection device | G921E-07010 |
| G9221 | Inverter cover | G9022-02020 · G9022-28030 · G9022-47050 |
