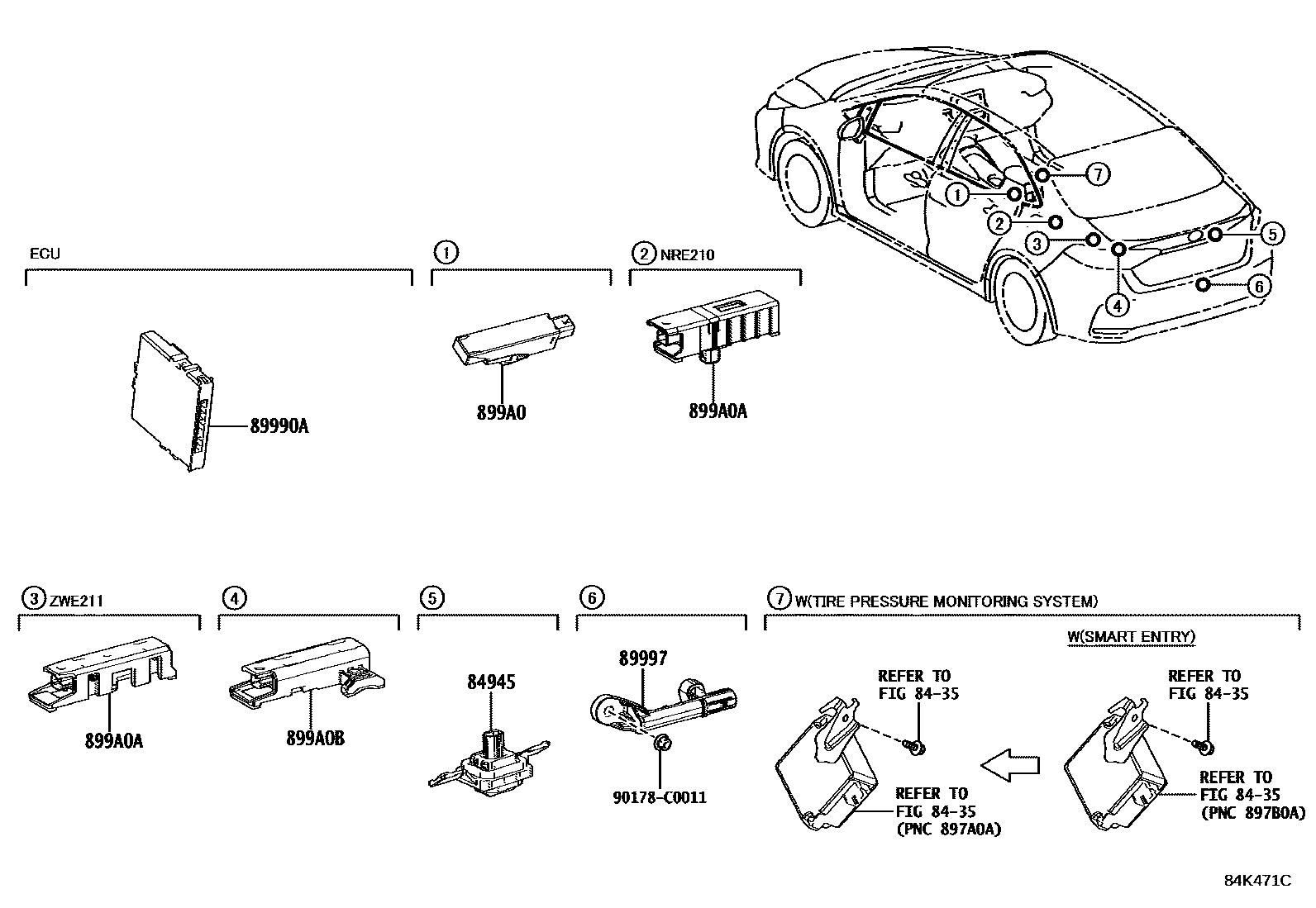

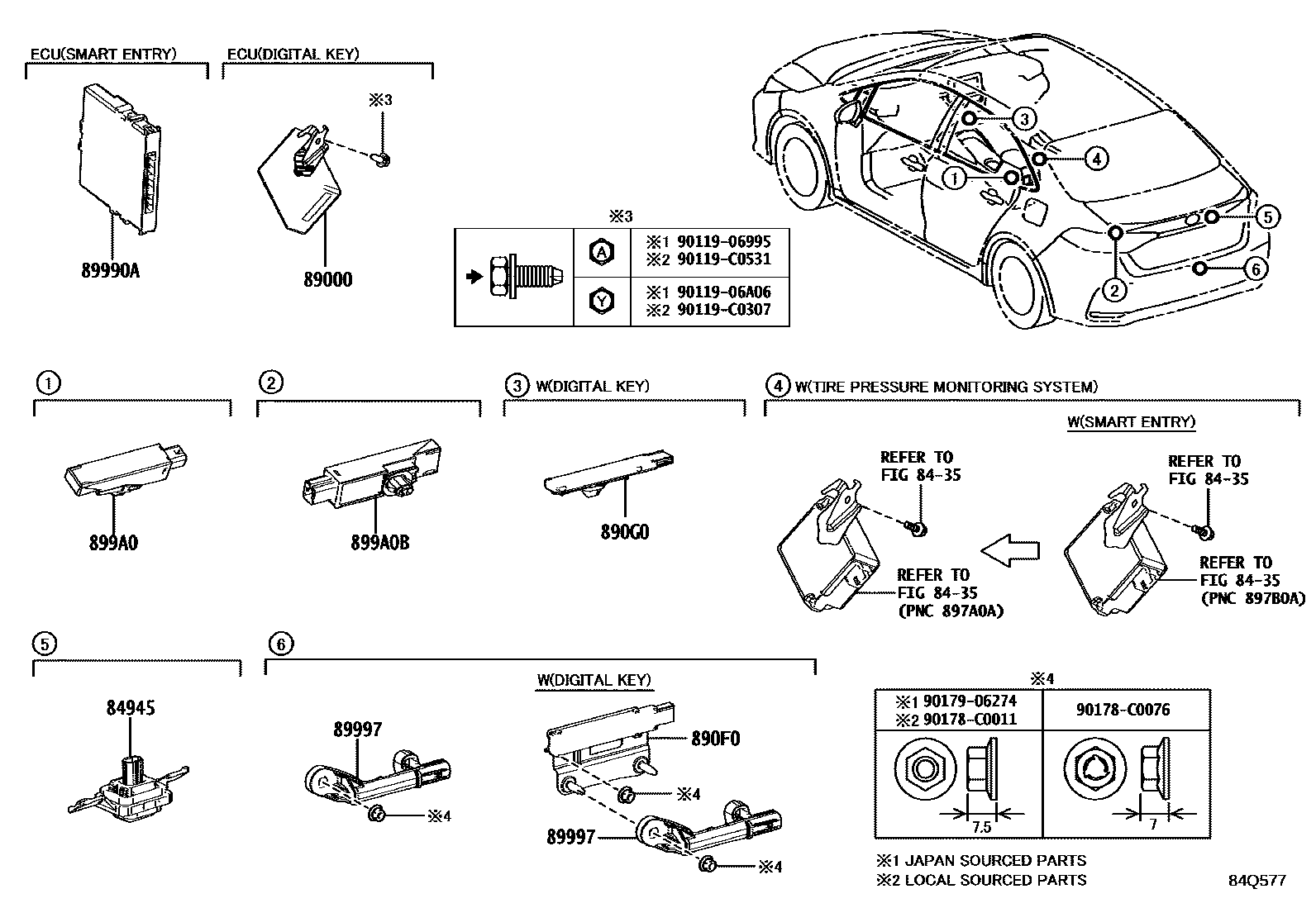

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84945-02090 · 84945-02100 |
| 89000 | Digital key ECU assembly | 89000-02020 · 89000-02021 |
| 890F0 | BLE (Bluetooth Low Energy) luggage digital key receiver assembly | 890E0-02010 · 890E0-02020 · 890F0-02010 |
| 890G0 | BLE (Bluetooth Low Energy) in-car digital key receiver assembly | 890E0-02010 · 890E0-02020 · 890G0-0R020 |
| 89990A | Smart key ECU assembly | 899H0-02330 · 899H0-02340 · 899H0-02350 · 899H0-02380 · 899H0-02510 · 899H0-02520 · 899H0-02530 · 899H0-02540 · 899H0-02680 · 899H0-02690 · 899H0-02700 · 899H0-02710 |
| 89997 | electronic key antenna | 89997-0E060 · 89997-0E061 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-02370 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-02380 · 899A0-02390 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-02400 · 899A0-0R160 |
