Toyota COROLLA 电子燃油喷射系统 — Figure 8404

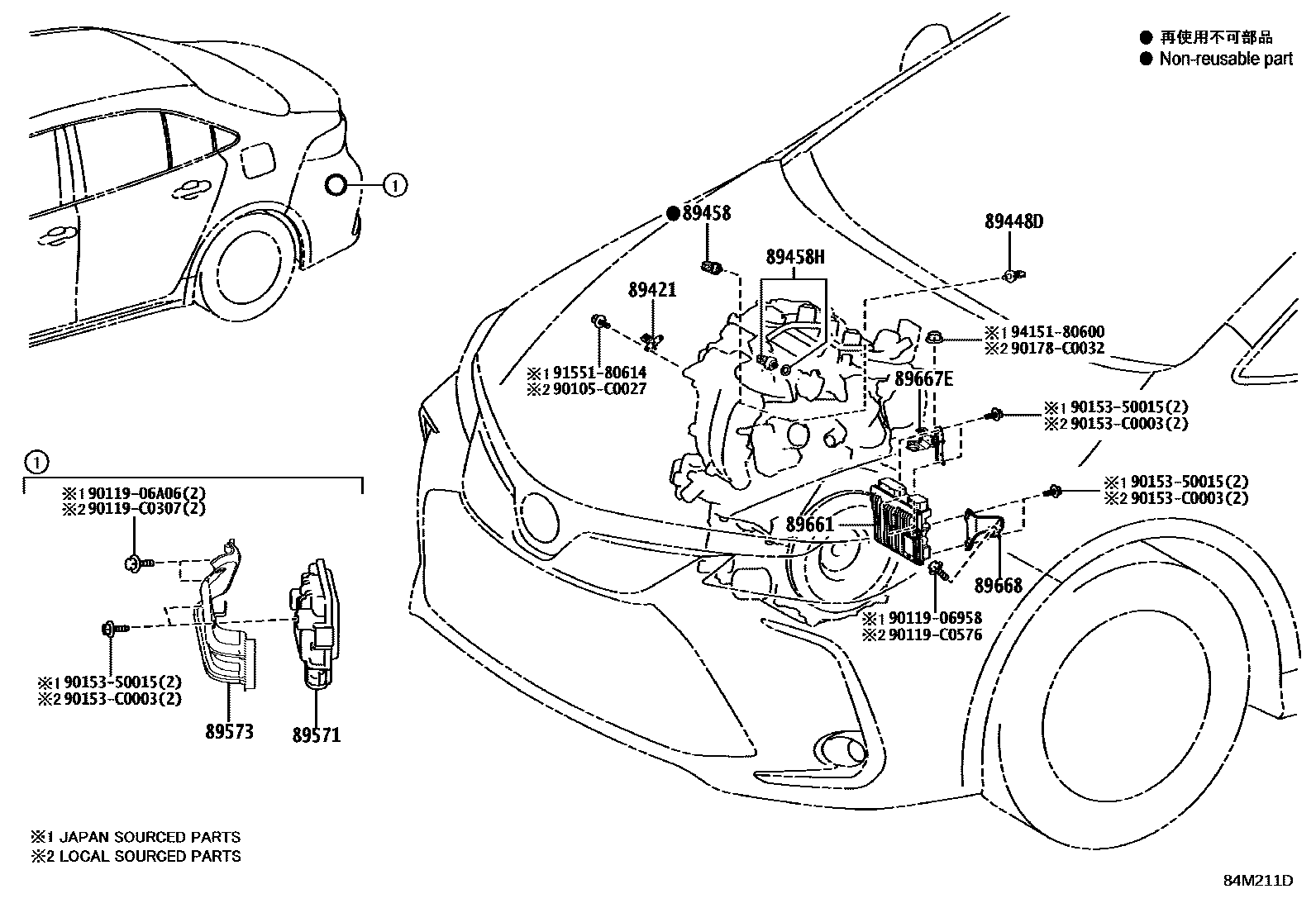

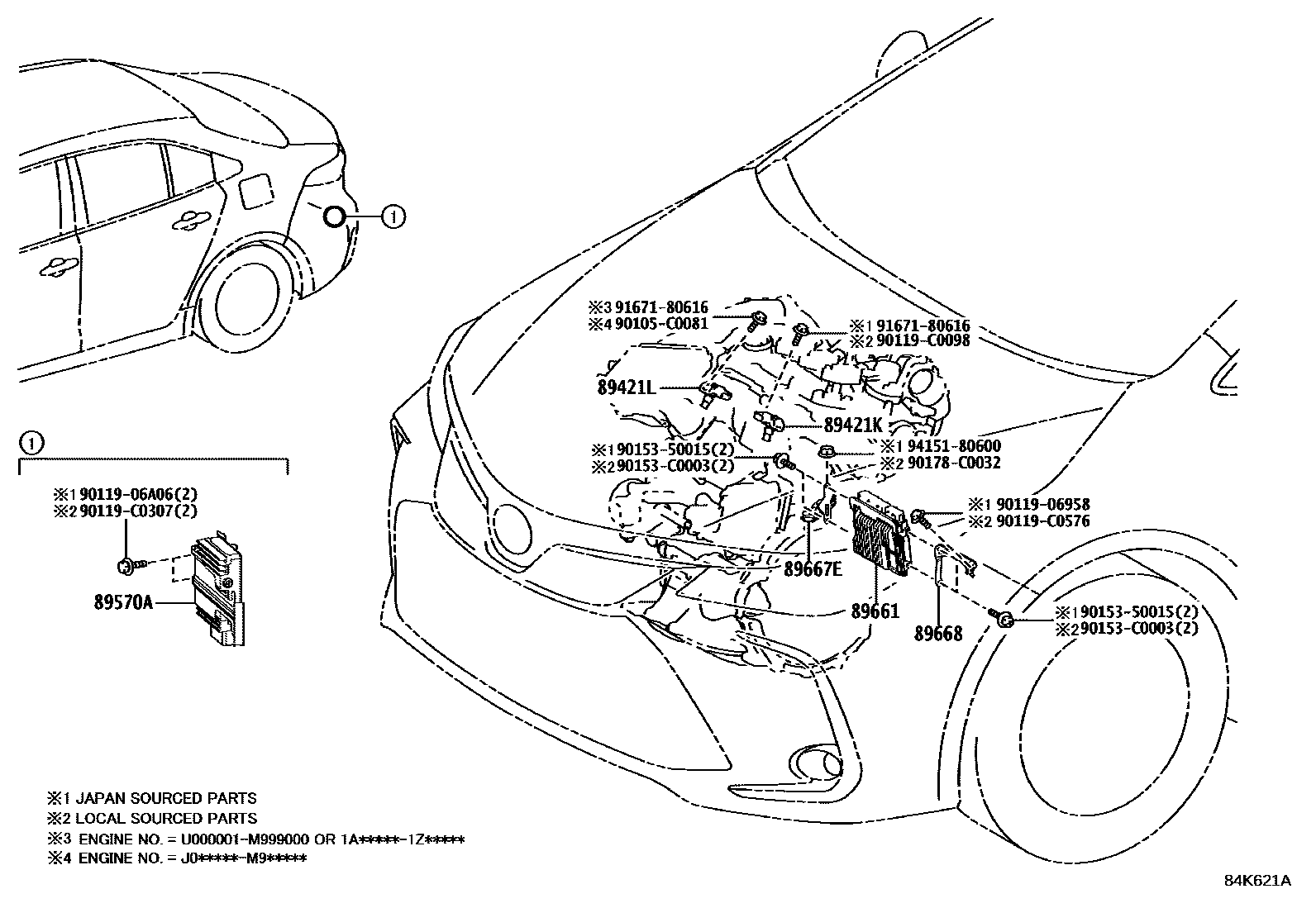

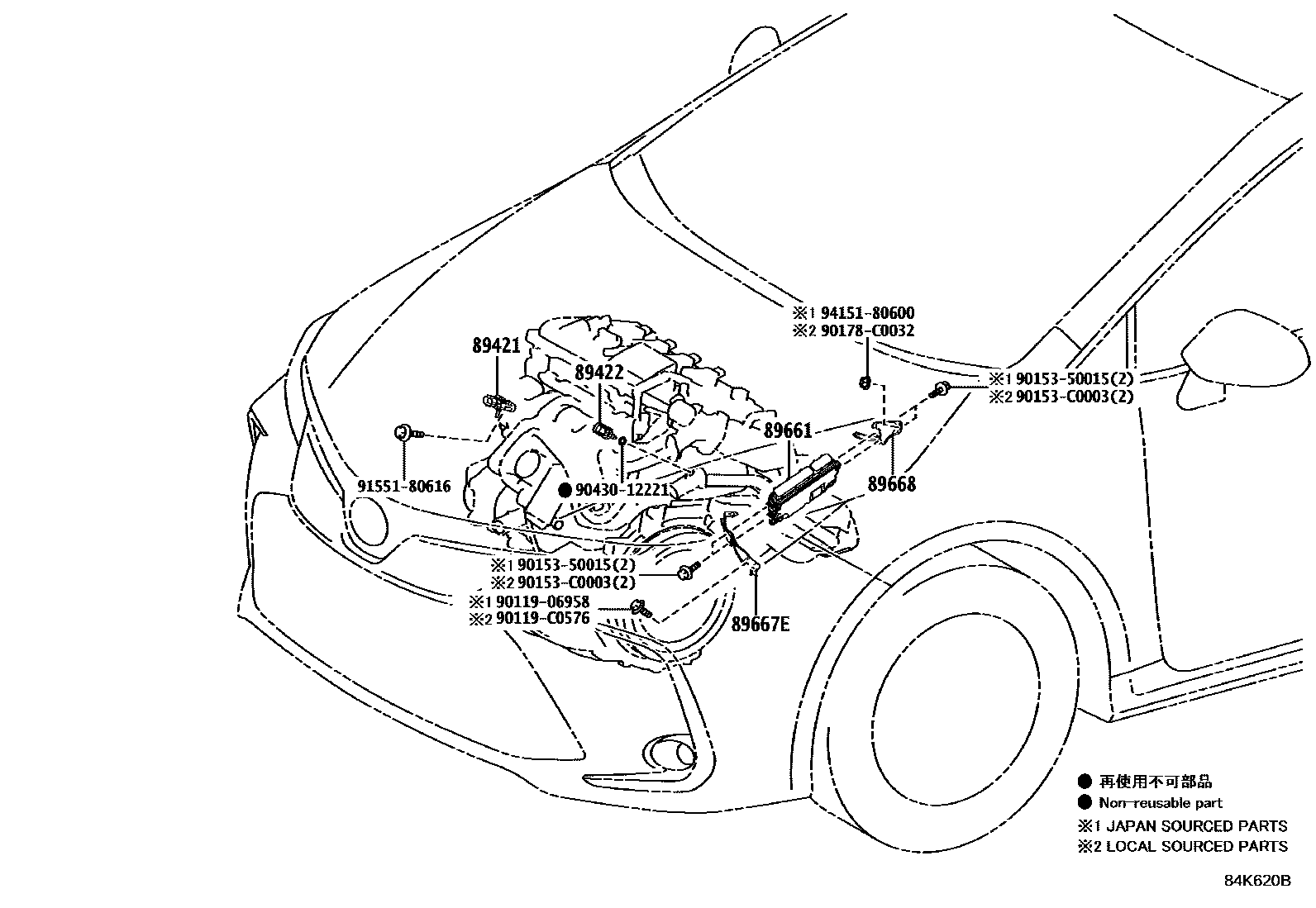

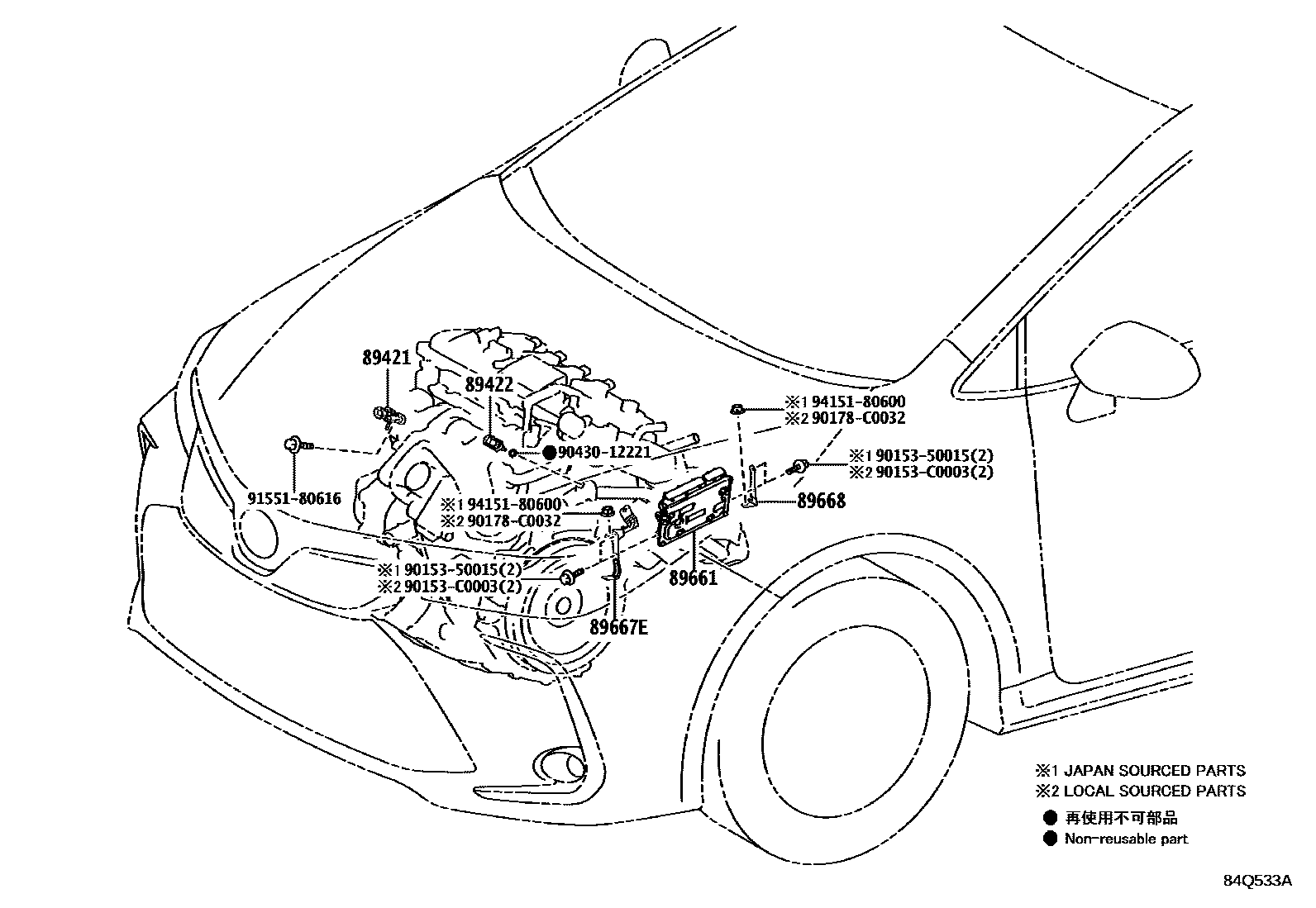

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-26030 · 89421-33010 |
| 89421K | Turbo pressure sensor No. 1 | 89421-02040 · 89421-78010 |
| 89421L | Turbocharger No. 2 pressure sensor | 89421-02040 · 89421-78010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-0D010 |
| 89448D | Oil pressure and sensors | 89448-0R010 · 89448-33010 |
| 89458 | fuel pressure sensor | 89458-0R010 · 89458-33030 |
| 89458H | No. 2 fuel pressure sensor | 89458-0R020 · 89458-33041 · 89458-33042 |
| 89570A | Fuel pump control ECU assembly | 89570-12430 |
| 89571 | Fuel pump control ECU | 89571-10010 · 89571-K0010 |
| 89573 | Fuel pump control ECU bracket | 89573-02090 |
| 89661 | Engine control ECU | 89661-0ZR50 · 89666-02680 · 89666-02700 · 89666-02720 · 89666-02731 · 89666-02760 · 89666-02D10 · 89666-02E30 · 89666-02E70 · 89666-02J70 · 89666-02N00 |
| 89667E | No. 1 engine control ECU bracket | 89667-02640 · 89667-02650 · 89667-02700 · 89667-F4060 |
| 89668 | No. 2 engine control ECU bracket | 89668-02630 · 89668-02640 · 89668-02690 · 89668-F4080 |
