Toyota COROLLA 线束和卡夹 — Figure 8202

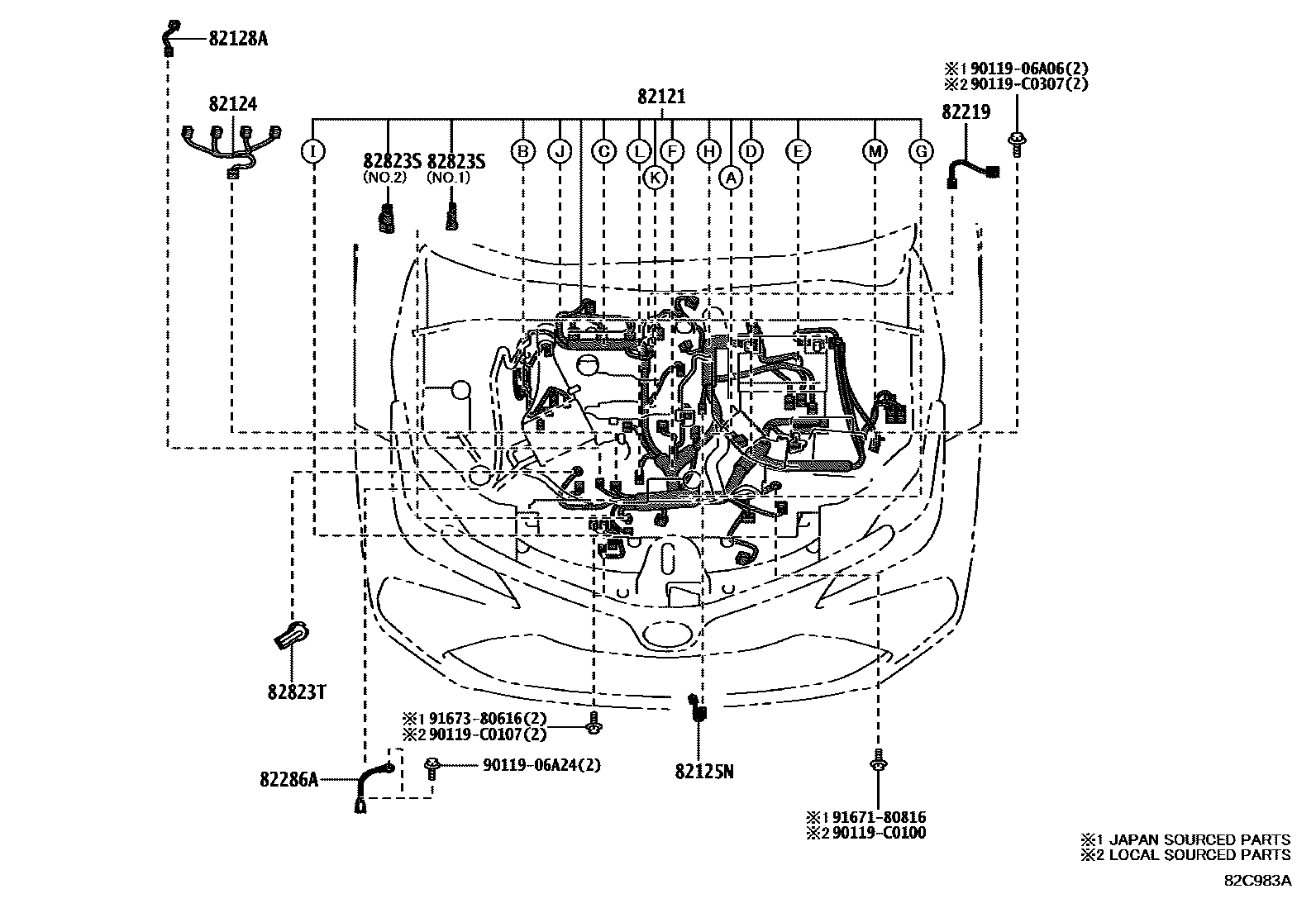

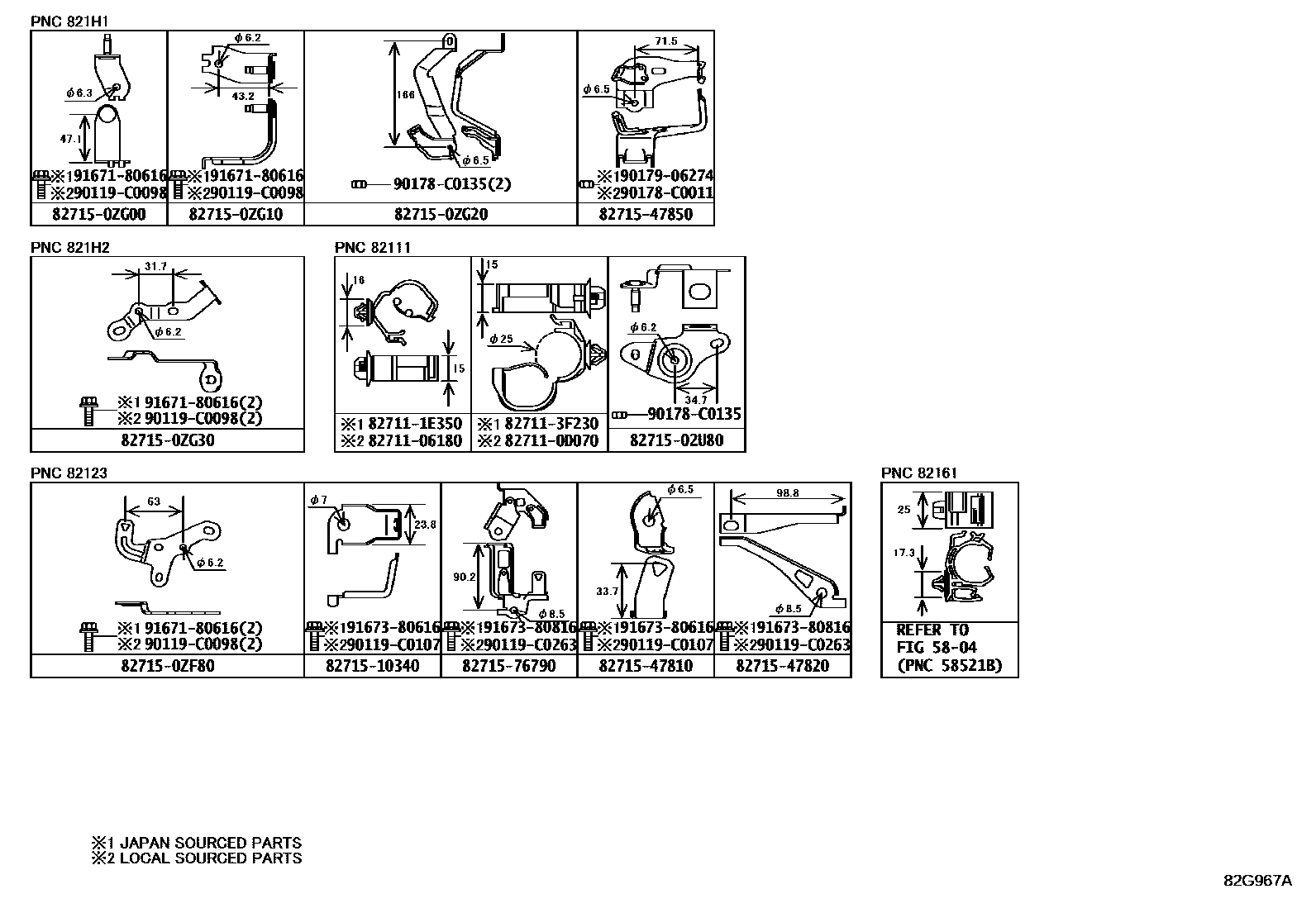

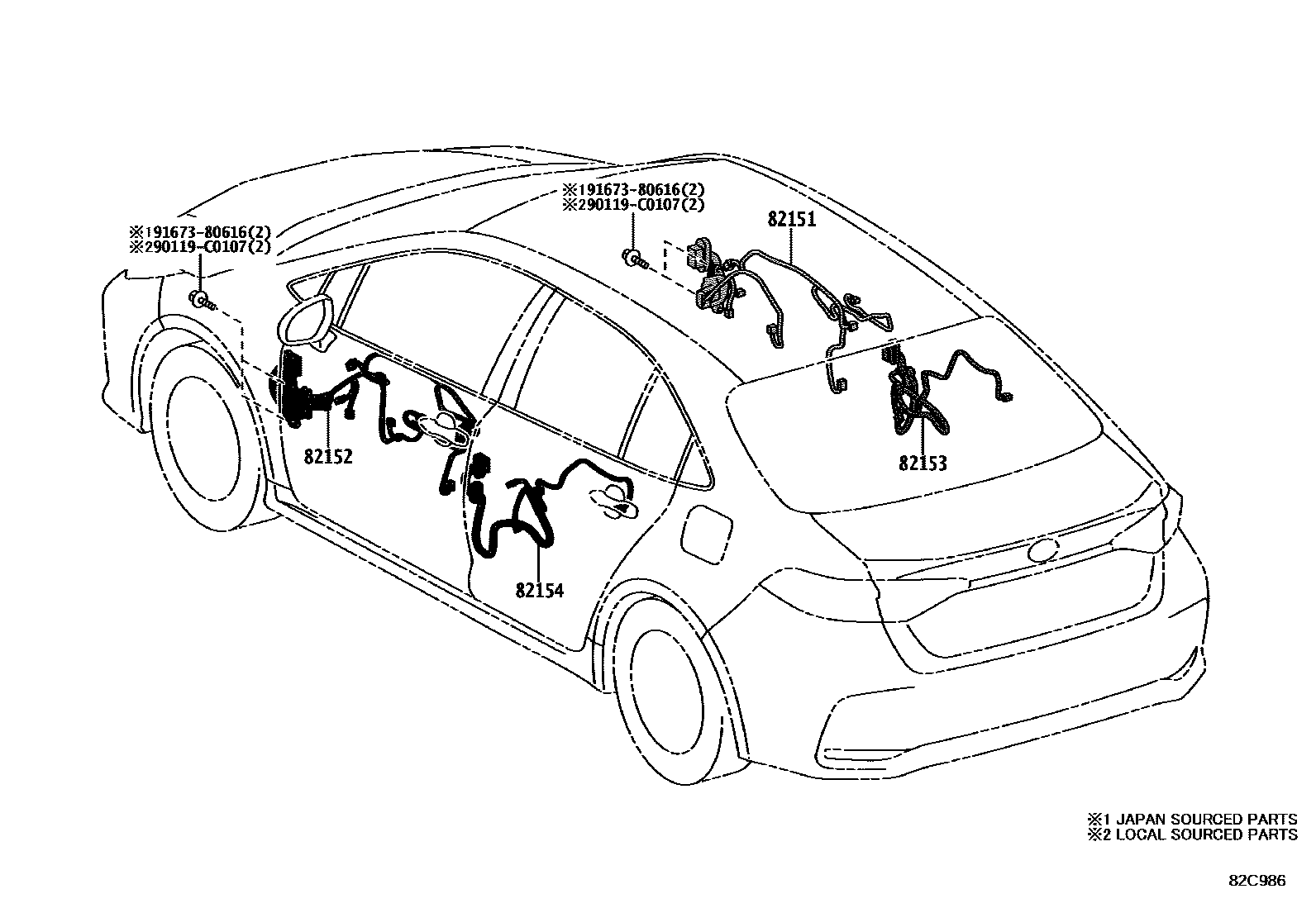

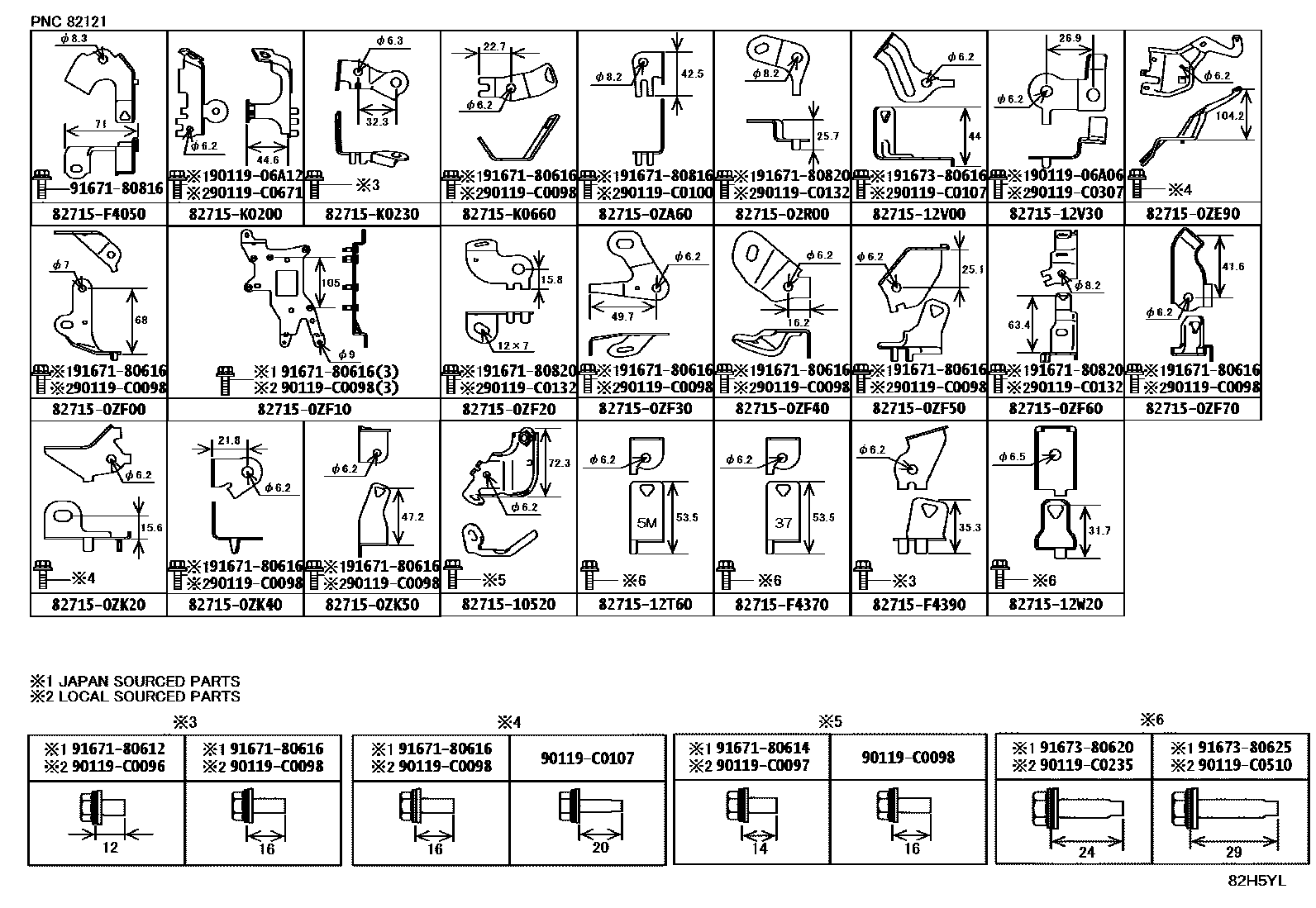

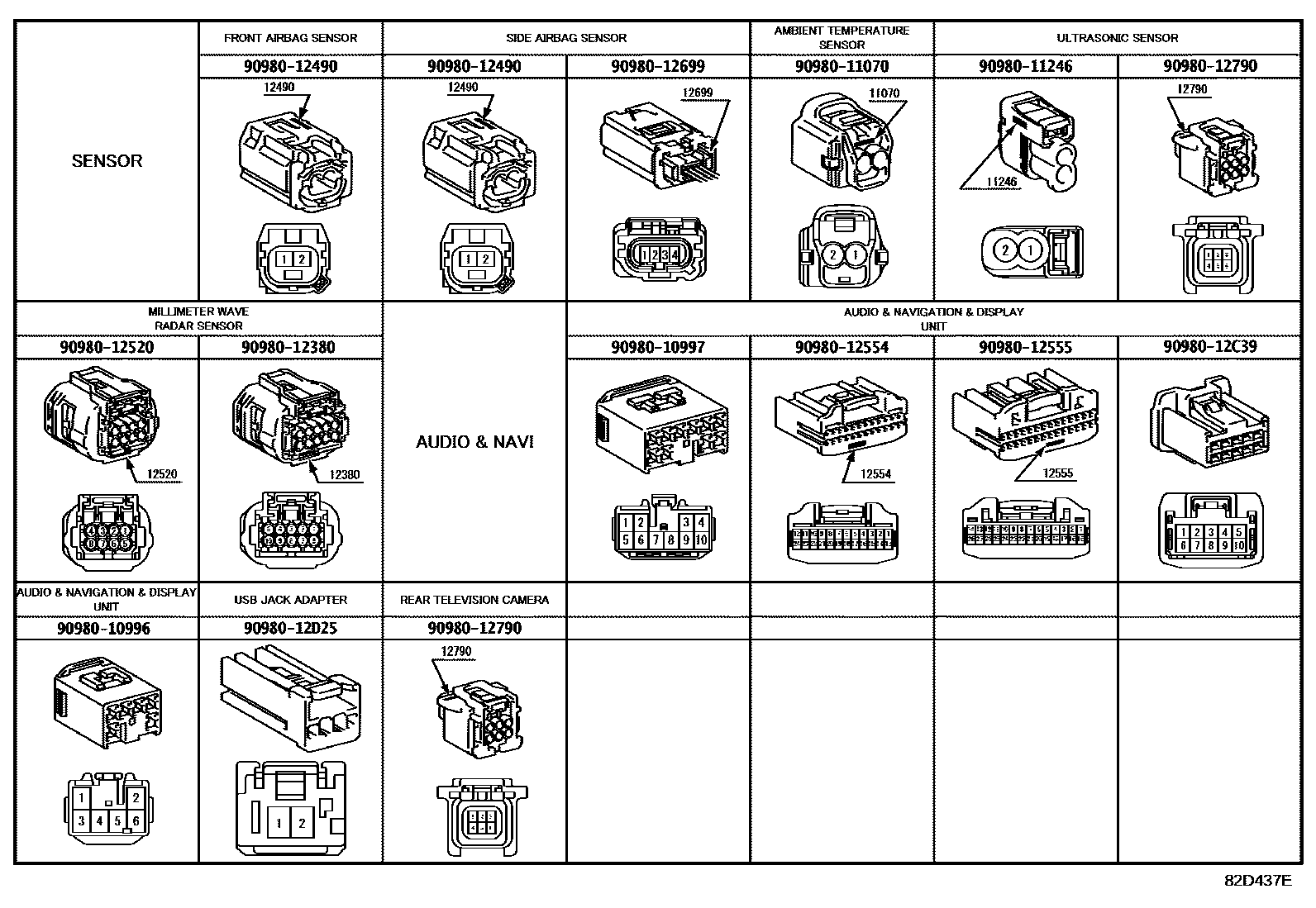

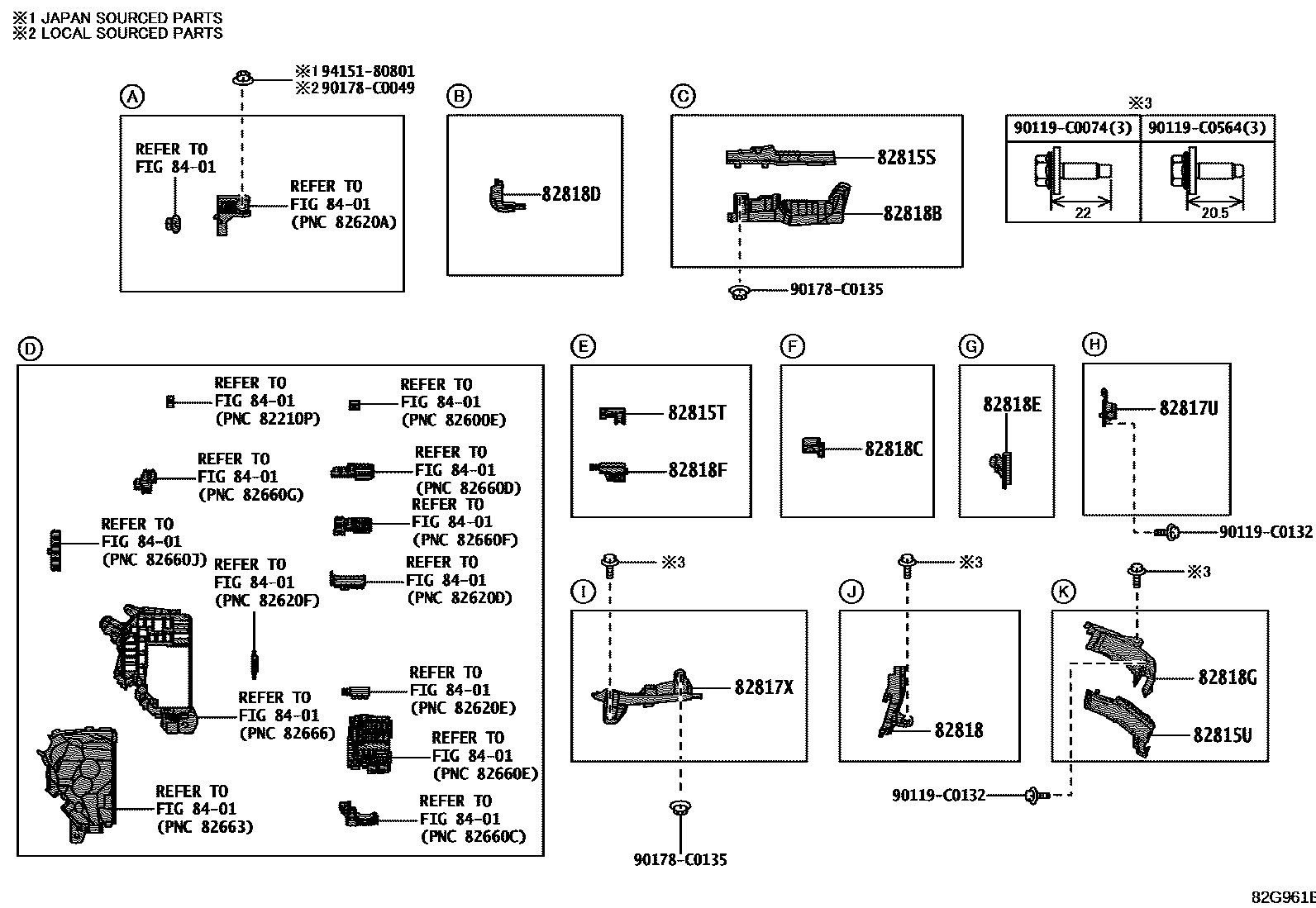

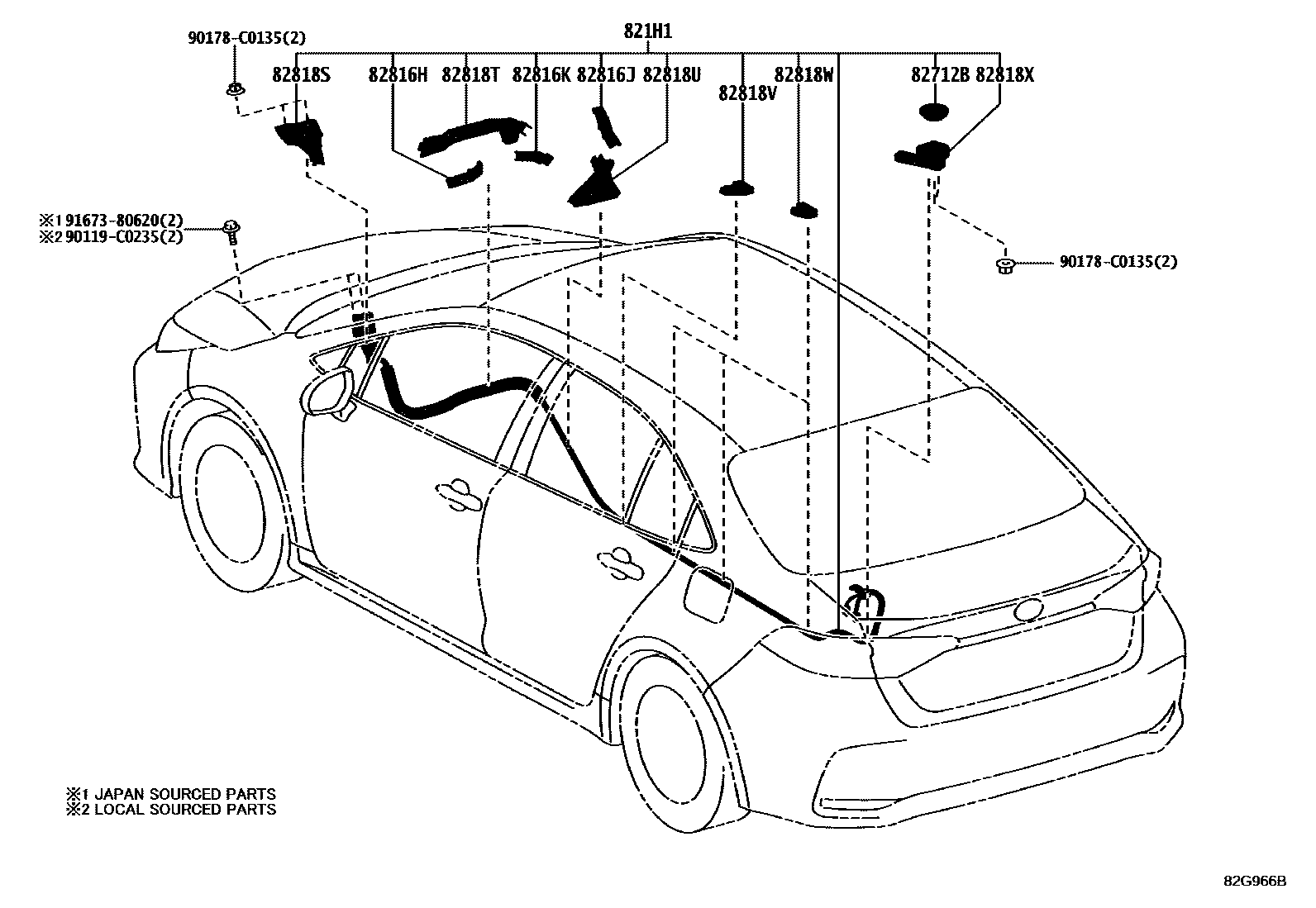

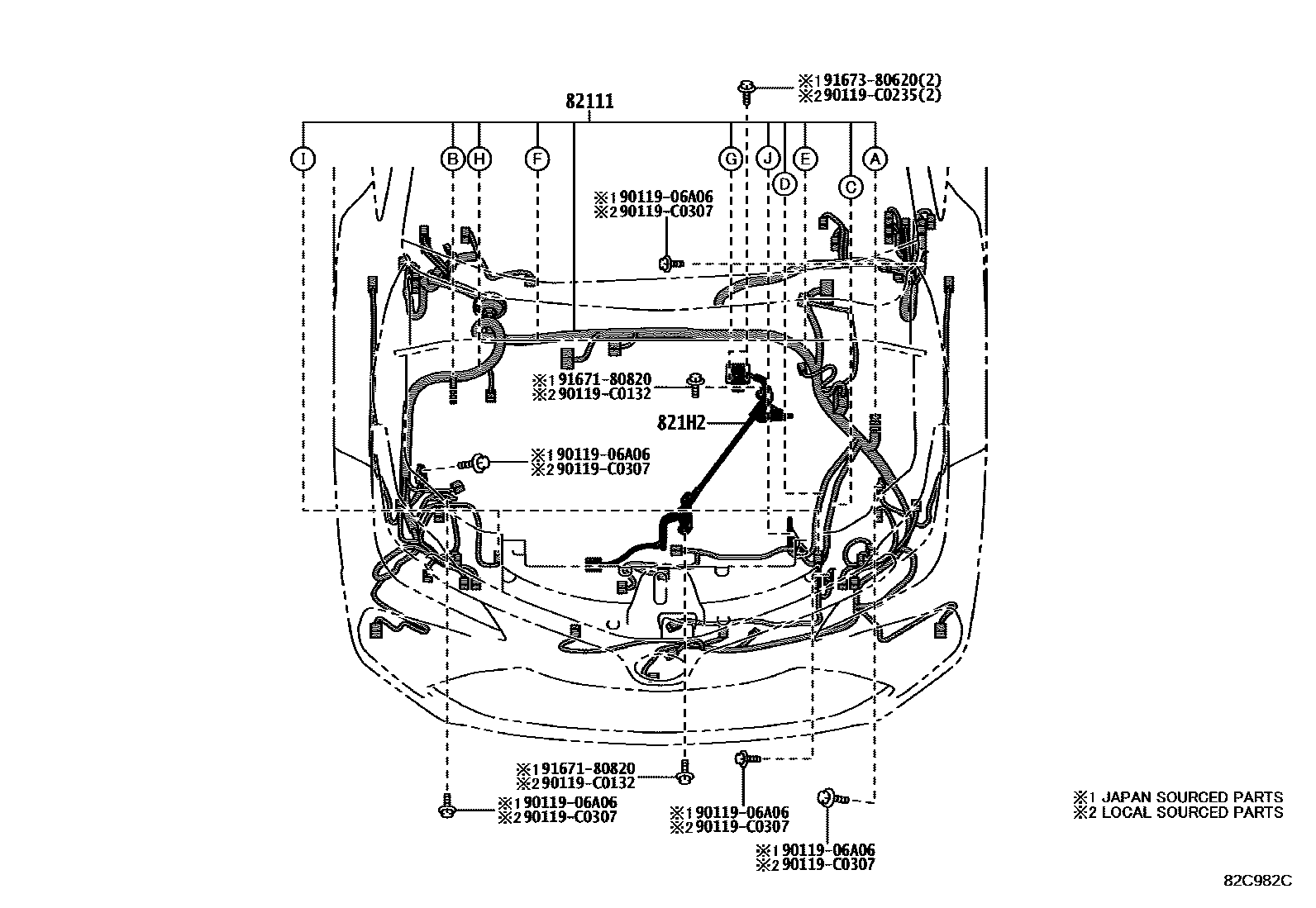

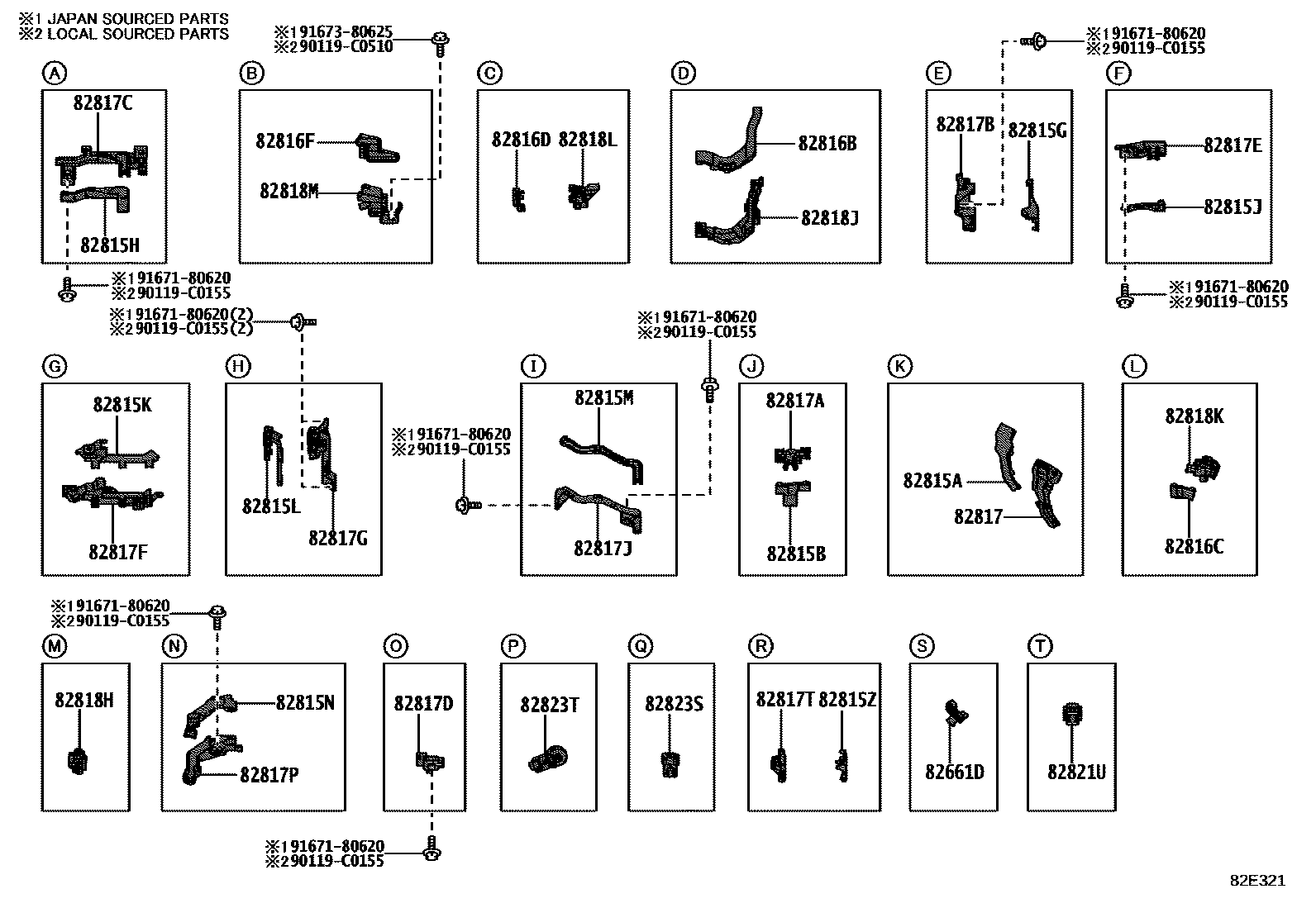

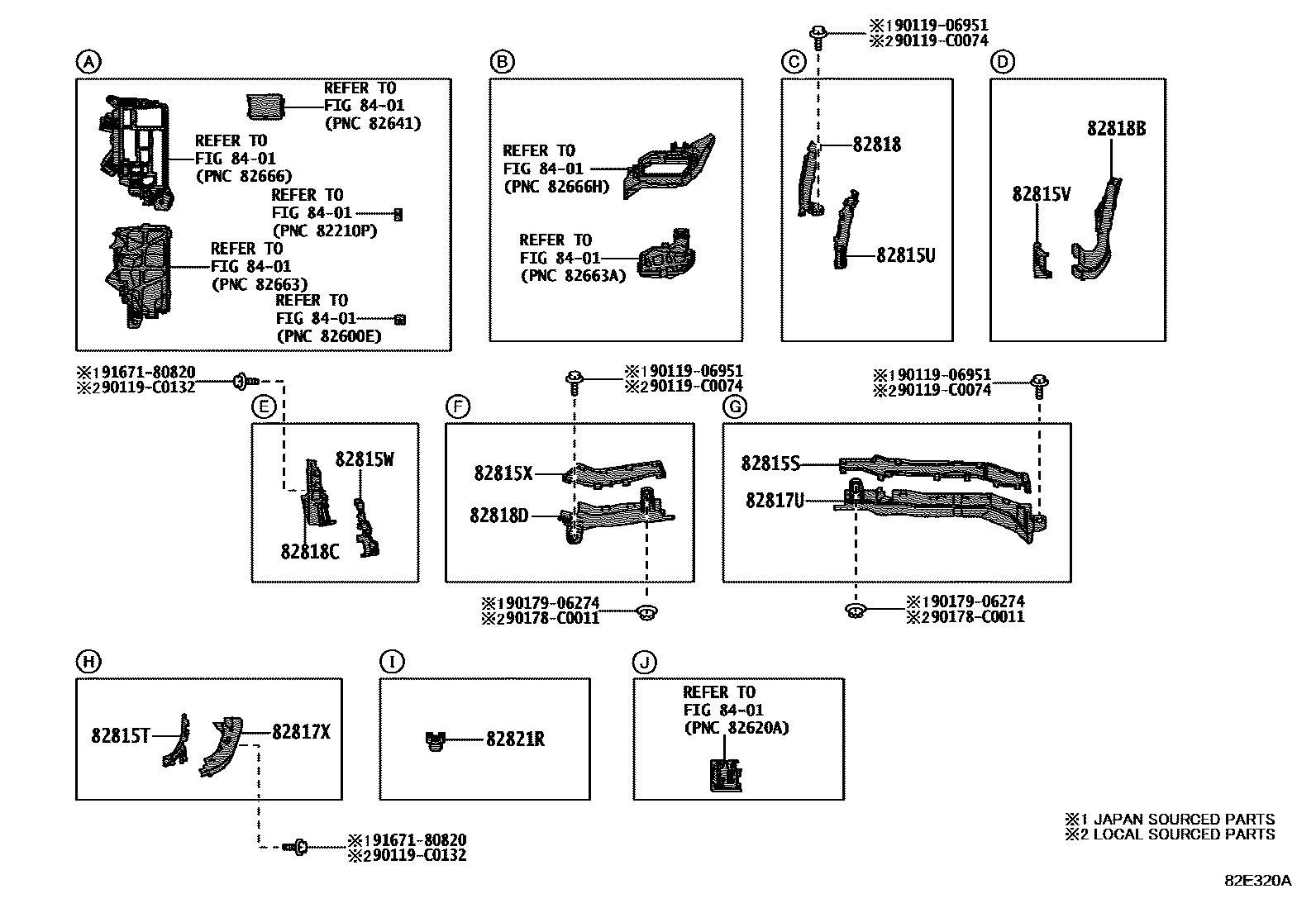

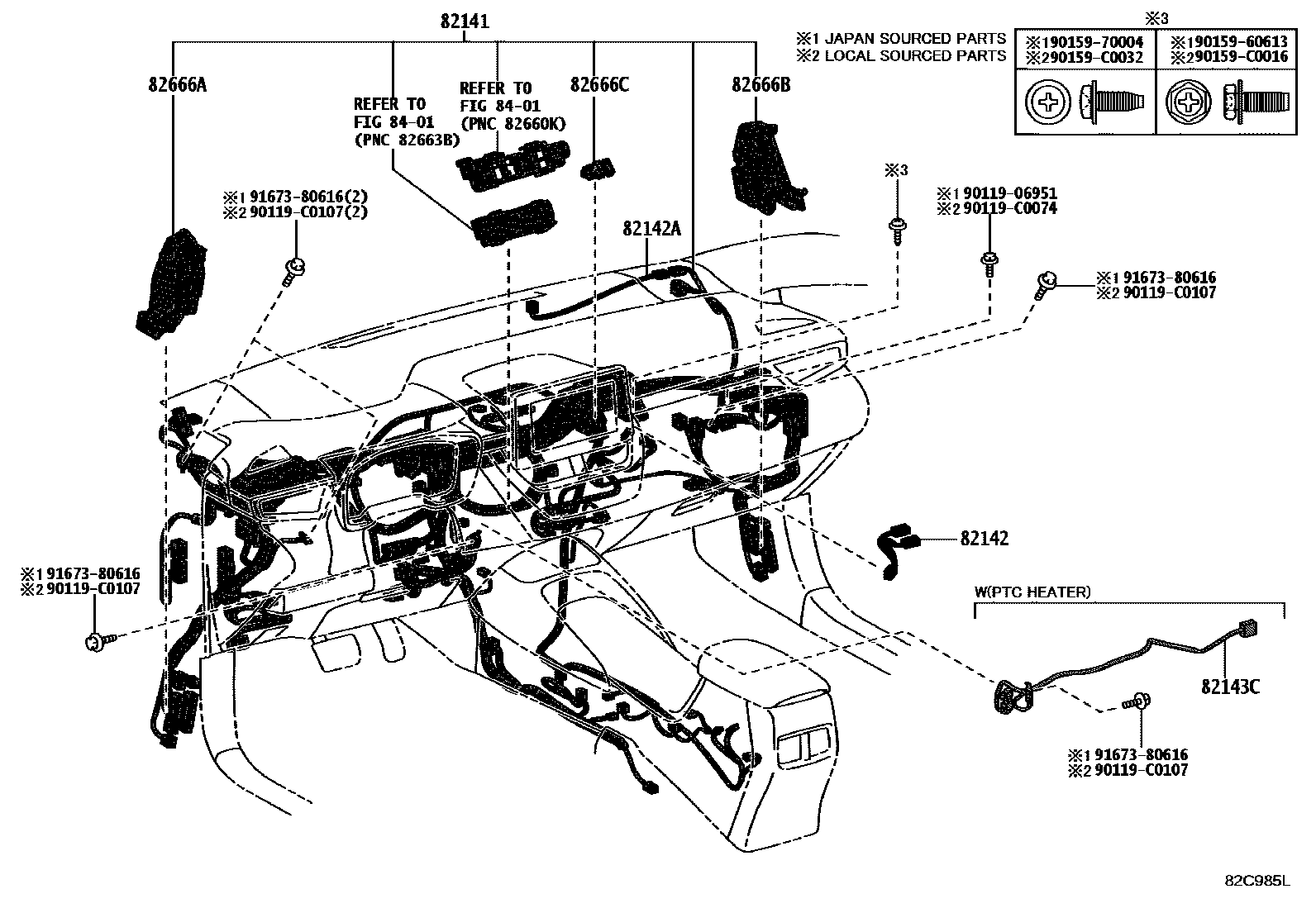

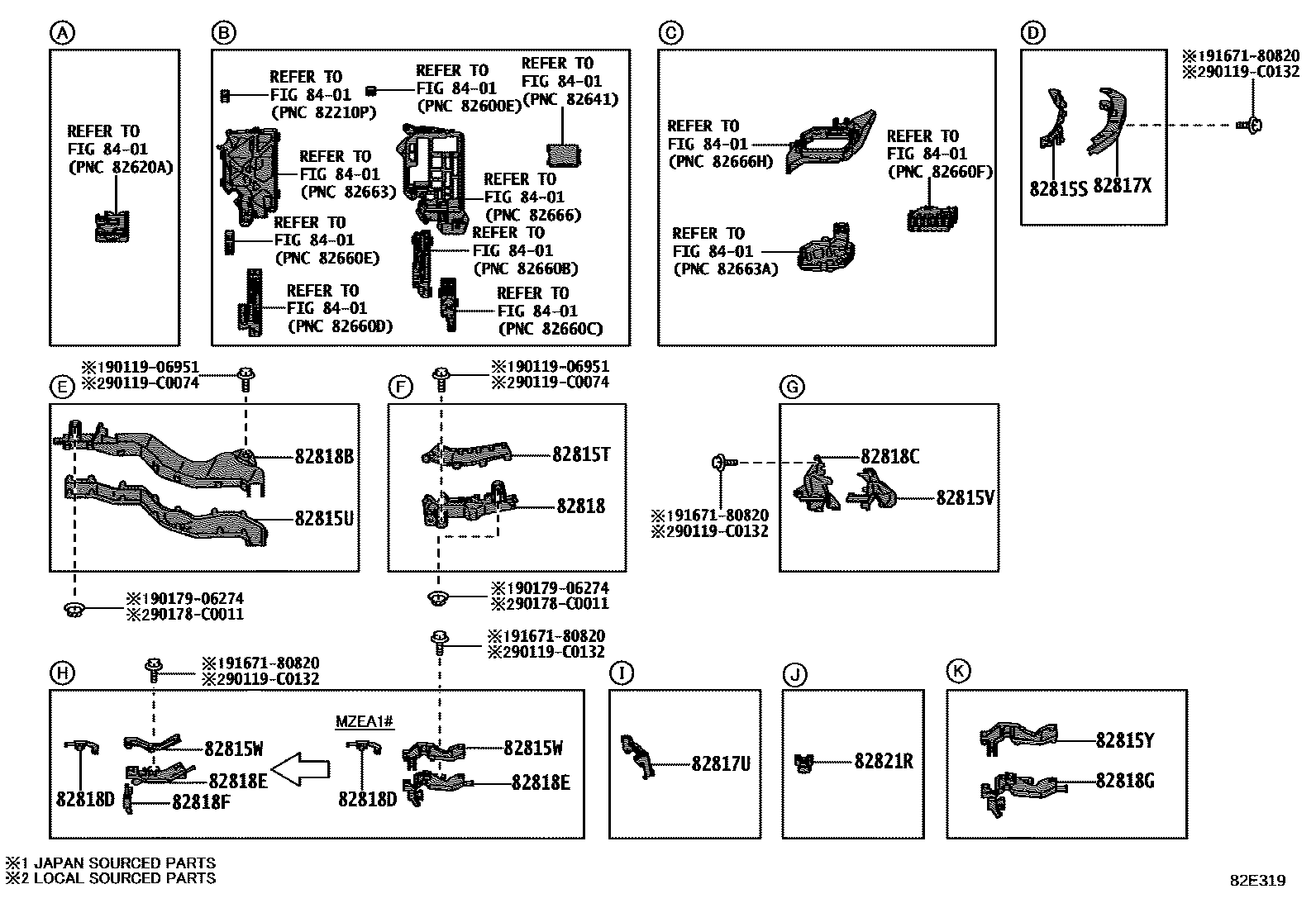

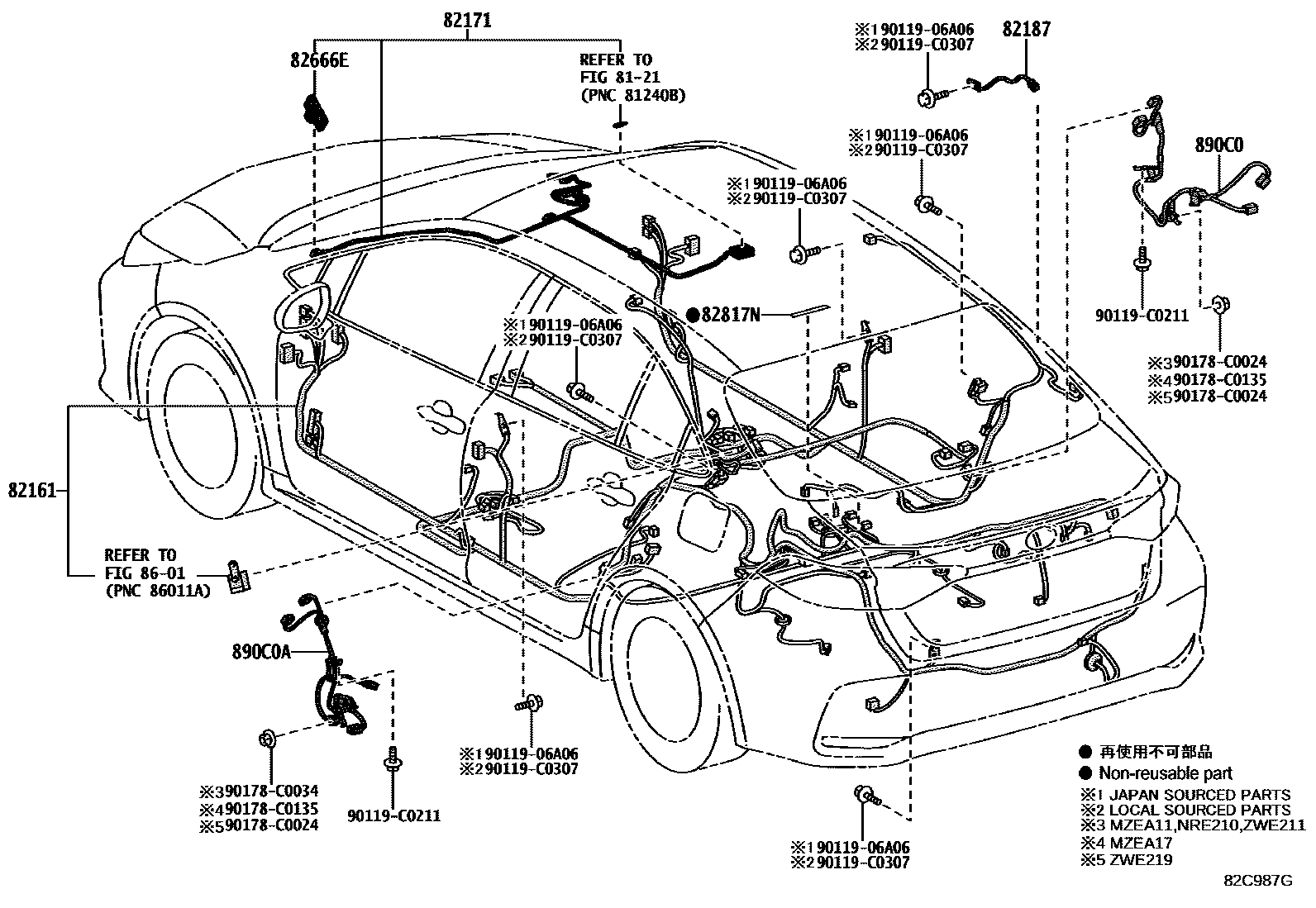

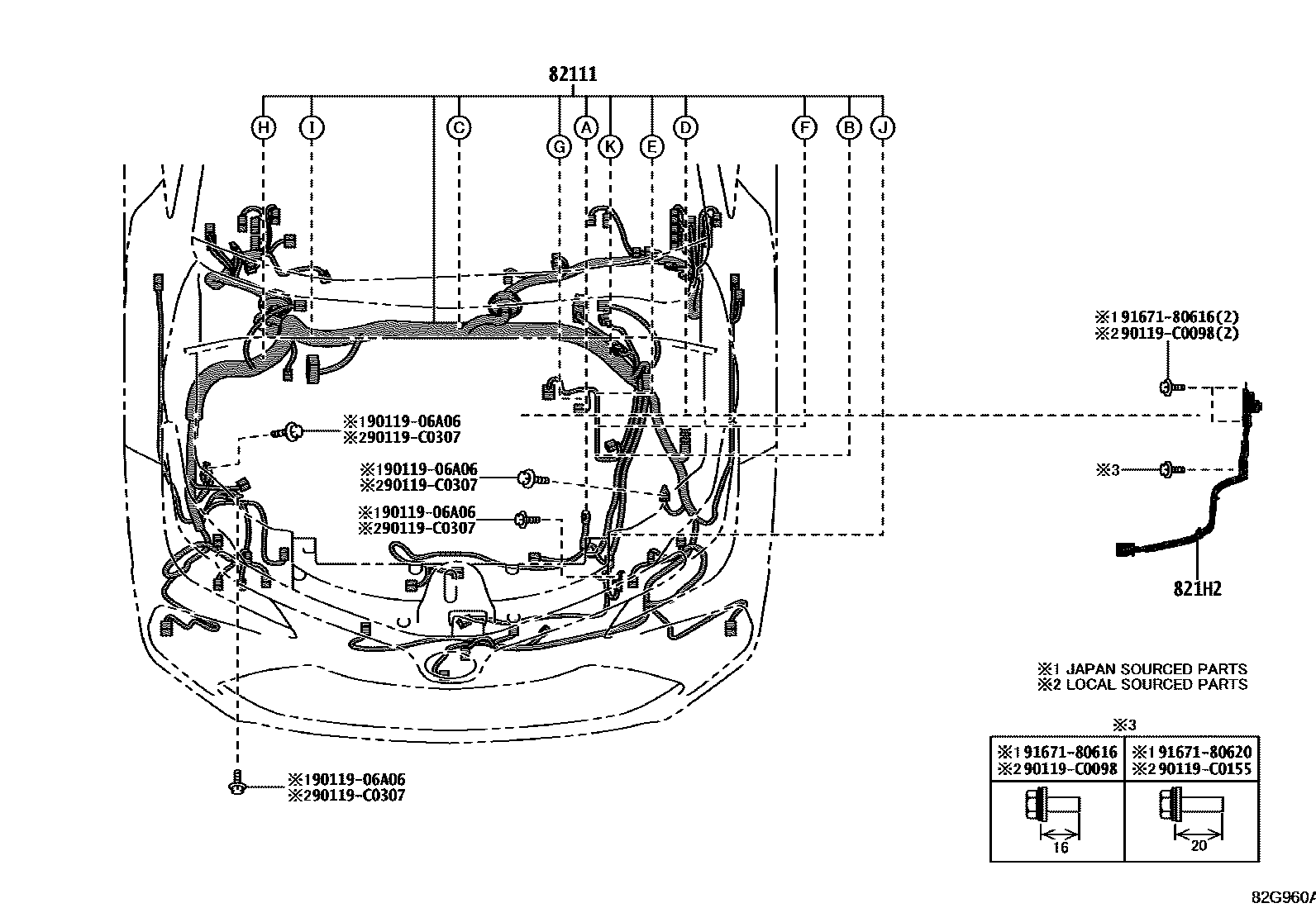

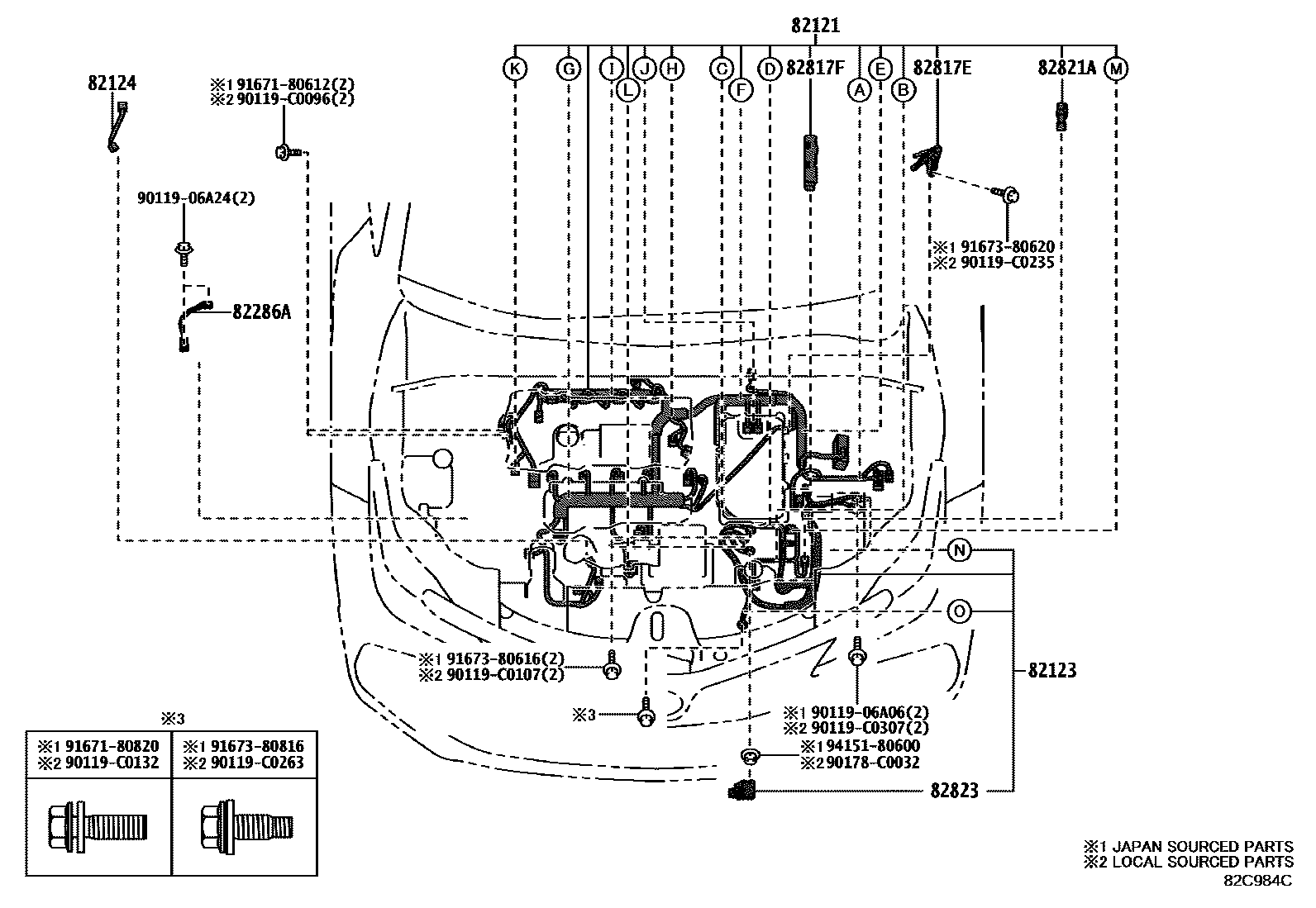

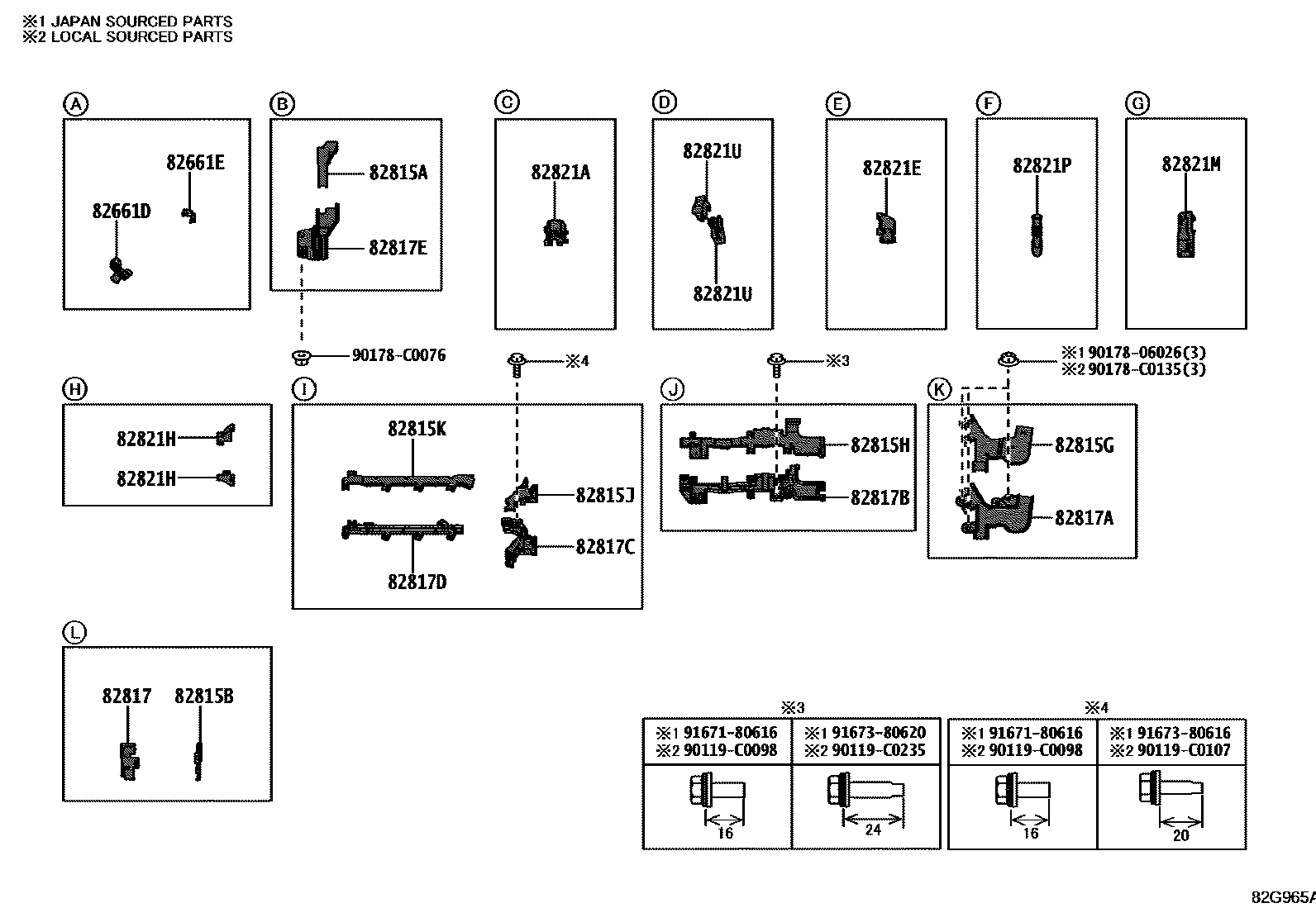

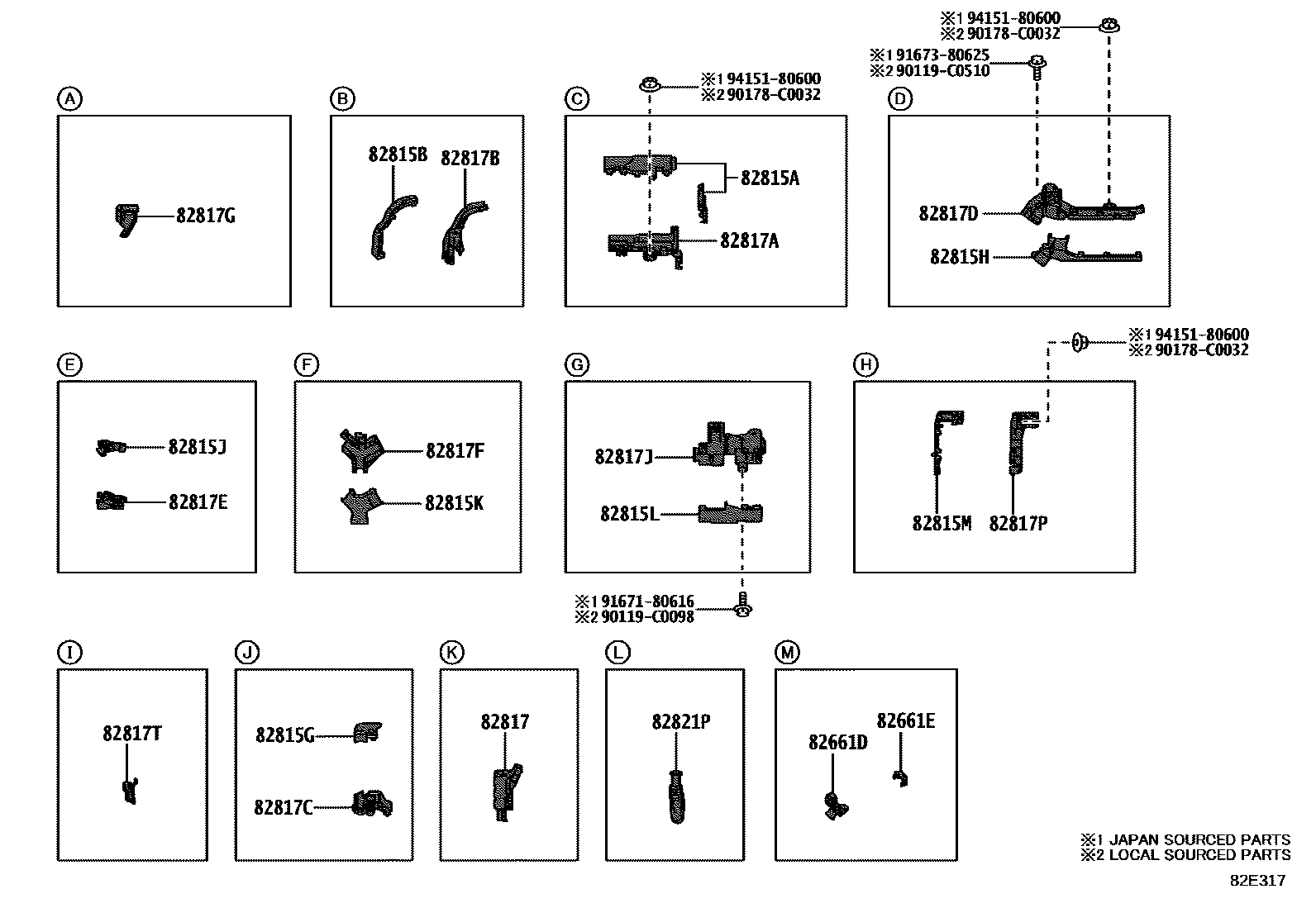

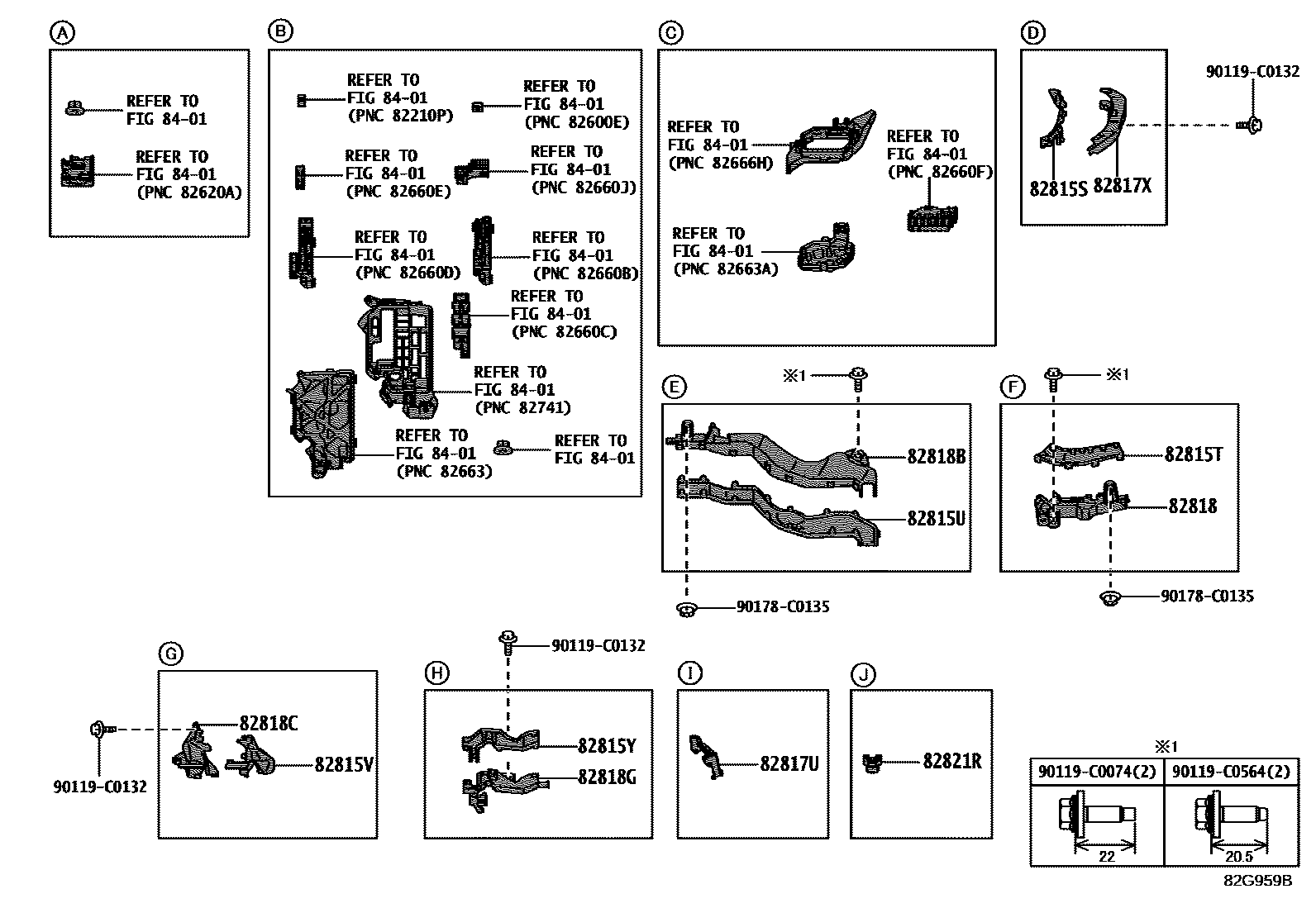

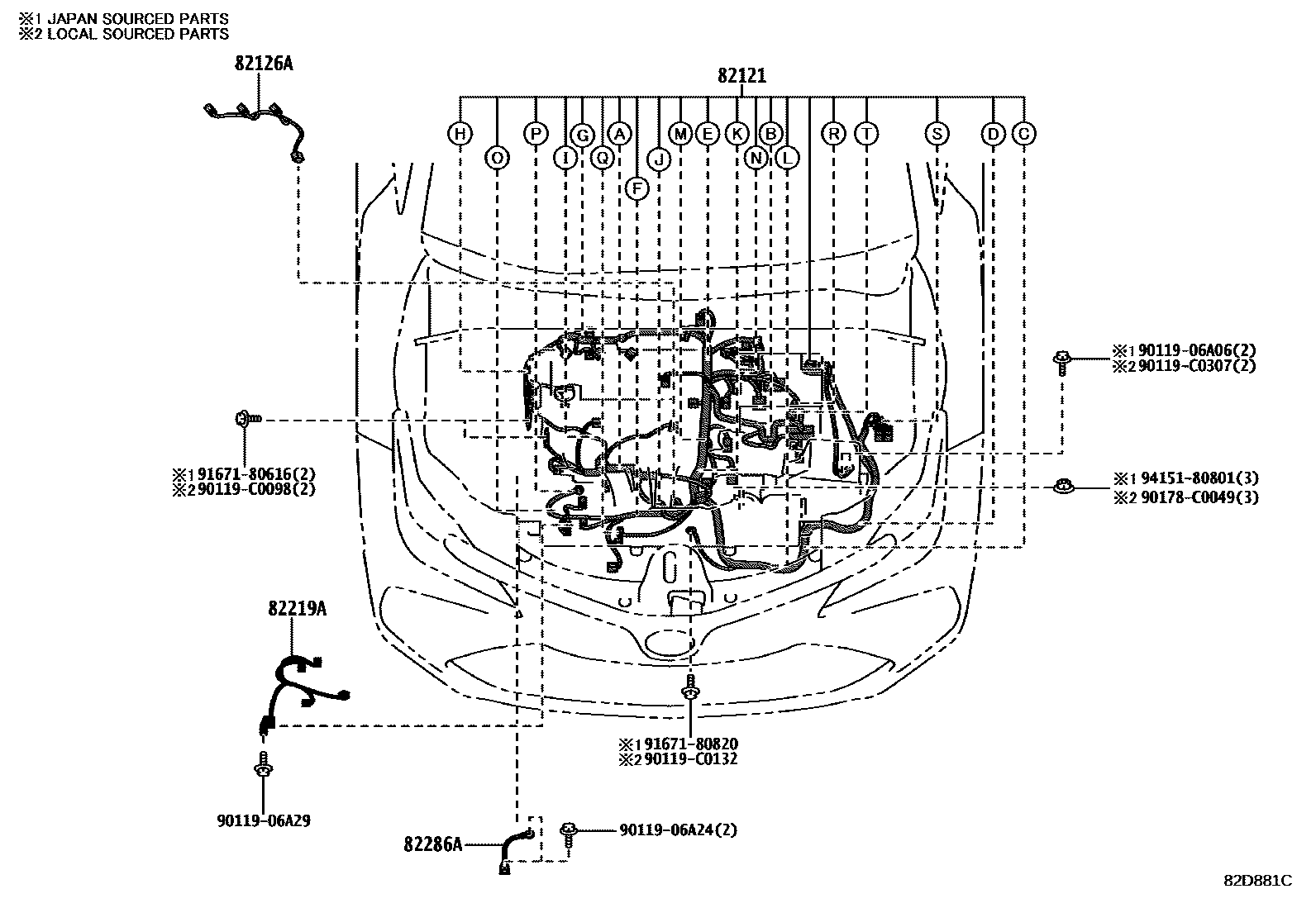

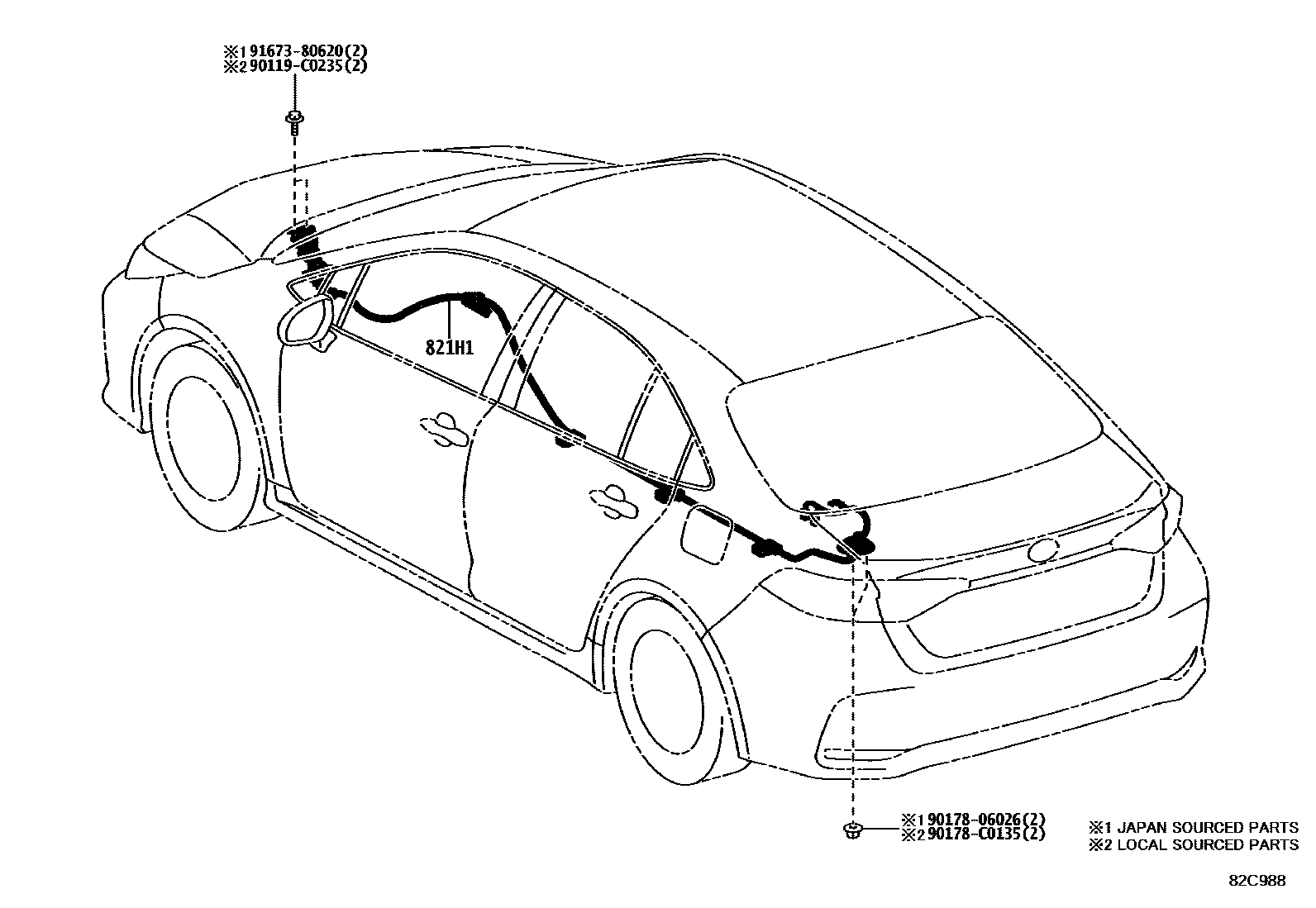

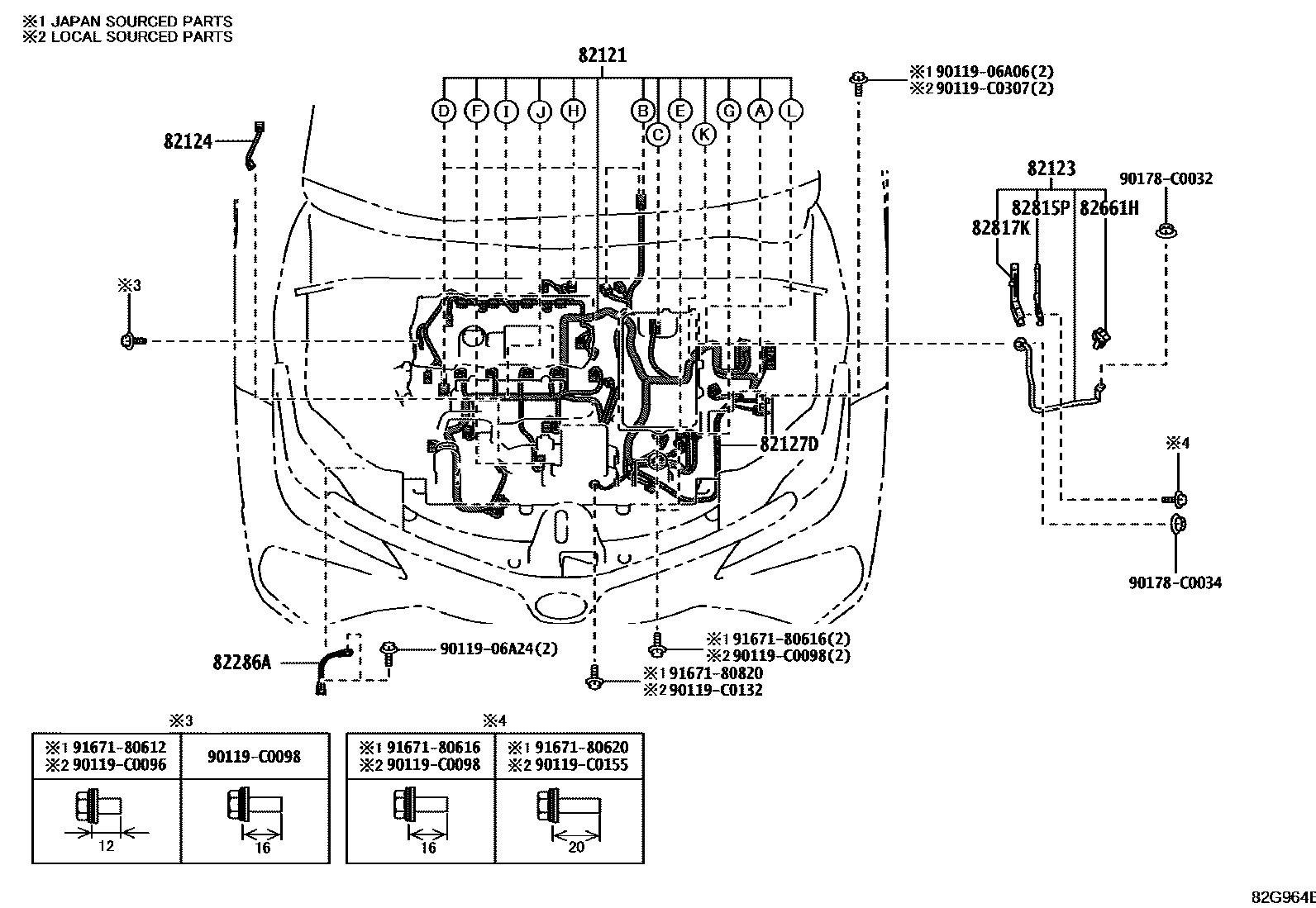

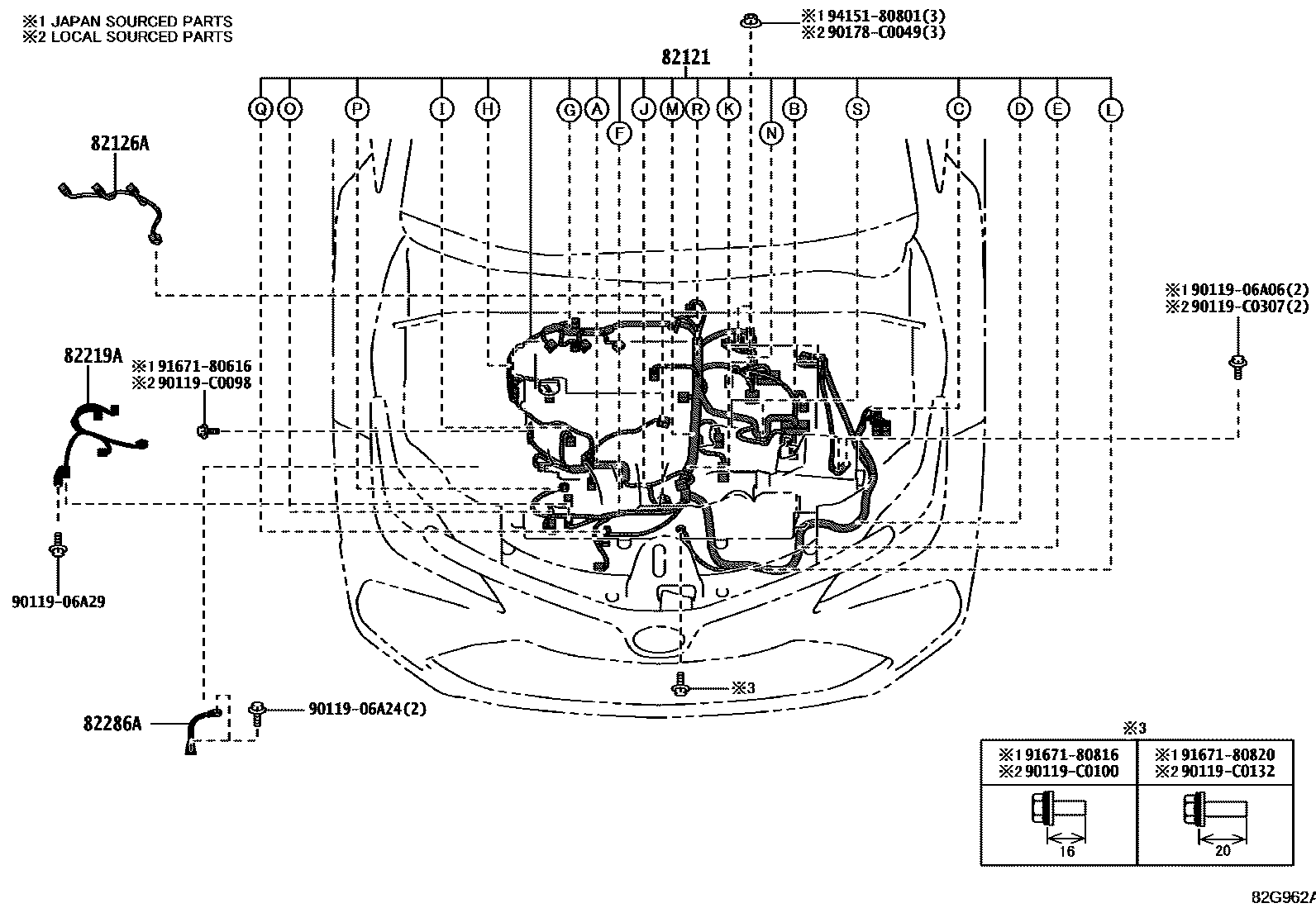

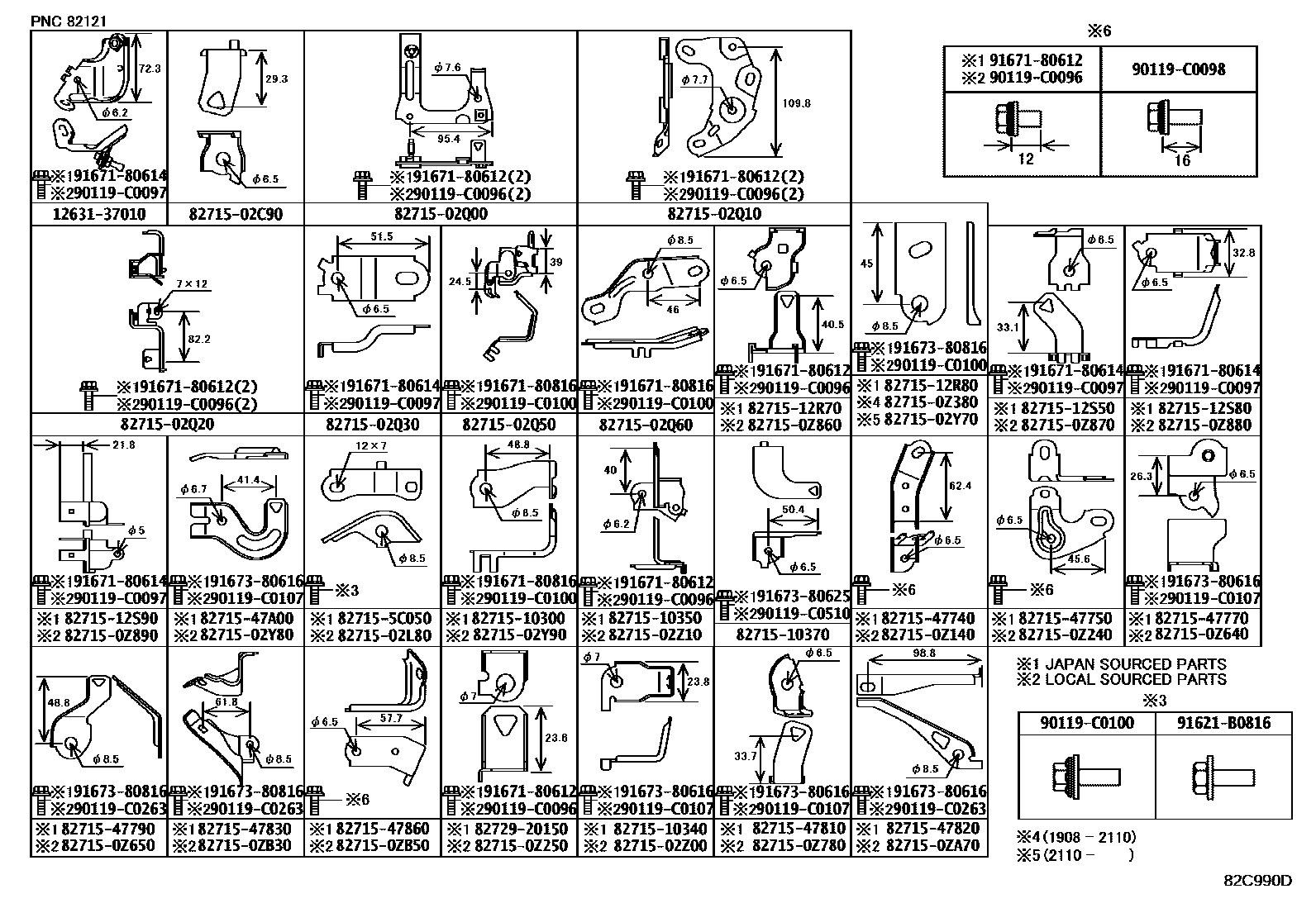

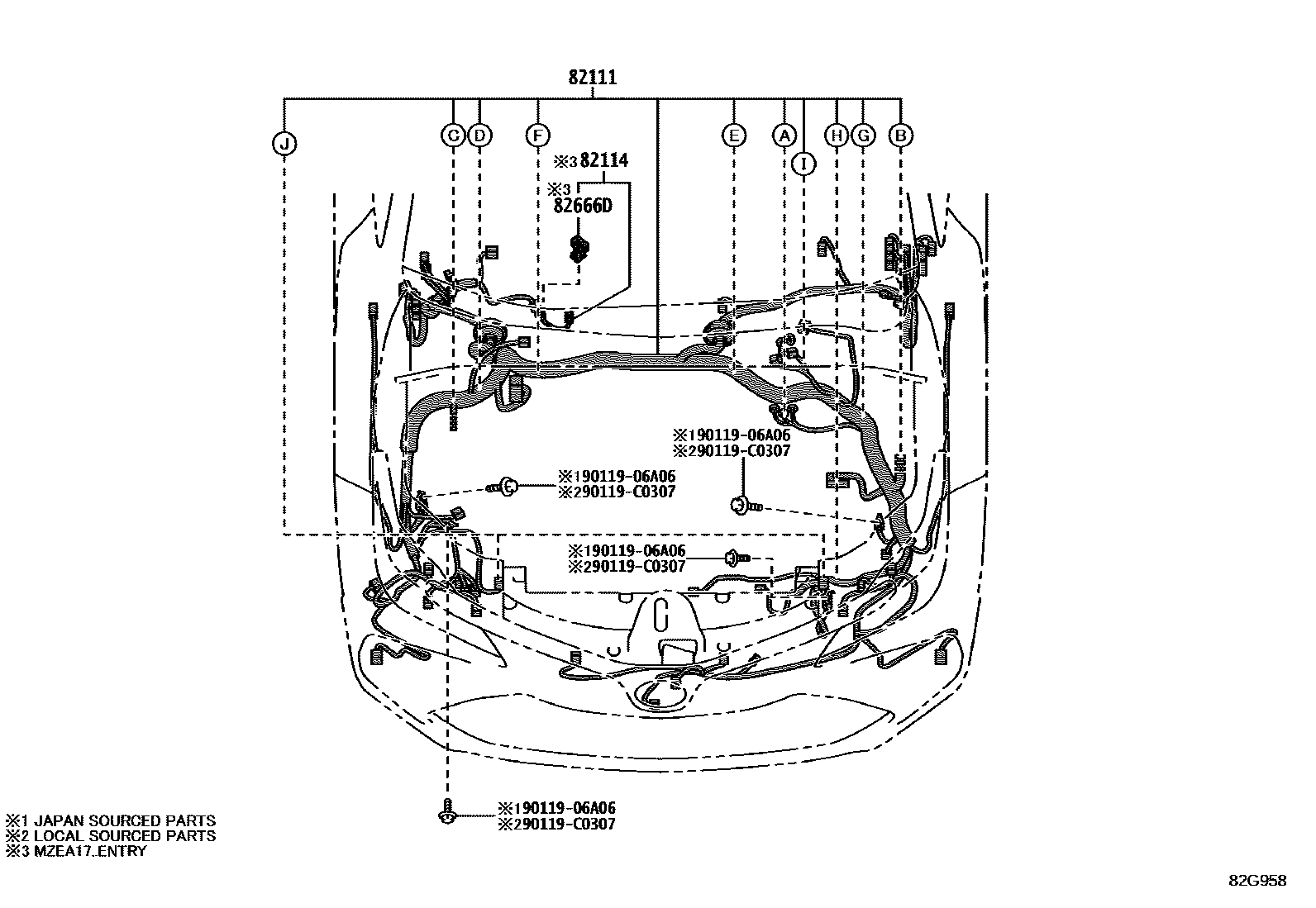

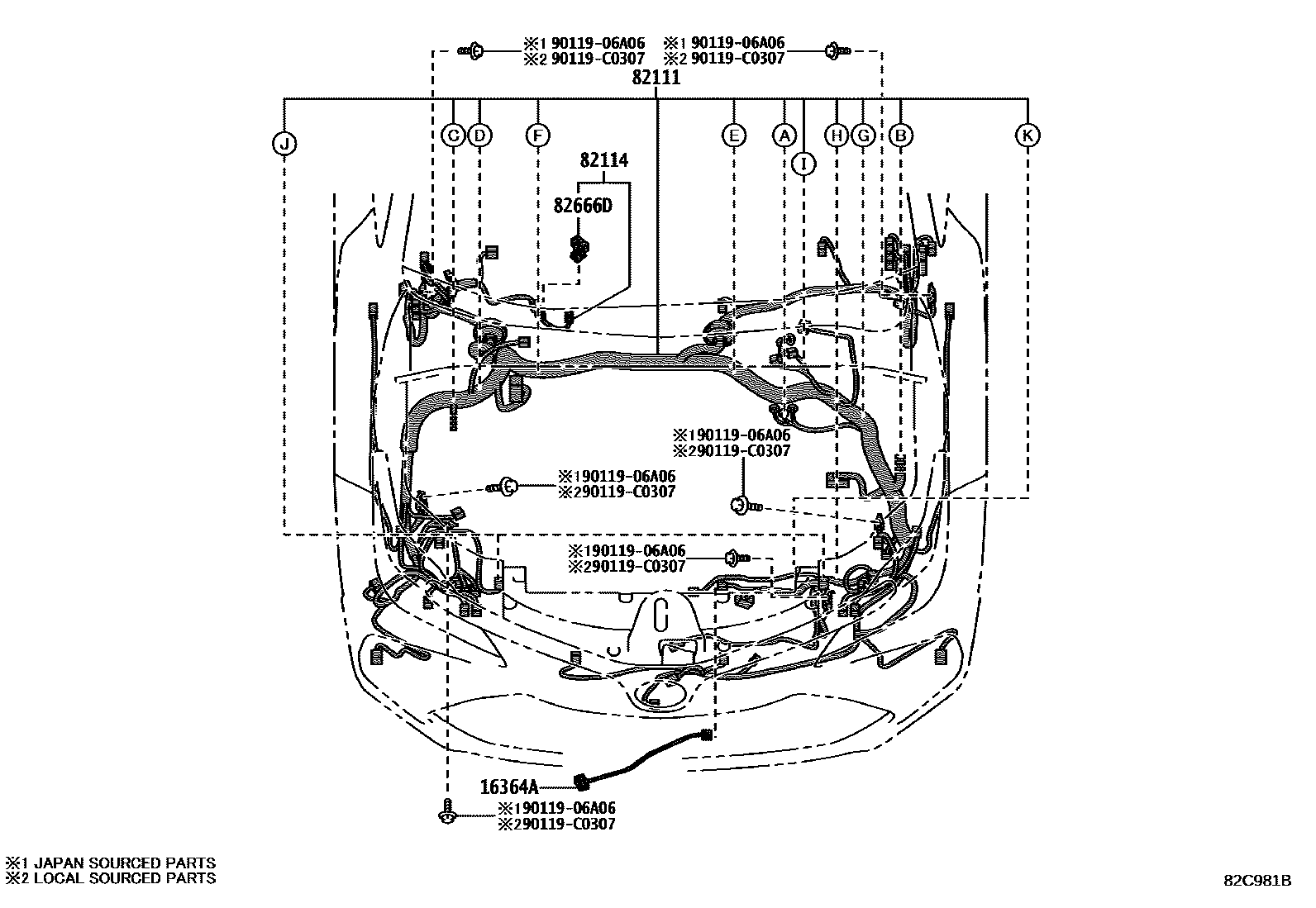

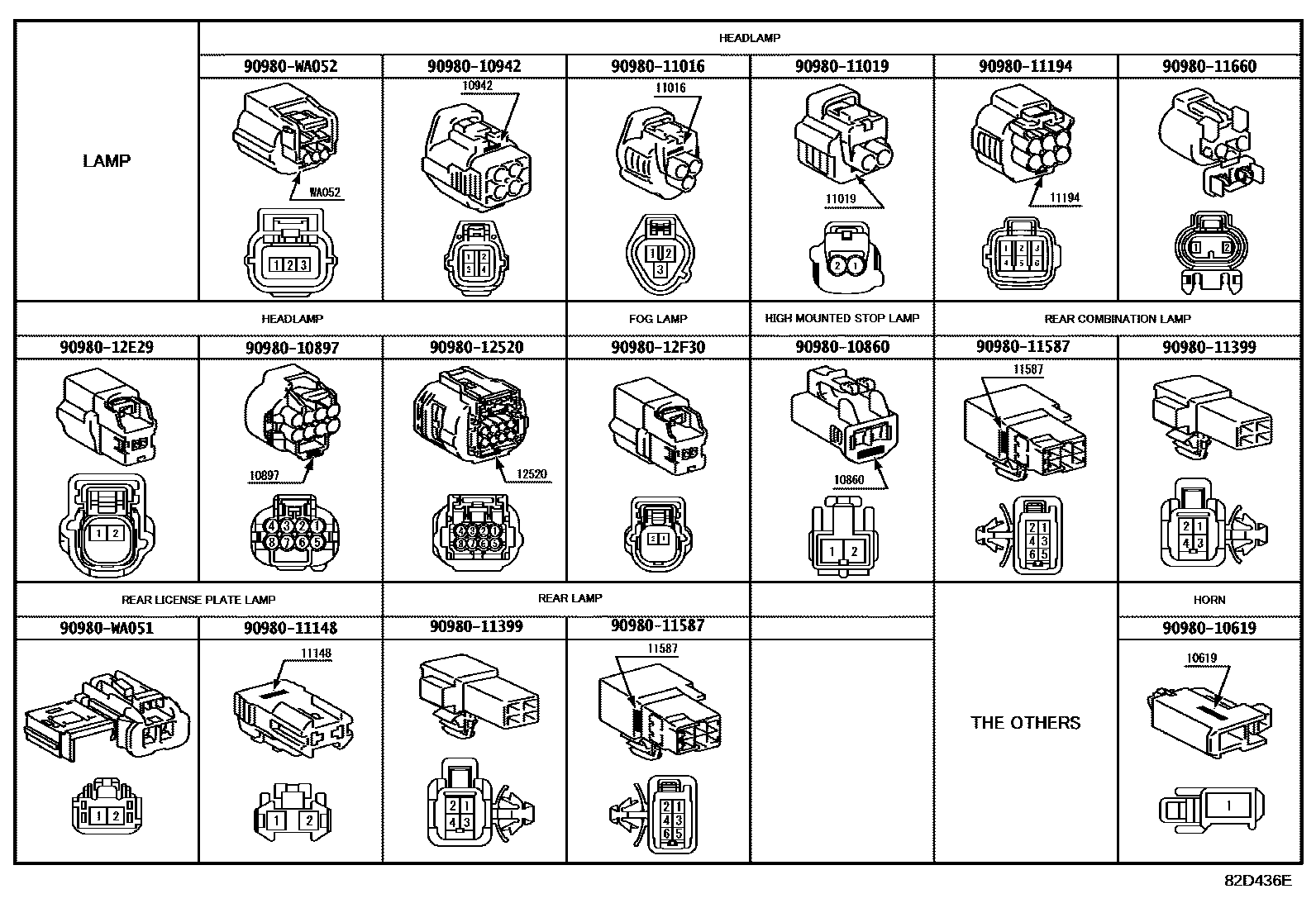

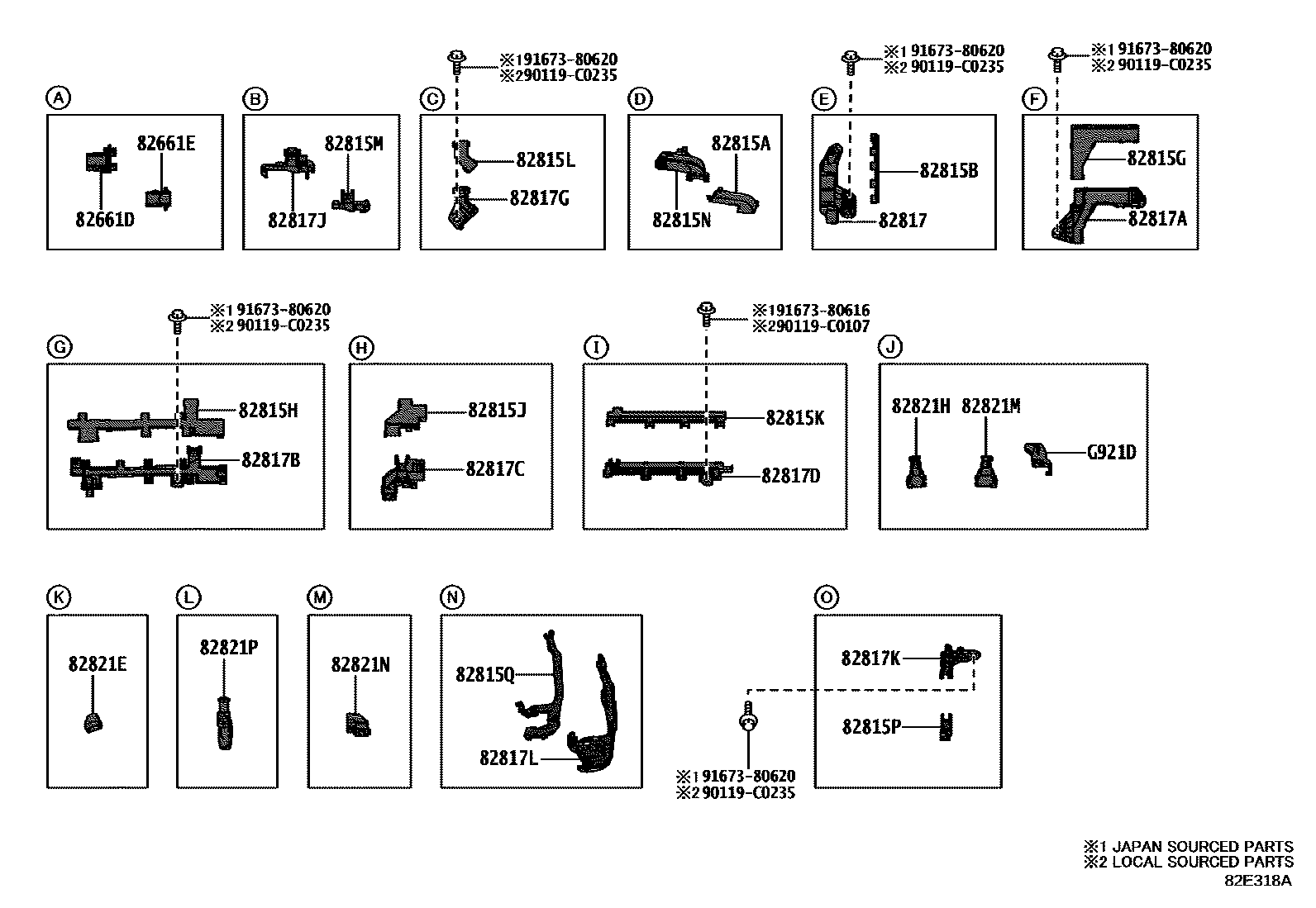

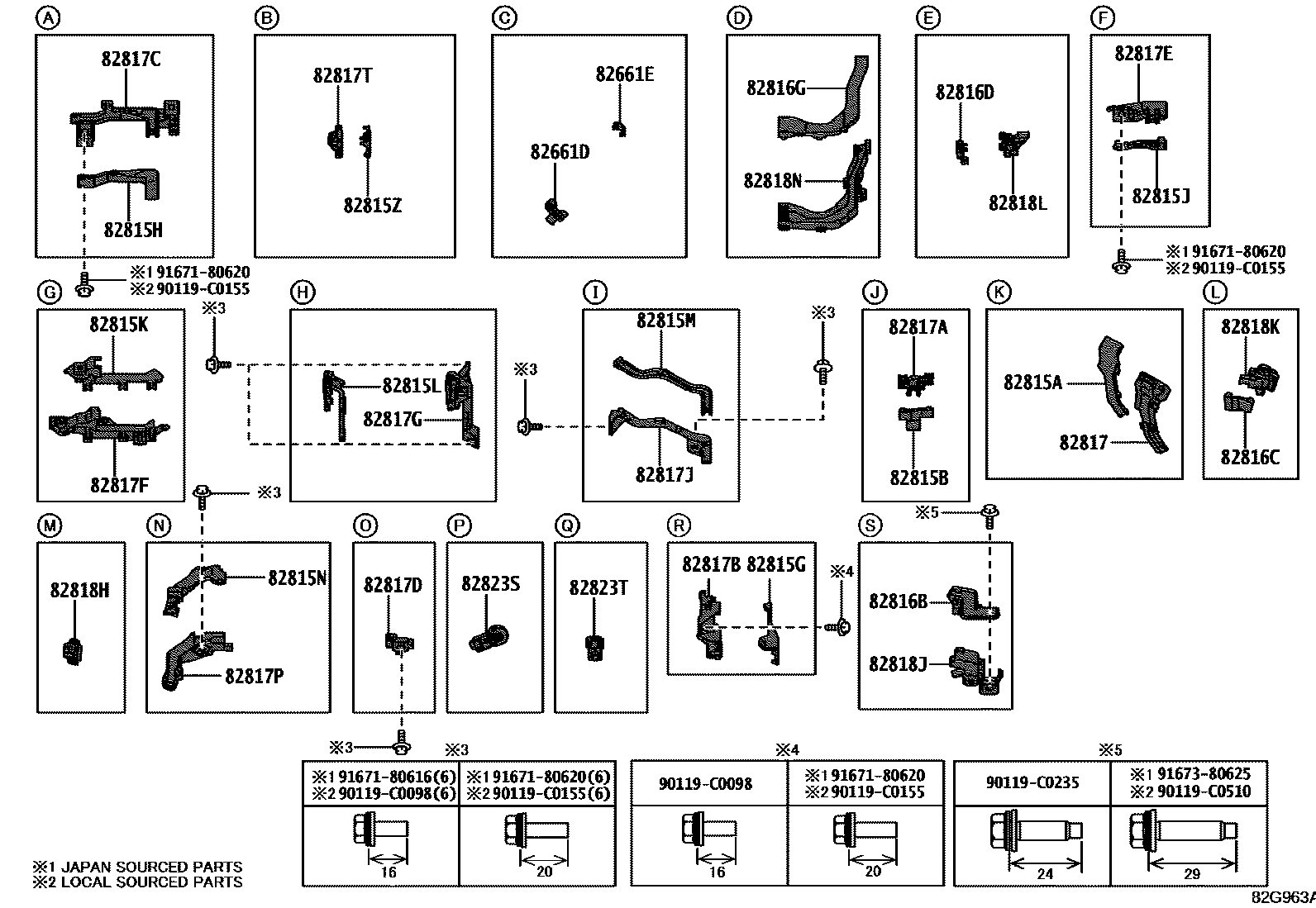

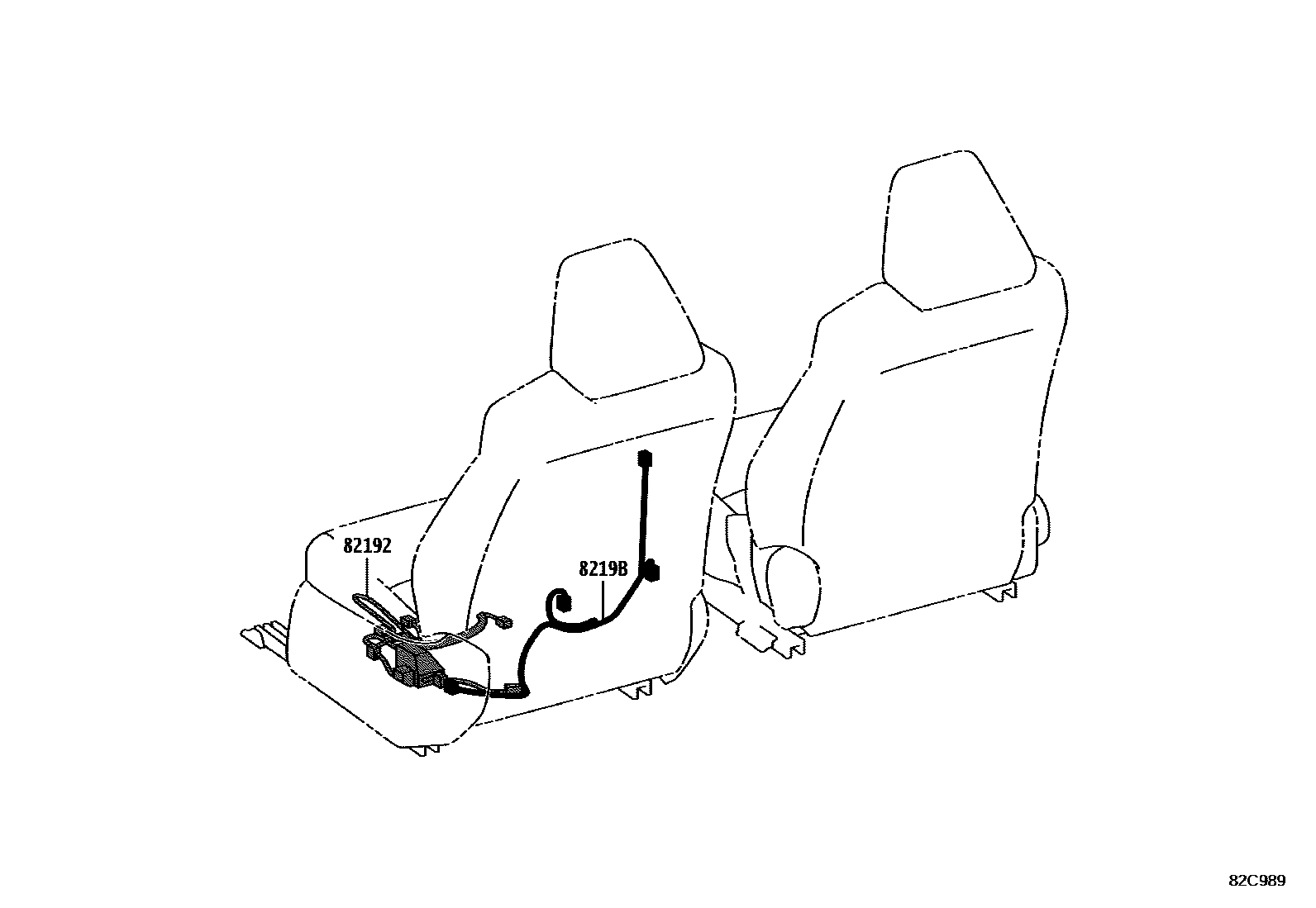

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 29 images and 113 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16364A | Cooling fan harness | 16364-0Y040 |
| 82111 | Engine room main wiring harness | 82111-F2180 · 82111-F2181 · 82111-F2190 · 82111-F2191 · 82111-F2192 · 82111-F2230 · 82111-F2231 · 82111-F2232 · 82111-F2233 · 82111-F2234 · 82111-F2240 · 82111-F2290 · 82111-F2340 · 82111-F2650 · 82111-FE270 · 82111-FE280 · 82111-FE290 · 82111-FEM50 · 82111-FEM60 · 82111-FEM70 · 82111-FEM80 · 82111-FEW40 · 82111-YK050 · 82115-F2620 · 82115-F2621 · 82115-F2622 · 82115-F2623 · 82115-F2624 · 82115-F2625 · 82115-F2630 · 82115-F2631 · 82115-F2632 · 82115-F2640 · 82115-F2670 · 82115-F2671 · 82115-F2680 · 82115-F2B30 · 82115-F2B50 · 82115-F2B51 · 82115-F2K50 · 82115-F2X90 · 82115-F2Y20 · 82116-0ZW50 · 82116-0ZX50 · 82116-0ZX60 |
| 82114 | Engine room wiring harness No. 4 | 82114-02080 |
| 82121 | Engine wiring harness | 82121-0ZK20 · 82121-0ZS20 · 82121-0ZS30 · 82121-0ZS31 · 82121-0ZS32 · 82121-0ZS50 · 82121-0ZX70 · 82121-0ZX80 |
| 82123 | Engine No. 3 wiring harness | 82123-02C10 · 82123-02E10 |
| 82124 | Engine No. 4 wiring harness | 82124-02100 · 82124-02180 · 82124-12170 |
| 82125N | Engine No. 5 wiring harness | 82125-02580 · 82125-12610 |
| 82126A | No. 6 engine wiring harness | 82126-02090 |
| 82127D | Engine No. 7 wiring harness | 82127-02040 |
| 82128A | Engine wiring harness No. 8 | 82128-02010 · 82128-12010 |
| 82141 | Dashboard wiring harness | 82117-0ZK20 · 82117-0ZR11 · 82117-0ZR12 · 82117-0ZR13 · 82117-0ZR14 · 82117-0ZR15 · 82138-0ZR90 · 82138-0ZY50 · 82138-0ZY51 · 82141-F2150 · 82141-F2400 · 82141-F2S80 · 82141-F2S81 · 82141-FE410 · 82141-FE420 · 82141-FE440 · 82141-FEE00 · 82141-FEE10 · 82141-FEZ80 · 82141-FEZ90 · 82141-YK140 · 82141-YK150 · 82145-F2450 · 82145-F2460 · 82145-F2461 · 82145-F2462 · 82145-F2550 · 82145-F2551 · 82145-F2552 · 82145-F2560 · 82145-F2561 · 82145-F2C30 · 82145-F2L30 · 82145-F2L31 · 82145-F2L32 · 82145-F2L40 · 82145-F2L41 · 82145-F2L50 · 82145-F2L51 · 82145-F2L52 · 82145-F2P10 · 82145-F2P11 · 82145-F2P20 · 82145-F2P21 · 82145-F2P30 · 82145-F2P31 · 82145-F2P40 · 82145-F2P41 · 82145-FE840 · 82145-FE850 · 82145-FE851 · 82145-FE852 · 82145-FE853 · 82145-FE860 · 82145-FEX50 |
| 82142 | Instrument panel wiring harness No. 2 | 82140-02500 · 82140-02640 |
| 82142A | Instrument panel wiring harness No. 2 | 82142-12670 |
| 82143C | Instrument panel wiring harness No. 3 | 82143-02140 · 82143-02141 |
| 82151 | Right front door wiring harness | 82151-0ZV10 · 82151-0ZV11 · 82151-0ZV12 · 82151-0ZV20 · 82197-02J80 · 82197-02J90 · 82197-02K00 |
| 82152 | Left front door wiring harness | 82152-0ZT90 · 82152-0ZT91 · 82152-0ZT92 · 82152-0ZU00 · 82198-02E90 · 82198-02F00 · 82198-02F10 |
| 82153 | Rear door wiring harness No. 1 | 82153-02D50 · 82153-02M50 |
| 82154 | Rear door wiring harness No. 2 | 82154-02B80 · 82154-02K70 |
| 82161 | floor wiring harness | 82161-F2520 · 82161-F2530 · 82161-F2W50 · 82161-F2W51 · 82161-F2W52 · 82161-F2W53 · 82161-F2W60 · 82161-F2W70 · 82161-F2W71 · 82161-F2W72 · 82161-F2W73 · 82161-F2X00 · 82161-F2X01 · 82161-F2X02 · 82161-F2X20 · 82161-F2X21 · 82161-F2X22 · 82161-F2X23 · 82161-F2X24 · 82161-F2X25 · 82161-FE710 · 82161-FE720 · 82161-FE730 · 82161-FE740 · 82161-FE750 · 82161-FE760 · 82161-FE770 · 82161-FE780 · 82161-FE790 · 82161-FE800 · 82161-FER60 · 82161-FER70 · 82161-FER90 · 82199-02Y30 · 82199-0Z440 · 82199-0Z450 · 82199-0ZU50 · 82199-0ZV20 · 82199-0ZV21 · 82199-0ZV30 · 82199-0ZV31 · 82199-0ZY60 · 82199-0ZY61 · 82199-0ZY70 · 82199-0ZZ10 · 82199-0ZZ20 · 82199-0ZZ30 · 82199-0ZZ40 · 82199-F2G80 · 82199-F2G90 · 82199-F2G91 · 82199-F2G92 · 82199-F2J00 |
| 82171 | Roof No. 1 wiring harness | 82171-F2530 · 82171-F2540 · 82171-F2541 · 82171-F2550 · 82171-F2A70 · 82171-F2A80 · 82171-F2L10 · 82171-F2L20 · 82171-F2L30 · 82171-F2L40 · 82171-F2X10 · 82171-F2X11 · 82171-F2X12 · 82171-F2X20 · 82171-F2X21 · 82171-F2X22 |
| 82187 | Rear window wiring harness No. 2 | 82187-02380 |
| 82192 | Front left seat wiring harness | 82192-02410 · 82192-02490 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-07010 · 8219B-0E190 |
| 821H1 | Underfloor wiring harness | 821H1-02150 · 821H1-02350 |
| 821H2 | HV air conditioner wiring harness | 821H2-02100 · 821H2-02190 |
| 82219 | Temperature sensor harness | 82219-02120 · 82219-12130 |
| 82219A | sensor harness | 82219-02090 |
| 82286A | Line 2 | 82286-02220 · 82286-02230 · 82286-02240 · 82286-02320 |
| 82661D | No. 1 relay box side cover | 82661-12340 · 82661-47020 · 82661-76020 |
| 82661E | No. 2 relay box side cover | 82661-12350 · 82661-47030 · 82661-76030 |
| 82661H | Relay box cover | 82661-16250 |
| 82666A | Connector holder No. 2 | 82666-12670 |
| 82666B | No. 3 connector holder | 82666-12680 |
| 82666C | No. 4 connector holder | 82666-26180 |
| 82666D | No. 5 connector holder | 82666-42020 |
| 82666E | No. 6 connector holder | 82666-60220 |
| 82712B | Wire harness bracket | 82712-16040 |
| 82815A | Wiring harness protector cover | 82815-02790 · 82815-02C00 · 82815-02K80 · 82815-02M80 |
| 82815B | Wiring harness protector cover | 82815-02810 · 82815-02C20 · 82815-02L00 · 82815-02M90 |
| 82815G | No. 5 wire harness protector cover | 82815-02B80 · 82815-02C10 · 82815-02K60 · 82815-02N00 · 82815-12G90 |
| 82815H | No. 6 wire harness protector cover | 82815-02C30 · 82815-02K30 · 82815-02N10 · 82815-12M30 |
| 82815J | No. 7 wire harness protector cover | 82815-02C40 · 82815-02K50 · 82815-0D580 · 82815-12M40 |
| 82815K | No. 8 wire harness protector cover | 82815-02C50 · 82815-02K40 · 82815-0D600 · 82815-12M50 |
| 82815L | No. 9 wire harness protector cover | 82815-02K70 · 82815-0D620 · 82815-12M60 |
| 82815M | No. 10 wire harness protector cover | 82815-02K90 · 82815-0D630 · 82815-12M70 |
| 82815N | No. 11 wire harness protector cover | 82815-0D640 · 82817-02V10 |
| 82815P | No. 12 wire harness protector cover | 82815-10080 · 82815-V1340 |
| 82815Q | No. 13 wire harness protector cover | 82815-47E50 |
| 82815S | No. 15 wire harness protector cover | 82815-02C60 · 82815-12L00 · 82815-12L50 |
| 82815T | No. 16 wire harness protector cover | 82815-12L10 · 82815-12L60 · 82815-16300 |
| 82815U | No. 17 wire harness protector cover | 82815-12L20 · 82815-16310 · 82815-47880 |
| 82815V | No. 1 wire harness protector cover | 82815-12L30 · 82815-47C20 |
| 82815W | No. 2 wire harness protector cover | 82815-12L40 · 82815-47C80 |
| 82815X | No. 3 wire harness protector cover | 82815-47D20 |
| 82815Y | No. 4 wire harness protector cover | 82815-12D10 |
| 82815Z | No. 18 wire harness protector cover | 82815-0D650 |
| 82816B | No. 1 wire harness protector cover | 82815-02B90 · 82815-F4470 |
| 82816C | No. 2 wire harness protector cover | 82815-F4530 |
| 82816D | No. 3 wire harness protector cover | 82815-F4540 |
| 82816F | No. 4 wire harness protector cover | 82815-F4610 |
| 82816G | No. 5 wire harness protector cover | 82815-F4470 |
| 82816H | No. 6 wire harness protector cover | 82815-16140 |
| 82816J | No. 7 wire harness protector cover | 82815-16150 |
| 82816K | No. 8 wire harness protector cover | 82815-16290 |
| 82817 | No. 1 wire harness protection device | 82817-02M10 · 82817-02S00 · 82817-02V30 · 82817-02X20 |
| 82817A | No. 2 wire harness protection device | 82817-02M20 · 82817-02R90 · 82817-02U90 · 82817-02X30 |
| 82817B | No. 3 wire harness protection device | 82817-02M30 · 82817-02R60 · 82817-02S10 · 82817-02U60 · 82817-02X40 |
| 82817C | No. 4 wire harness protection device | 82817-02S20 · 82817-02U80 · 82817-02X50 · 82817-12W40 |
| 82817D | No. 5 wire harness protection device | 82817-02S30 · 82817-02U70 · 82817-0DA00 · 82817-1AA10 |
| 82817E | No. 6 wire harness protection device | 82817-02R80 · 82817-02V40 · 82817-0DF10 · 82817-1AA20 |
| 82817F | No. 7 wire harness protection device | 82817-02V50 · 82817-0DF30 · 82817-1AA30 |
| 82817G | No. 8 wire harness protection device | 82817-02V00 · 82817-0DF50 · 82817-1AA40 |
| 82817J | No. 9 wire harness protection device | 82817-02V20 · 82817-0DF60 · 82817-1AA50 |
| 82817K | No. 10 wire harness protection device | 82817-10360 · 82817-V1510 |
| 82817L | No. 11 wire harness protection device | 82817-47Q20 |
| 82817N | No. 13 wire harness protection device | 82817-52A60 |
| 82817P | No. 14 wire harness protection device | 82817-0DF70 · 82817-1AA60 |
| 82817T | No. 15 wire harness protection device | 82817-0DF80 · 82817-1AA70 |
| 82817U | No. 16 wire harness protection device | 82817-02R10 · 82817-12W30 · 82817-12Z30 |
| 82817X | No. 17 wire harness protection device | 82817-02R20 · 82817-12Y70 · 82817-12Z40 |
| 82818 | No. 2 wire harness protection device | 82817-02R50 · 82817-12Y80 · 82817-47N30 |
| 82818B | No. 3 wire harness protection device | 82817-02S40 · 82817-12Y90 · 82817-47N40 |
| 82818C | No. 4 wire harness protection device | 82817-12Z00 · 82817-16770 · 82817-47N50 |
| 82818D | No. 5 wire harness protection device | 82817-12Z10 · 82817-16780 · 82817-47N90 |
| 82818E | No. 6 wire harness protection device | 82817-12Z20 · 82817-16A10 |
| 82818F | No. 7 wire harness protection device | 82817-12Z50 · 82817-16A20 |
| 82818G | No. 8 wire harness protection device | 82817-12V50 · 82817-16A30 |
| 82818H | No. 9 wire harness protection device | 82817-0DG10 |
| 82818J | No. 10 wire harness protection device | 82817-02R70 · 82817-F4660 |
| 82818K | No. 11 wire harness protection device | 82817-F4750 |
| 82818L | No. 12 wire harness protection device | 82817-F4760 |
| 82818M | No. 13 wire harness protection device | 82817-F4830 |
| 82818N | No. 14 wire harness protection device | 82817-F4660 |
| 82818S | No. 15 wire harness protection device | 82817-16700 |
| 82818T | No. 16 wire harness protection device | 82817-16710 |
| 82818U | No. 17 wire harness protection device | 82817-16720 |
| 82818V | No. 18 wire harness protection device | 82817-16730 |
| 82818W | No. 19 wire harness protection device | 82817-16740 |
| 82818X | No. 20 wire harness protection device | 82817-16750 |
| 82821A | Connector cover | 82821-28420 · 82821-47330 |
| 82821E | Connector cover | 82821-20410 · 82821-33690 |
| 82821H | Connector cover | 82821-33720 · 82821-47420 |
| 82821M | Connector cover | 82821-47430 · 82821-V1030 |
| 82821N | Connector cover | 82821-50500 |
| 82821P | Connector cover | 82821-60100 |
| 82821R | Connector cover | 82821-30650 |
| 82821U | Connector cover | 82821-30600 |
| 82823 | No. 1 terminal cover | 82823-47050 |
| 82823S | starter terminal cover | 28192-0Y010 · 28192-0Y030 · 82823-12120 |
| 82823T | Generator terminal cover | 82823-22050 · 82823-K0030 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-02130 · 890C0-02210 · 890C0-02230 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-02140 · 890C0-02220 · 890C0-02240 |
| G921D | Inverter Connector Cover Protector | G921D-47020 |
