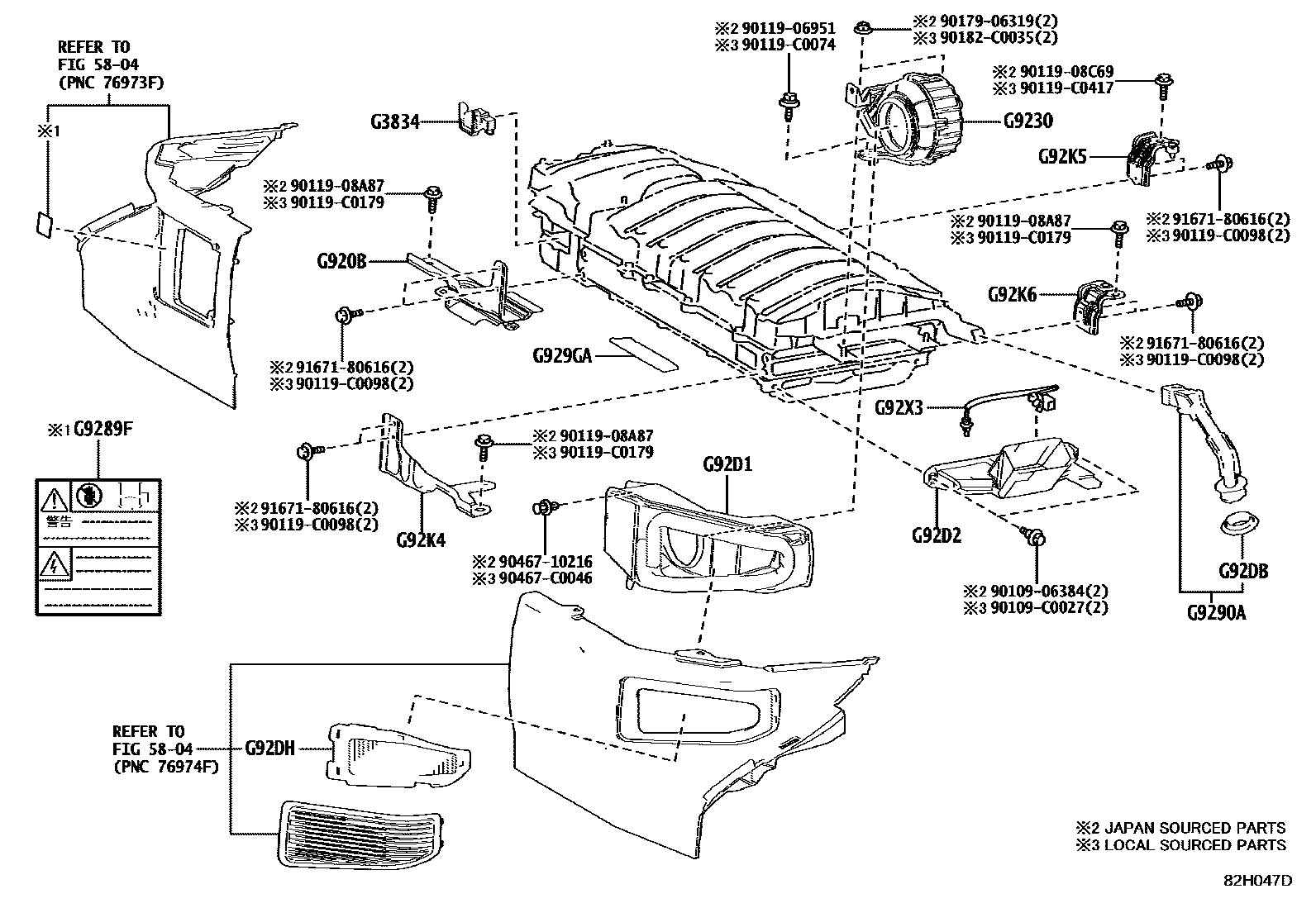

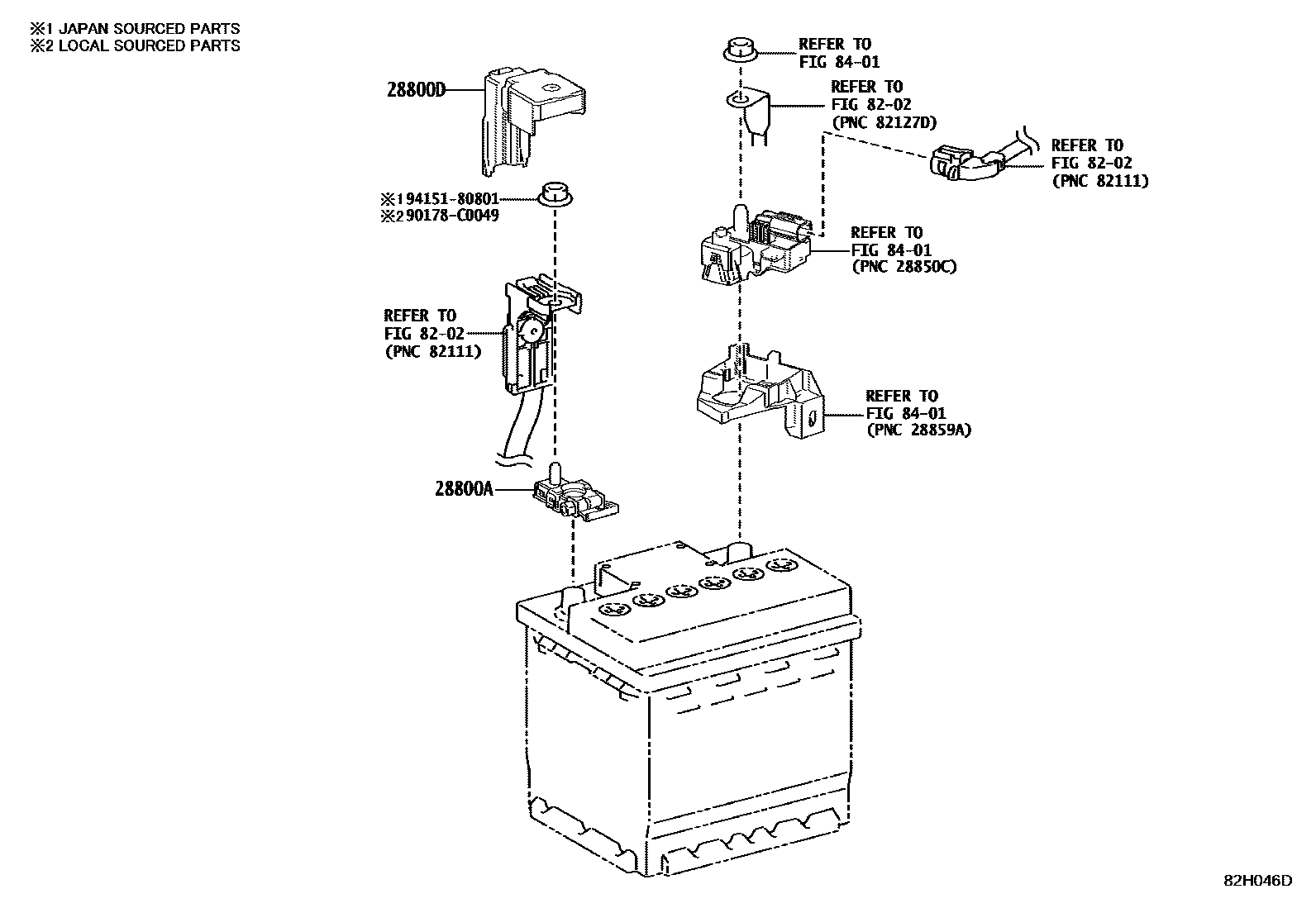

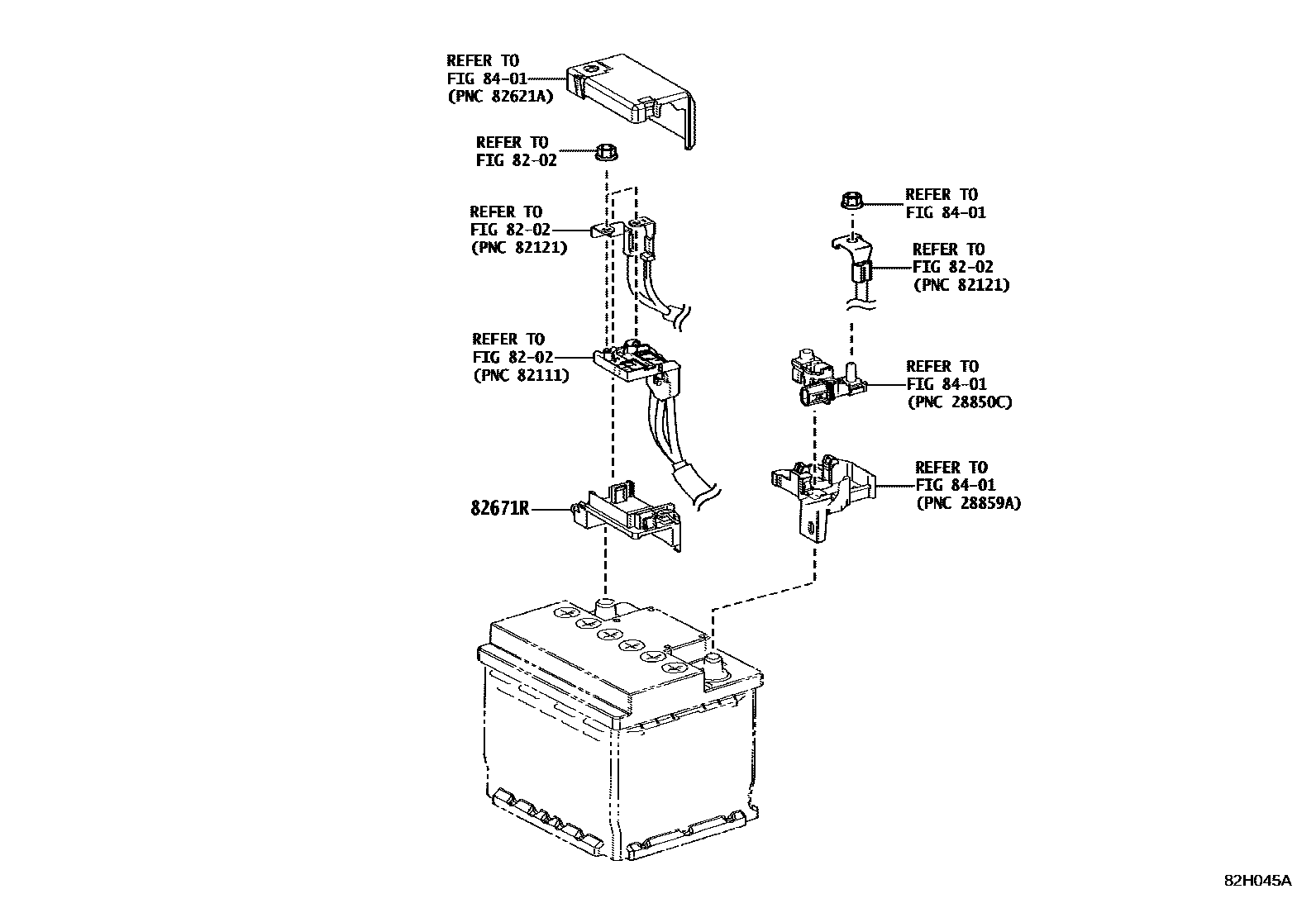

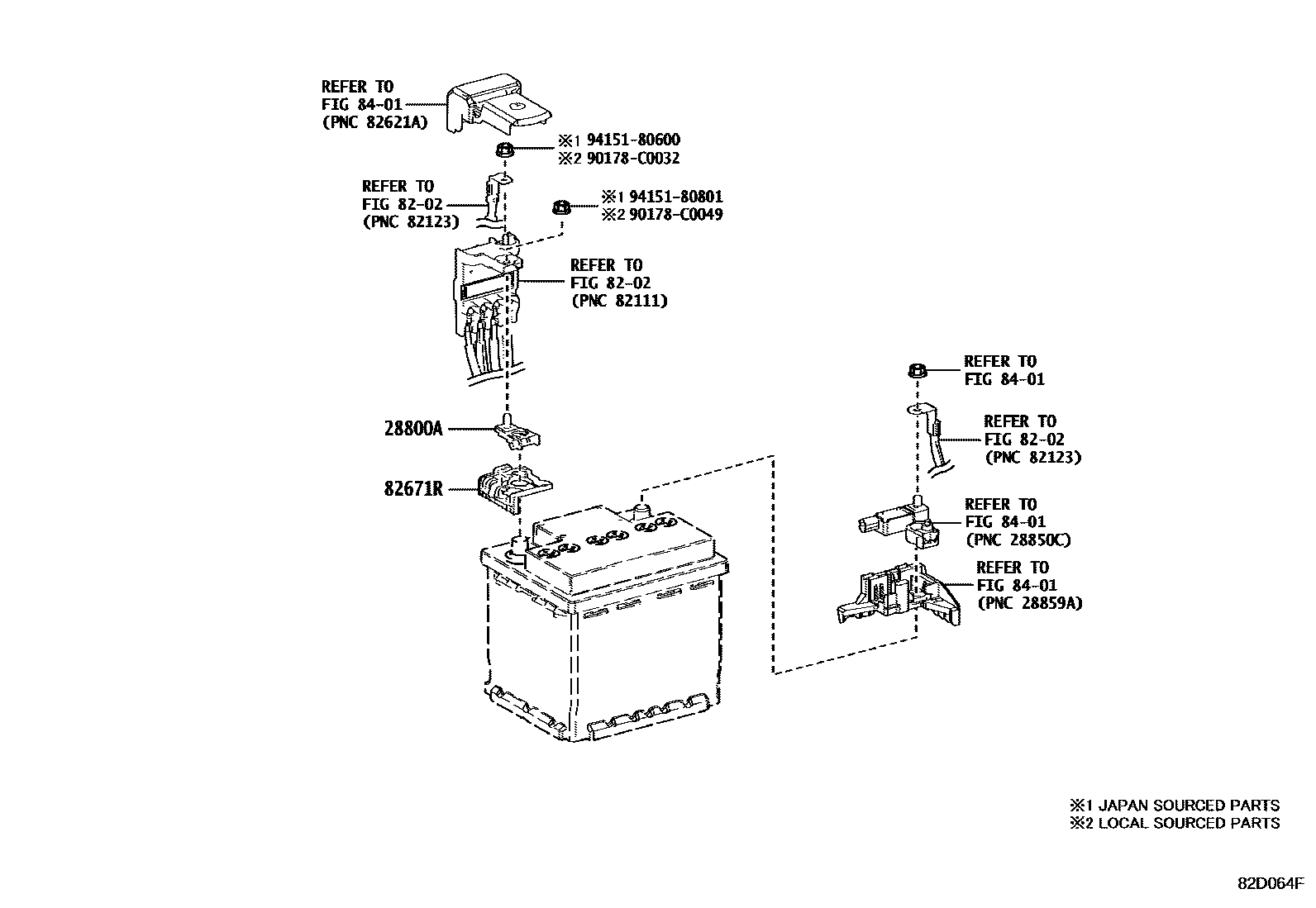

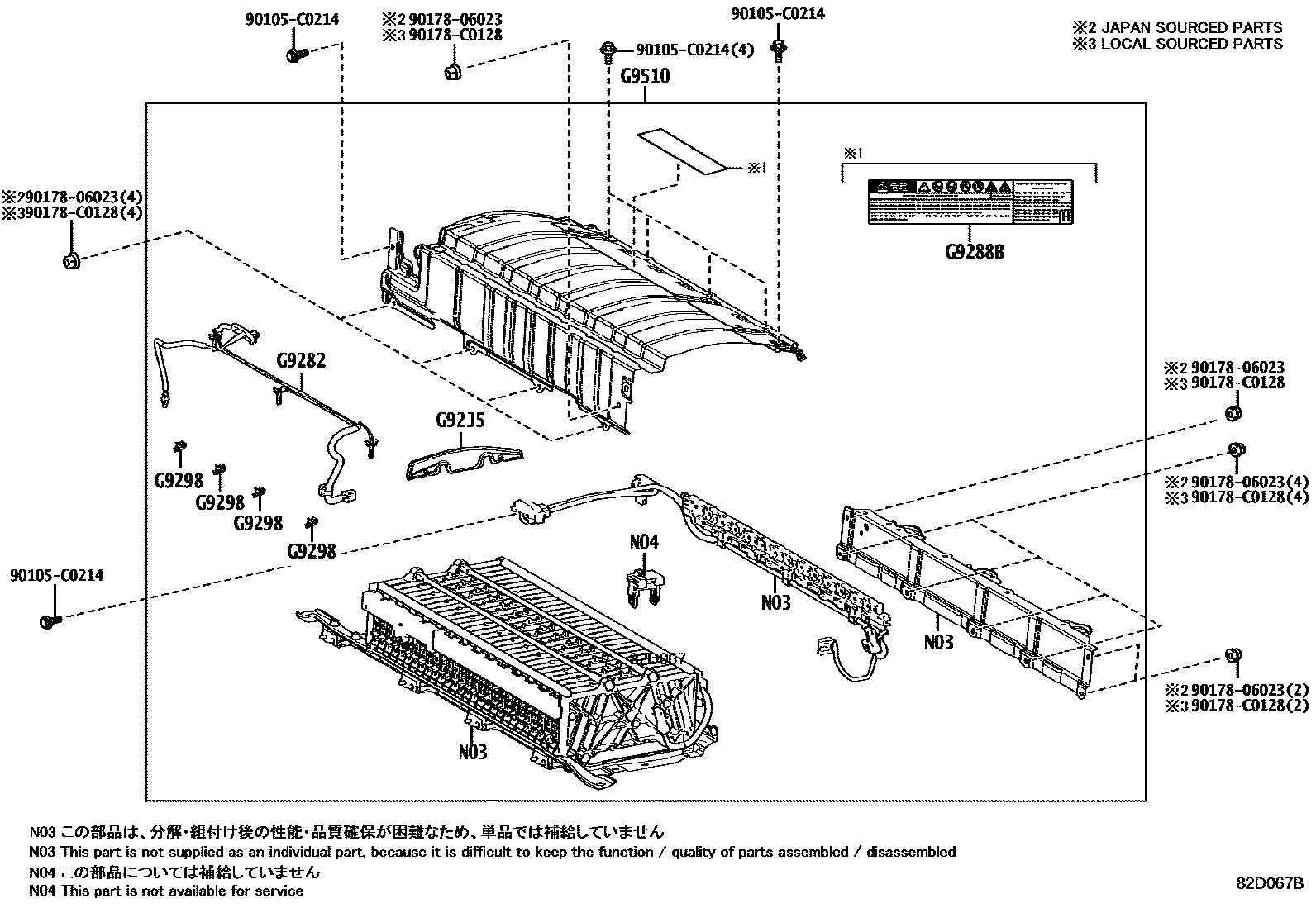

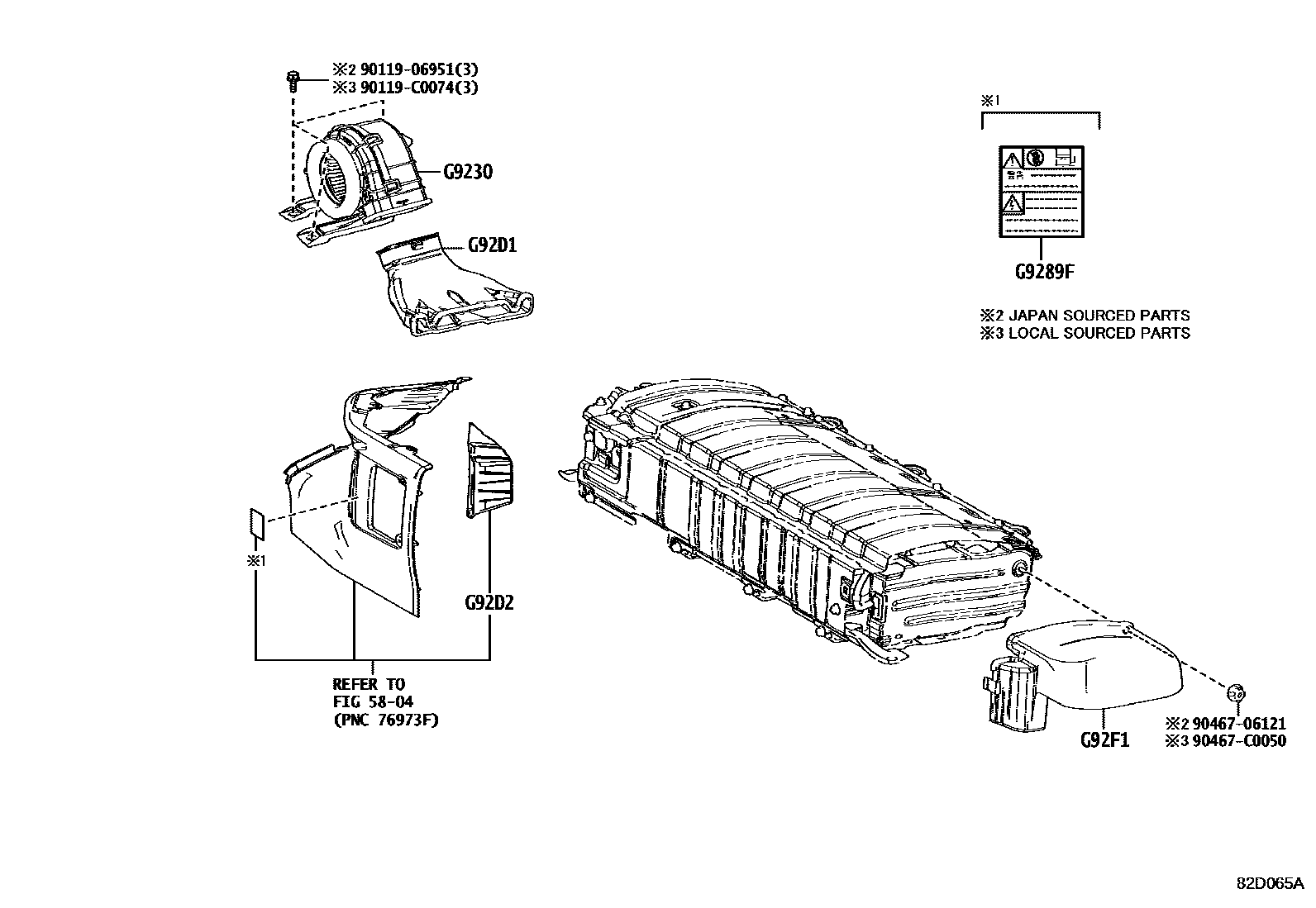

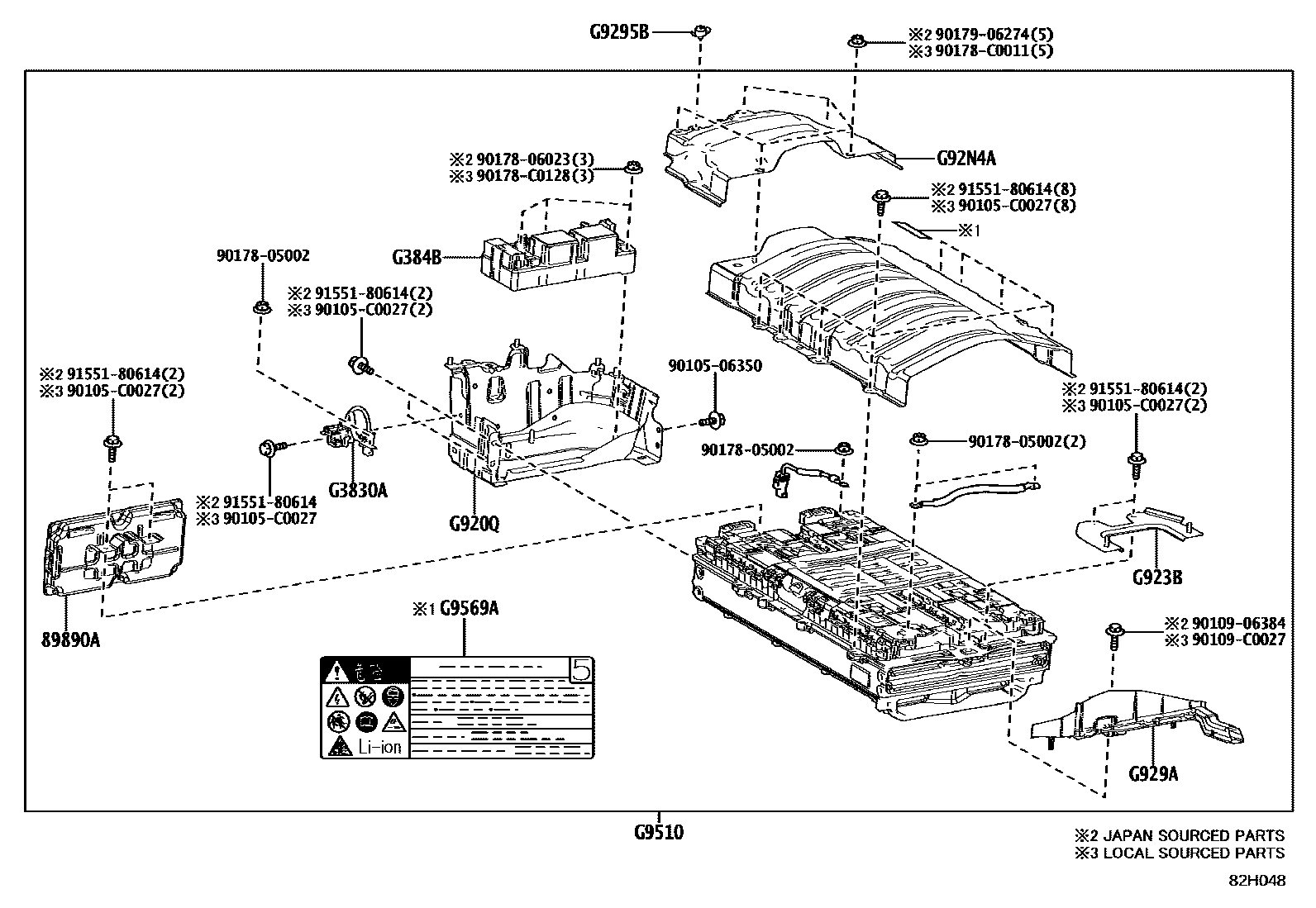

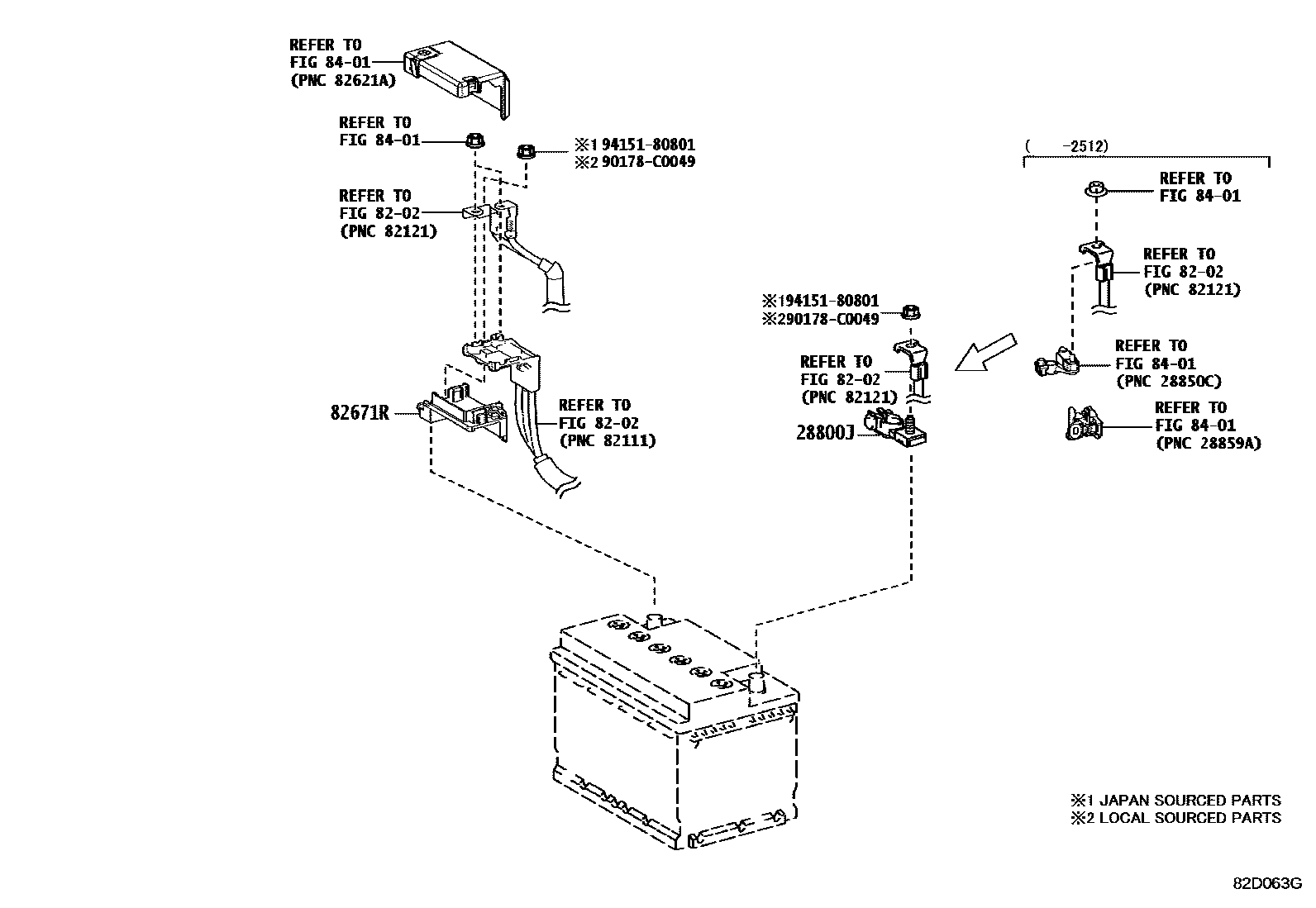

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

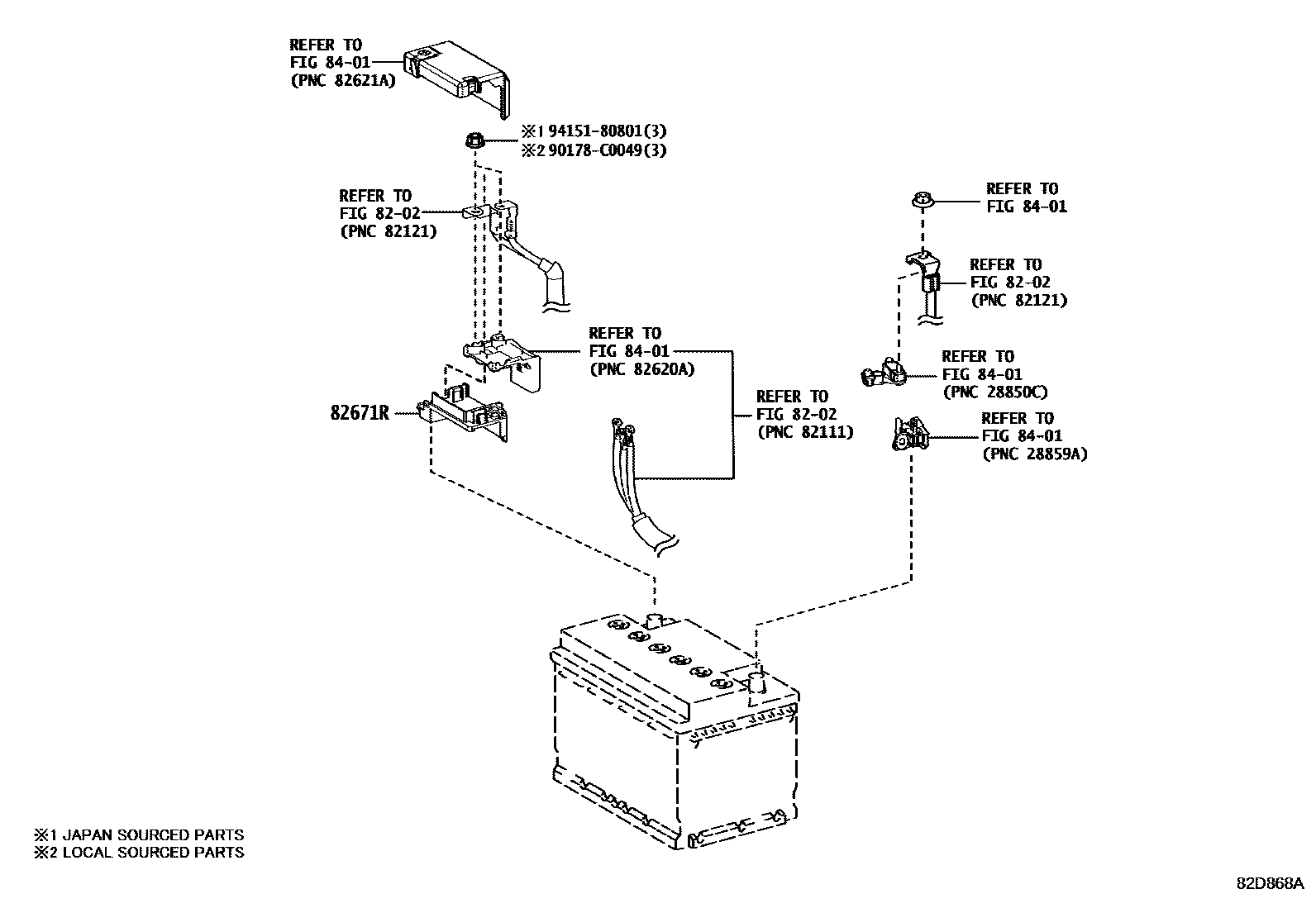

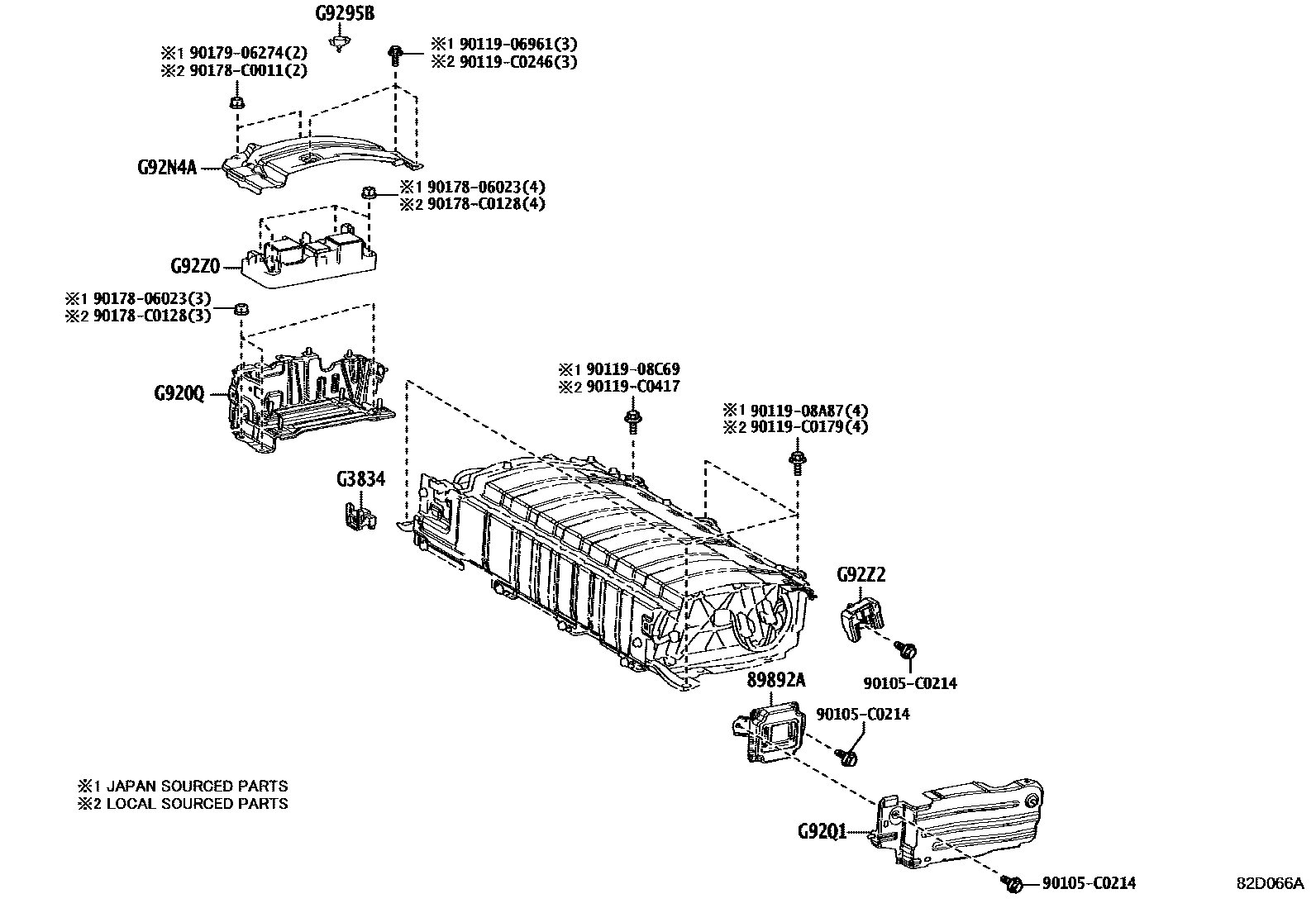

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 10 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 82675-78030 · 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82621-02030 |
| 28800J | battery negative terminal | 90982-06070 |
| 82671R | battery terminal block | 82651-F4020 · 82671-47040 |
| 89890A | Battery ECU assembly | 89890-02010 · 89890-02011 |
| 89892A | battery voltage sensor | 89892-02010 |
| G3830A | Electric vehicle battery plug assembly | G3830-02040 |
| G3834 | Service plug handle | G3834-02010 |
| G384B | Power battery device box No. 1 | G384B-28010 |
| G920B | HV battery bracket No. 1 bracket sub-assembly | G920B-02020 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-02020 · G920Q-02030 |
| G9230 | Battery cooling blower assembly | G9230-02020 · G9230-02030 |
| G923B | Battery cooling blower bracket | G923B-02010 |
| G9282 | HV battery thermistor | G9282-02030 |
| G9288B | battery warning label | G9288-02010 · G9288-02011 |
| G9289F | AA battery warning label | 82685-02030 · 82685-02031 |
| G9290A | HV battery hose assembly | G9290-02010 |
| G9295B | Battery cover lock | G9295-02010 |
| G9298 | HV battery clip | G928E-47010 |
| G929A | HV battery hose No. 1 | G929A-02010 |
| G929GA | No. 1 HV battery silencer | G929G-02030 |
| G92D1 | No. 1 HV battery air inlet | G92D1-02050 · G92E1-02010 |
| G92D2 | No. 2 HV battery air inlet | G92D1-02030 · G92D2-02030 |
| G92DB | No. 1 HV battery seal | G92DB-0E010 |
| G92DH | No. 1 HV battery air intake filter | G92DH-02040 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-02010 |
| G92J5 | No. 1 HV battery seal | G92J5-02020 |
| G92K4 | HV Battery Bracket No. 2 Bracket | G92K4-02040 |
| G92K5 | HV battery bracket No. 3 bracket | G92K5-02040 |
| G92K6 | HV Battery Bracket No. 4 Bracket | G92K6-02040 |
| G92N4A | No. 1 cover on the right side of the HV battery | G92N4-02010 · G92N4-02020 |
| G92Q1 | HV battery No. 1 shielding plate | G92Q1-02020 |
| G92X3 | No. 3 HV battery pack wiring harness | G92X3-02030 |
| G92Z0 | HV battery junction box assembly | G92Z0-02010 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9510 | HV power supply battery assembly | G9510-02030 · G9510-02040 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-0E010 |
