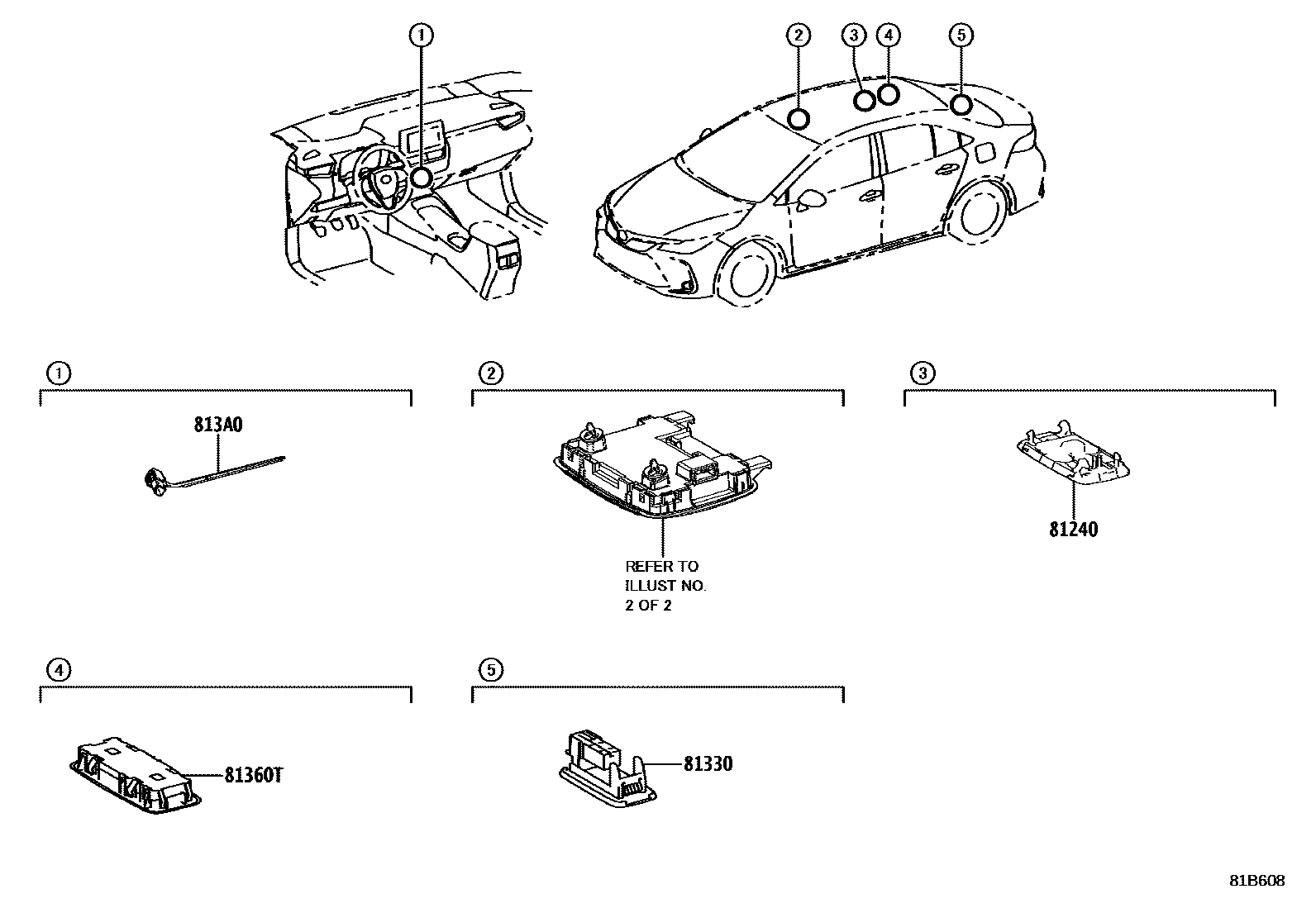

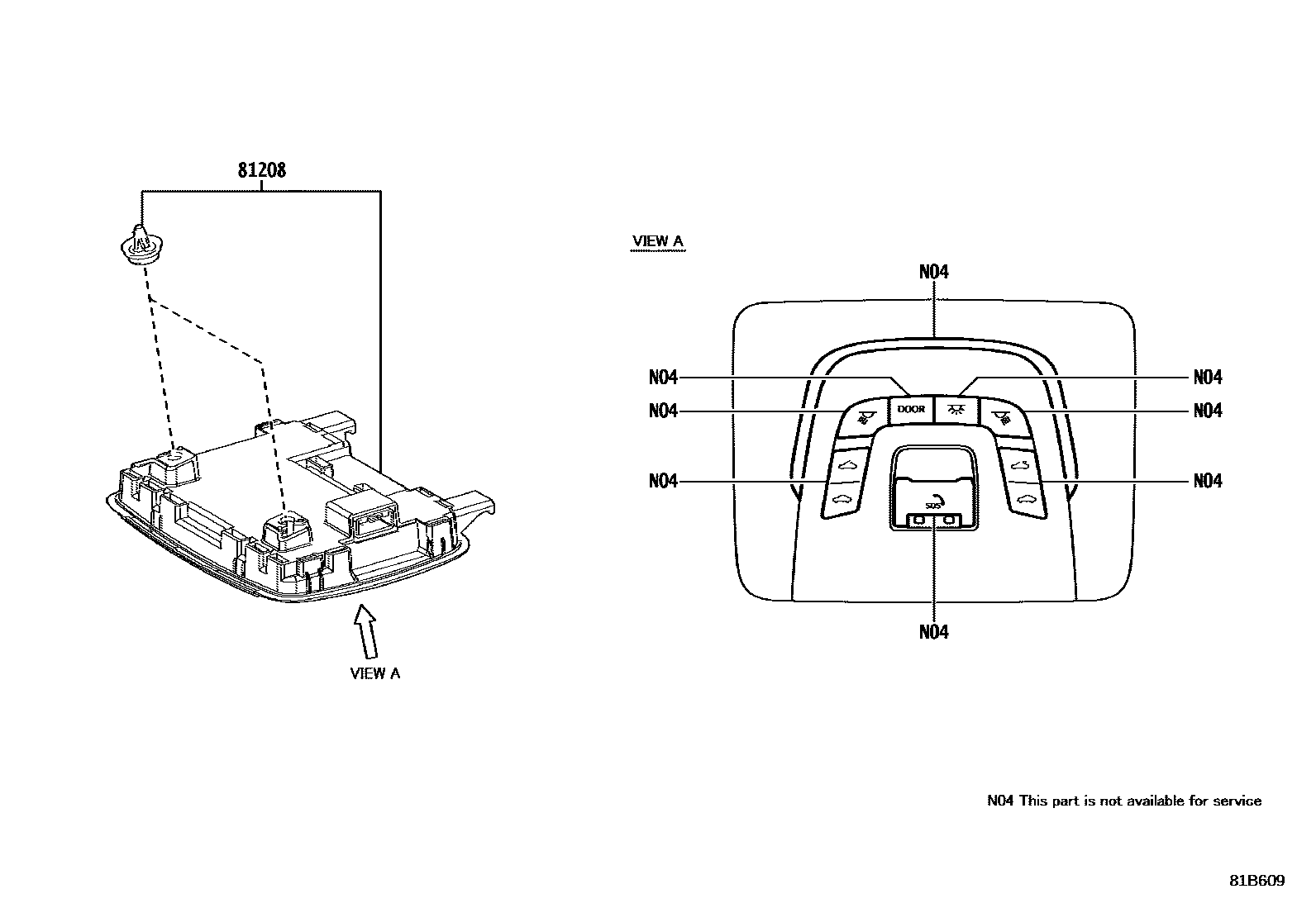

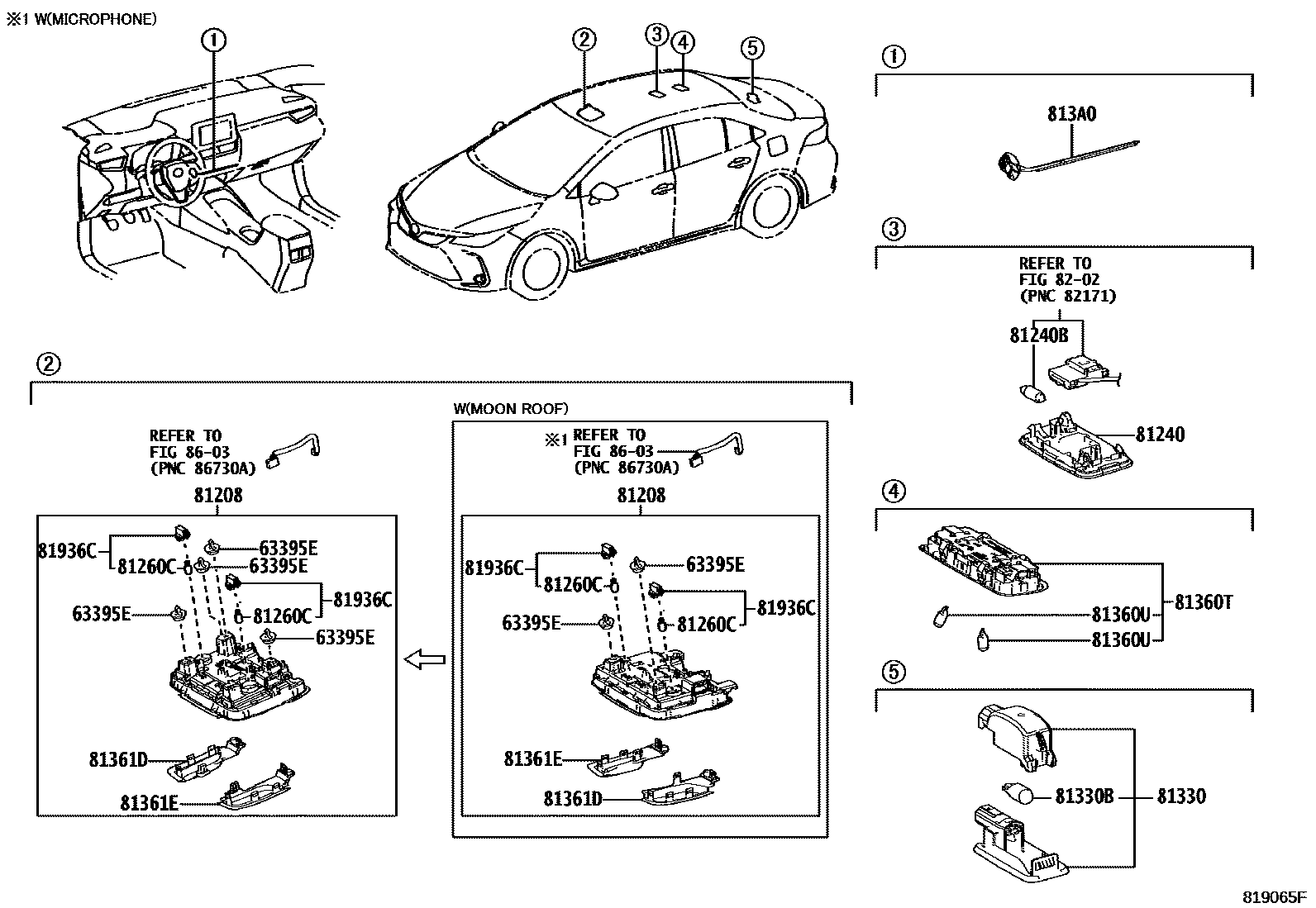

Toyota COROLLA 车内灯 — Figure 8121
Toyota COROLLA EPC diagram 8121, 车内灯, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63395E | Clip (for reading lamp) | 90467-09240 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81260C | Light bulb (for reading lamp) | 99132-12050 |
| 81330 | No. 1 trunk light assembly | 81250-30210 · 81330-0E020 |
| 81330B | trunk light bulb | 99132-12050 |
| 81360U | spotlight light bulb | 90981-11062 |
| 81361D | spotlight lampshade | 81361-02290 · 81361-02330 |
| 81361E | Spotlight Shade No. 2 | 81361-02310 · 81361-02320 |
| 813A0 | Dashboard light assembly | 813A0-02020 · 813A0-02070 · 813A0-12010 |
| 81936C | Bulb assembly | 81936-12160 |
