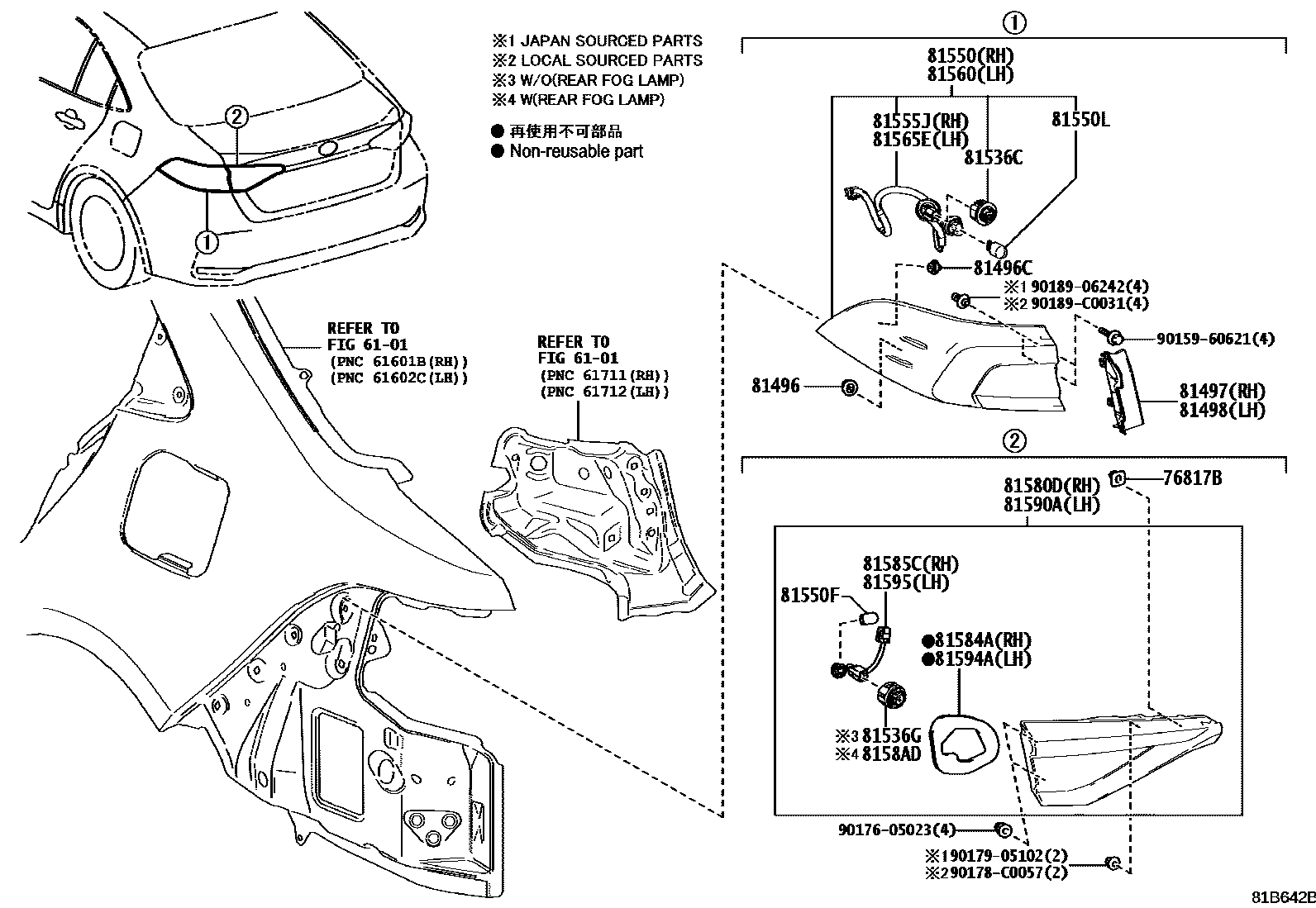

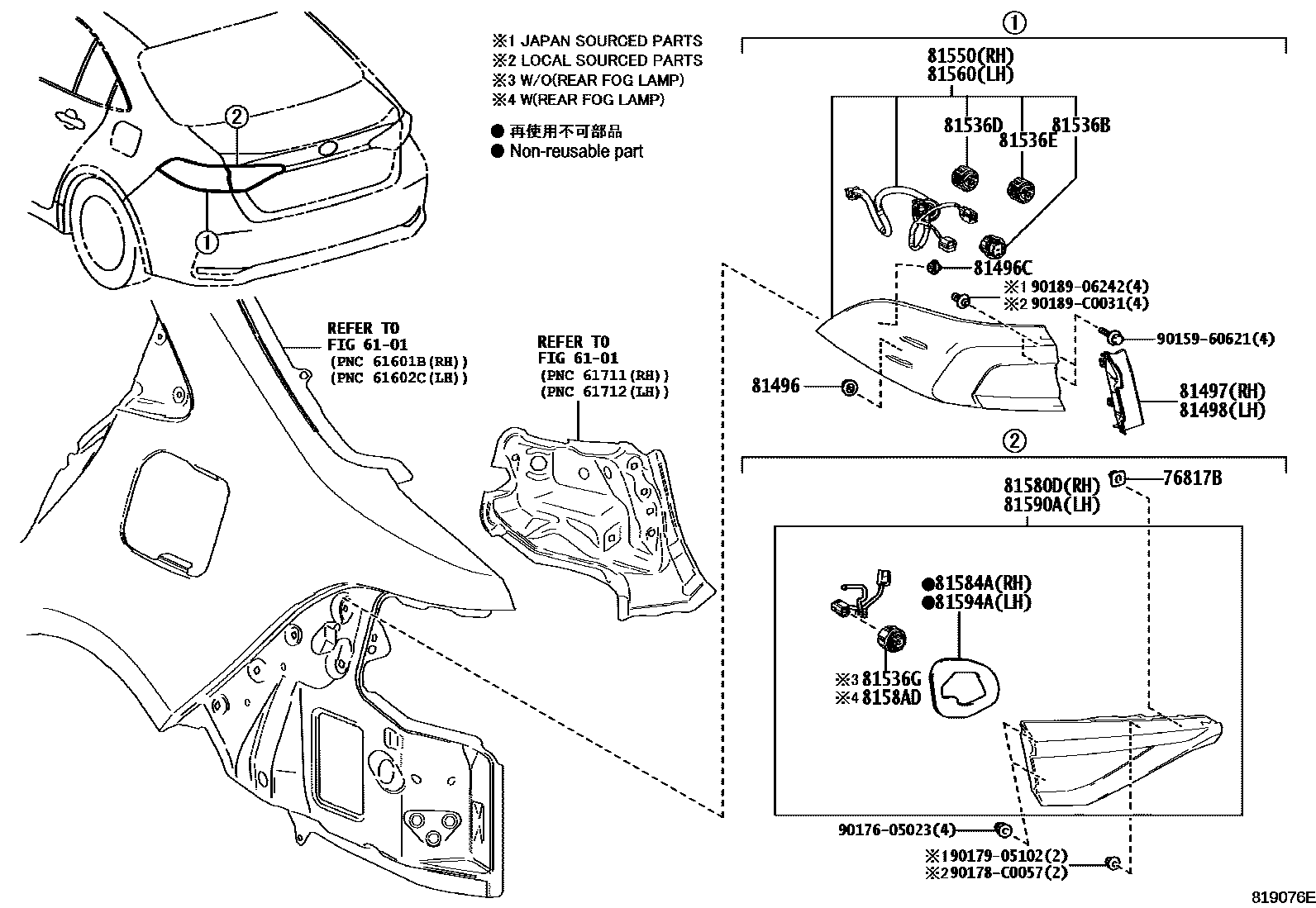

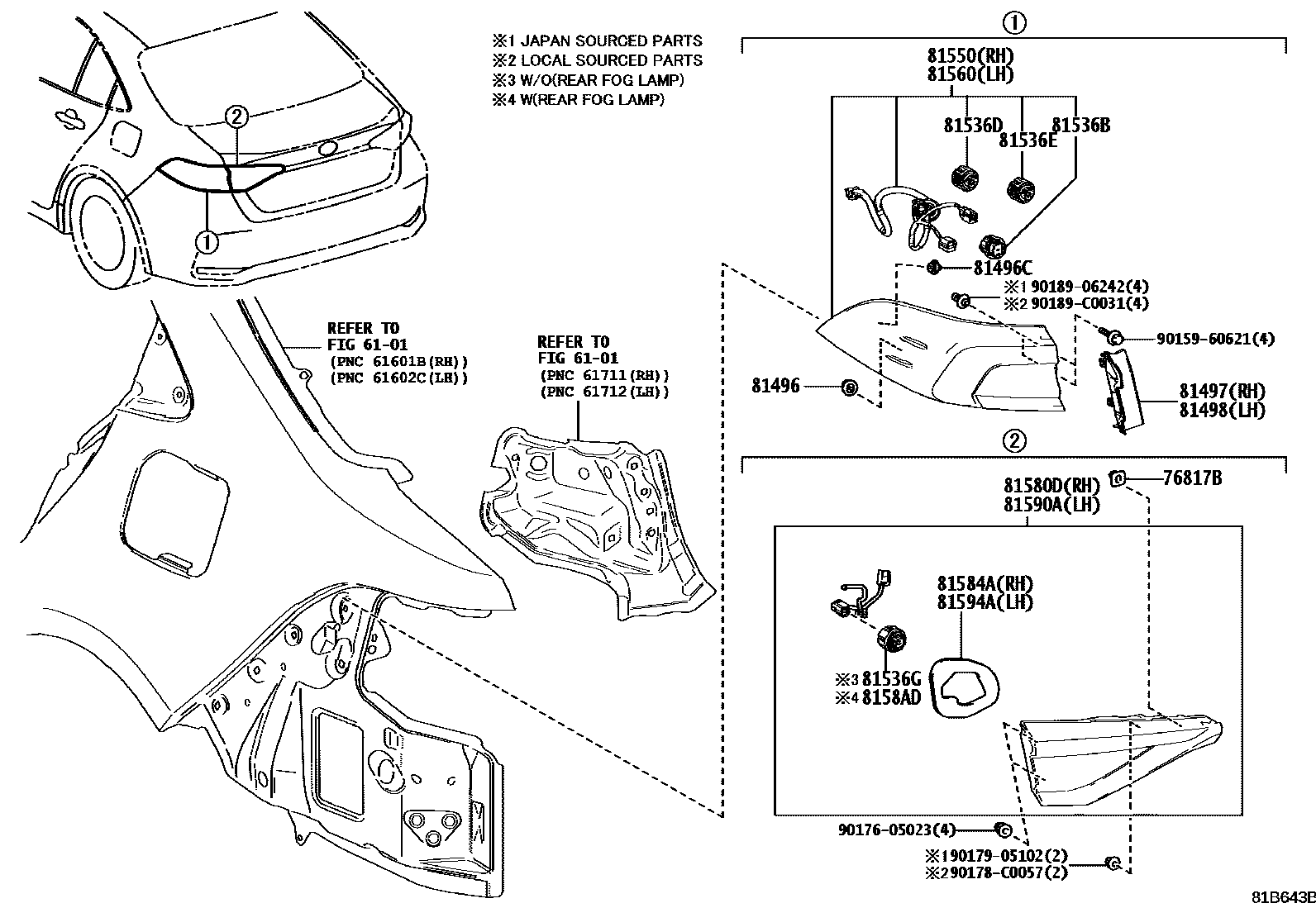

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76817B | Rear light clip | 76817-26040 · 90467-C0083 |
| 81496 | Rear combination light guide block | 81496-02020 · 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 · 90467-C0019 |
| 81497 | Right rear combination lamp cover | 81497-02110 |
| 81498 | Left rear combination lamp cover | 81498-02110 |
| 81536B | LED rear turn signal light | 81965-02030 · 90069-81127 |
| 81536C | LED tail lights and brake lights | 81965-02010 |
| 81536D | LED tail light support feet | 81965-02020 |
| 81536E | LED brake light | 81965-02020 · 90069-81126 |
| 81536G | LED reversing light | 81965-02040 · 90069-81129 |
| 81550 | Right rear combination light assembly | 81550-02E00 · 81550-02E10 · 81550-02E11 · 81550-02F60 · 81550-02F71 · 81550-YK040 · 81550-YK041 |
| 81550F | tail light bulb | 90981-CB001 |
| 81550L | Rear turn signal light bulb | 90981-CB004 |
| 81555J | Right rear combination lamp holder and wiring harness | 81555-02E00 · 81555-02F60 |
| 81560 | Left rear combination light assembly | 81560-02E00 · 81560-02E10 · 81560-02E11 · 81560-02F60 · 81560-02F71 · 81560-YK040 · 81560-YK041 |
| 81565E | Left rear combination lamp holder and wiring harness | 81565-02E00 · 81565-02F60 |
| 81580D | Right rear light assembly | 81580-02D50 · 81580-02D51 · 81580-02D52 · 81580-02D60 · 81580-02D61 · 81580-02D62 · 81580-02F10 · 81580-02F21 · 81580-YK040 · 81580-YK041 |
| 81584A | Right rear light gasket | 81584-02D50 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-02D50 · 81585-02E40 |
| 8158AD | Rear LED fog lights | 81965-02020 · 90069-81126 |
| 81590A | Left rear light assembly | 81590-02D50 · 81590-02D51 · 81590-02D52 · 81590-02D60 · 81590-02D61 · 81590-02D62 · 81590-02F10 · 81590-02F21 · 81590-YK040 · 81590-YK041 |
| 81594A | Left rear light gasket | 81584-02D50 · 81594-02D50 |
| 81595 | Left rear light lamp holder and wiring harness | 81595-02D50 · 81595-02E40 |
