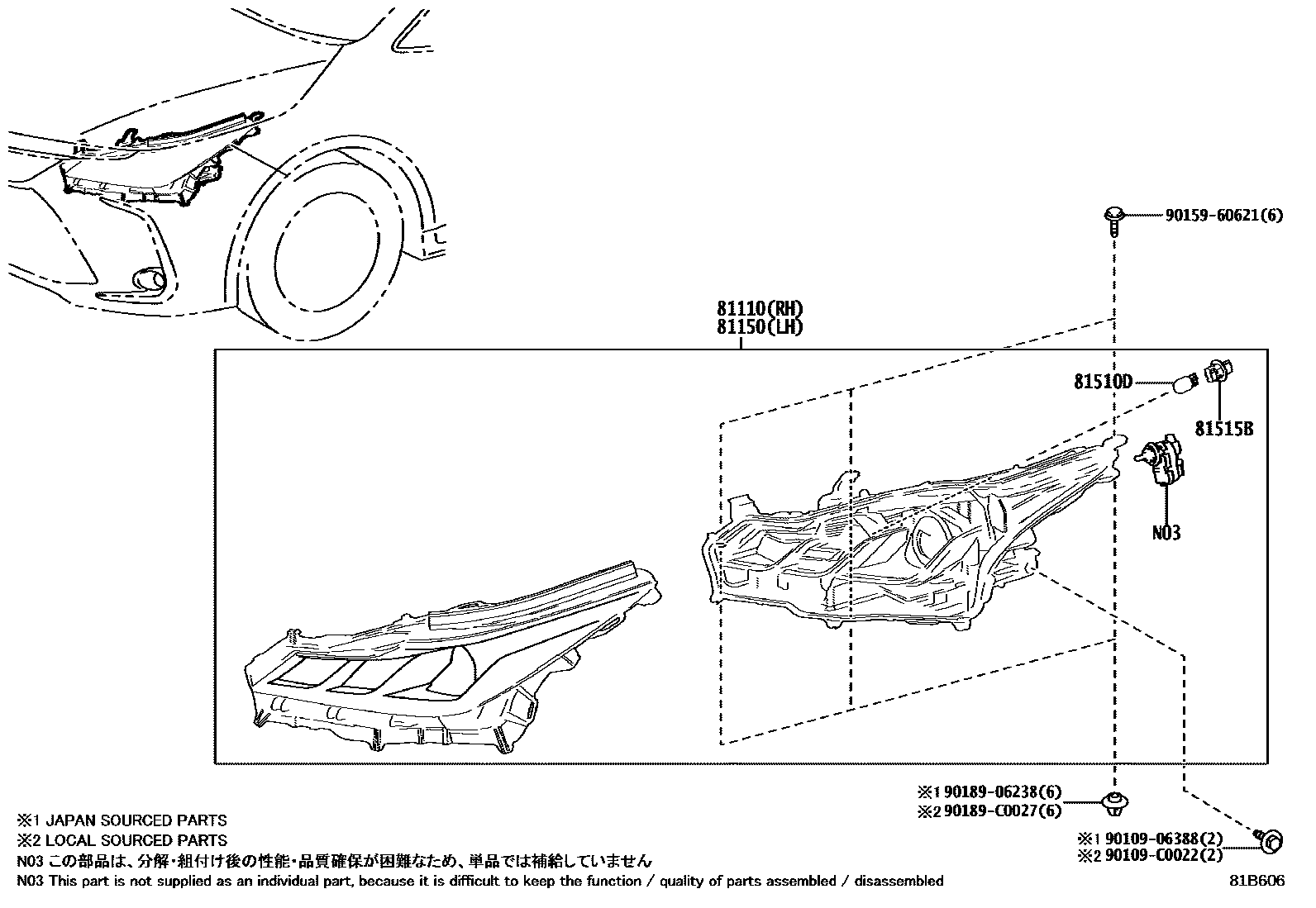

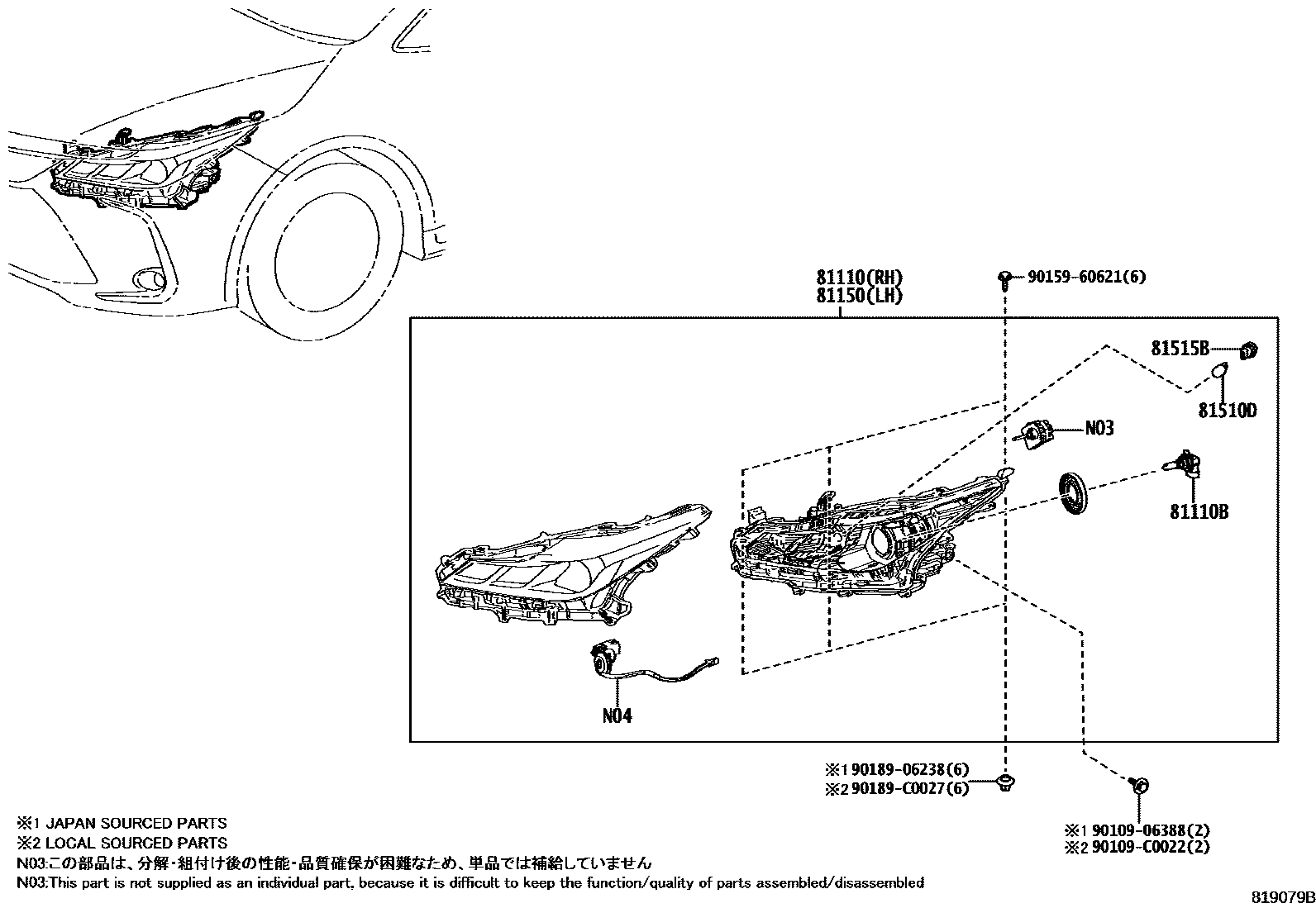

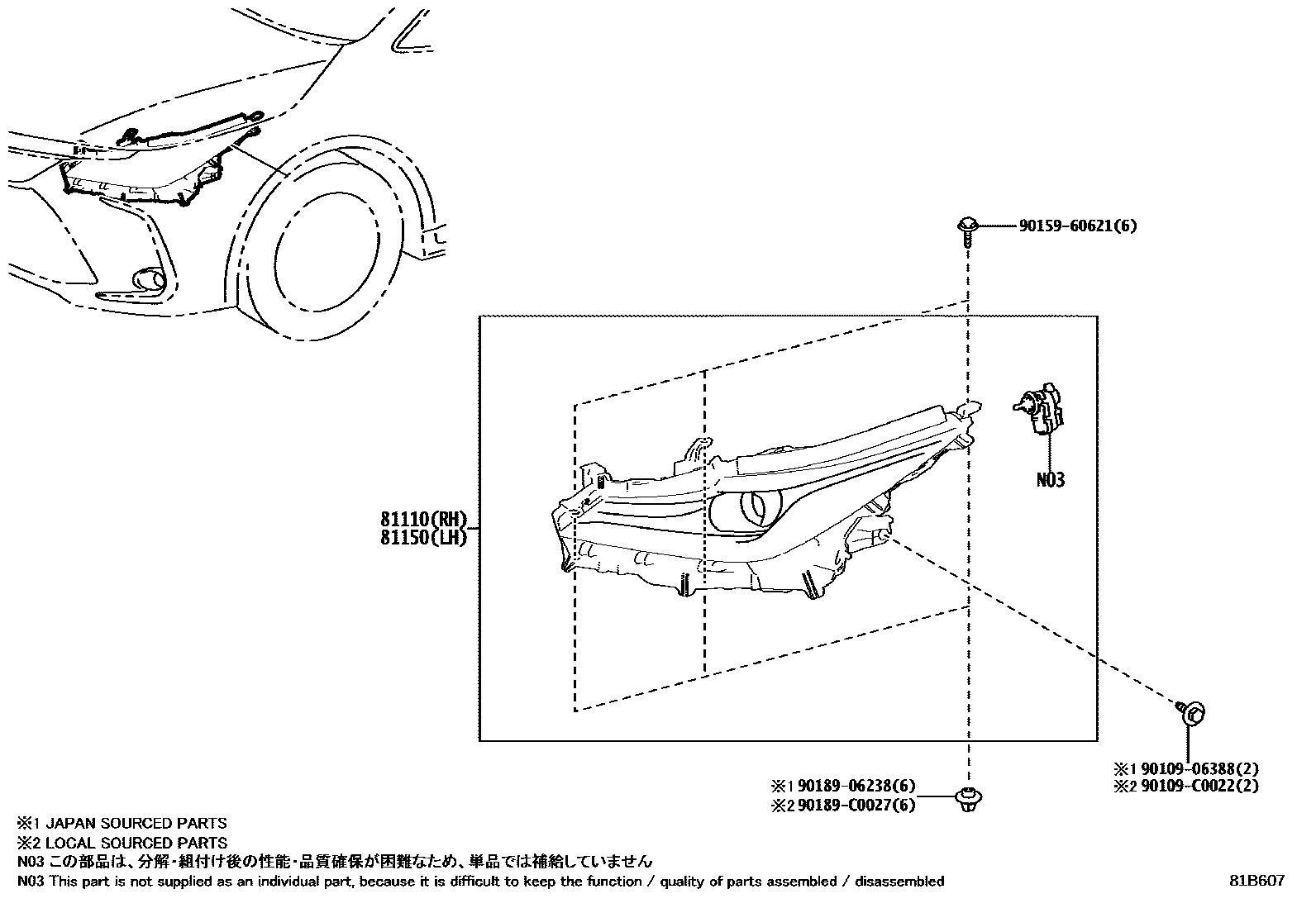

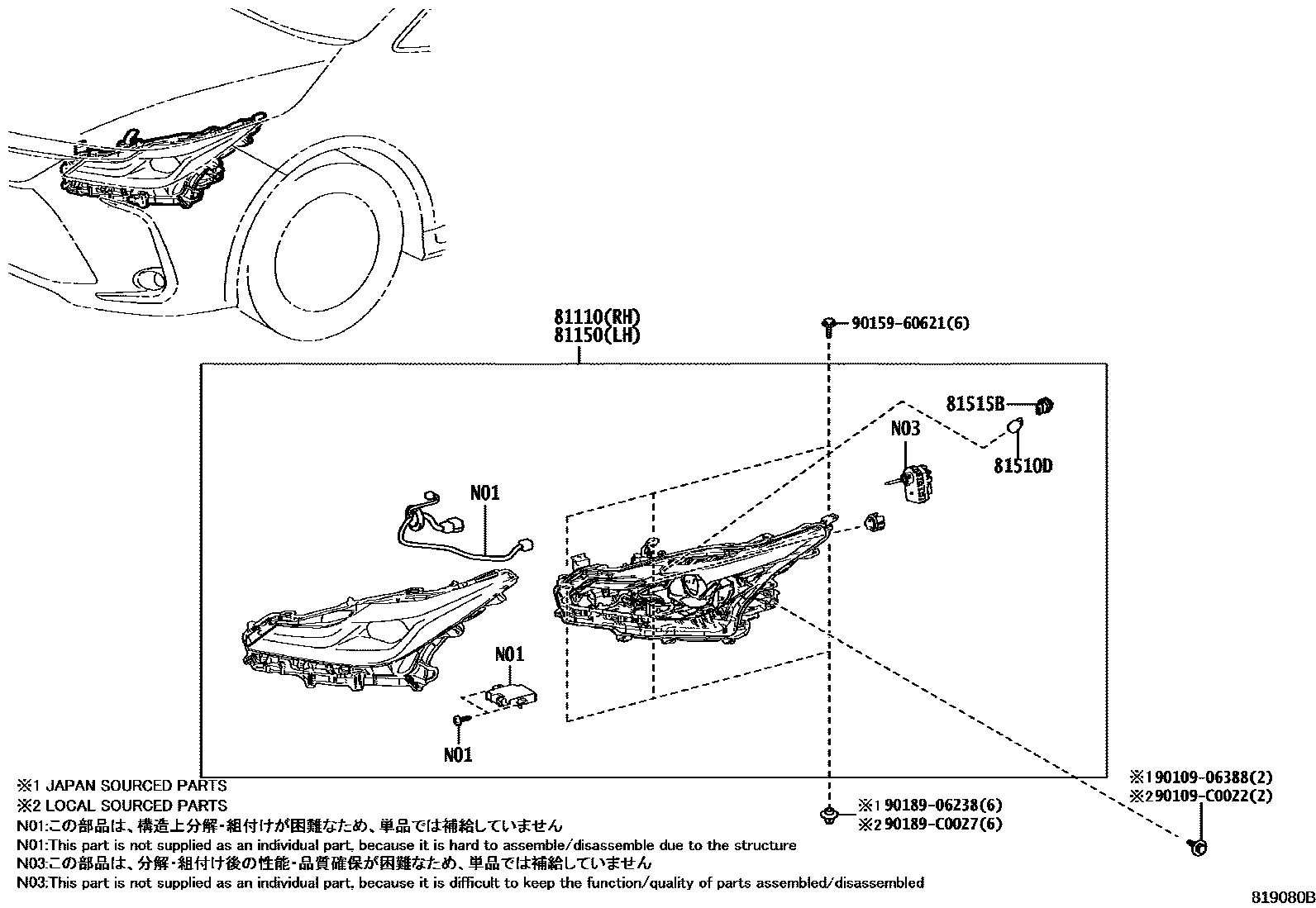

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-02Q00 · 81110-02V70 · 81110-02V71 · 81110-02V72 · 81110-02V80 · 81110-02W80 · 81110-02W81 · 81110-02W90 |
| 81110B | Bulb (for headlight No. 1) | 90981-CD010 |
| 81150 | Left headlight assembly | 81150-02Q00 · 81150-02V70 · 81150-02V71 · 81150-02V72 · 81150-02V80 · 81150-02W80 · 81150-02W81 · 81150-02W90 |
| 81510D | Bulb (for front turn signal lamp) | 90981-CB004 |
| 81515B | Front turn signal lamp holder | 90069-81124 |
