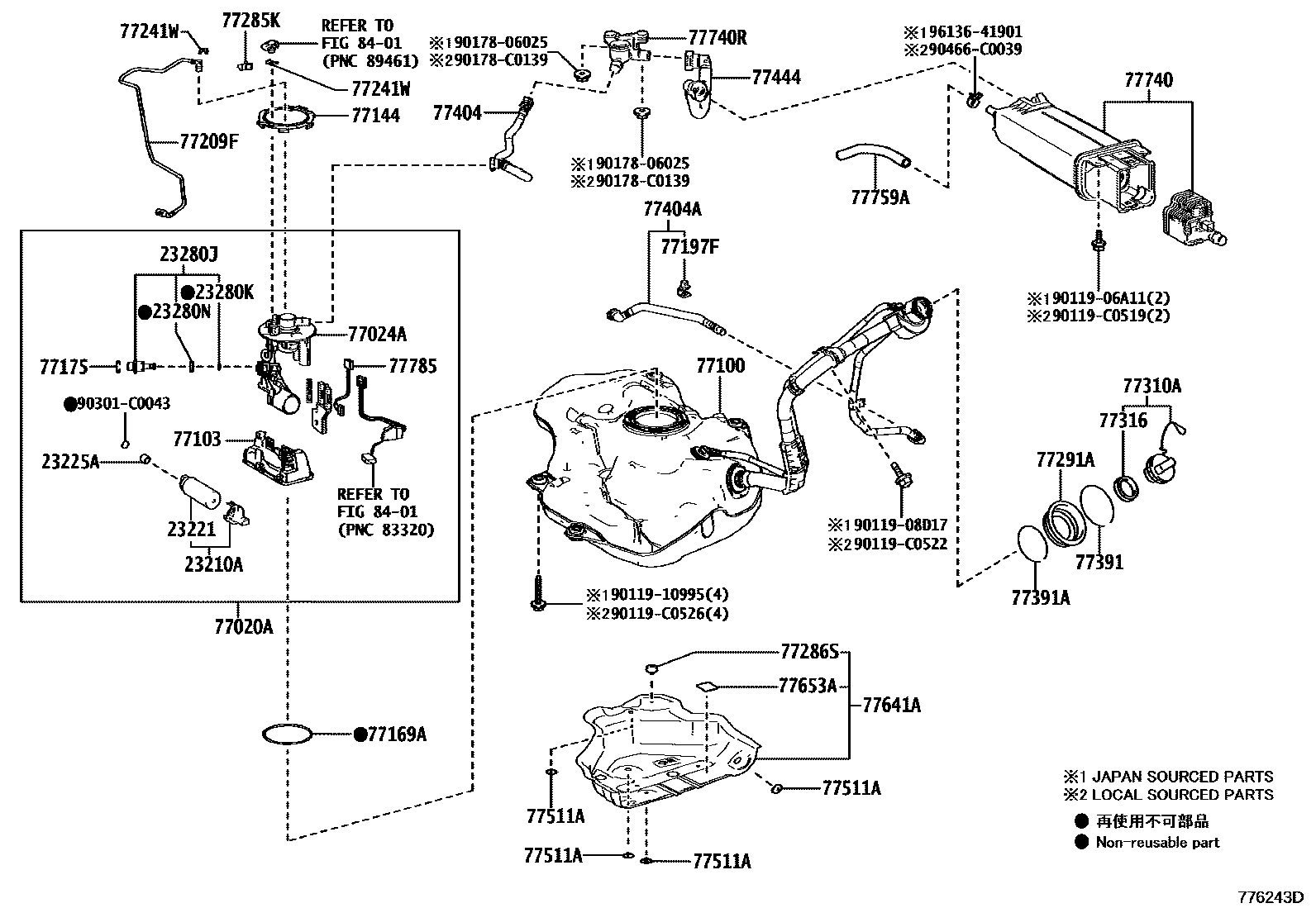

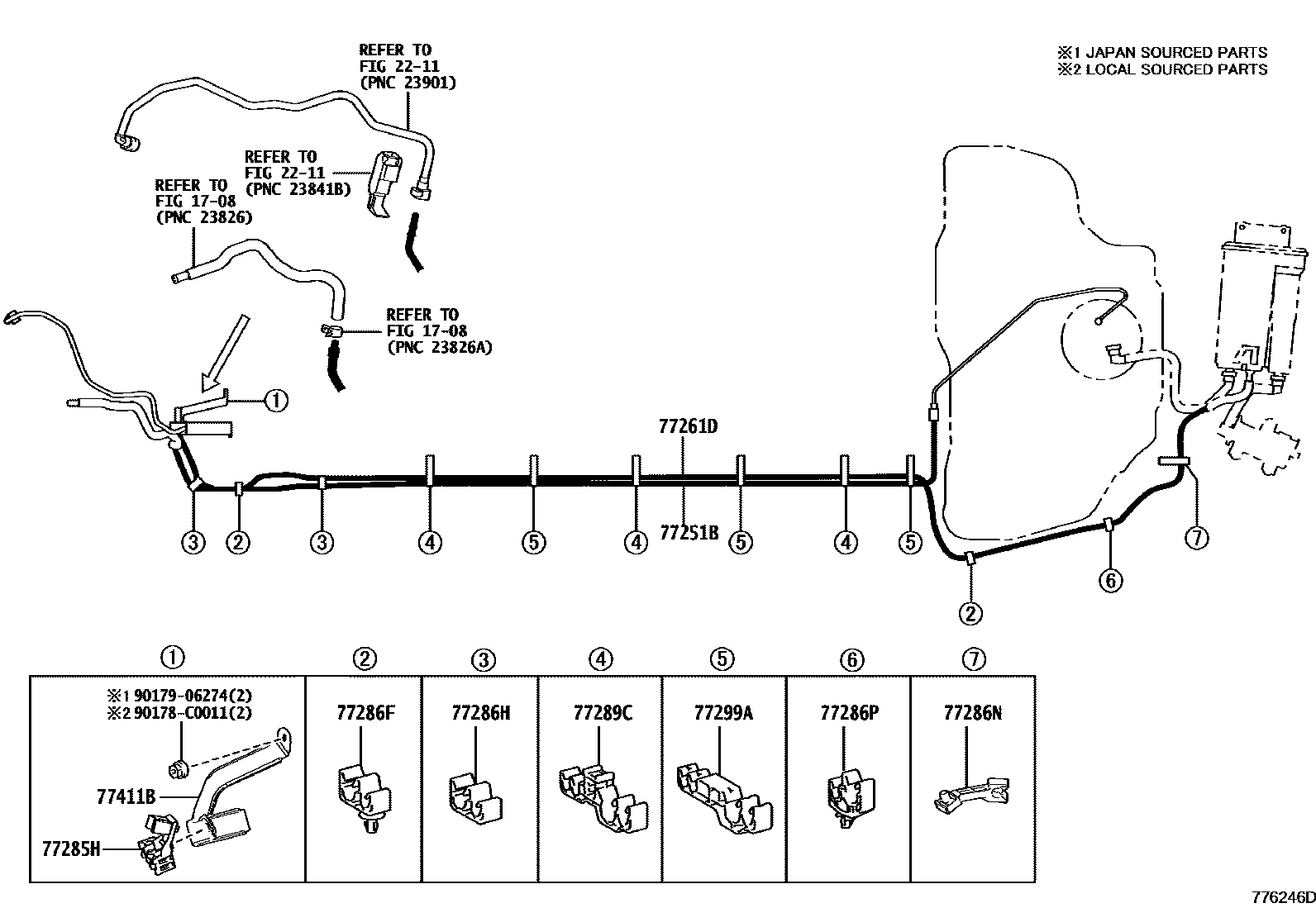

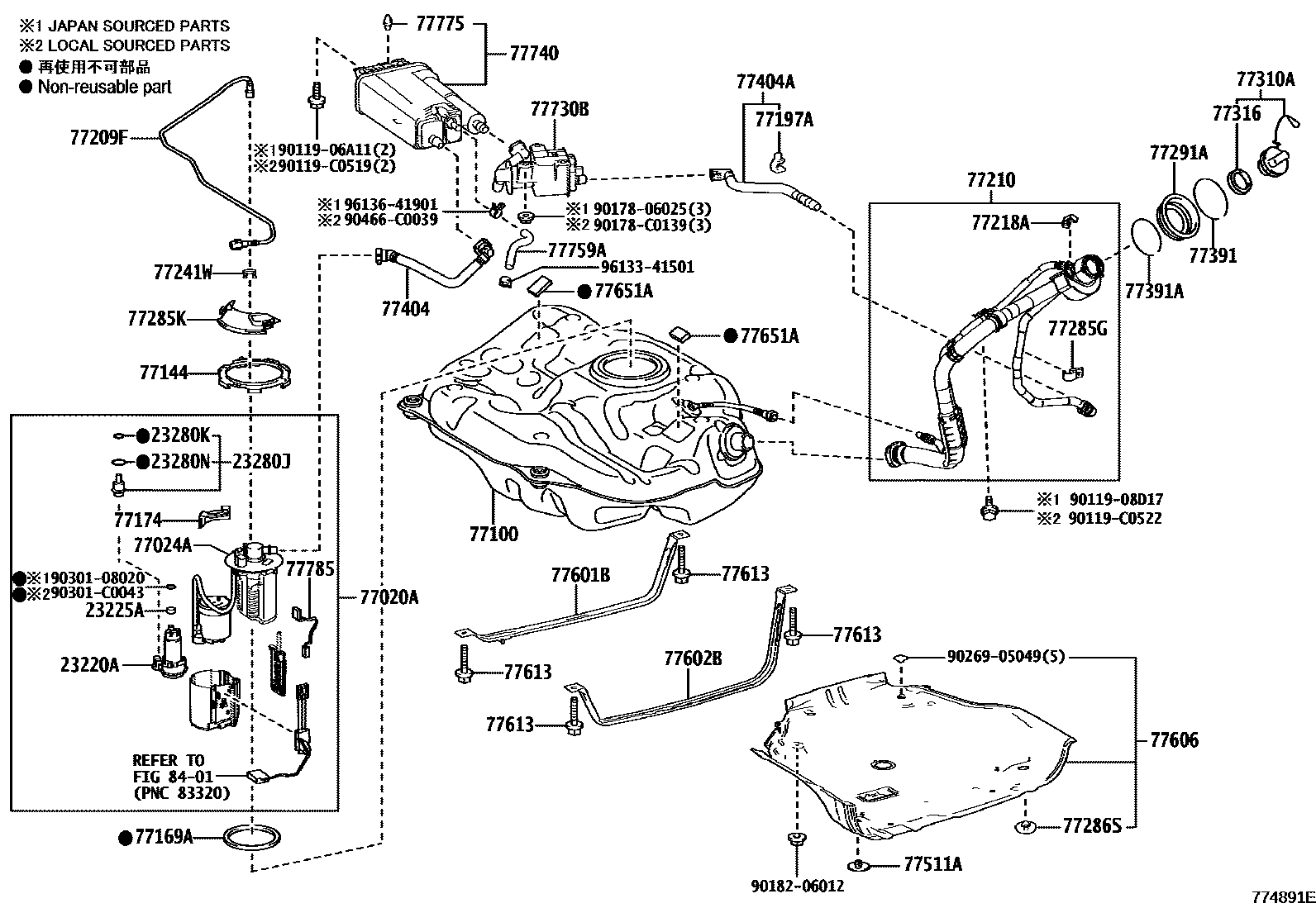

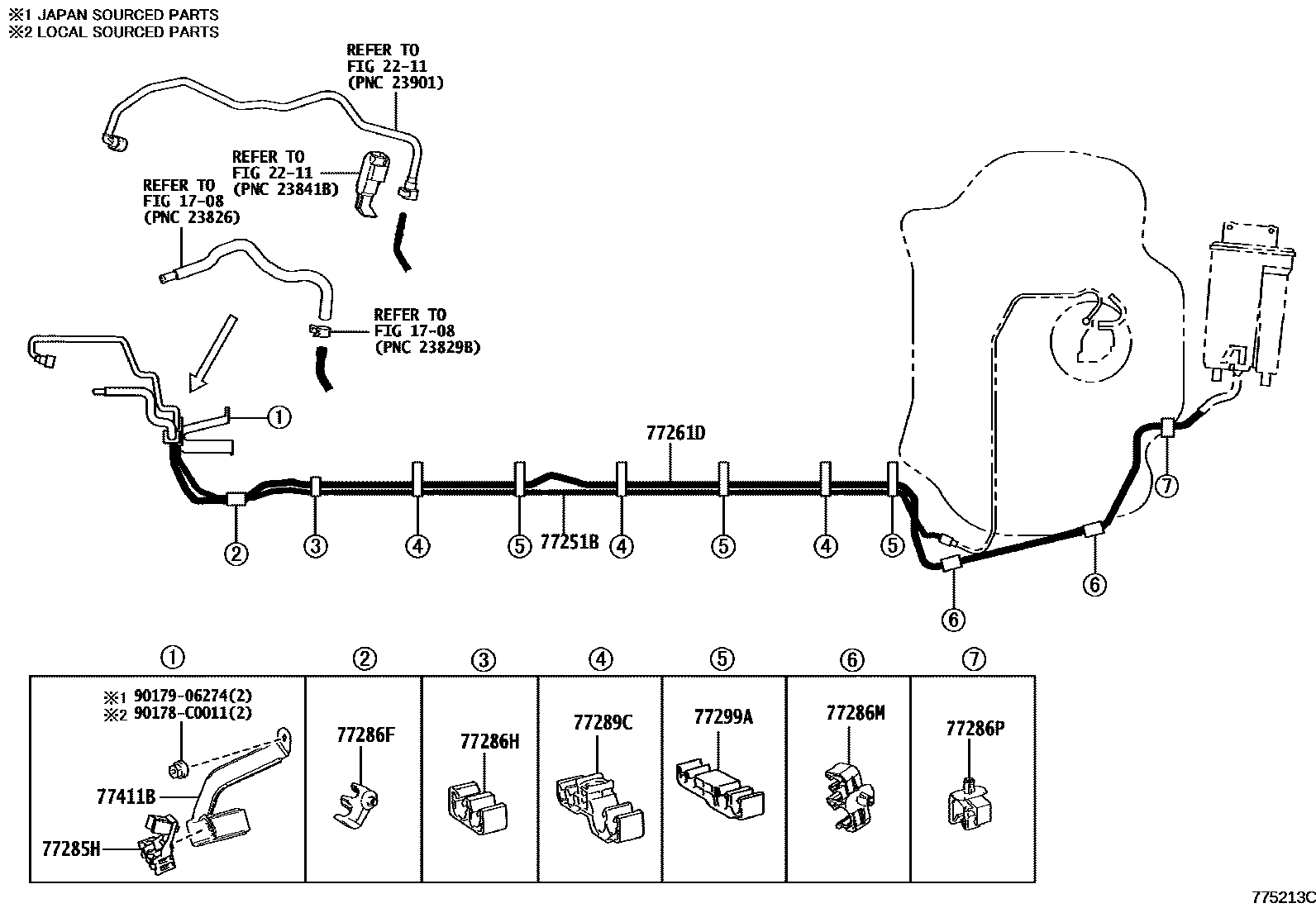

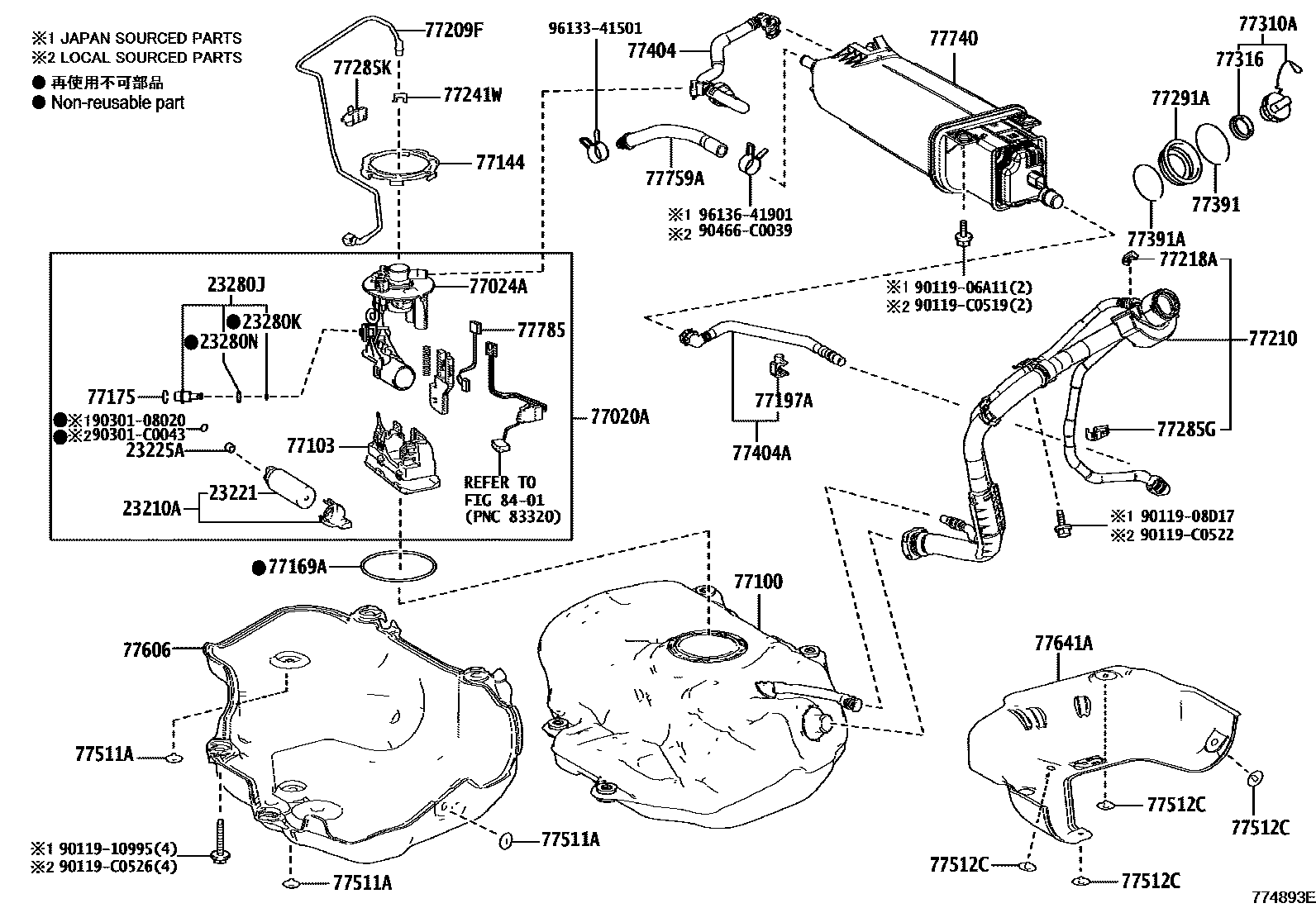

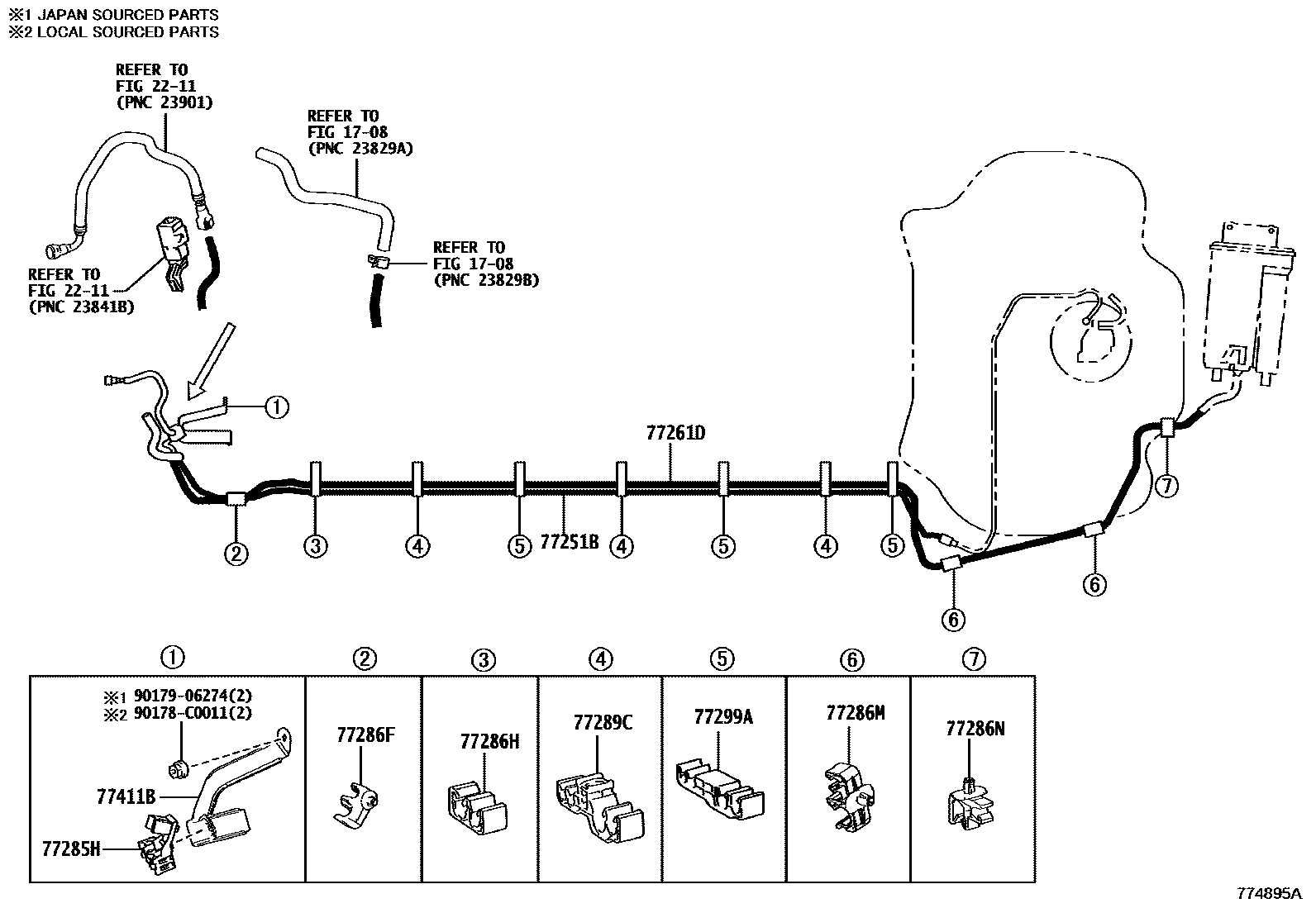

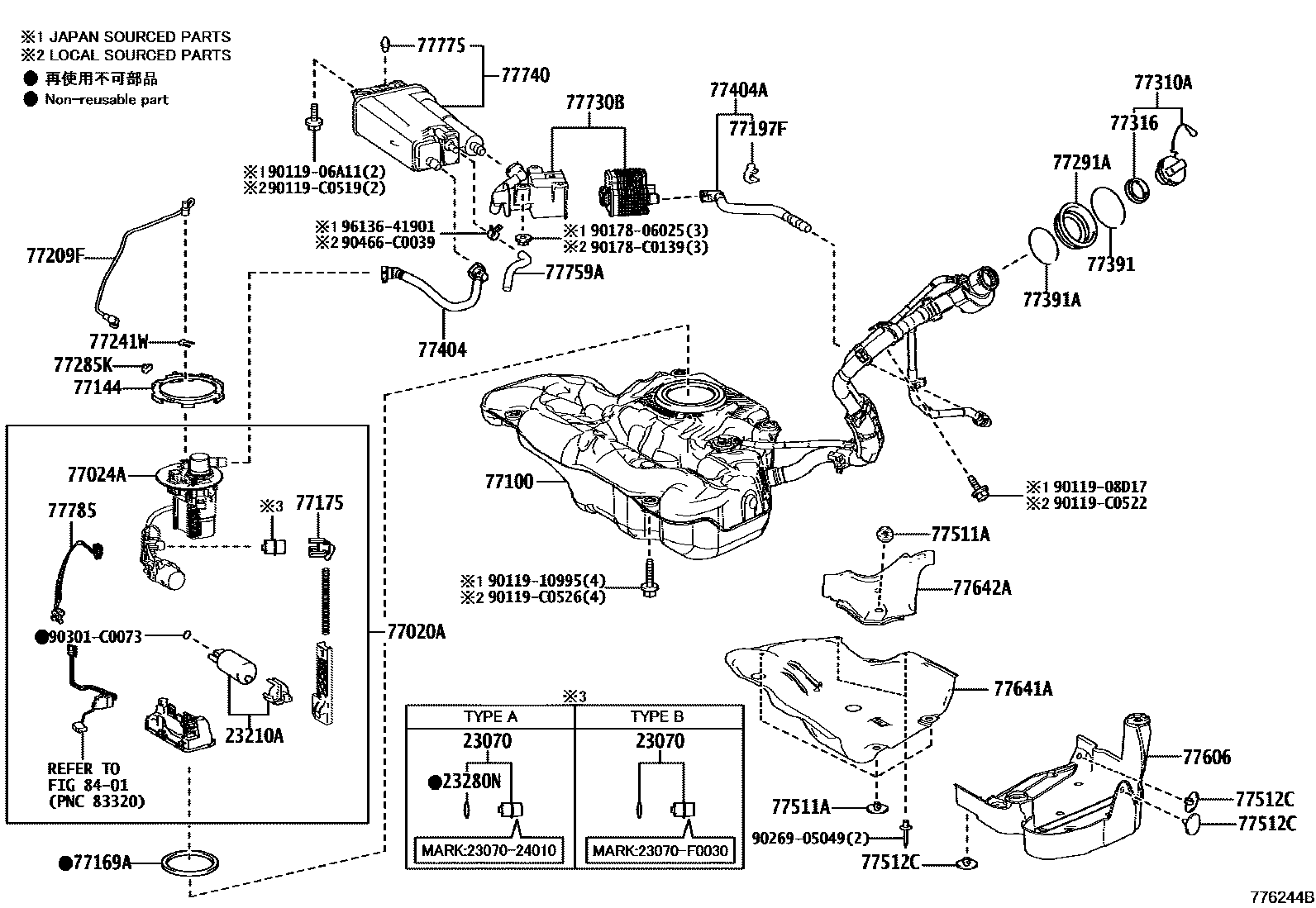

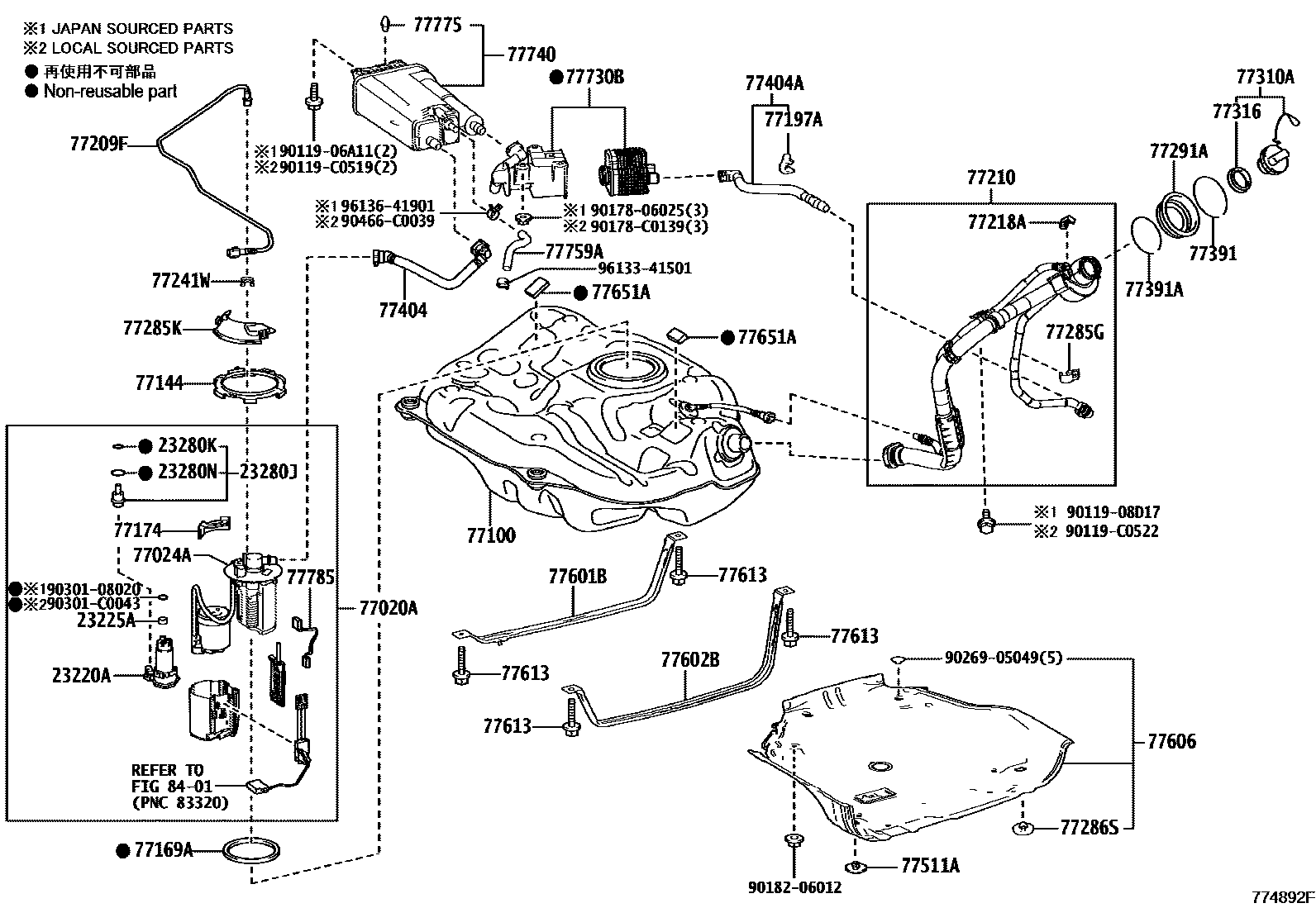

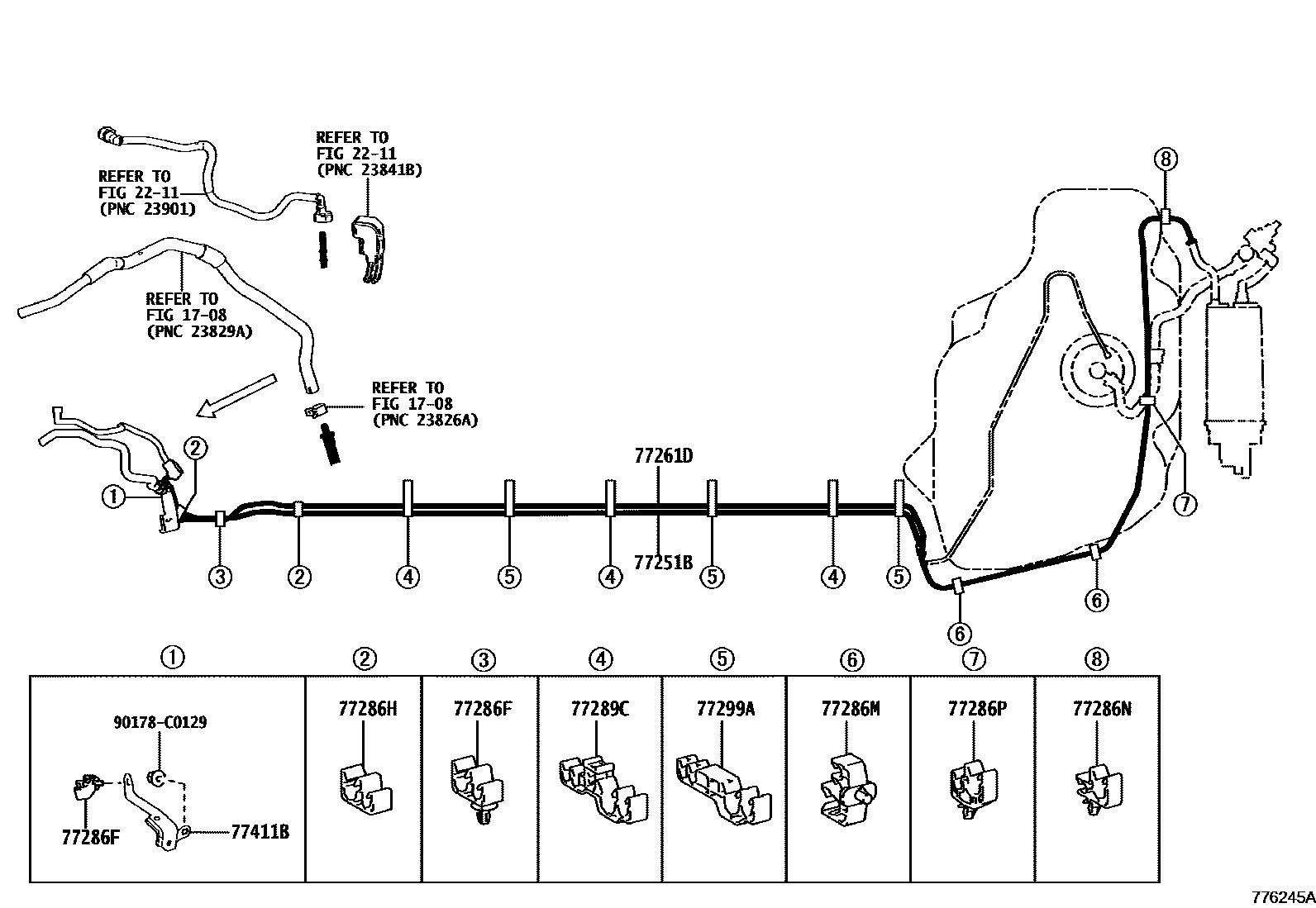

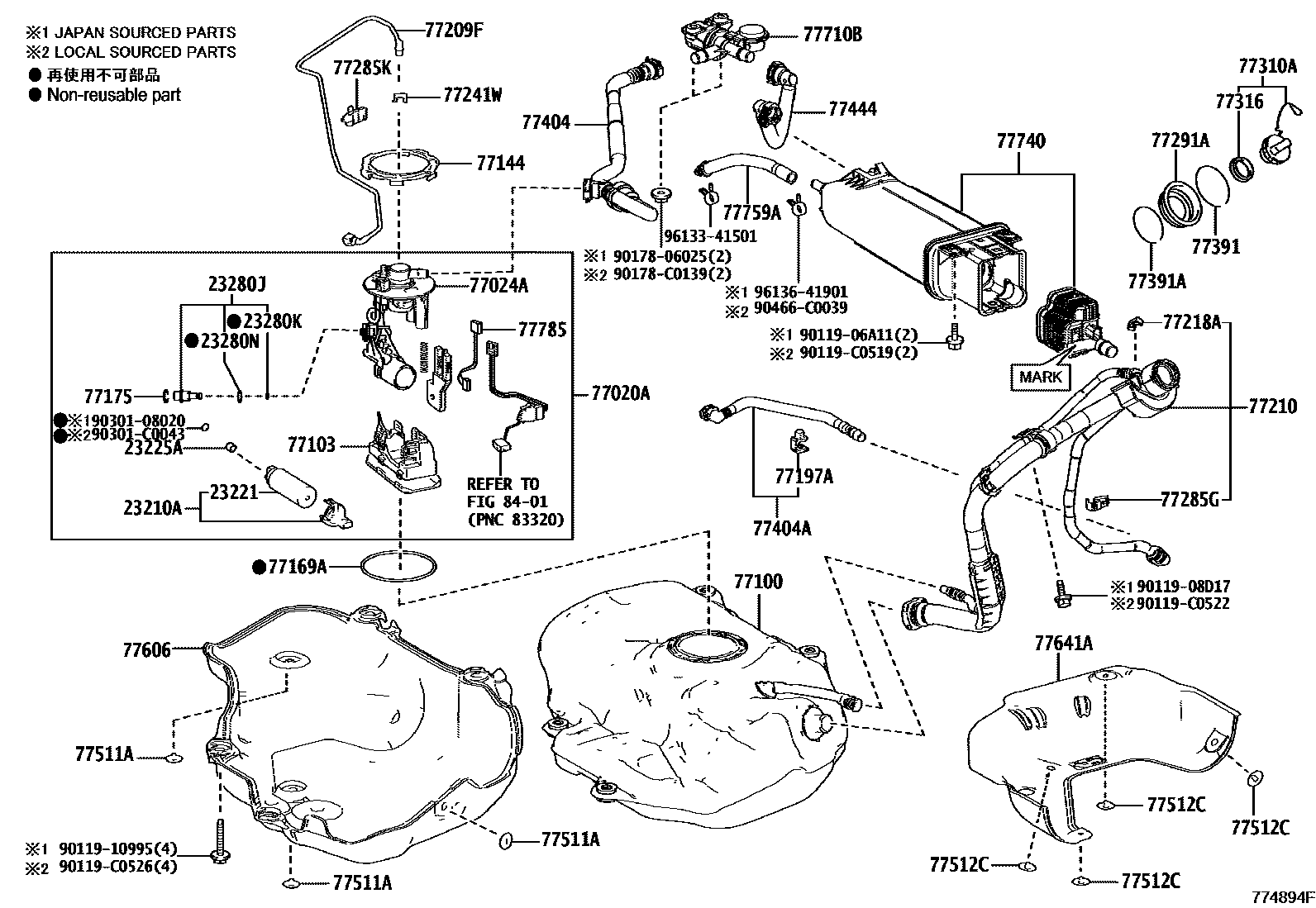

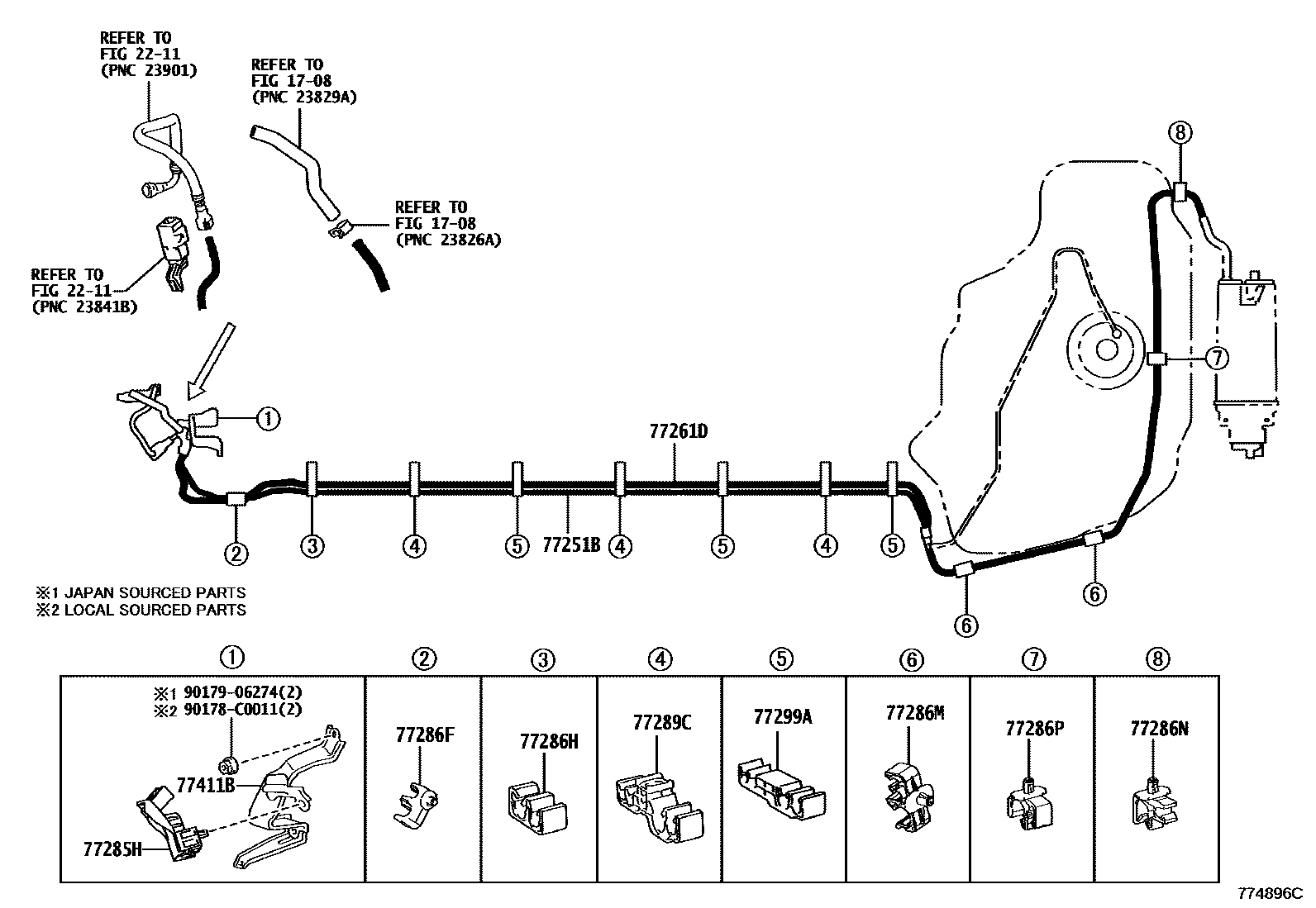

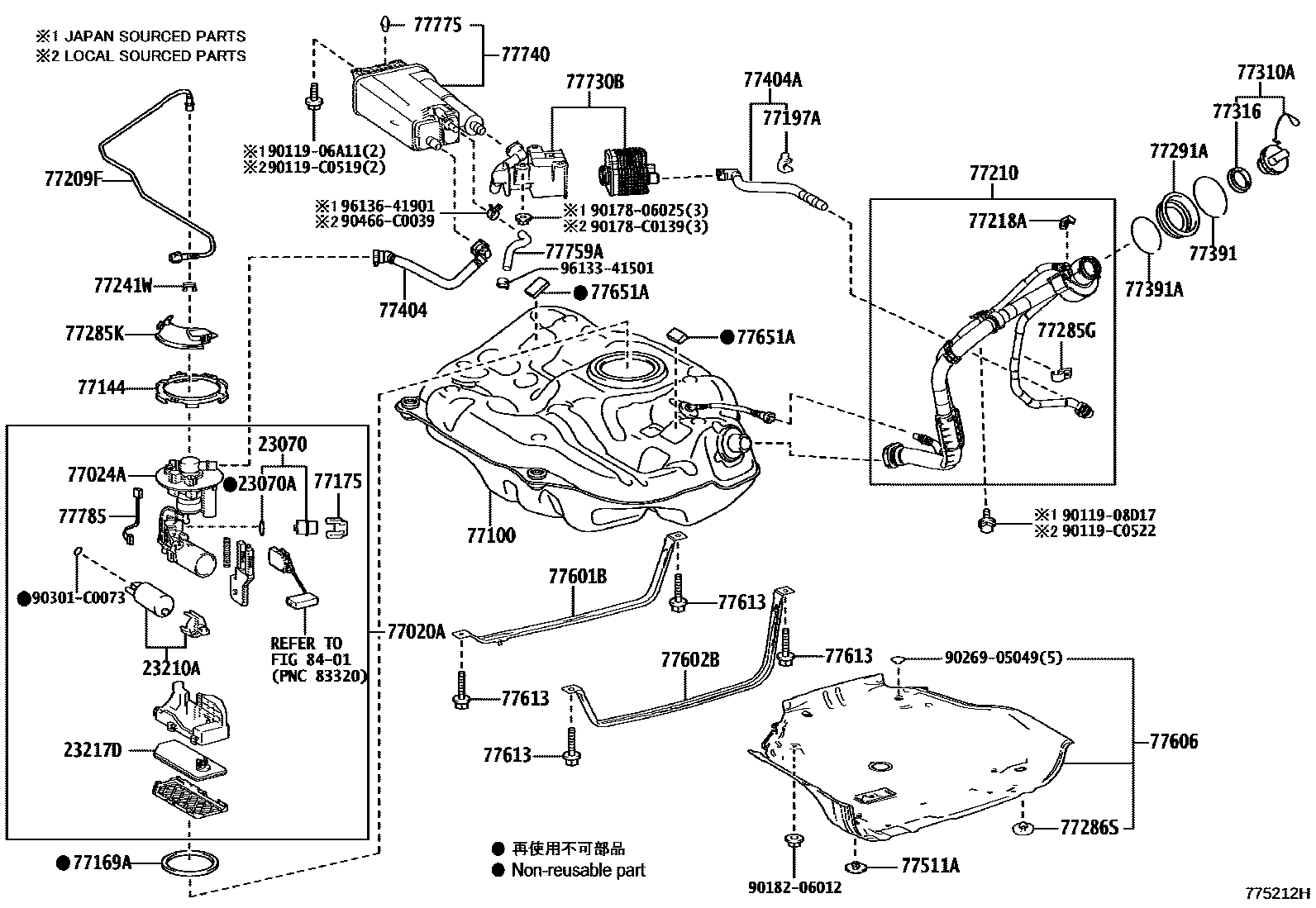

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 14 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 · 23070-F0030 |
| 23070A | No. 1 O-ring (for main fuel valve) | 90301-15024 |
| 23210A | Water pump assembly with motor and bracket | 23210-0T020 · 23210-F0010 · 23210-F2010 |
| 23217D | fuel pump filter | 23217-24020 |
| 23220A | Fuel pump assembly with filter | 23220-0Y140 |
| 23221 | fuel pump | 23221-0Y010 |
| 23225A | fuel pump septum | 23225-0H020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-36020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | No. 2 O-ring (for fuel pressure regulator) | 90301-15024 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02C30 · 77020-02C31 · 77020-02C32 · 77020-02C40 · 77020-0A150 · 77020-F4080 |
| 77024A | Fuel absorber sub-assembly | 77024-02610 · 77024-02611 · 77024-02650 · 77024-0A040 · 77024-F4090 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-02040 · 77030-02041 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02650 |
| 77100 | fuel tank assembly | 77001-02B70 · 77001-02C30 · 77001-02C40 · 77001-F4070 |
| 77103 | Auxiliary fuel tank sub-assembly | 77103-02130 |
| 77144 | Fuel pump instrument fixture | 77144-30030 · 77144-F4020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K030 · 77169-47030 · 77169-F4050 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0F010 |
| 77175 | No. 2 oil suction pipe bracket | 77175-02060 · 77175-F4020 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-07010 · 77197-47010 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-07010 · 77197-47010 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02400 · 77209-02401 · 77209-0A140 · 77209-F4080 |
| 77210 | Fuel tank filler pipe assembly | 77210-02870 · 77210-02872 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-02140 |
| 77241W | Pipe joint clip | 77241-02020 · 77241-33011 |
| 77251B | main fuel pipe | 77251-02C90 · 77251-02D00 · 77251-02D10 · 77251-02E00 · 77251-02E10 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02A80 · 77261-02A90 · 77261-02C00 · 77261-02C10 |
| 77285G | No. 1 fuel pipe clamp | 77285-06580 |
| 77285H | No. 1 fuel pipe clamp | 77286-02330 · 77286-02350 |
| 77285K | No. 1 fuel pipe clamp | 77285-02230 · 77285-0R310 · 77285-10060 · 77285-30350 |
| 77286F | No. 2 fuel pipe clamp | 77286-02340 · 77286-02360 |
| 77286H | No. 3 fuel pipe clamp | 77289-02170 · 77289-02180 |
| 77286M | No. 6 fuel pipe clamp | 77286-02320 |
| 77286N | No. 7 fuel pipe clamp | 77285-02270 · 77299-02080 · 77299-02100 |
| 77286P | No. 8 fuel pipe clamp | 77285-02270 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 · 77286-F4040 |
| 77289C | No. 4 fuel pipe clamp | 77298-02340 · 77298-02360 |
| 77291A | Fuel tank filler pipe cover | 77291-02340 · 77291-02341 |
| 77299A | No. 5 fuel pipe clamp | 77298-02350 · 77298-02370 |
| 77310A | Fuel tank cap assembly | 77300-06100 · 77300-06110 · 77300-0R010 · 77300-11010 |
| 77316 | fuel tank cap gasket | 77316-0F020 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-02310 |
| 77360A | Fuel filler cap spring assembly | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-02100 · 77377-02190 |
| 77378A | Fuel filler cap lock cover | 77378-02040 |
| 77379A | Fuel filler cap opening lever spacer | 77379-02020 |
| 77391 | fuel inlet ring | 77391-02160 |
| 77391A | fuel inlet ring | 77391-0R030 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-02390 · 77404-02440 · 77404-02450 · 77404-12090 · 77404-F4070 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-02290 · 77404-F4100 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-02160 · 77411-02190 · 77411-F4070 |
| 77444 | fuel tank vent hose | 77404-02260 · 77404-02261 |
| 77511A | fuel tank bracket | 77512-07010 · 77512-35140 |
| 77512C | fuel tank bracket | 77512-02060 · 77512-47030 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-F4040 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-F4040 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-02210 · 77606-02240 · 77606-47030 · 77606-F4050 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 · 90119-C0526 |
| 77641A | No. 1 fuel tank protective shell | 77641-02370 · 77641-02380 · 77641-02390 |
| 77642A | No. 2 fuel tank protective shell | 77642-0A030 |
| 77651A | No. 1 fuel tank liner | 77651-F4020 |
| 77653A | No. 3 fuel tank liner | 77653-10060 |
| 77710B | Fuel tank solenoid valve main valve assembly | 77710-47020 |
| 77730B | Carbon canister assembly with outlet hose | 77730-02030 · 77730-F4010 · 77730-F4020 |
| 77740 | Carbon canister assembly | 77740-02260 · 77740-02280 · 77740-F4020 |
| 77740R | Leak detection pump sub-assembly | 90910-15087 · 90910-CE005 · 90910-CE007 |
| 77759A | Carbon canister hose | 77759-12120 · 77759-F4040 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-02170 · 77785-06190 · 77785-0A010 · 77785-0F031 · 77785-52120 |
