Toyota COROLLA 后防护条 — Figure 7504

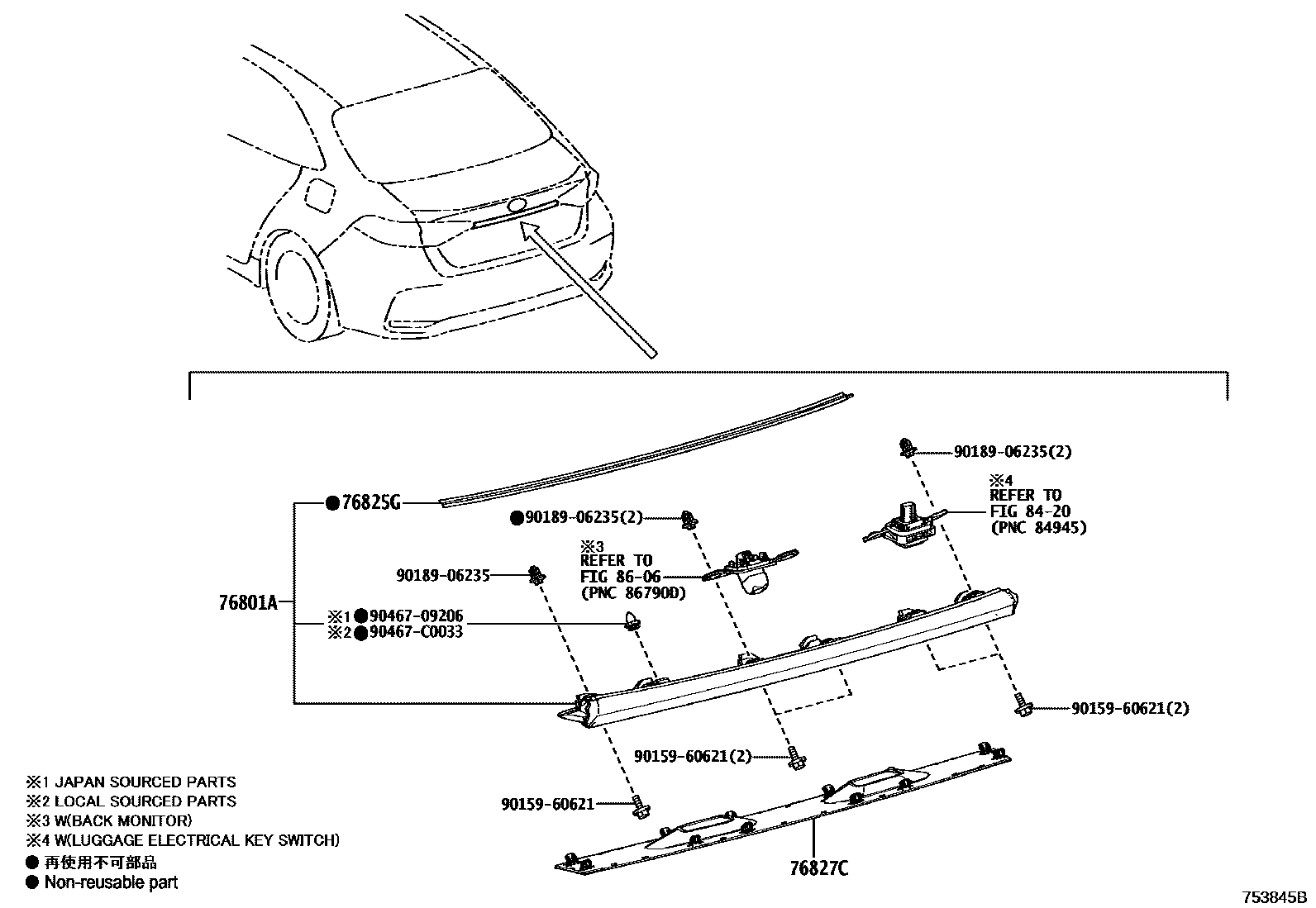

Toyota COROLLA EPC diagram 7504, 后防护条, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-02M00 · 76801-02P20 |
| 76825G | No. 2 protective cover for luggage compartment door decorative strip | 76825-02250 · 76825-02390 |
| 76827C | Trunk door trim strip fixing No. 2 | 76827-02220 · 76827-02230 · 76827-02250 · 76827-02270 · 76827-02280 · 76827-02290 |
