Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 28 PNC and OE references.

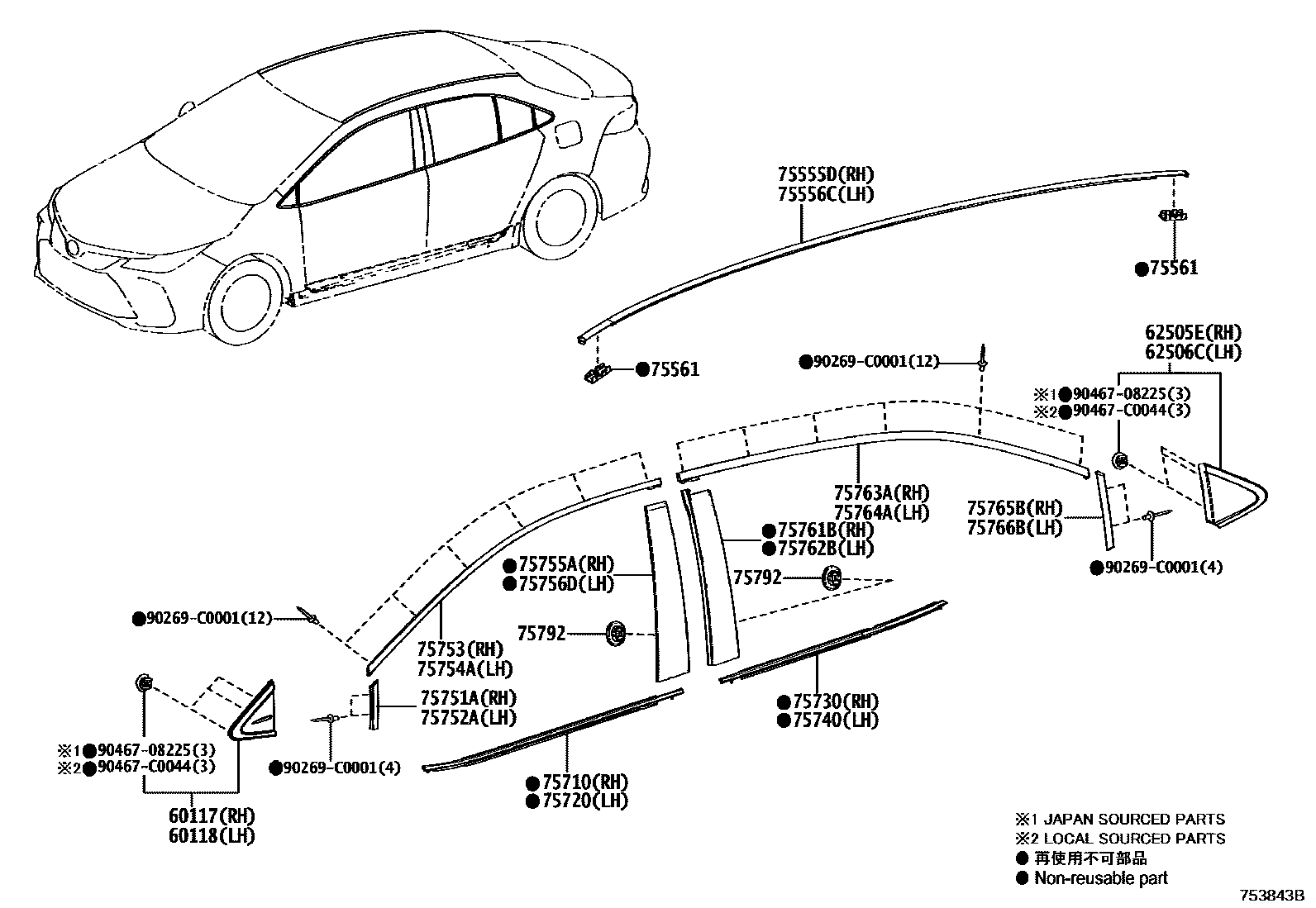

Toyota COROLLA 侧防护条 EPC diagram — 753843B
侧防护条 — 753843B (201908 – 999999)

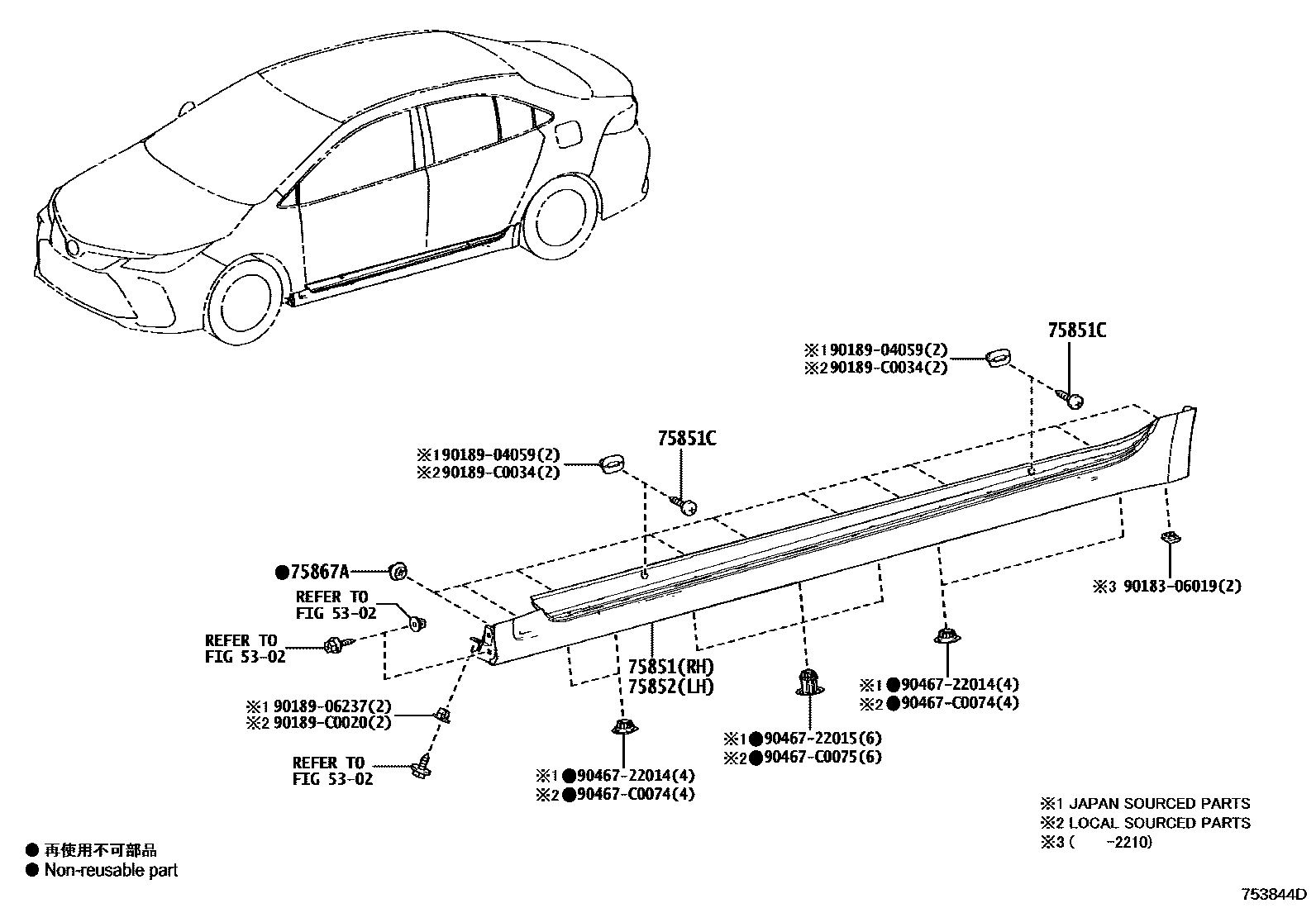

Toyota COROLLA 侧防护条 EPC diagram — 753844D
侧防护条 — 753844D (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-02370 · 60117-02380 · 60117-02480
60118Left front pillar upper cover sub-assembly60118-02370 · 60118-02380 · 60118-02480
62505ERight corner window pillar cover sub-assembly62505-02150 · 62505-02160 · 62505-02220
62506CLeft corner window pillar cover sub-assembly62506-02150 · 62506-02160 · 62506-02220
75555DDrainage channel side decorative strip in the middle section on the right side of the roof75555-02380
75556CDrainage channel side decorative strip in the middle section on the left side of the roof75556-02360
75561No. 1 roof drain channel side decorative strip clip75561-02070
75710Right front door waistline protection strip assembly75710-02630 · 75710-12871
75720Left front door waistline protection strip assembly75720-02630 · 75720-12A21
75730Right rear door waistline protection strip assembly75730-02630 · 75730-12461
75740Left rear door waistline protection strip assembly75740-02630 · 75740-12551
75751AFront door window frame protection strip (right front pillar)75751-02100
75752AFront door window frame protection strip (left front pillar)75752-02100
75753Protective strip on right front door window frame75753-02140 · 75753-02150
75754AProtective strip on left front door window frame75754-02140 · 75754-02150
75755AFront door window frame protection strip (right center pillar)75755-02210
75756DFront door window frame protection strip (left center pillar)75756-02210
75761BRear door window frame protection strip (right center pillar)75761-02220
75762BRear door window frame protection strip (left center pillar)75762-02220
75763AProtective strip on right rear door window frame75763-02160 · 75763-02170
75764AProtective strip on left rear door window frame75764-02160 · 75764-02170
75765BRear door window frame protection strip (right rear pillar)75765-02110
75766BRear door window frame protection strip (left rear pillar)75766-02110
75792Car door window frame protective strip clip75792-0D010 · 75792-47010
75851Right side door sill panel protective strip75851-02912 · 75851-YK900
75851CScrews (for body sill protection strips)90162-40034 · 90162-40035 · 90162-C0002 · 90162-C0003
75852Left side door sill panel protective strip75852-02912 · 75852-YK900
75867ADoor sill panel protective strip clip75867-02020
