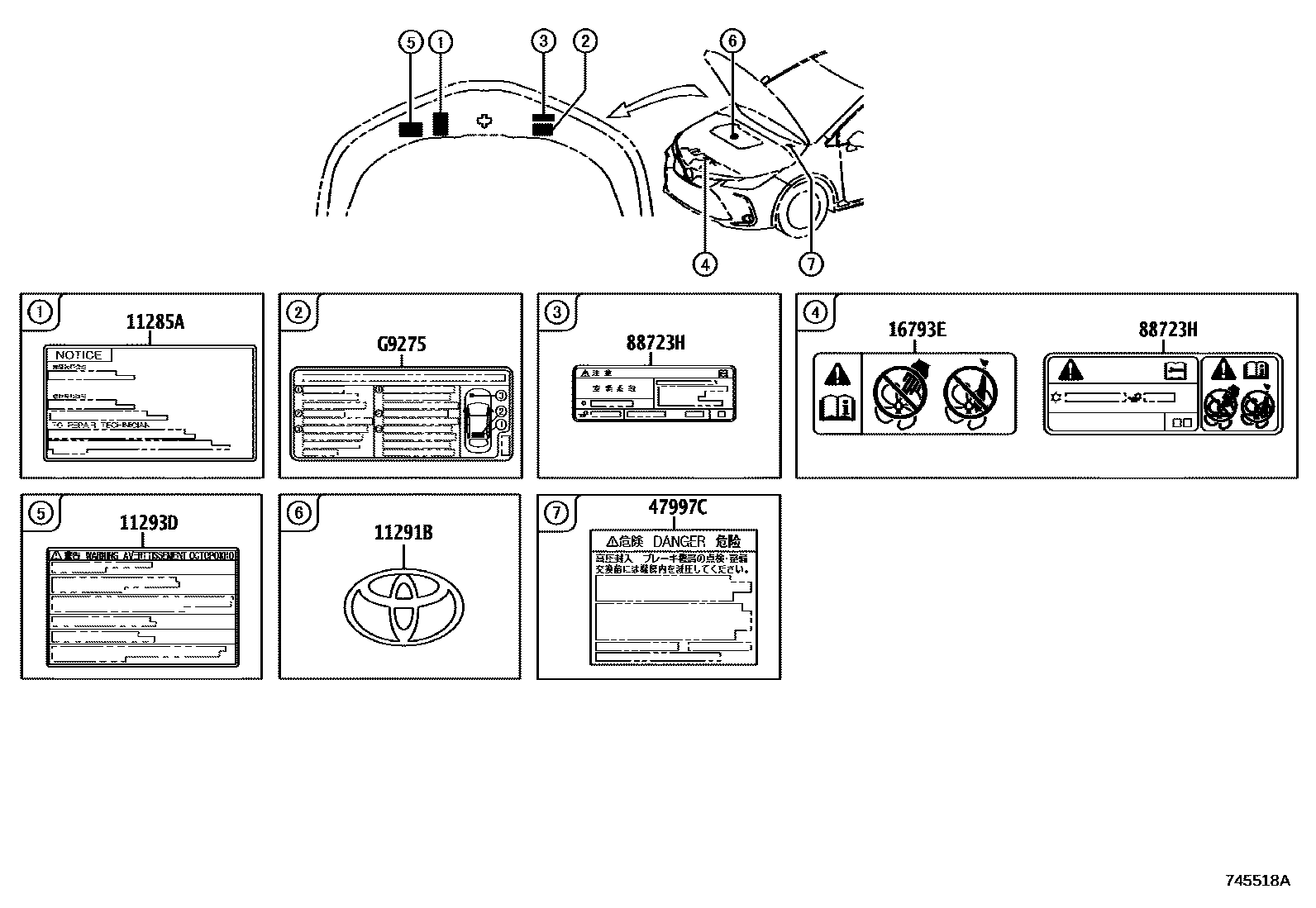

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0Y010 · 11285-36050 |
| 11291B | Engine name plate | 11290-37010 · 11291-37100 · 11291-37130 |
| 11293D | engine warning label | 11293-36070 |
| 16793E | Cooling fan warning label | 16793-36030 |
| 42668 | Small spare tire warning label | 42668-20020 |
| 47997C | Accumulator No. 1 Warning Label | 47997-76010 |
| 69339C | Child Restraint Information Label | 69339-06080 |
| 74515C | Anti-theft warning information label | 74515-06020 |
| 74541E | Small spare tire warning plate | 42668-0N010 |
| 74559B | fuel information label | 74559-33060 · 74579-0D010 · 74579-26011 |
| 74751 | tire pressure information label | 42661-02U30 · 42661-02U40 · 42661-02U50 · 42661-02W80 · 42661-02X00 |
| 88723H | Cooler maintenance warning label | 88723-02530 · 88723-02820 · 88723-0A230 · 88723-F4140 |
| G9275 | No. 1 battery warning label | G9275-02040 · G9275-02050 |
| G9285A | HV Battery No. 1 Warning Label | G928L-02010 |
