Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 3 images and 3 PNC and OE references.

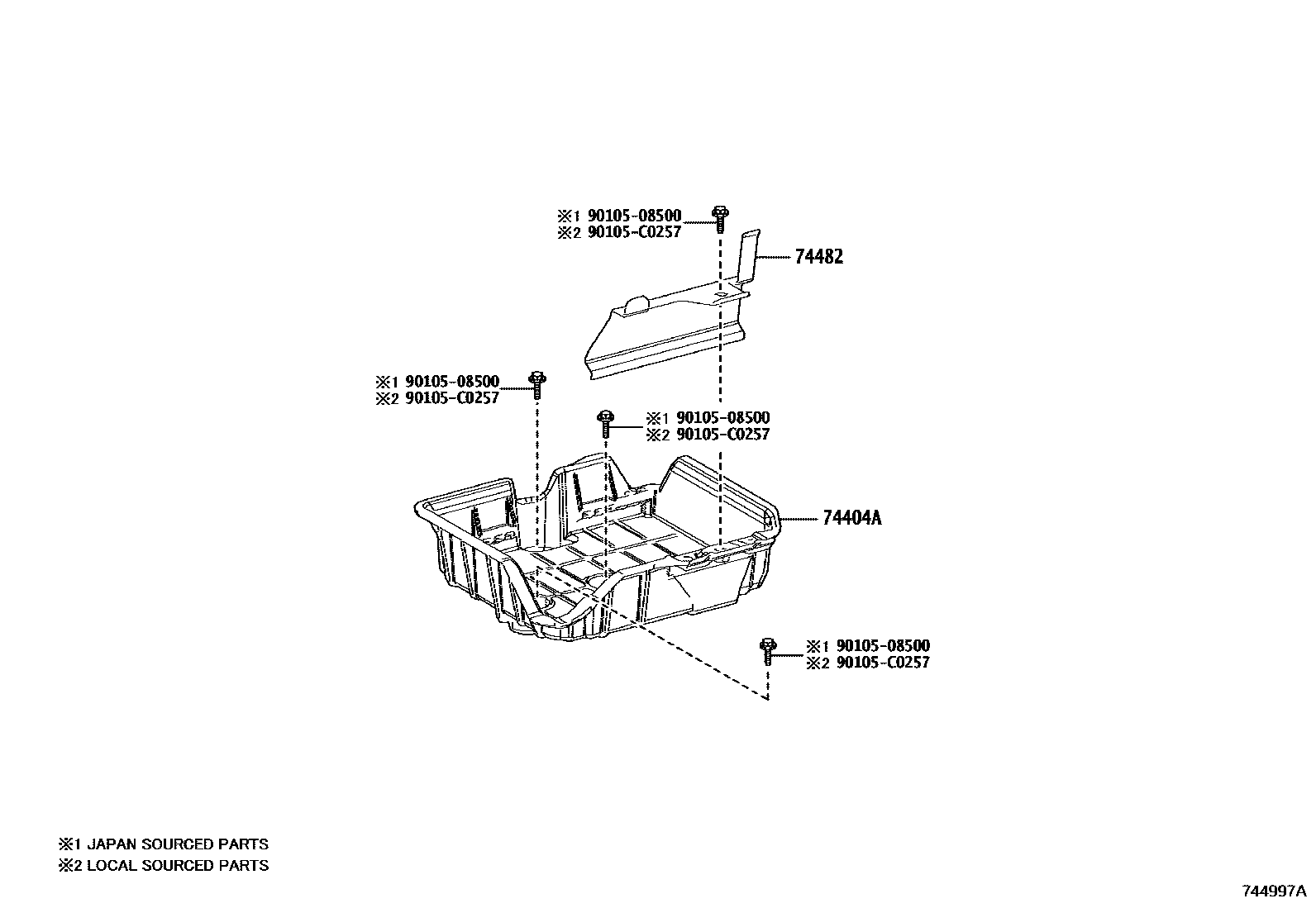

Toyota COROLLA battery holder EPC diagram — 744997A
battery holder — 744997A (201908 – 999999)

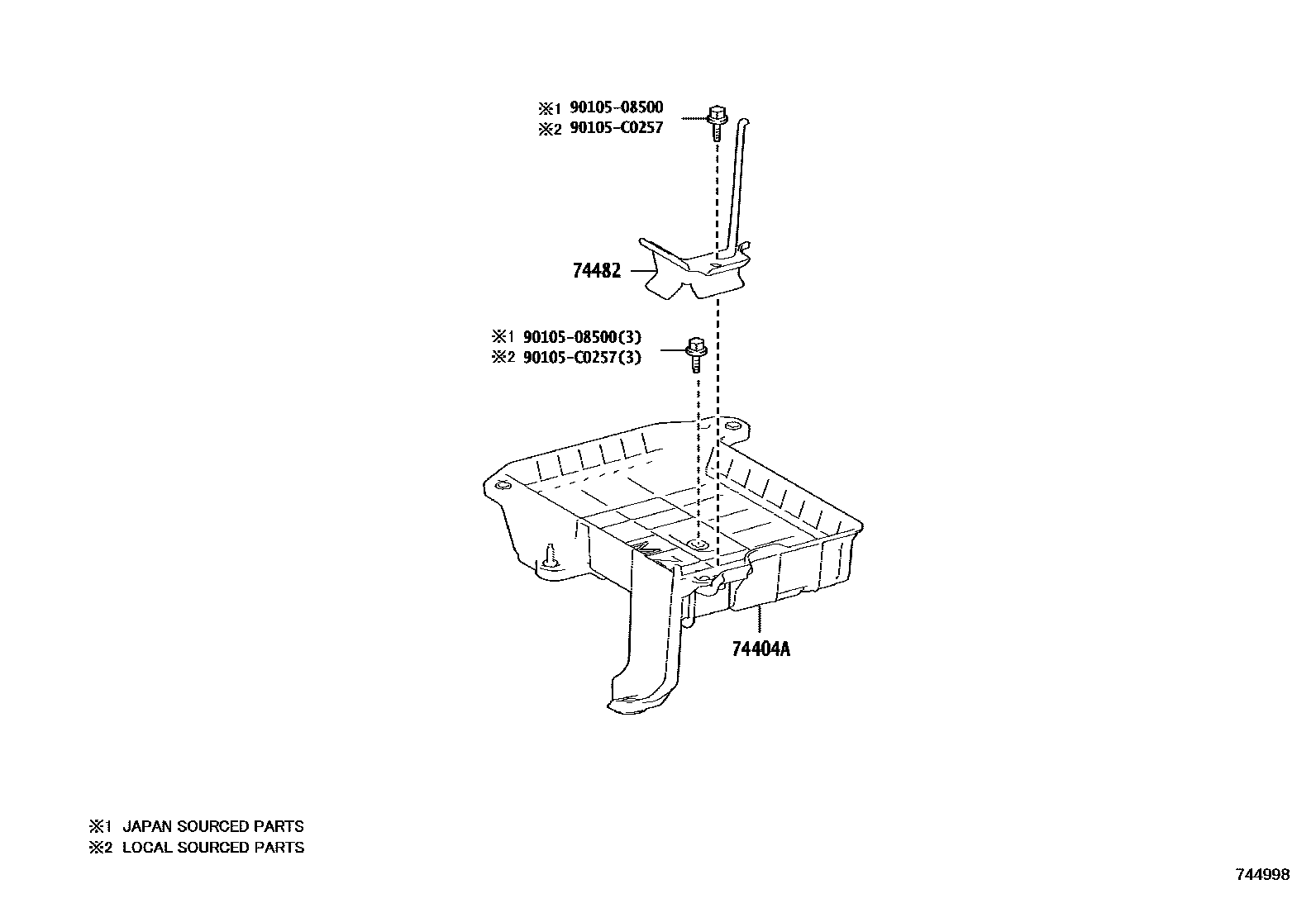

Toyota COROLLA battery holder EPC diagram — 744998
battery holder — 744998 (201908 – 999999)

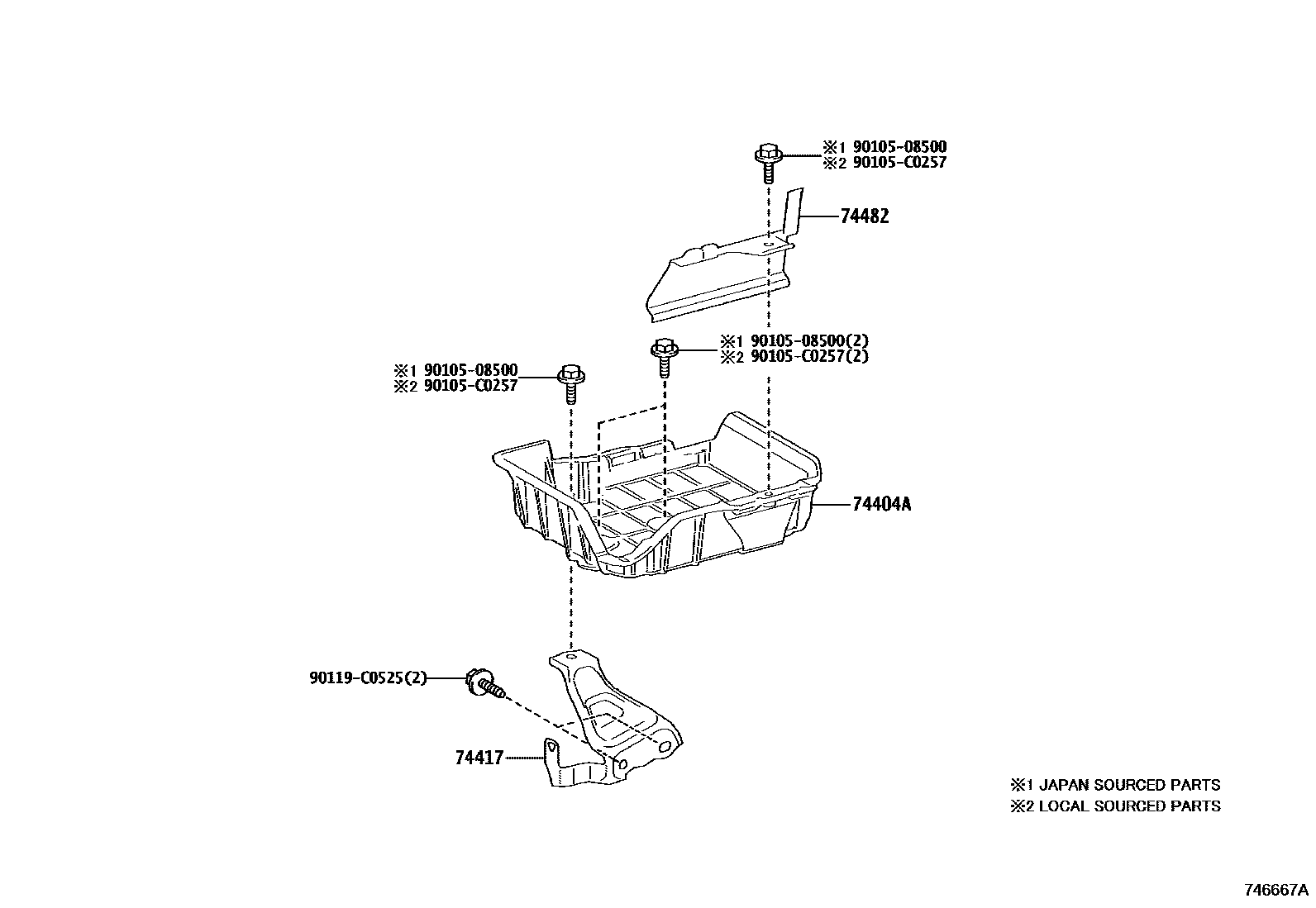

Toyota COROLLA battery holder EPC diagram — 746667A
battery holder — 746667A (202305 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02780 · 74404-02790 · 74404-02870 · 74404-02890 · 74404-02A70
74417battery holder bracket74417-02150
74482No. 2 battery clip74405-02090 · 74482-02350
