Toyota COROLLA 扶手和遮阳板 — Figure 7401

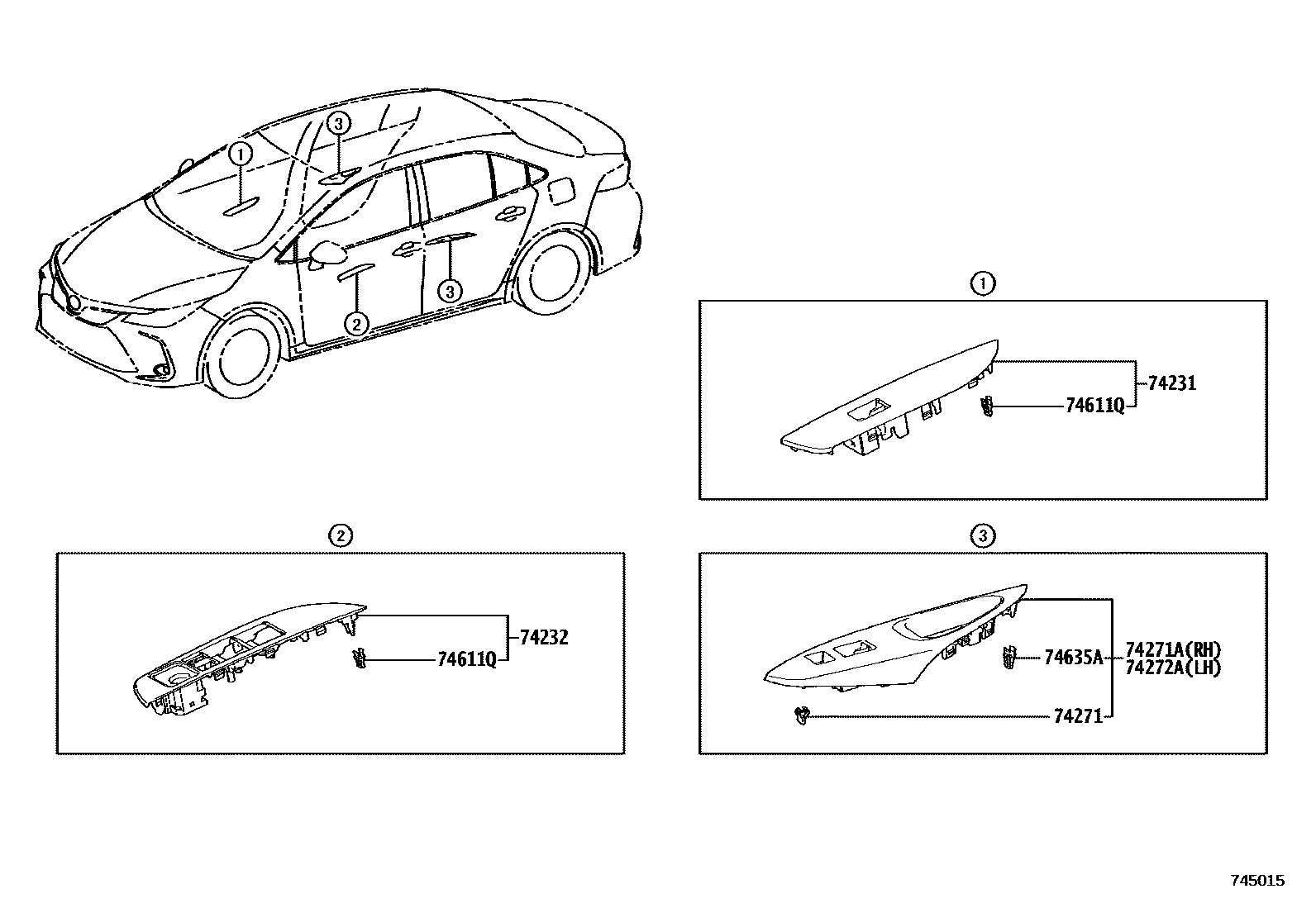

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-02J60 · 74231-02K20 |
| 74232 | Left front armrest upper panel | 74232-02K20 · 74232-02L10 |
| 74271 | door armrest fixings | 55416-60030 |
| 74271A | Right rear door armrest upper panel | 74271-02A50 · 74271-02A70 |
| 74272A | Left rear door armrest upper panel | 74272-02A40 · 74272-02A60 |
| 74611Q | clip | 90467-C0031 |
| 74614C | Auxiliary handle locking plate | 74614-F4010 |
| 74635A | clip | 90467-12080 · 90467-C0031 |
