Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

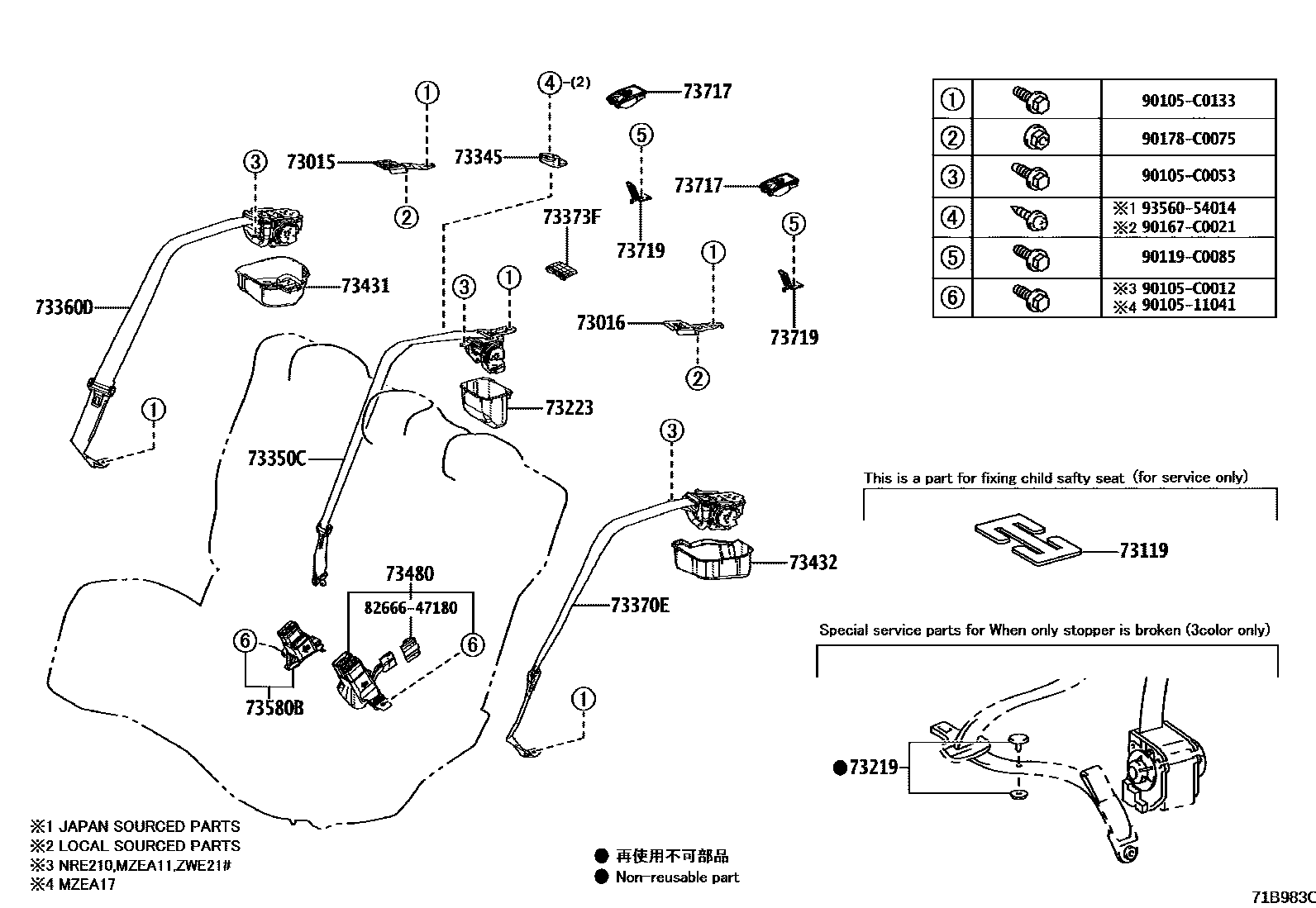

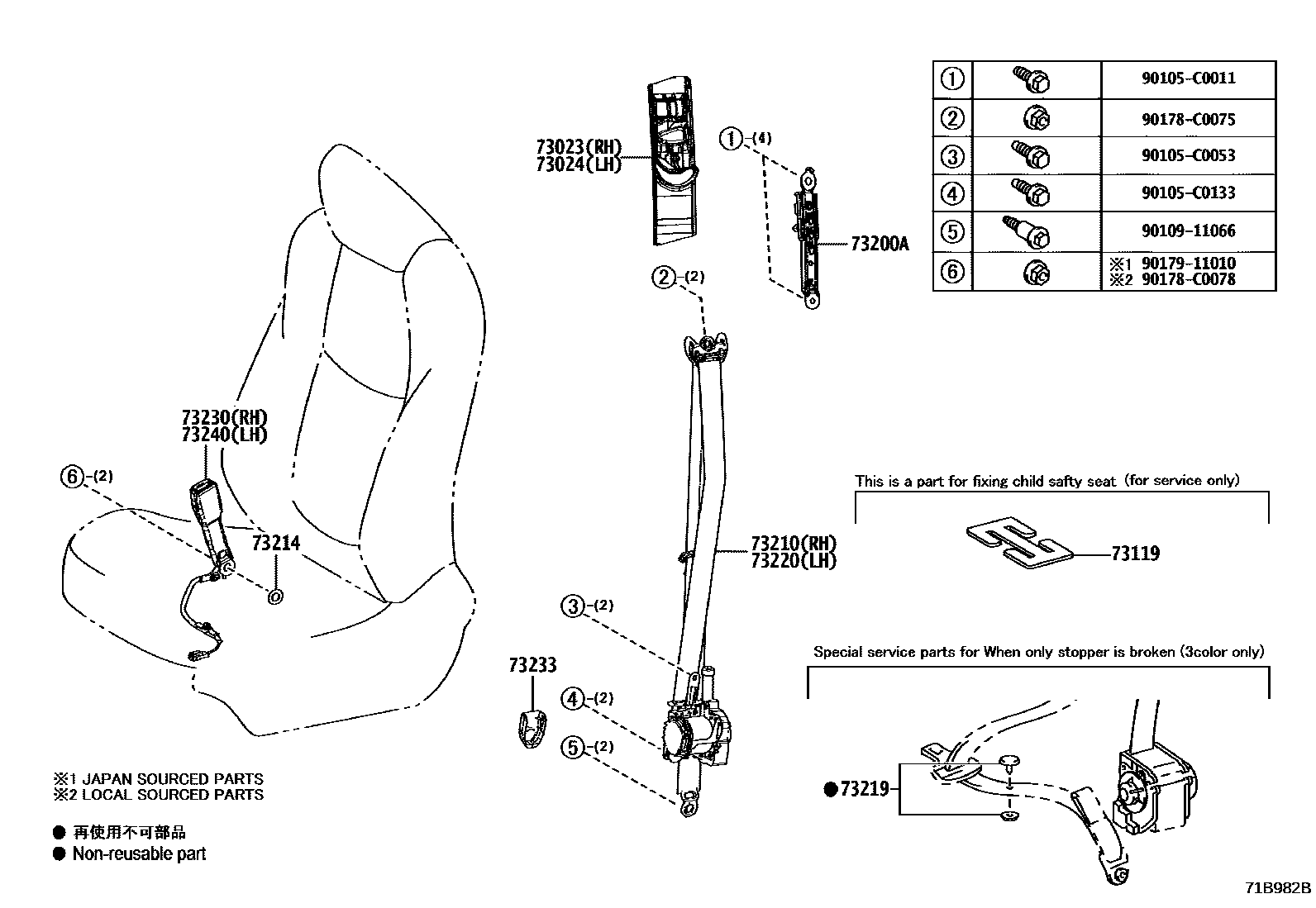

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73015 | Right seat belt outer anchor bracket sub-assembly | 73015-02220 |
| 73016 | Left side seat belt outer anchor bracket sub-assembly | 73016-02220 |
| 73119 | seat belt clip | 73119-22010 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-0G020 |
| 73214 | Front seat belt anchor plate | 73214-75010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73223 | seat belt retractor cover | 73223-02100 |
| 73431 | Rear right seat belt retractor cover | 73431-02080 |
| 73432 | Rear left seat belt retractor cover | 73432-02080 |
| 73719 | Child restraint seat tether anchor bracket | 73719-02190 |
