Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

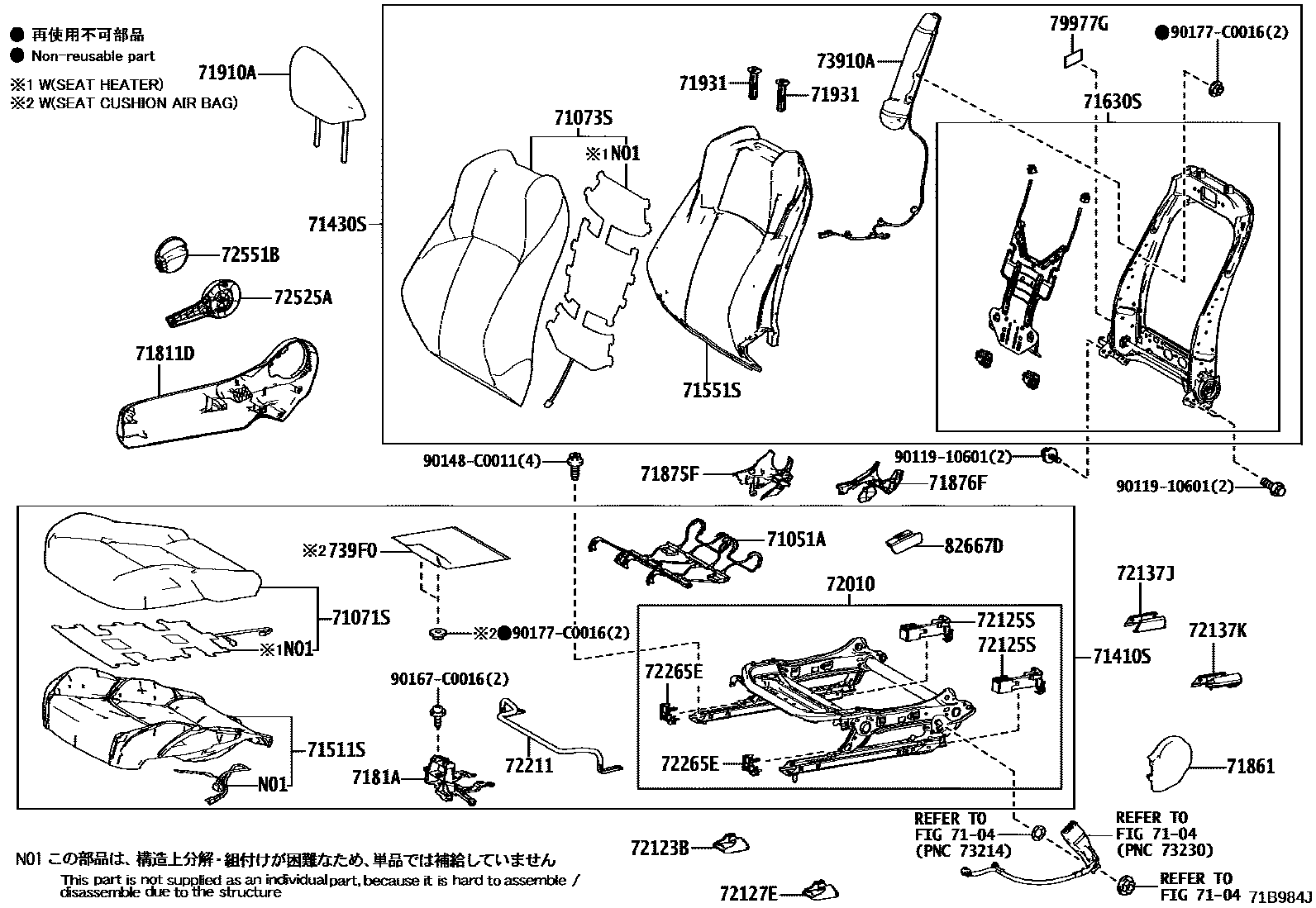

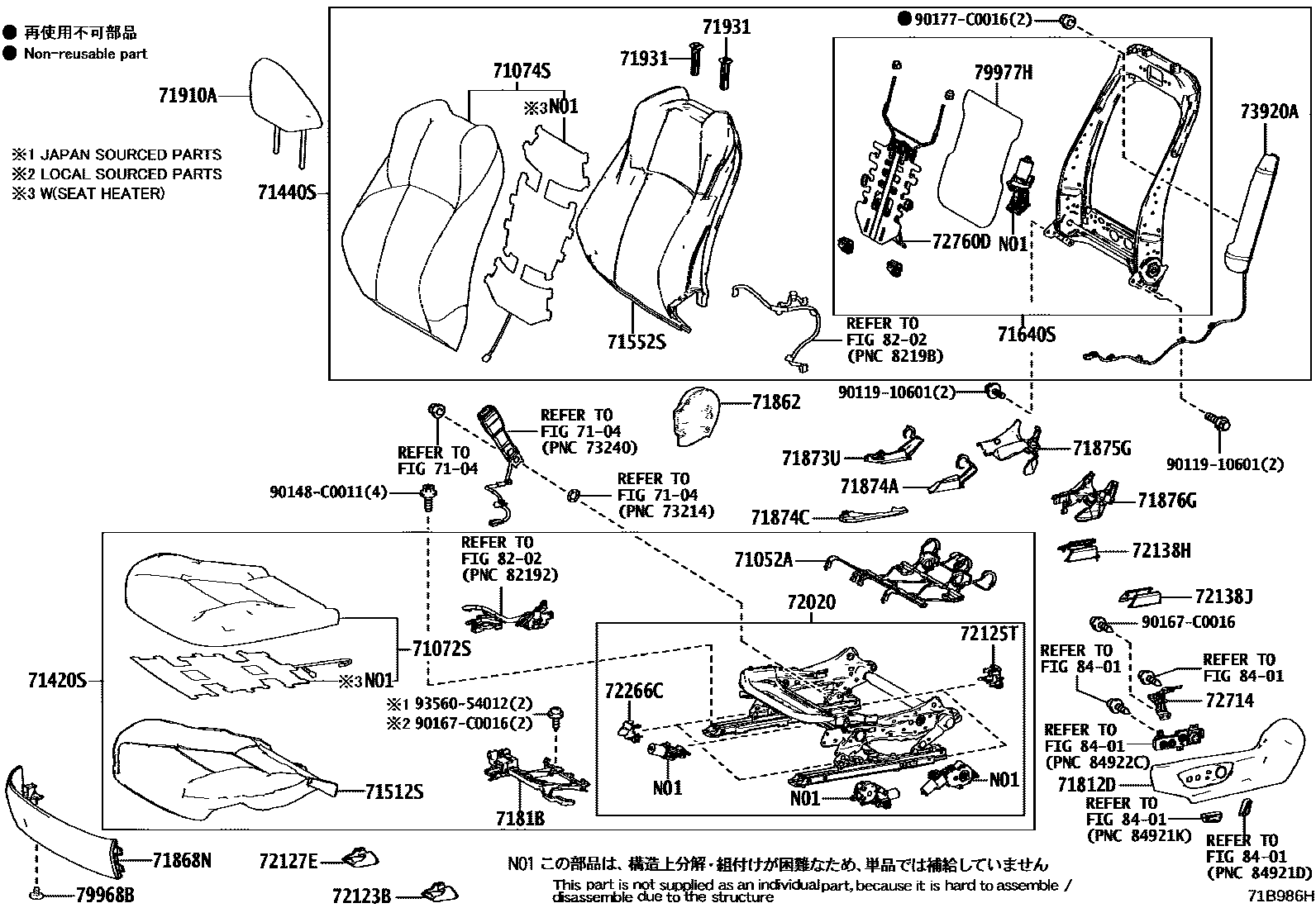

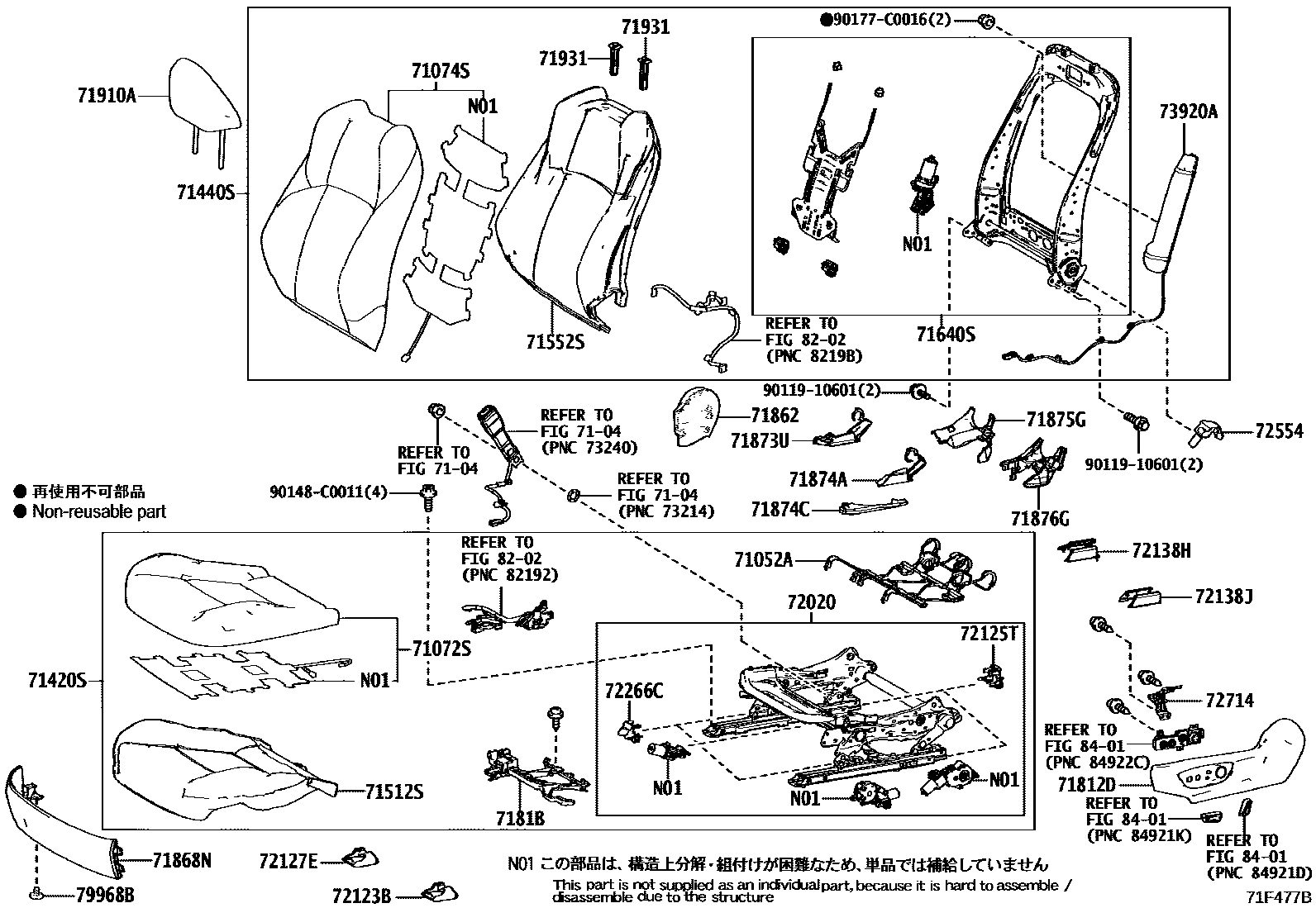

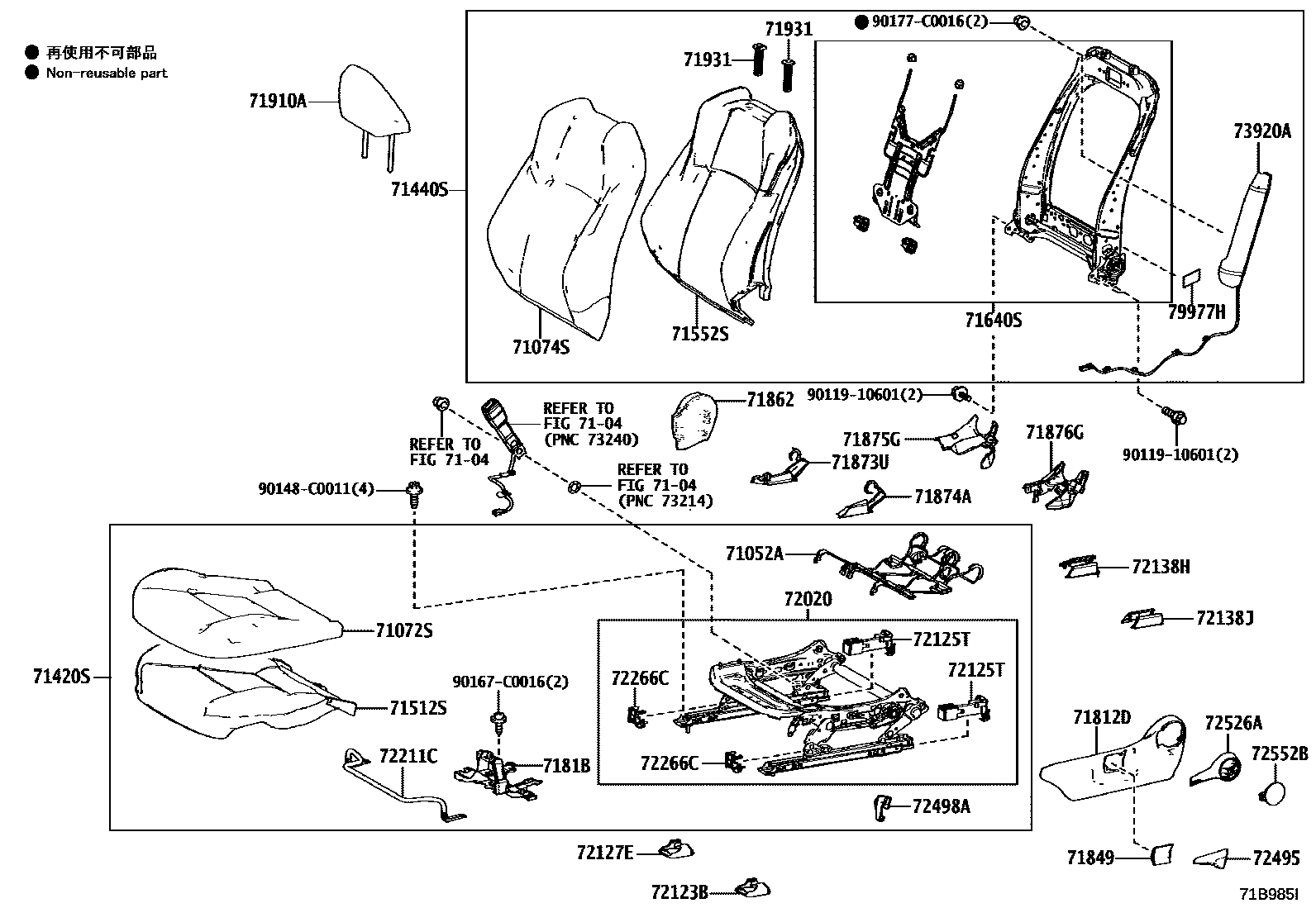

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71051A | Front right seat cushion spring sub-assembly | 71051-06040 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-06040 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-YK100 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-YK100 |
| 71073S | Front right seat back cover (for split seats) | 71073-YK100 |
| 71074S | Front left seat back cover (for split seats) | 71074-YK100 |
| 71410S | Front right seat cushion assembly (for split seats) | 71410-YK100 |
| 71420S | Front left seat cushion assembly (for split seats) | 71420-YK100 |
| 71430S | Front right seat back assembly (for split seats) | 71430-YK100 |
| 71440S | Front left seat back assembly (for split seats) | 71440-YK100 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02410 · 71501-02430 · 71501-02480 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-02D00 · 71512-02D10 · 71512-02D80 · 71512-02D90 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02F40 · 71551-02F80 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02D00 · 71552-02E00 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02B50 · 71630-0R150 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02C50 · 71640-02D20 · 71640-02E20 · 71640-0R330 |
| 7181A | Front right seat cushion harness holder | 7181A-F4030 |
| 7181B | Front left seat cushion harness holder | 7181B-07020 · 7181B-F4030 |
| 71910A | Front seat headrest assembly | 71910-YK100 |
| 72010 | Front right seat adjuster assembly | 72010-07040 · 72010-0R070 |
| 72020 | Front left seat adjuster assembly | 72020-02A80 · 72020-07050 · 72020-07051 · 72020-07052 · 72020-07060 · 72020-0R220 |
| 72123B | Front seat outer slide rail bracket cover | 72123-F4030 |
| 72125S | Front right seat slide rail rear upper cover | 72125-F4010 |
| 72125T | Front left seat slide rail rear upper cover | 72125-F4010 · 72125-F4020 |
| 72127E | Front seat inner slide rail bracket cover | 72123-F4030 |
| 72137J | Front right seat outer slide rail rear cover | 72137-F4020 |
| 72137K | Front right seat inner slide rail rear cover | 72157-07040 |
| 72138H | Front left seat inner slide rail rear cover | 72158-07040 |
| 72138J | Front left seat outer slide rail rear cover | 72137-F4020 |
| 72211 | Seat slide adjustment handle | 72211-06140 |
| 72211C | Seat slide adjustment handle | 72211-06140 |
| 72265E | Right seat rail upper rail cover | 72265-F4010 |
| 72266C | Left seat rail upper rail cover | 72265-07020 · 72265-F4010 |
| 72554 | Left seat backrest tilt cover protective cover | 72554-08020 |
| 72714 | Left seat adjuster protective clip bracket | 72714-07010 |
| 72760D | Left lumbar support adjuster assembly | 72750-33140 |
| 73910A | Front right seat airbag assembly | 73910-02350 · 73910-02400 |
| 73920A | Front left seat airbag assembly | 73920-02370 · 73920-02410 |
| 739F0 | Front right seat cushion air bag assembly | 739F0-02050 |
| 79968B | clip | 90467-07215 |
| 79977G | Front seat back right felt pad | 79977-02130 |
| 79977H | Felt pad, left side of front seat backrest | 79977-02130 · 79977-33030 |
| 82667D | Connector holder | 82666-07300 |
