Toyota COROLLA 锁芯组件 — Figure 6712

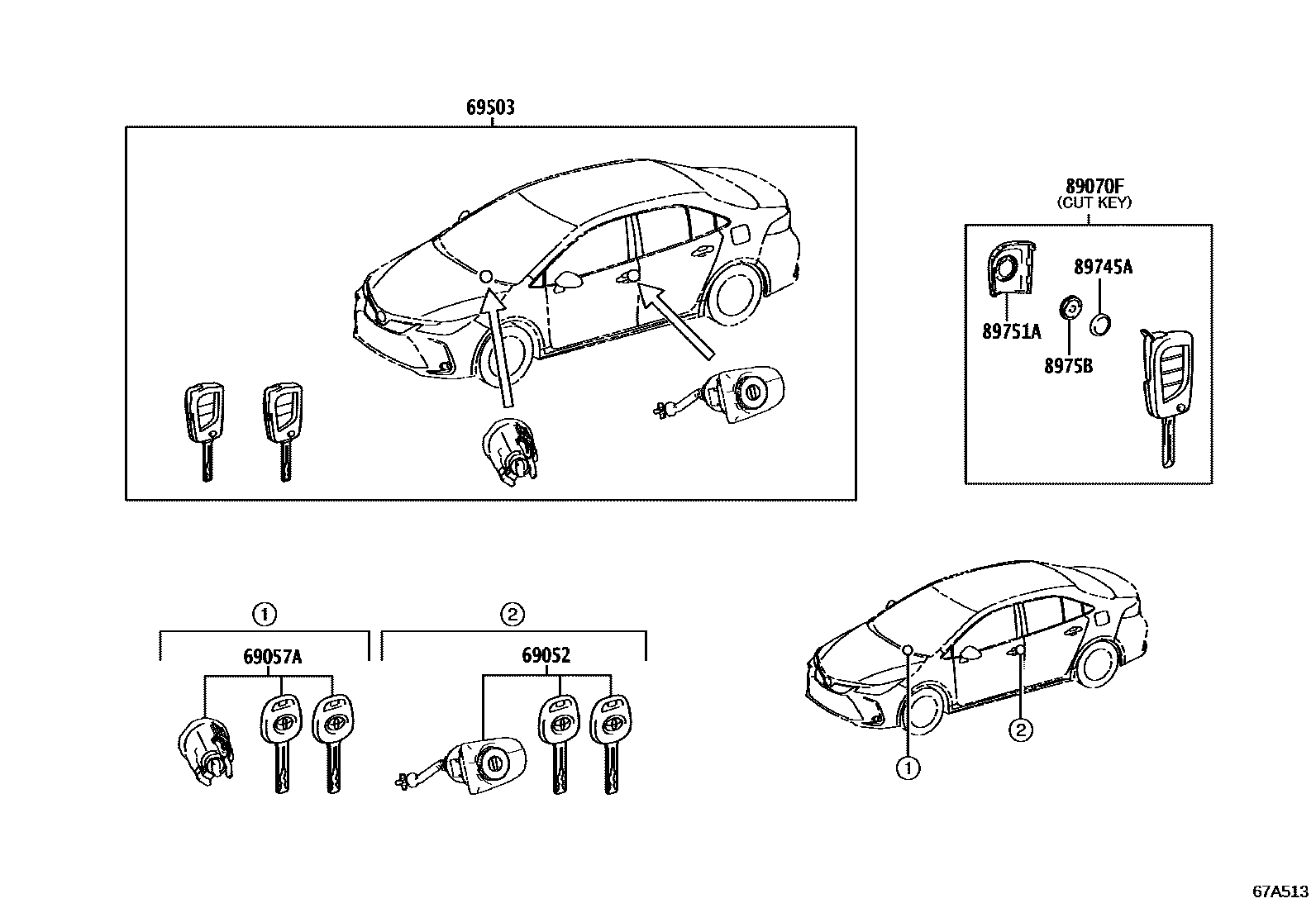

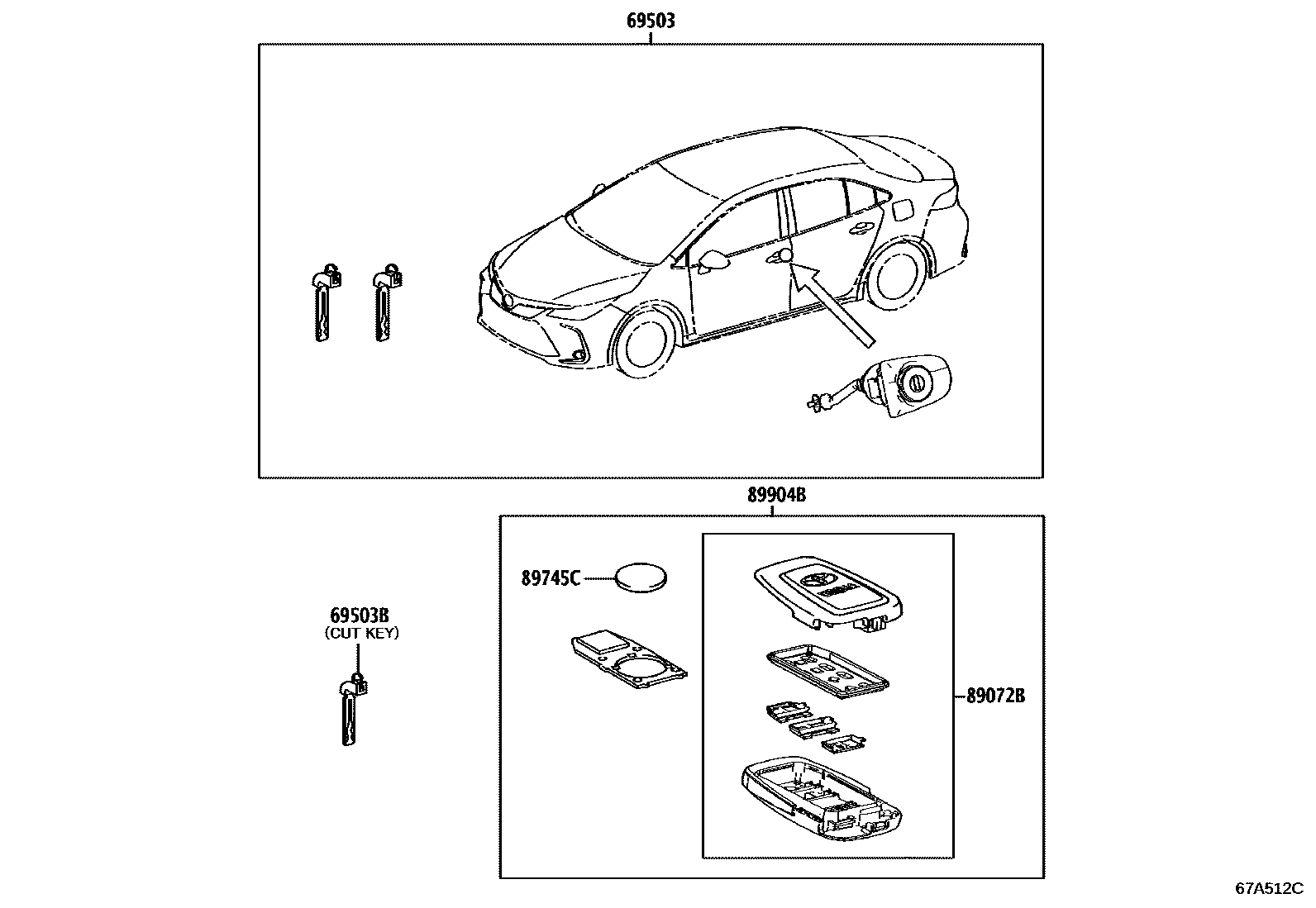

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-02630 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02C10 |
| 69503 | Door lock cylinder components | 69005-02K10 · 69005-02L90 · 89704-02F30 |
| 69503B | internal tooth key | 69515-0R160 · 69515-F4060 |
| 89070F | Remote key assembly (internal tooth key) | 89070-02J30 |
| 89072B | Remote key shell assembly (for smart key) | 89072-02850 · 89072-02860 · 89072-02C20 · 89072-02C30 |
| 89745A | Transmitter battery | 89745-06010 |
| 89745C | Transmitter battery | 89745-12020 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-06130 |
| 8975B | Remote control battery case cover | 8975B-52010 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-02230 · 8990H-02240 · 8990H-02430 · 8990H-02431 · 8990H-02440 · 8990H-02441 |
