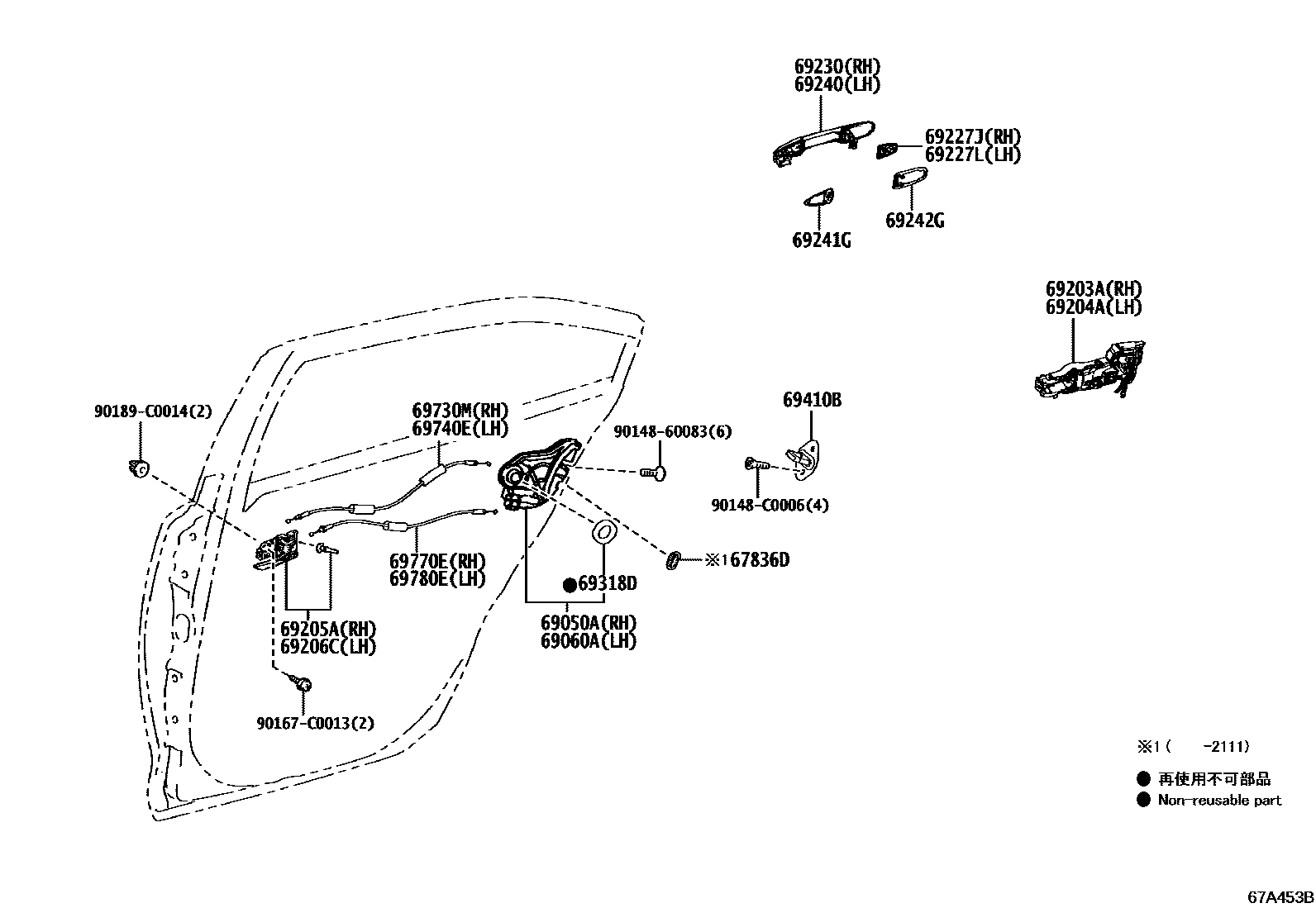

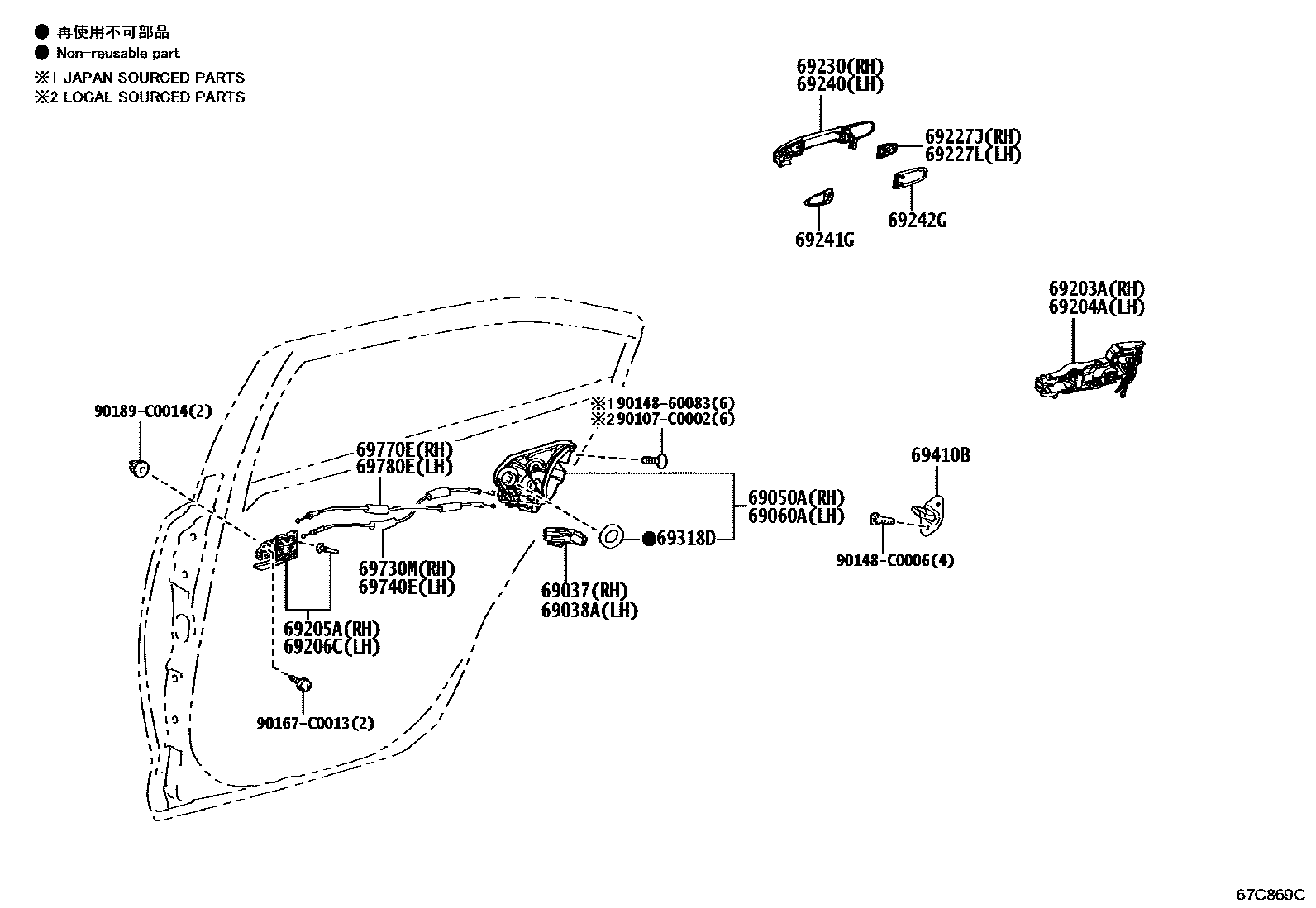

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836D | Rear door lock child restraint cover | 67836-02040 · 67836-33030 |
| 69037 | Right rear door door lock cover sub-assembly | 69037-0R010 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-0R010 |
| 69050A | Right rear door lock assembly with motor | 69050-02500 · 69050-02570 |
| 69060A | Left rear door lock assembly with motor | 69060-02500 · 69060-02570 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02480 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02480 |
| 69227J | Right rear door outer handle cover | 69227-07030 |
| 69227L | Left rear door outer handle cover | 69227-07030 |
| 69241G | Rear door front exterior handle pad | 69241-07020 |
| 69242G | Rear door rear outer handle pad | 69242-07020 |
| 69318D | door lock harness seal | 69318-47010 · 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-0D020 |
| 69730M | Right rear door lock remote control cable (for opening lever) | 69730-02460 · 69730-02520 |
| 69740E | Left rear door lock remote control cable (for opening lever) | 69730-02460 · 69730-02520 |
| 69770E | Right rear door inner locking cable (for locking/unlocking handle) | 69770-02560 · 69770-02620 |
| 69780E | Left rear door inner lock cable (for locking/unlocking handle) | 69770-02560 · 69770-02620 |
