Toyota COROLLA 后门板和后门玻璃 — Figure 6705

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 34 PNC and OE references.

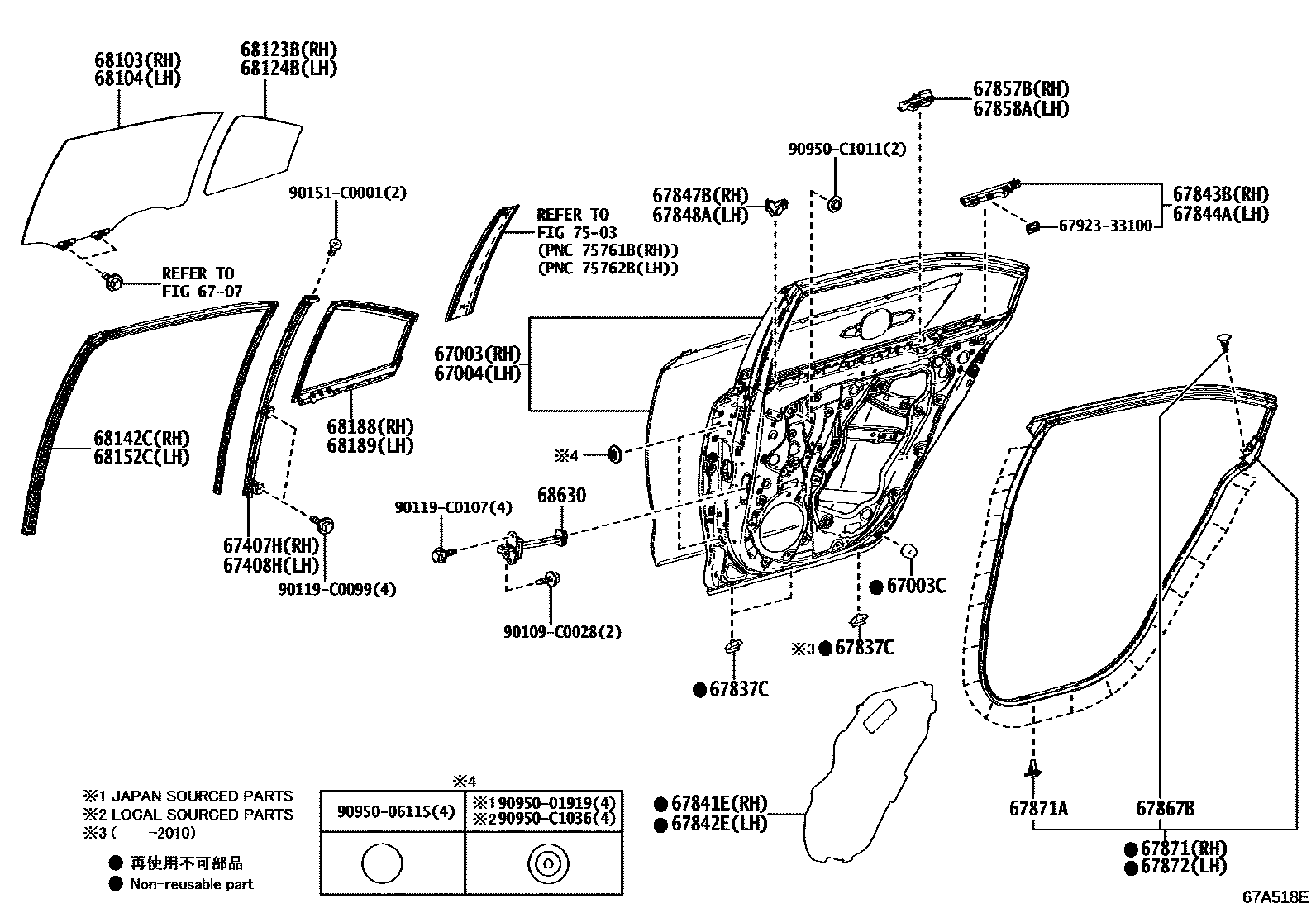

Toyota COROLLA 后门板和后门玻璃 EPC diagram — 67A518E
后门板和后门玻璃 — 67A518E (201908 – 999999)

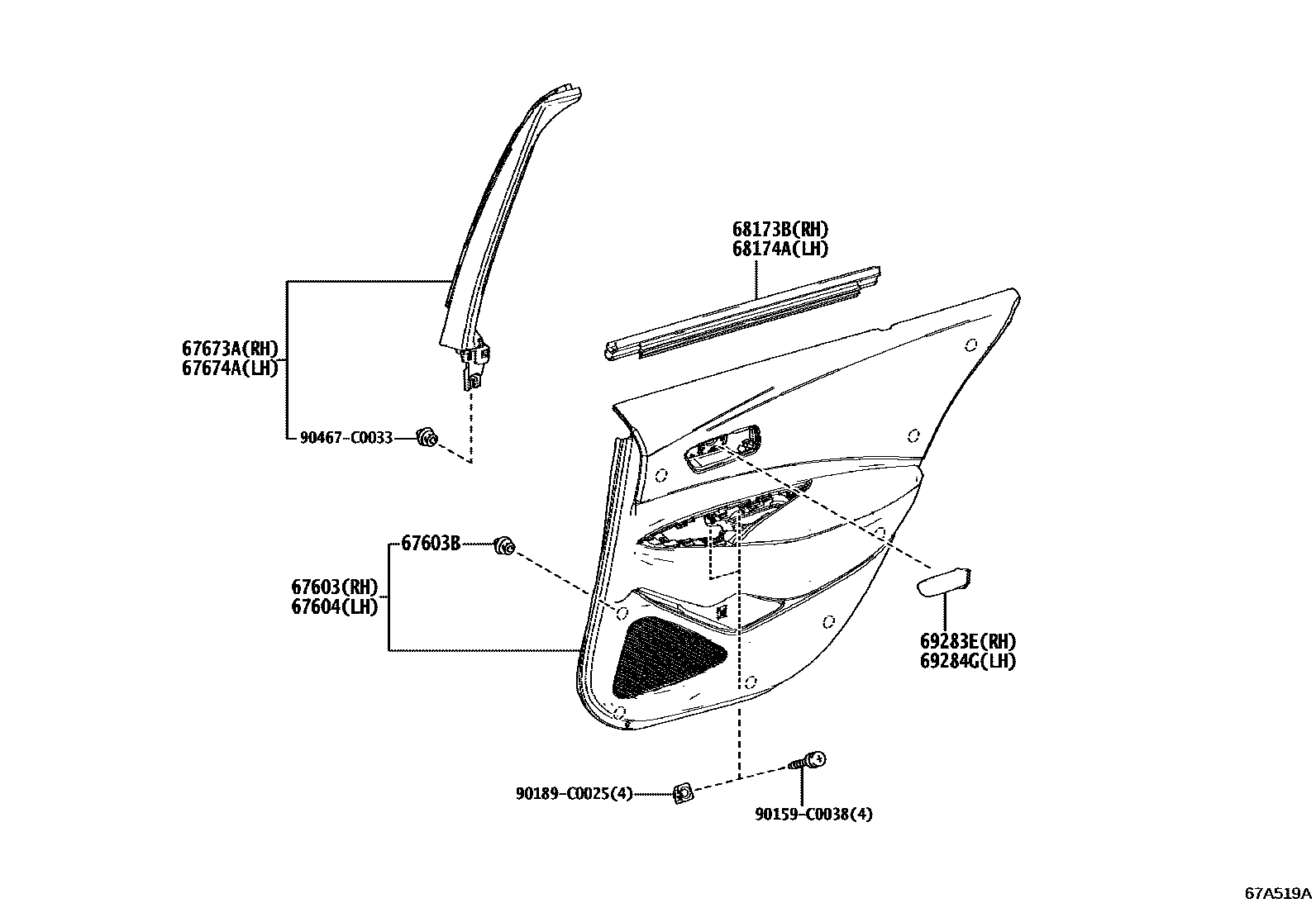

Toyota COROLLA 后门板和后门玻璃 EPC diagram — 67A519A
后门板和后门玻璃 — 67A519A (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-02620 · 67003-02621
67003CRear door panel cushion90541-09124 · 90541-C0003
67004Left rear door panel sub-assembly67004-02630 · 67004-02631
67407HRight sliding door window divider sub-assembly67407-02280
67408HLeft rear sliding door window divider sub-assembly67408-02280
67603Right rear door decorative panel sub-assembly67630-YK060
67603BCatch (for rear door trim panel)90467-C0033
67604Left rear door decorative panel sub-assembly67640-YK060
67673ARight rear door frame decorative strip67673-02090
67674ALeft rear door frame decorative strip67674-02090
67837CRear door dust seal retainer67837-02150 · 67837-48050
67841ERight rear door access hole cover67841-02360
67842ELeft rear door access hole cover67842-02480
67843BRight rear door No. 2 access hole cover67843-02090 · 67843-02110
67844ALeft rear door No. 2 access hole cover67844-02090 · 67844-02110
67847BNo. 1 right rear door ventilation device seal67847-02170 · 67847-02180
67848ANo. 1 left rear door ventilator seal67848-02110 · 67848-02120
67857BRight rear door panel protector67857-02180
67858ALeft rear door panel protector67858-02180
67867BDoor seal strip clip (for rear door)67868-30030
67871Right rear door sealing strip67871-02400
67871AFixings (for rear door sealing strip)67867-12150
67872Left rear door sealing strip67872-02400
68103Right rear door glass sub-assembly68103-02660 · 68103-02730
68104Left rear door glass sub-assembly68104-02660 · 68104-02730
68123BRight rear door corner window glass68123-02580 · 68123-02640
68124BLeft rear door corner window glass68124-02580 · 68124-02640
68142CRight rear door glass lift slot68142-02430 · 68142-02431
68152CLeft rear door glass lift slot68152-02430 · 68152-02431
68173BRight rear door glass inner sealing strip68173-02450
68174ALeft rear door glass inner sealing strip68174-02390
68188Right rear door corner window seal68188-02320
68189Left rear door corner window seal68189-02320
68630Rear door opening limiter assembly68630-02430
