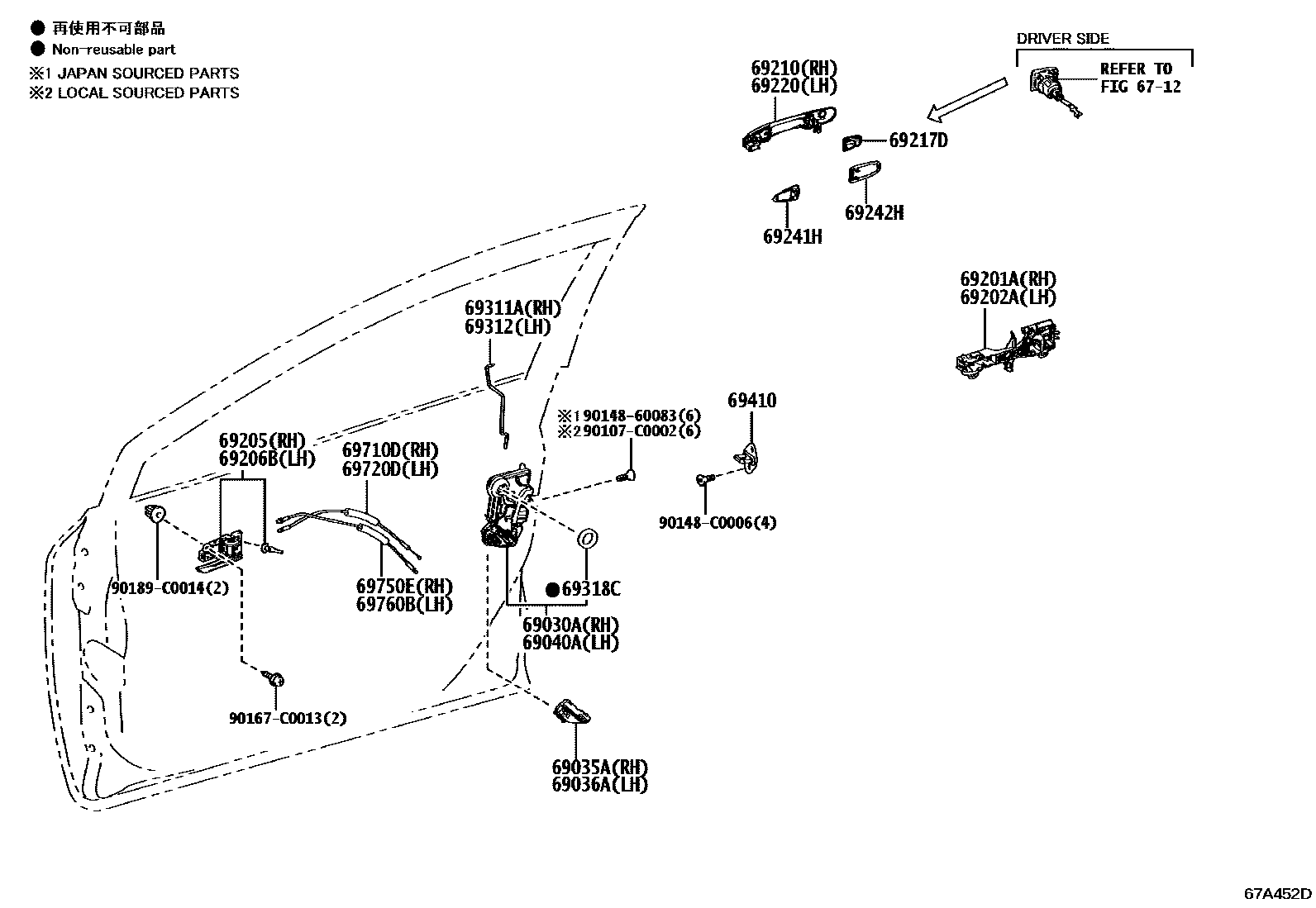

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-02620 · 69030-02680 |
| 69035A | Right front door lock cover sub-assembly | 69035-02060 · 69035-0R010 |
| 69036A | Left front door lock cover sub-assembly | 69036-02060 · 69036-0R010 |
| 69040A | Left front door door lock assembly with motor | 69040-02590 · 69040-02620 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-02430 · 69201-02440 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02350 · 69202-02360 |
| 69217D | Front door outer handle cover | 69217-02510 · 69217-07040 |
| 69241H | Front door exterior handle pad | 69241-07020 |
| 69242H | Front door rear outer handle pad | 69242-07020 |
| 69311A | Right front door lock opening lever | 69311-02410 |
| 69312 | Left front door lock opening lever | 69312-02410 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-0D020 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-02420 · 69710-02460 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-02420 · 69710-02460 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-02450 · 69750-02490 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-02450 · 69750-02490 |
