Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 42 PNC and OE references.

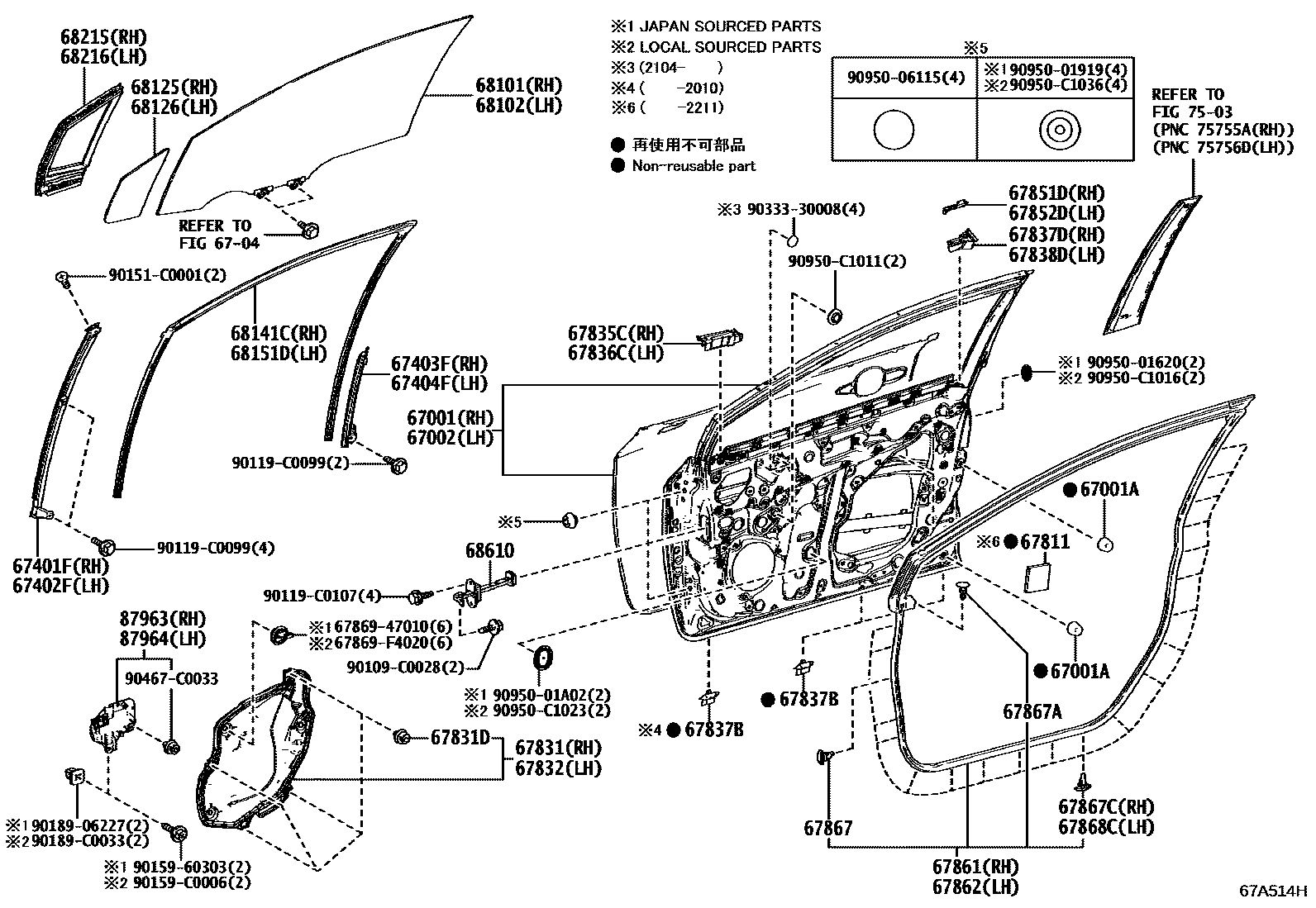

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 67A514H
前门板和前门玻璃 — 67A514H (201908 – 999999)

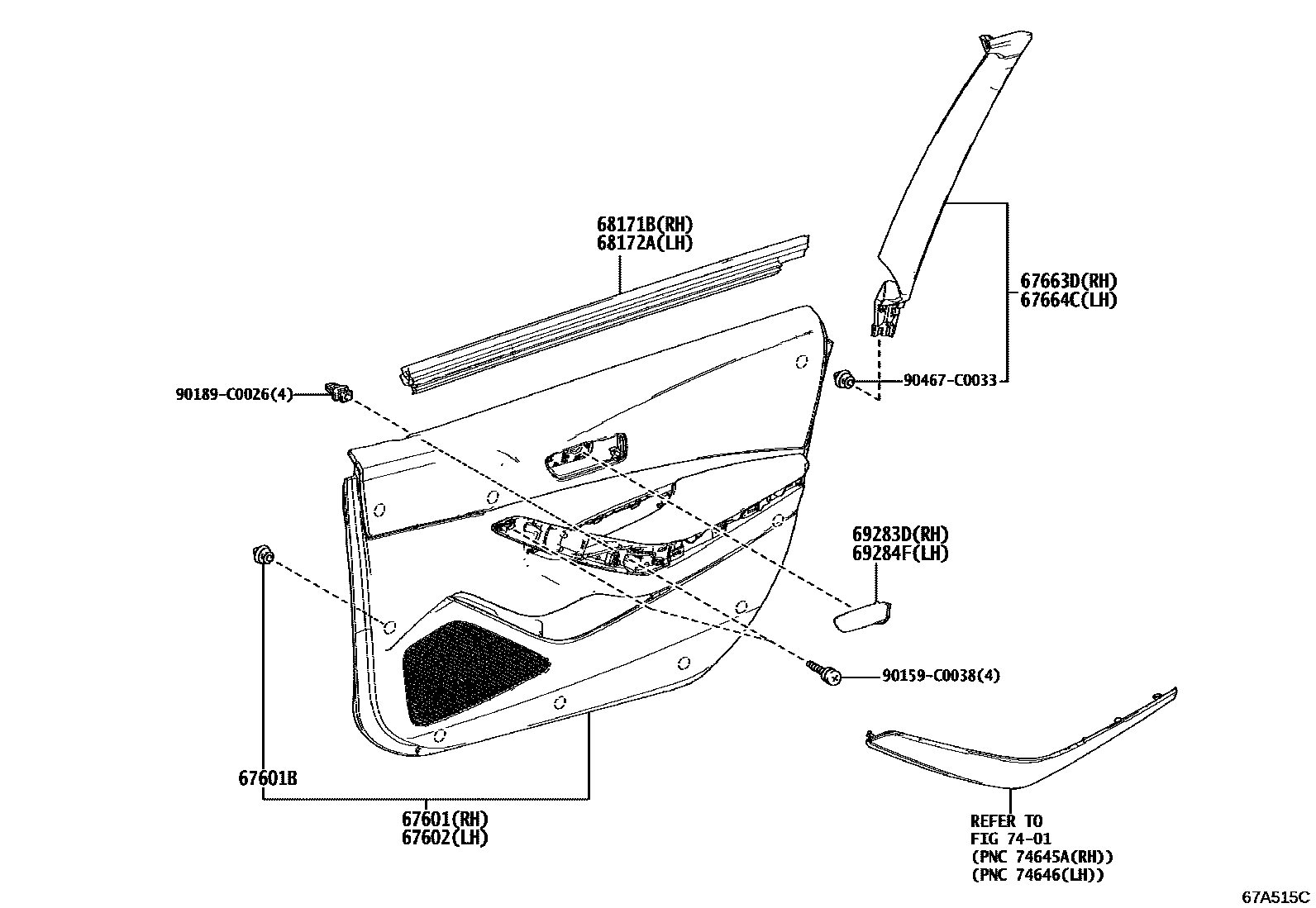

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 67A515C
前门板和前门玻璃 — 67A515C (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-02620 · 67001-02621 · 67001-02622 · 67001-02660
67001AFront door panel cushion90541-09124 · 90541-C0003
67002Left front door panel sub-assembly67002-02610 · 67002-02611 · 67002-02612 · 67002-02650
67401FRight front door front lower door frame sub-assembly67401-02110
67402FLeft front door front lower door frame sub-assembly67402-02110
67403FRight front door rear lower door frame sub-assembly67403-02330
67404FLeft front door rear lower door frame sub-assembly67404-02320
67601Right front door decorative panel sub-assembly67610-YK060
67601BCatch (for front door trim panel)90467-C0033
67602Left front door decorative panel sub-assembly67620-YK060
67663DRight door frame decorative strip67663-02100
67664CLeft door frame decorative strip67664-02100
67811Front door silencer pad67811-02390
67831Right front door access hole cover67831-02530
67831DCatch (for front door access hole cover)90467-C0033
67832Left front door access hole cover67832-02530
67835CRight front door No. 3 inspection hole cover67835-02090
67836CLeft front door No. 3 access hole cover67836-02150
67837BFront door dust seal retainer67837-02150 · 67837-48050
67837DRight front door ventilator seal67837-02200
67838DLeft front door ventilator seal67838-02160
67851DRight front door rear outer seal67851-02090
67852DLeft front door rear outer seal67852-02090
67861Right front door seal67861-02410
67862Left front door seal67862-02410
67867Car door seal strip clip67867-52030
67867ADoor seal strip clip (for front door)67868-30030
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
68101Right front door glass sub-assembly68101-02650
68102Left front door glass sub-assembly68102-02650
68125Right front door fixed window glass68125-02090
68126Left front door fixed window glass68126-02090
68141CRight front door glass lift channel68141-02460 · 68141-02461
68151DLeft front door glass lift channel68151-02450 · 68151-02451
68171BRight front door glass inner sealing strip68171-02440
68172ALeft front door glass inner sealing strip68172-02420
68215Right front door fixed window seal68215-02090
68216Left front door fixed window seal68216-02090
68610Front door opening limiter assembly68610-02420
87963Right exterior rearview mirror mounting hole cover87963-02060
87964Left exterior rearview mirror mounting hole cover87964-02060
