Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

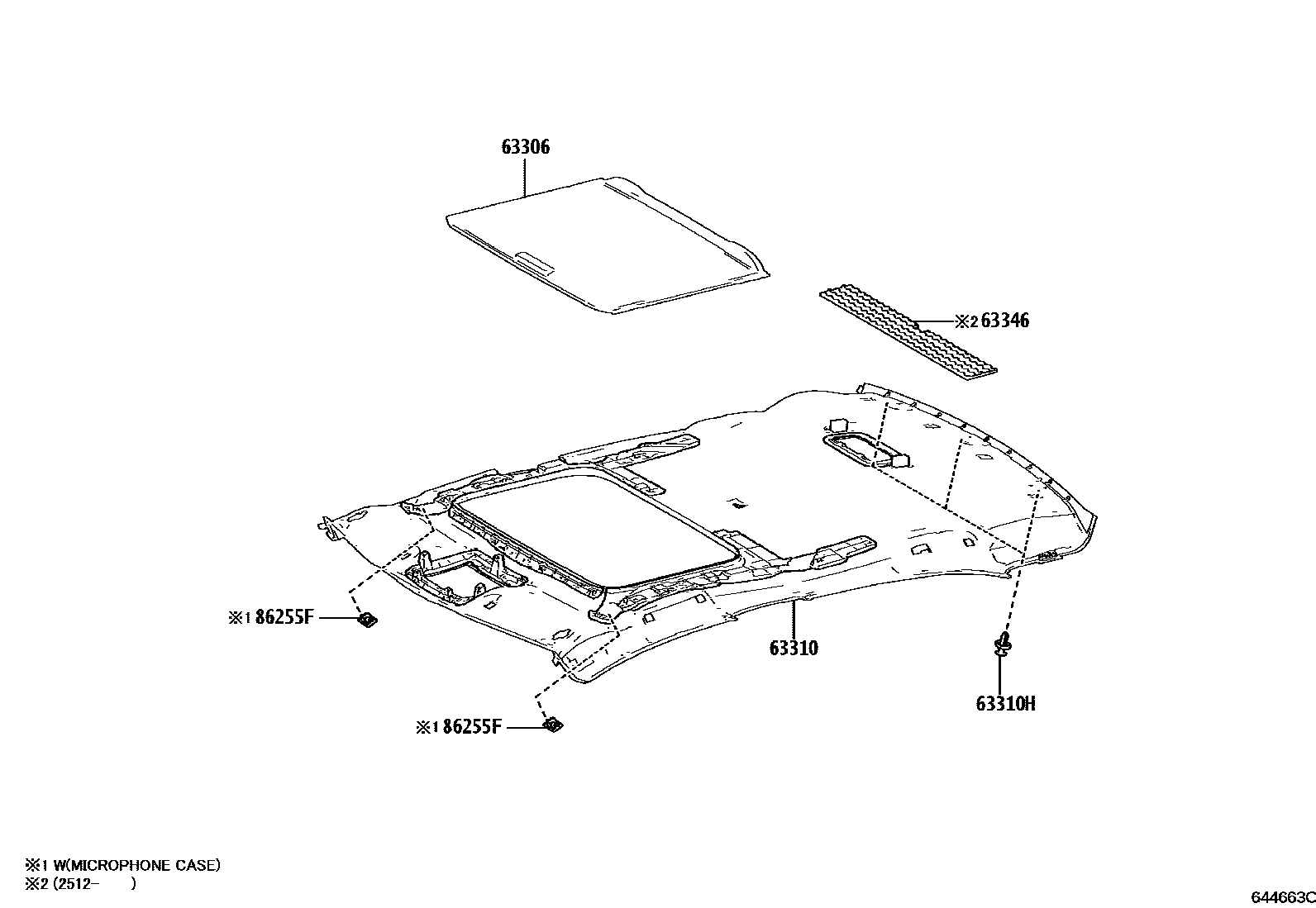

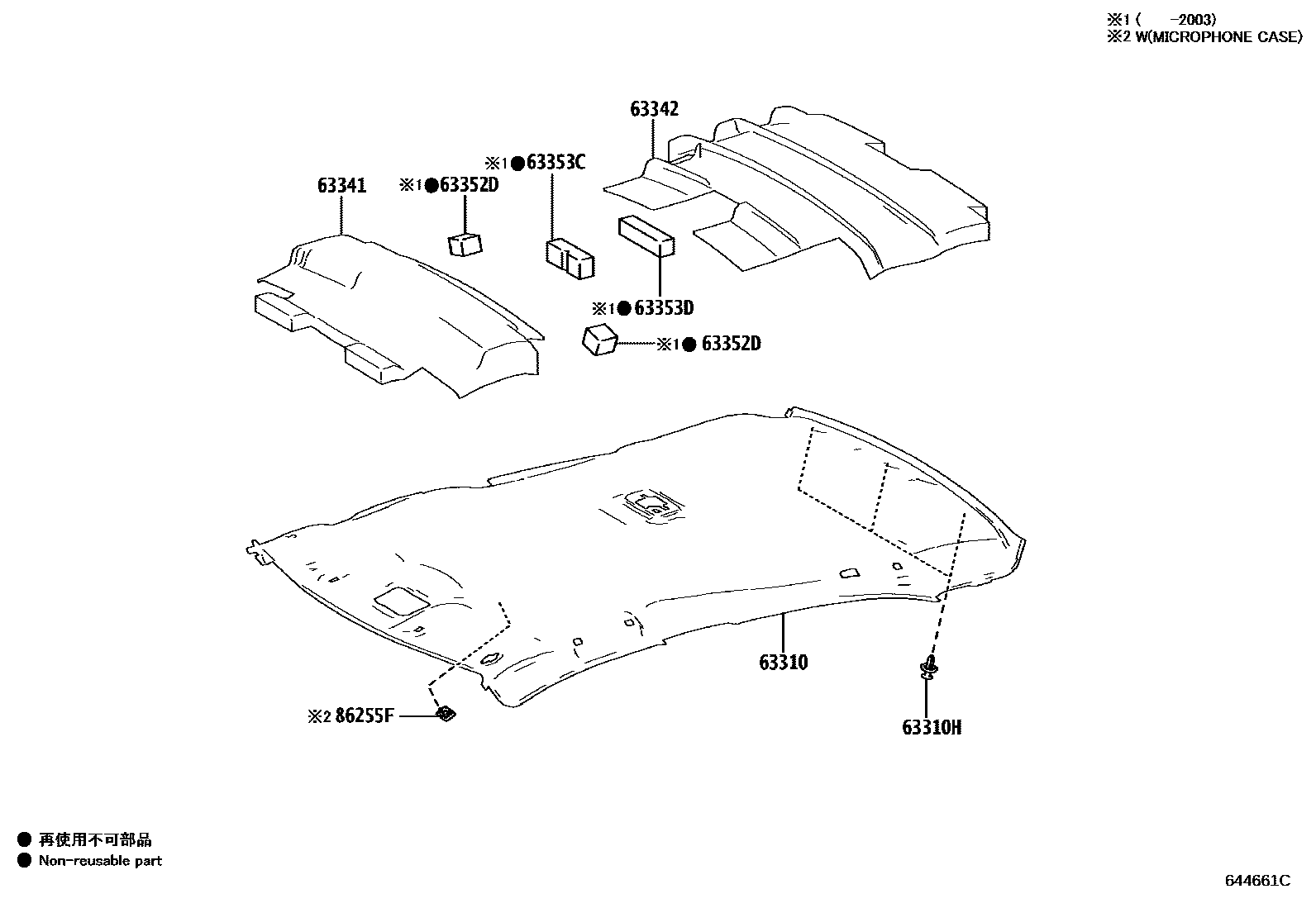

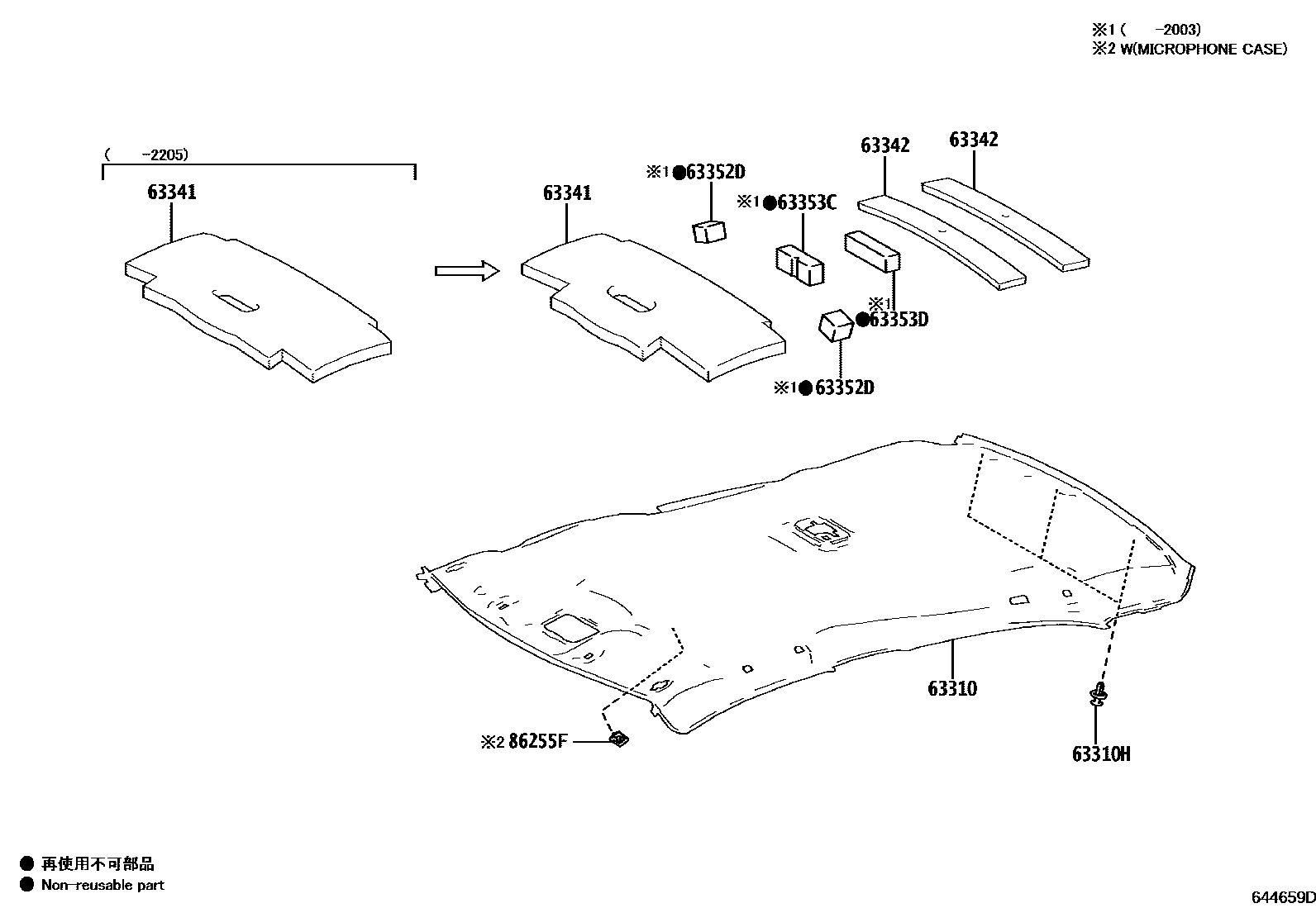

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-02540 · 63341-02740 · 63341-02750 |
| 63342 | No. 2 roof muffler pad | 63342-02A70 · 63342-02A80 |
| 63346 | No. 6 roof silencer mat | 63346-02040 |
| 63352D | No. 2 roof lining lining block | 63352-02150 |
| 63353C | Center roof lining lining | 63353-02130 |
| 63353D | Center roof lining lining | 63353-02140 |
