Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 20 PNC and OE references.

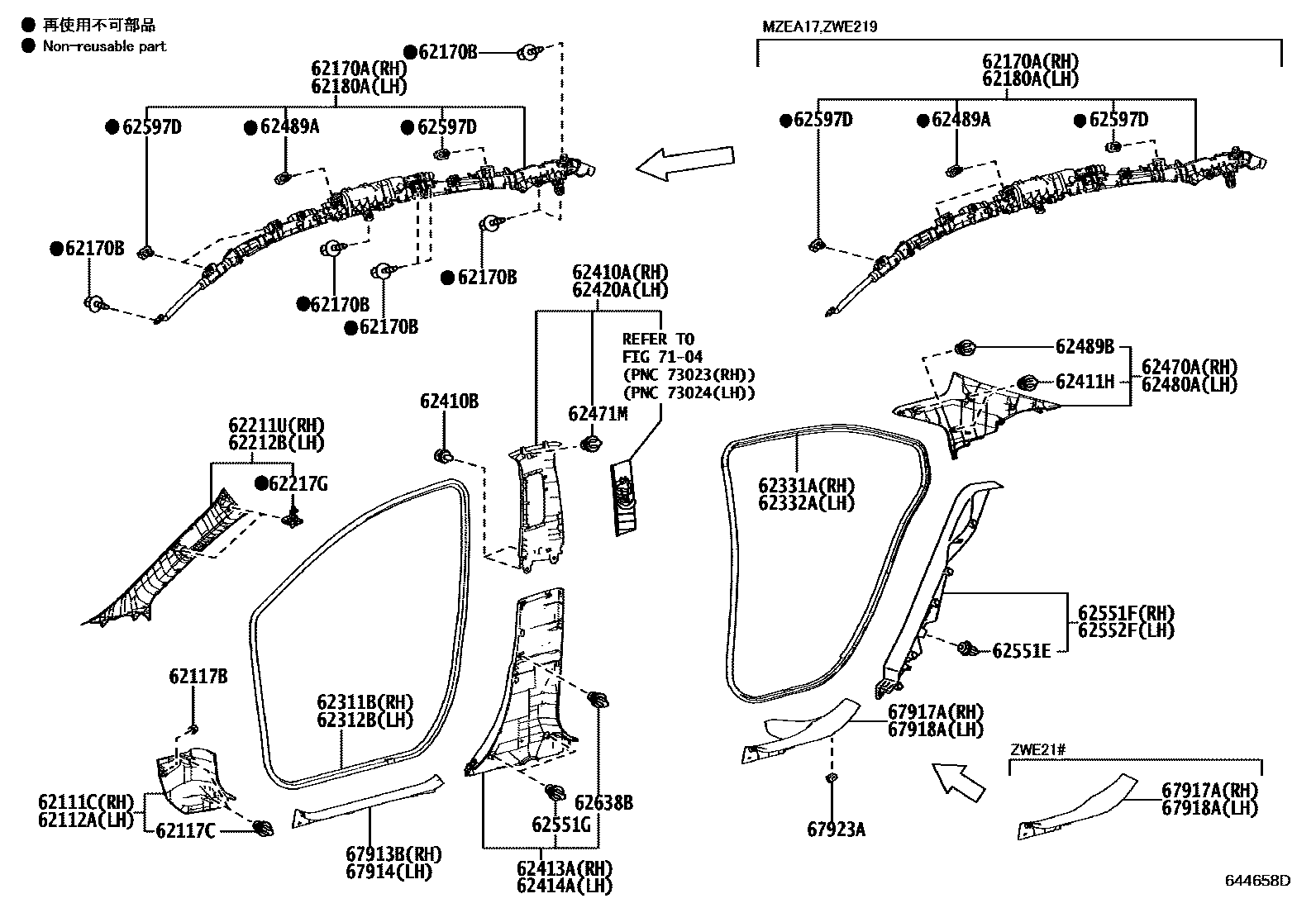

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 644658D
内饰板和车门防水胶条 — 644658D (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
62117BNo. 1 clip (for cowl side trim panel)90467-06147
62117CNo. 2 clip (for cowl side trim panel)90467-C0035
62170ARight curtain air bag assembly62170-02400 · 62170-02410 · 62170-02490
62170BBolts with washers90119-C0107
62180ALeft curtain air bag assembly62180-02380 · 62180-02390 · 62180-02490
62217GFront pillar decorative plate clip62217-42050
62311BRight front door opening waterproof tape62311-02400
62312BLeft front door opening waterproof tape62312-02410
62331ARight rear door opening waterproof tape62331-02440
62332ALeft rear door opening waterproof tape62332-02440
62410Bclip90467-C0046
62411Hclip90467-C0036
62471Mclip90467-C0035
62489ARoof side interior panel clips62489-28010
62489BRoof side interior panel clips90467-C0034
62551EClips (for rear seat side trim panels)62217-13010
62551Gclip90467-A0033
62597Dclip90467-18017
62638Bclip90467-C0036
67923ACar door No. 1 wear plate clip67923-20090
