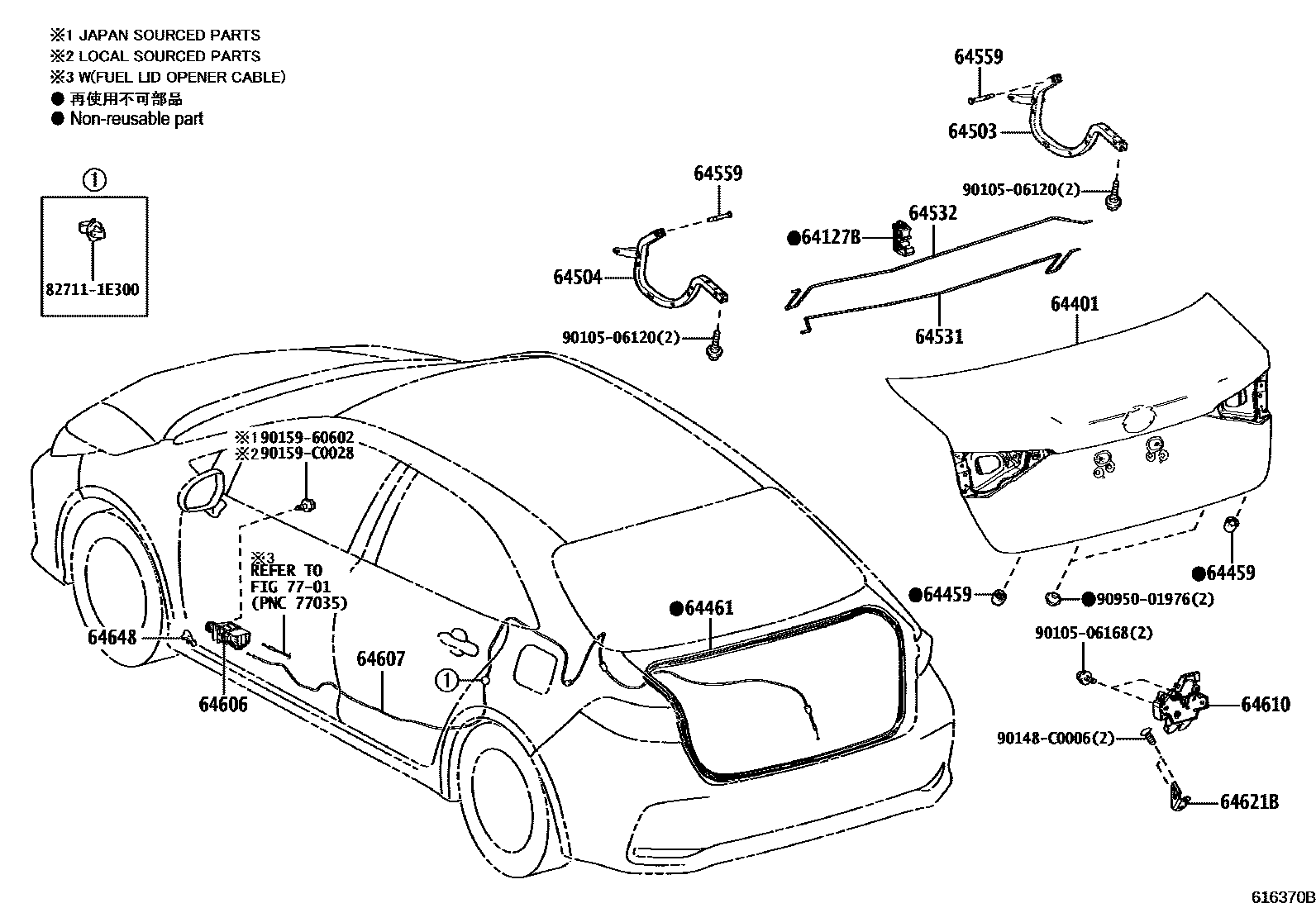

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33071 |
| 64401 | Trunk door panel sub-assembly | 64401-02G60 · 64401-02G61 · 64401-02J40 · 64401-02J41 · 64401-02J50 · 64401-02J51 · 64401-02K20 · 64401-02K21 |
| 64459 | Trunk door cushion | 90541-09069 · 90541-C0009 |
| 64461 | Trunk door seal | 64461-02370 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02290 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02290 |
| 64531 | Trunk door right hinge torsion bar | 64531-02420 · 64531-02770 |
| 64532 | Trunk door left hinge torsion bar | 64532-02420 · 64532-02770 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-02190 · 64606-02200 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02570 |
| 64610 | Trunk door lock assembly | 64600-02121 |
| 64621B | Trunk door latch | 64621-0D040 |
| 64648 | Trunk door lock opener seal | 64648-02020 |
