Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

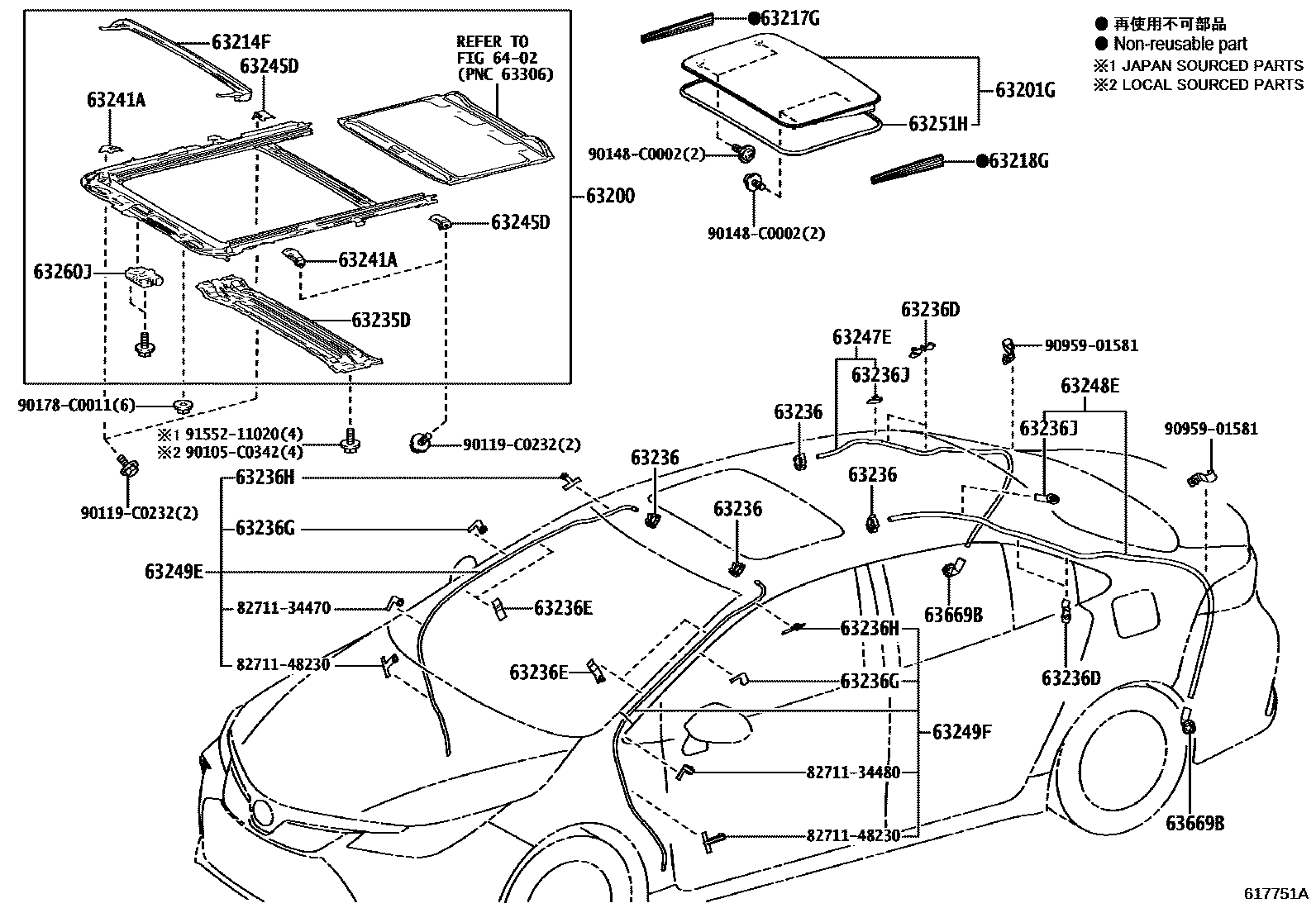

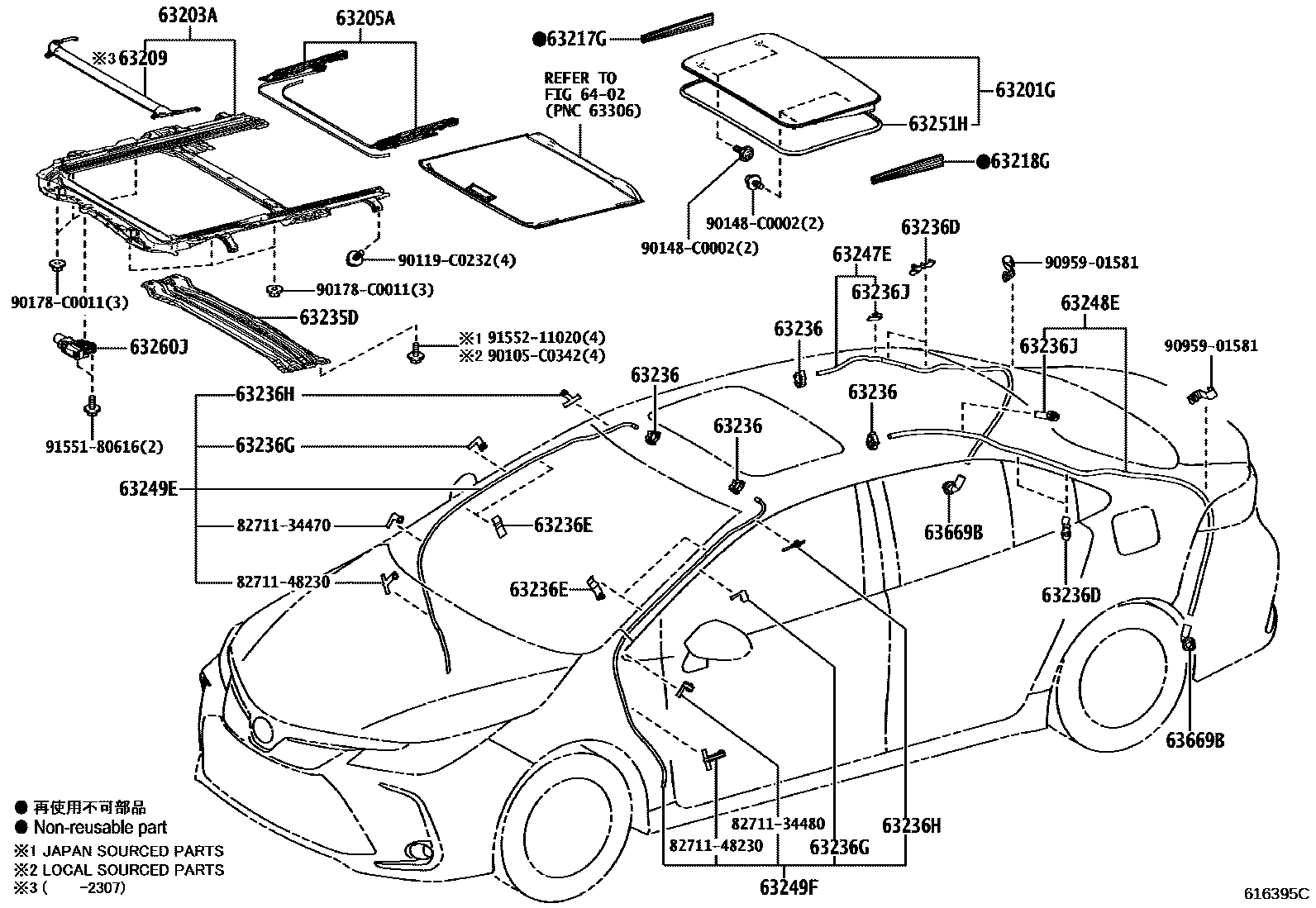

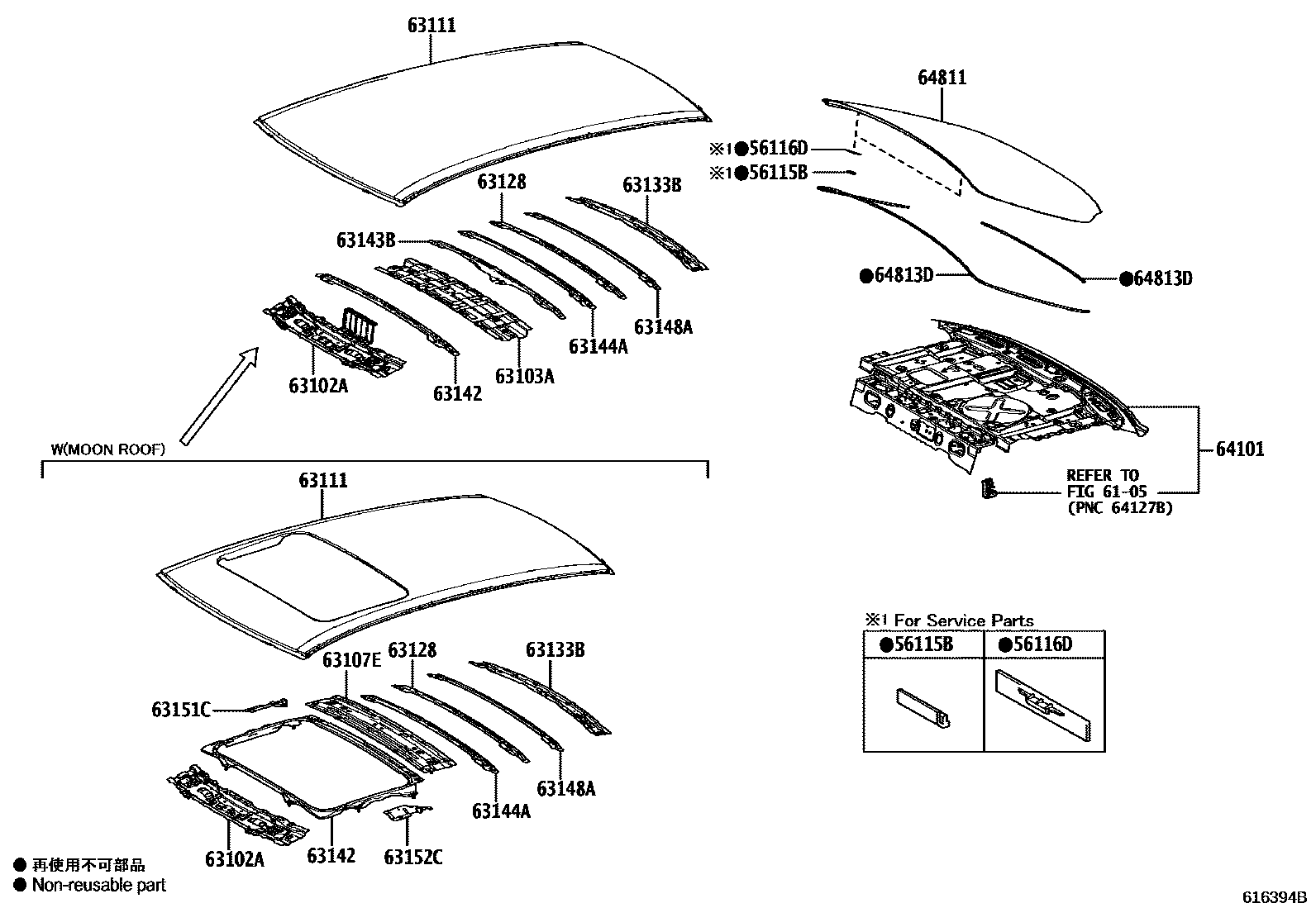

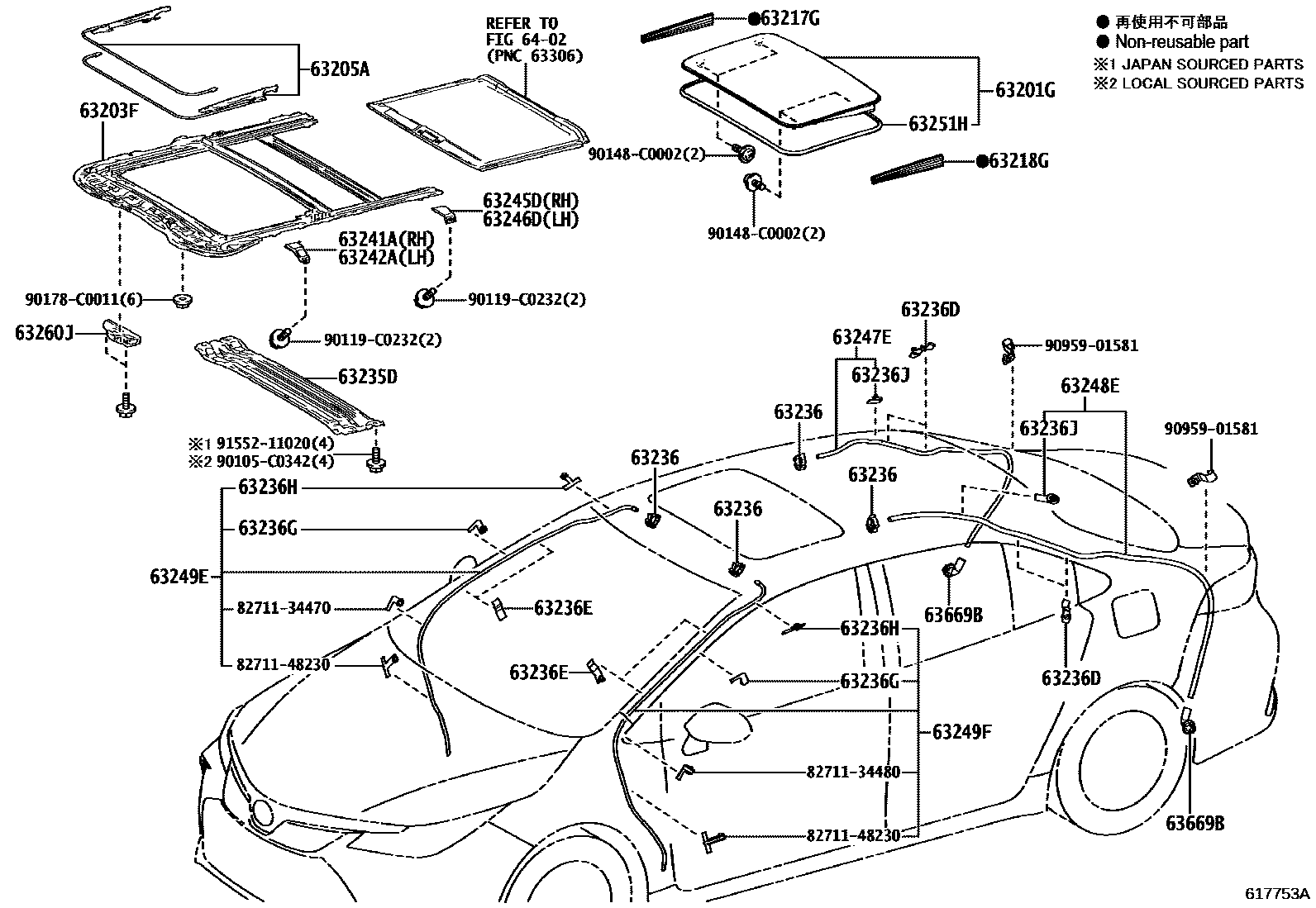

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-02911 · 63102-02912 · 63102-02919 · 63102-02920 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-02190 |
| 63107E | No. 5 roof panel reinforcement sub-assembly | 63107-02060 |
| 63111 | roof panel | 63111-02830 · 63111-02840 |
| 63128 | No. 6 roof panel reinforcement | 63128-02130 |
| 63133B | back window frame | 63133-02270 |
| 63142 | No. 2 roof panel reinforcement | 63142-02260 · 63142-02270 |
| 63143B | No. 3 roof panel reinforcement | 63143-02290 |
| 63144A | No. 4 roof panel reinforcement | 63144-02300 |
| 63148A | No. 7 roof panel reinforcement | 63148-02180 |
| 63151C | Opening frame on the right side of the roof | 63151-02080 |
| 63152C | Opening frame on the left side of the roof | 63152-02080 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-02290 · 63201-02291 · 63201-02330 · 63201-02340 |
| 63203A | Sliding sunroof or removable roof rack sub-assembly | 63203-02180 · 63203-02250 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-02230 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-02110 · 63205-02160 |
| 63209 | Roof deflector sub-assembly | 63209-02160 |
| 63214F | Roof rear drain channel | 63214-02180 |
| 63217G | Right sliding sunroof trim | 63217-02170 · 63217-02180 · 63217-07020 |
| 63218G | Sliding sunroof trim, left | 63217-02170 · 63217-02180 · 63217-07020 |
| 63235D | central sliding skylight frame | 63235-02090 · 63235-02120 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-02060 · 63236-33030 |
| 63236D | Sliding skylight drain hose clamp | 63236-02010 |
| 63236E | Sliding skylight drain hose clamp | 63236-02040 · 90469-09004 |
| 63236G | Sliding skylight drain hose clamp | 86147-30030 · 86147-30040 |
| 63236H | Sliding skylight drain hose clamp | 86147-50050 |
| 63236J | Sliding skylight drain hose clamp | 86147-30020 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-02250 · 63241-02260 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63242-02150 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-02140 · 63245-02150 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63246-02130 |
| 63247E | Right rear sliding sunroof drain hose | 63249-02630 |
| 63248E | Left rear sliding sunroof drain hose | 63249-02650 |
| 63249E | Sliding skylight drain hose | 63249-02620 |
| 63249F | Sliding skylight drain hose | 63249-02640 |
| 63251H | Sliding skylight seal | 63251-02150 · 63251-02170 · 63251-02190 · 63251-02200 |
| 63260J | Sliding sunroof driving gear assembly | 63260-02230 · 63260-02231 · 63260-02232 · 63260-02250 · 63260-02260 |
| 63669B | Sliding skylight drain seal | 63669-06050 · 63669-50010 |
| 64101 | Upper back panel sub-assembly | 64101-02690 · 64101-02700 |
| 64811 | back window glass | 64801-02490 |
| 64813D | Back window glass adhesive seal | 64813-02370 · 64813-02380 |
