Toyota COROLLA 侧梁 — Figure 6101

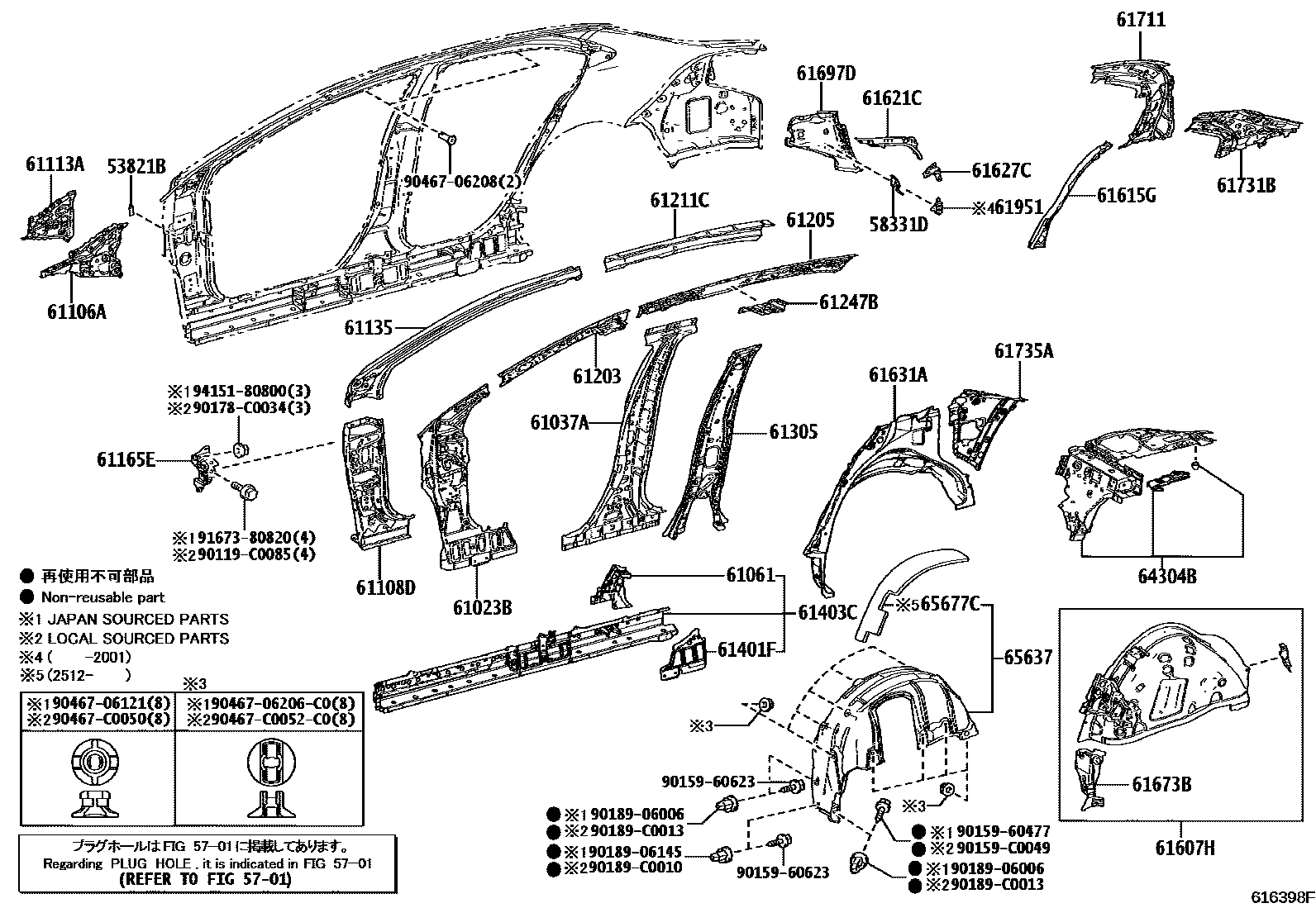

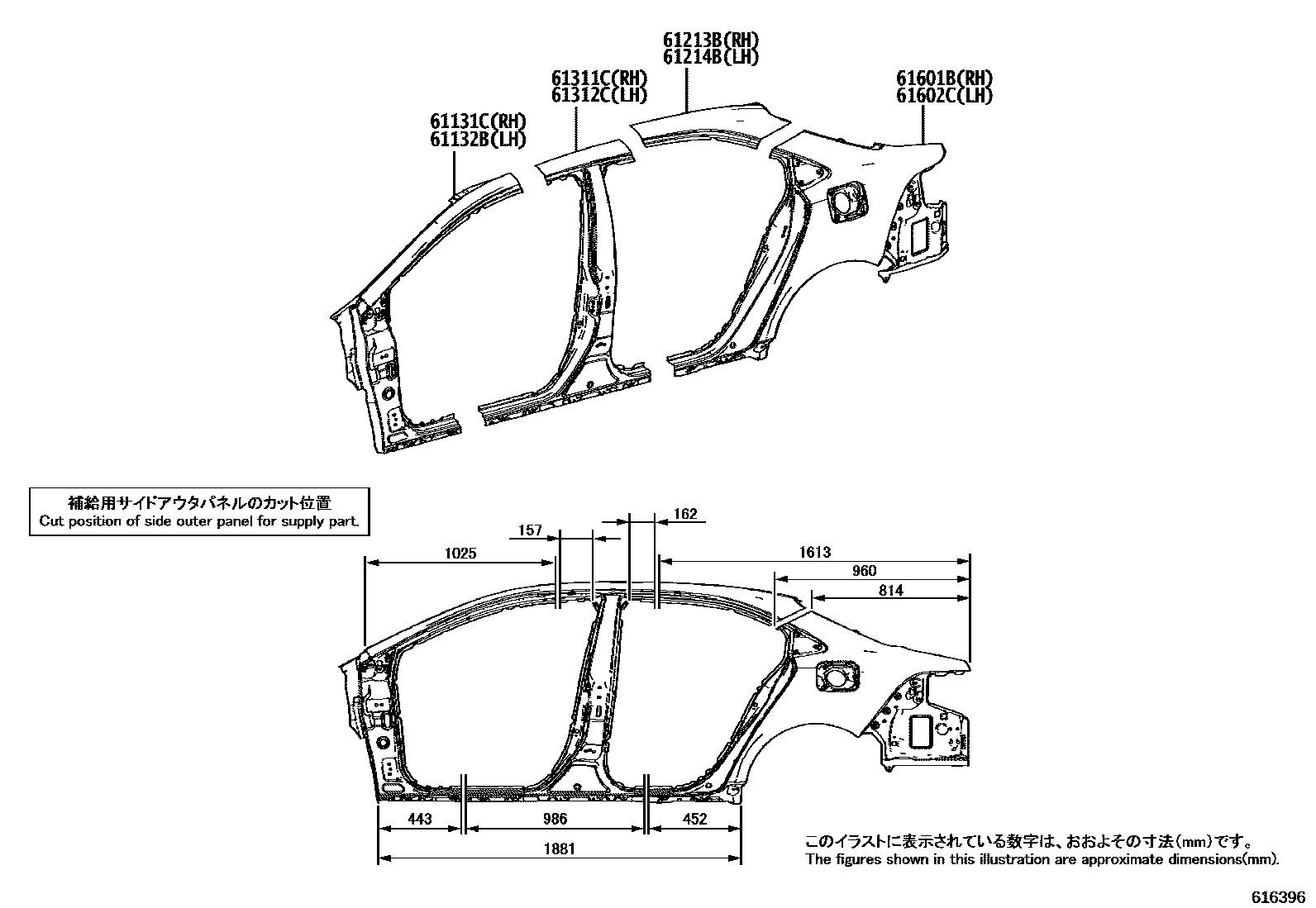

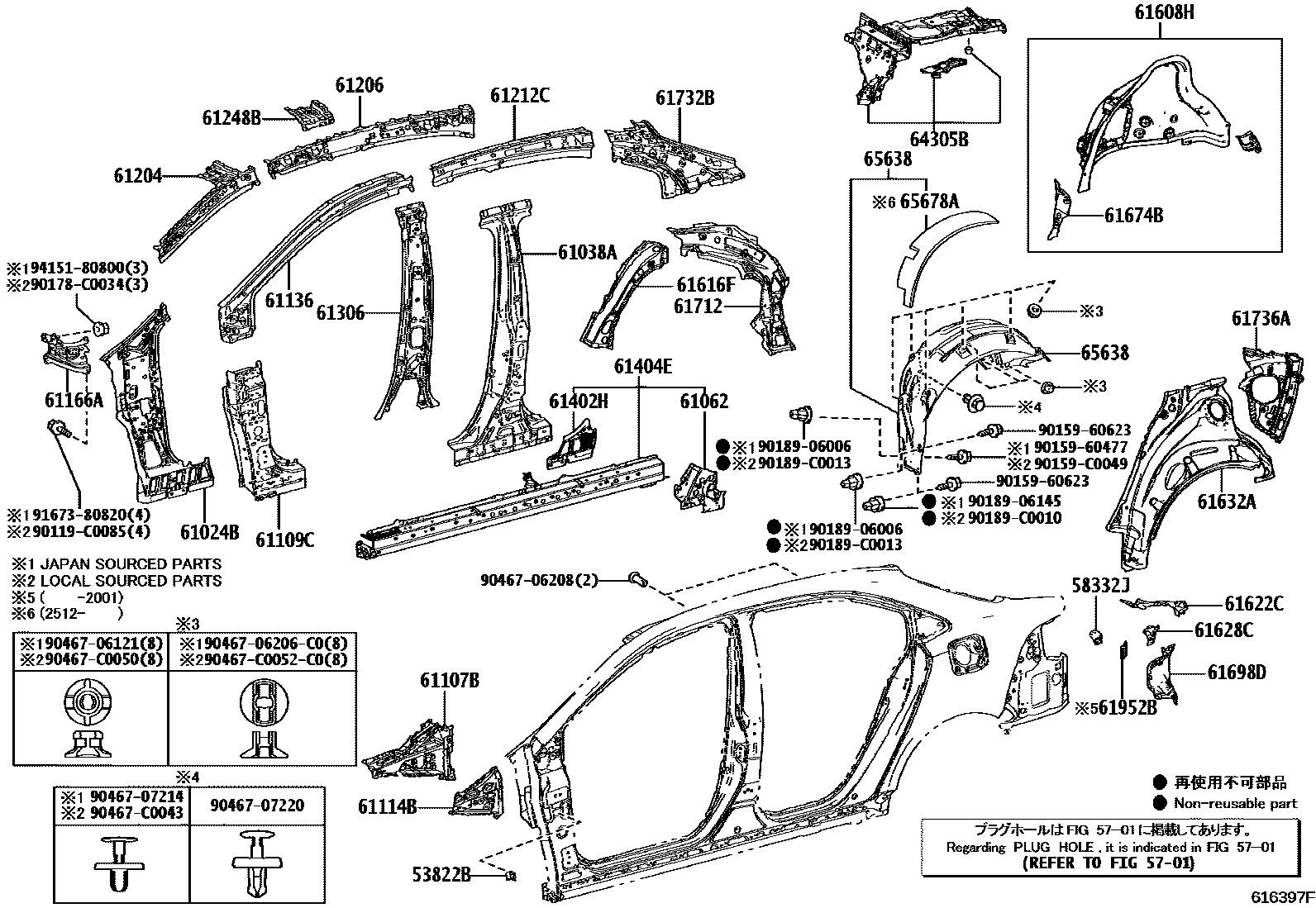

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53879-02260 |
| 53822B | Left front fender rear support | 53879-02260 |
| 58331D | No. 1 suitcase decorative panel bracket | 58331-02290 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-02190 |
| 61023B | Right body inner front pillar sub-assembly | 61023-02490 |
| 61024B | Left body inner front pillar sub-assembly | 61024-02450 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02360 · 61037-02390 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02360 · 61038-02390 |
| 61061 | Right wheel cover reinforcement sub-assembly | 61061-02190 · 61061-02191 |
| 61062 | Left wheel cover reinforcement sub-assembly | 61062-02180 · 61062-02181 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-02120 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-02110 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-02370 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-02390 |
| 61113A | No. 2 right outer panel | 61113-02100 |
| 61114B | No. 2 left outer panel | 61114-02100 |
| 61131C | Right body outer front pillar | 61131-02450 · 61131-02451 |
| 61132B | Left body outer front pillar | 61132-02470 · 61132-02471 |
| 61135 | Reinforcement member on the right front body pillar | 61135-02330 |
| 61136 | Reinforcement member on left front body pillar | 61136-02340 |
| 61165E | Dashboard to right front wall side bracket | 61165-02090 |
| 61166A | Dashboard to left front wall side bracket | 61166-02090 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-02250 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-02270 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-02090 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-02090 |
| 61211C | Roof right side rail | 61211-02290 |
| 61212C | Roof left side rail | 61212-02290 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-02280 · 61213-02281 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-02290 · 61214-02291 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-02320 · 61247-02330 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-02180 · 61248-02190 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-02260 · 61305-02270 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-02260 · 61306-02270 |
| 61311C | Right rear body front outer panel | 61311-02390 · 61311-02391 |
| 61312C | Left rear body front outer panel | 61312-02390 · 61312-02391 |
| 61401F | Right side door sill panel reinforcement sub-assembly | 61401-02160 |
| 61402H | Left side rocker panel reinforcement sub-assembly | 61402-02160 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02908 · 61403-02914 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02910 · 61404-02916 |
| 61601B | Right side enclosure sub-assembly | 61601-02590 |
| 61602C | Left side enclosure sub-assembly | 61602-02620 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-02971 · 61607-02973 · 61607-02977 · 61607-02978 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-02972 · 61608-02974 · 61608-02978 · 61608-02979 |
| 61615G | Right rear body rear side panel reinforcement | 61615-02240 |
| 61616F | Left rear body rear side panel reinforcement | 61616-02250 |
| 61621C | Luggage right opening slot | 61621-02360 |
| 61622C | Luggage trunk left opening slot | 61622-02360 |
| 61627C | Right side enclosure inner panel reinforcement | 61627-02120 |
| 61628C | Left side enclosure inner panel reinforcement | 61628-02100 |
| 61631A | Right wheel cover outer panel | 61631-02320 · 61631-02321 |
| 61632A | Left side wheel cover outer panel | 61632-02902 · 61632-02904 |
| 61673B | Right wheel housing lining panel reinforcement | 61673-02220 · 61673-02221 |
| 61674B | Left side wheel housing lining plate reinforcement | 61674-02220 · 61674-02221 |
| 61697D | Right side enclosure end cover | 61697-02240 |
| 61698D | Left side enclosure end cover | 61698-02240 |
| 61711 | Roof right side outer panel | 61711-02260 |
| 61712 | Roof left outer panel | 61712-02260 |
| 61731B | Roof right inner panel | 61731-02440 |
| 61732B | Roof left inner panel | 61732-02440 |
| 61735A | Right rear roof inner panel | 61735-02340 |
| 61736A | Left rear roof inner panel | 61736-02350 |
| 61951 | Right trim part bracket | 61951-02190 |
| 61952B | Left trim part bracket | 61952-02150 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02370 · 64304-02371 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02370 |
| 65637 | Right rear wheel house lining | 65637-02250 · 65637-02300 · 65637-02320 · 65637-02340 |
| 65638 | Left rear wheel house lining | 65638-02250 · 65638-02300 · 65638-02320 · 65638-02340 |
| 65677C | Right rear wheel house seal | 53885-02010 |
| 65678A | Left rear wheel house seal | 53885-02010 |
