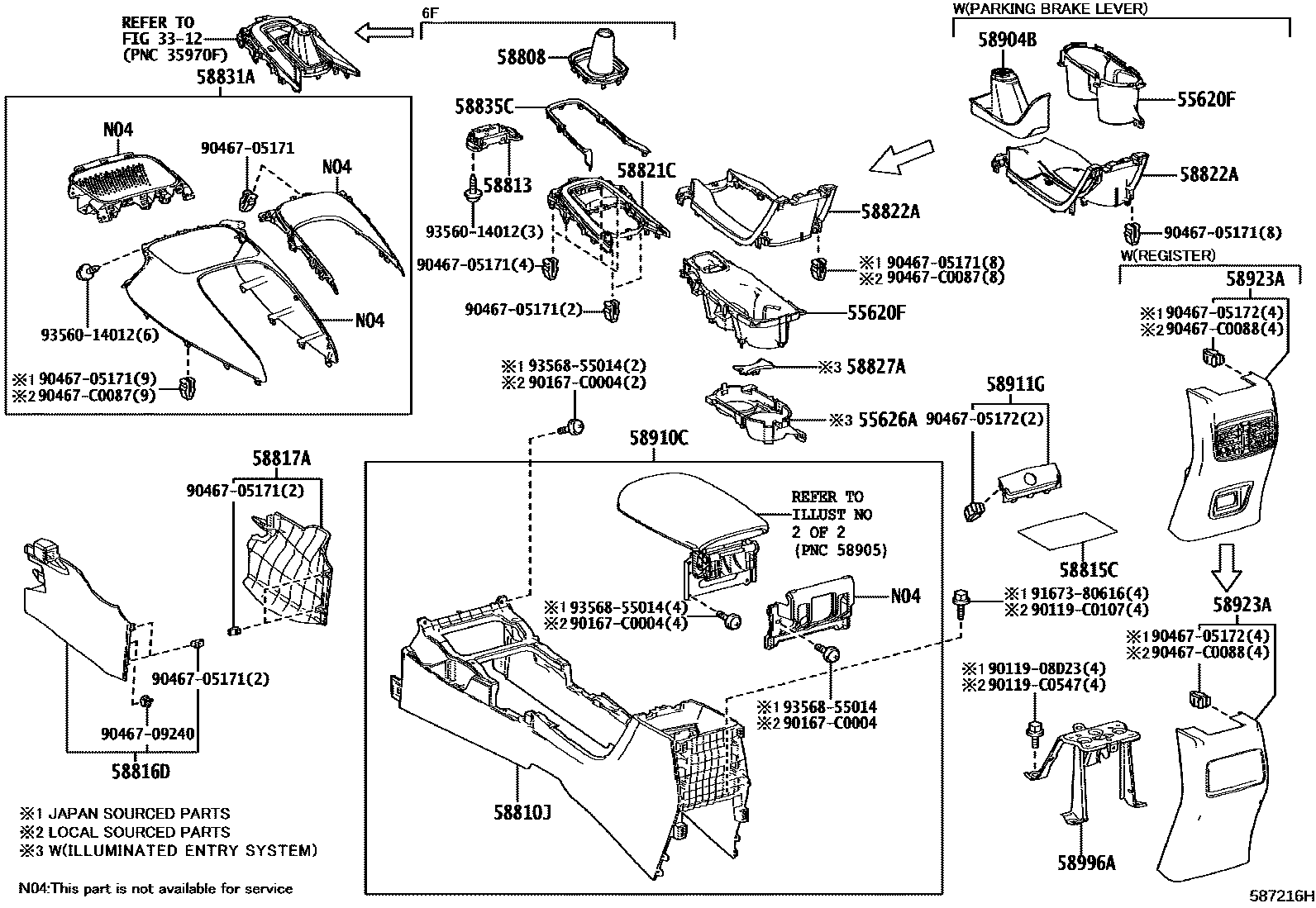

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620F | Armrest box cup holder assembly | 55620-02380 · 55620-02390 · 55620-02480 · 55620-02610 |
| 55626A | Instrument panel bottom bracket partition fastener | 55626-02260 · 55626-02270 |
| 58813 | Upper armrest box | 58813-02270 |
| 58815C | Armrest box felt pad | 58815-02490 · 58815-02510 |
| 58821C | Armrest box upper panel | 58821-02B00 |
| 58822A | Rear armrest box upper panel | 58822-02520 · 58822-02530 · 58822-02550 |
| 58827A | Armrest box groove decorative parts | 58827-02110 · 58827-02280 · 58827-12020 |

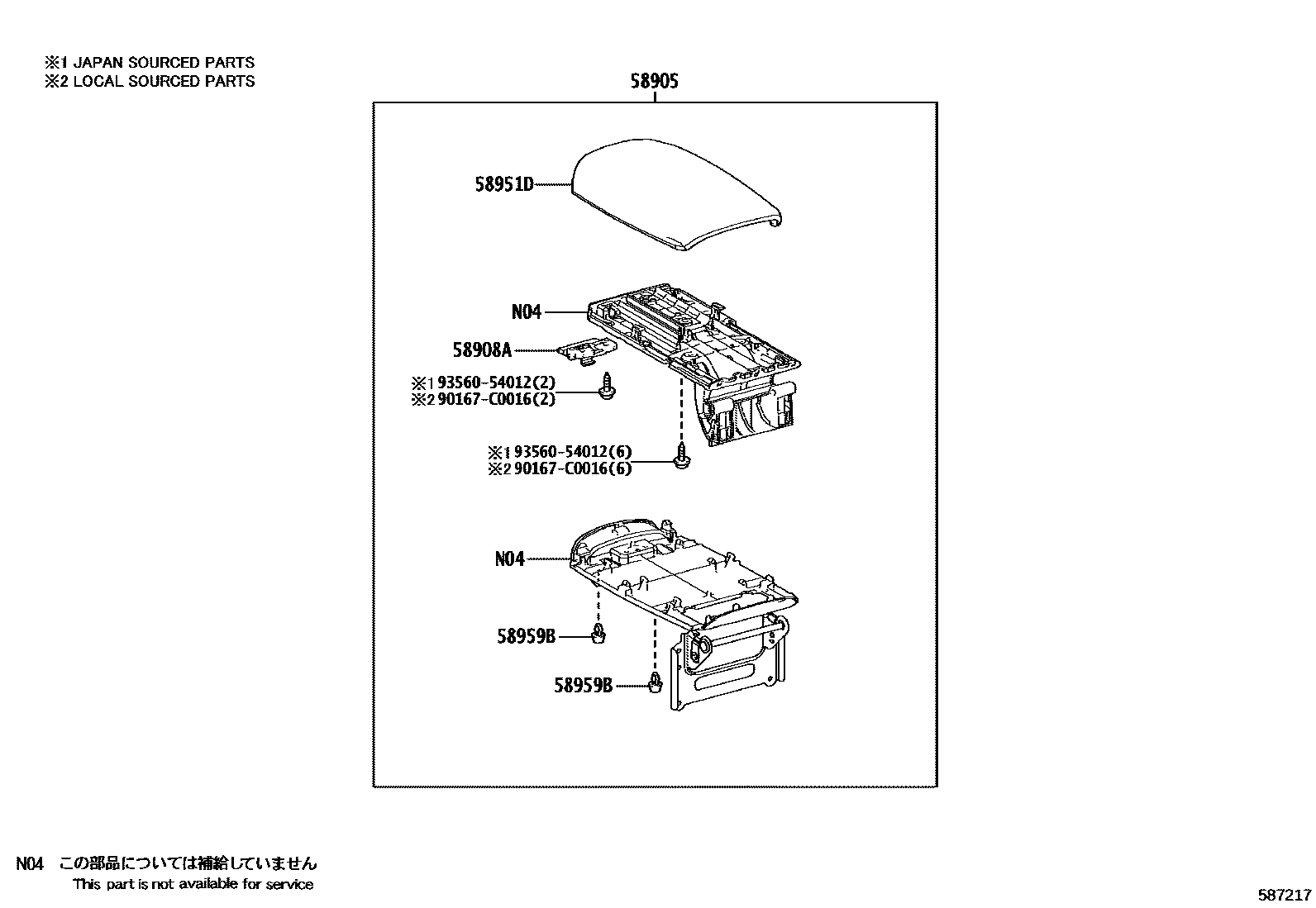

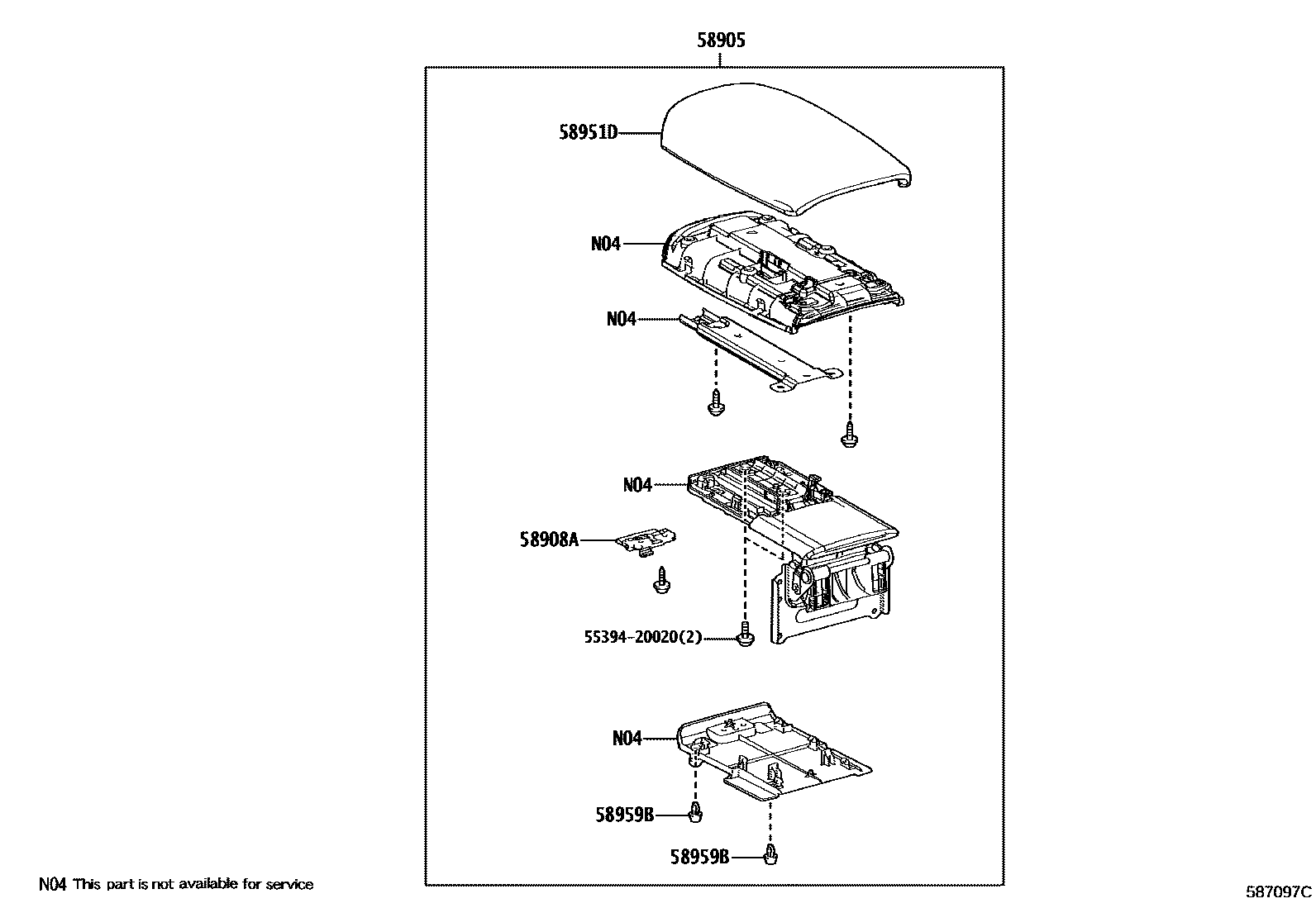

| 58905 | Armrest box cover sub-assembly | 58905-YK020 |
| 58908A | Armrest box lid lock assembly | 58908-YK010 |
| 58910C | Rear armrest box assembly | 58910-02B71 · 58910-02B81 · 58910-YK010 · 58910-YK011 |
| 58951D | Armrest box outer cover | 58951-YK020 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-02280 |
