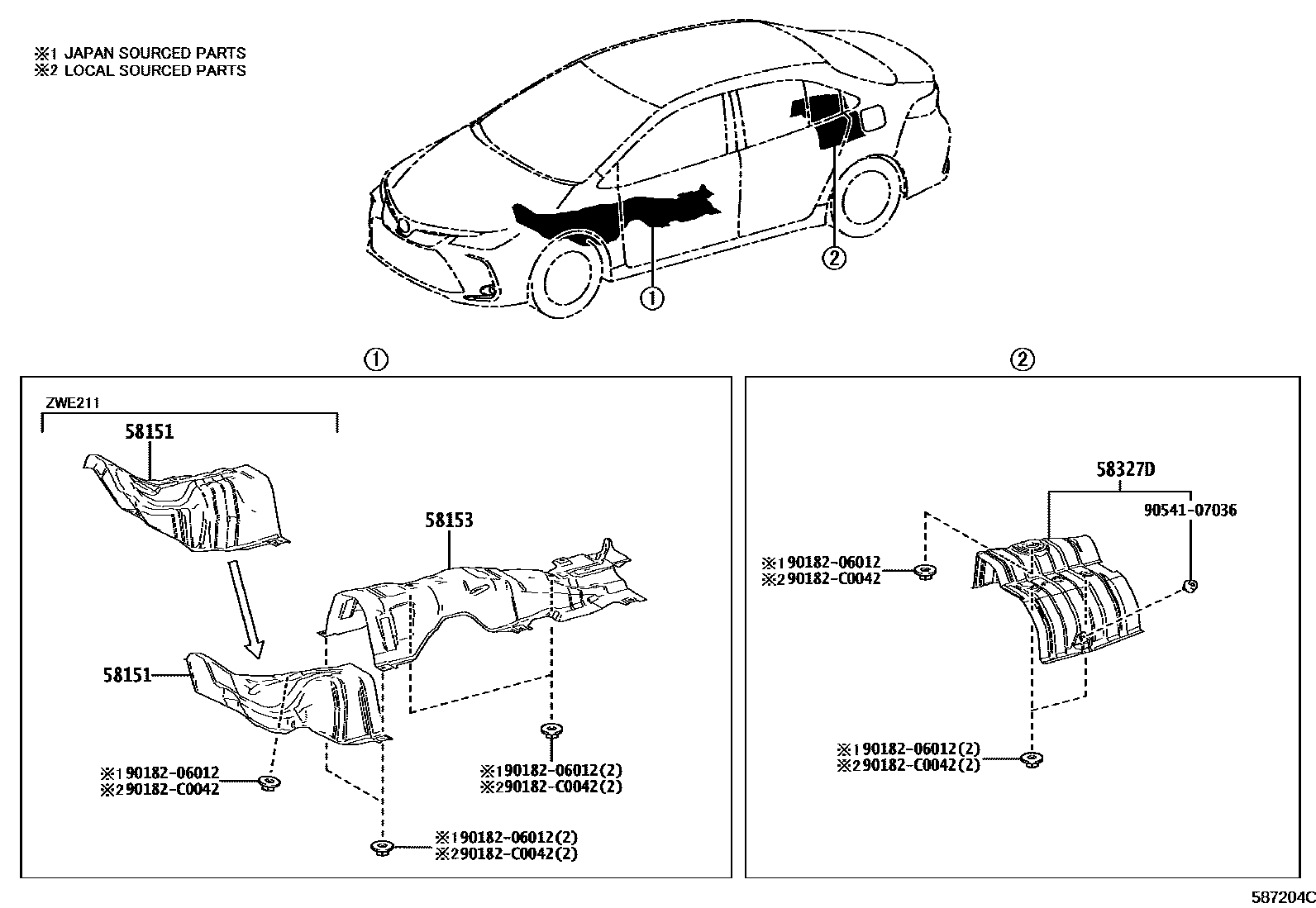

Toyota COROLLA 地板隔热垫 — Figure 5802
Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-02770 · 58151-02780 · 58151-02790 · 58151-02791 · 58151-02840 |
| 58153 | Front floor insulation mat No. 2 | 58153-02450 · 58153-02451 |
| 58327D | Heat insulation pad on main muffler | 58327-02330 |
