Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

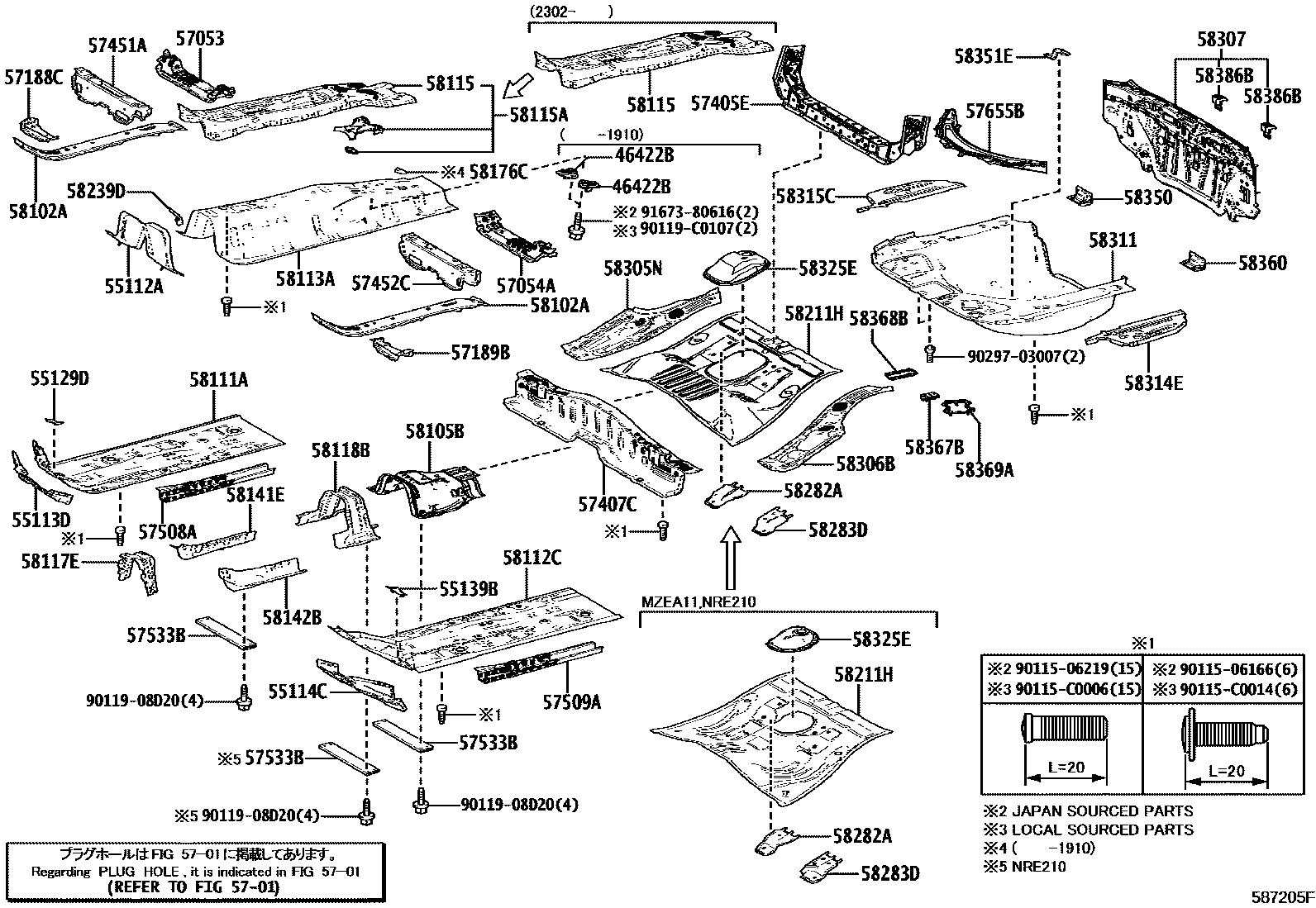

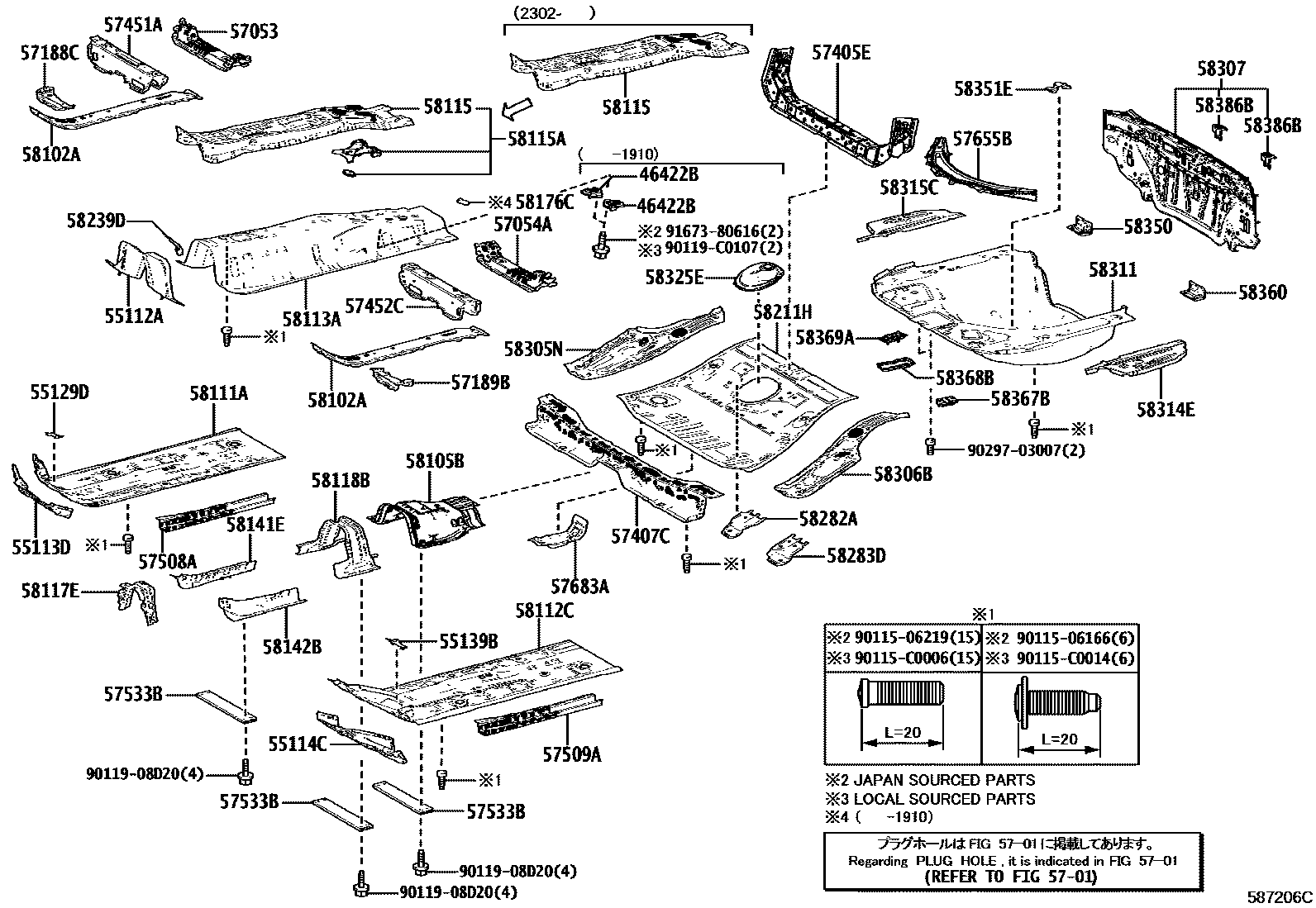

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46422B | Parking brake cable cover | 46422-02050 |
| 55112A | No. 2 front panel | 55112-F4030 |
| 55113D | lower right cowl | 55113-F4030 |
| 55114C | Lower left cowl | 55114-F4030 |
| 55129D | Right front panel hole cover | 55129-F4030 |
| 55139B | Left front panel hole cover | 55139-F4030 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02170 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02160 |
| 57188C | Right front longitudinal beam extension reinforcement | 57188-F4030 |
| 57189B | Left front longitudinal beam extension reinforcement | 57189-F4030 |
| 57405E | Center floor No. 2 beam sub-assembly | 57405-F4030 · 57405-F4031 |
| 57407C | Center floor No. 1 beam sub-assembly | 57407-02320 · 57407-F4060 |
| 57451A | Front floor right cross member | 57451-F4030 |
| 57452C | Front floor left cross member | 57452-F4030 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-02130 · 57508-02131 |
| 57509A | Front floor left reinforcement sub-assembly | 57508-02130 · 57508-02131 |
| 57533B | Front floor center bracket | 57533-F4040 |
| 57655B | Rear floor beam No. 4 | 57655-02040 |
| 57683A | No. 1 fuel tank mounting bracket | 57683-02270 |
| 58102A | Front floor reinforcement sub-assembly | 58102-F4030 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-02080 |
| 58111A | Front floor right bottom panel | 58111-02450 · 58111-02451 |
| 58112C | Front floor left bottom panel | 58112-02200 · 58112-02201 · 58112-02202 |
| 58113A | front floor center panel | 58113-02240 · 58113-02241 |
| 58115 | Front floor reinforcement | 58115-02140 |
| 58115A | front floor reinforcement | 58015-02320 |
| 58117E | Front floor sub-cover | 58117-F4030 |
| 58118B | Front floor reinforcement No. 2 | 58118-F4030 |
| 58141E | Right front longitudinal beam to floor panel reinforcement | 58141-F4031 · 58141-F4032 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-F4031 · 58142-F4032 |
| 58176C | Parking brake base No. 2 reinforcement | 58176-02030 |
| 58211H | central floor base | 58211-02620 · 58211-0A050 · 58211-F4060 |
| 58239D | Cable clip bracket | 58239-F4030 |
| 58282A | Right No. 3 seat belt anchor to floor base | 58282-0A040 · 58282-F4030 |
| 58283D | Left No. 3 seat belt anchor to floor base | 58283-0A040 · 58283-F4030 |
| 58305N | Rear floor to right side wall extension sub-assembly | 58305-02190 · 58305-02260 |
| 58306B | Rear floor to left side wall extension sub-assembly | 58306-02200 · 58306-02201 · 58306-02210 · 58306-02270 |
| 58307 | Body lower back panel sub-assembly | 58307-02570 |
| 58311 | rear floor pan | 58311-02450 |
| 58314E | Rear floor left side panel extension | 58316-02130 |
| 58315C | Rear floor right side panel extension | 58315-02170 · 58315-02200 |
| 58325E | Rear floor access hole cover | 58325-02310 · 58325-02350 · 58325-F4060 |
| 58350 | Rear floor right reinforcement assembly | 58350-F4030 |
| 58351E | Spare tire clip bracket | 58351-02130 |
| 58360 | Rear floor left reinforcement assembly | 58350-F4030 |
| 58367B | Fuel pipe bracket | 58367-F4020 |
| 58368B | No. 2 fuel pipe bracket | 58368-F4020 |
| 58369A | No. 3 fuel pipe bracket | 58369-02060 · 58369-F4030 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02180 |
