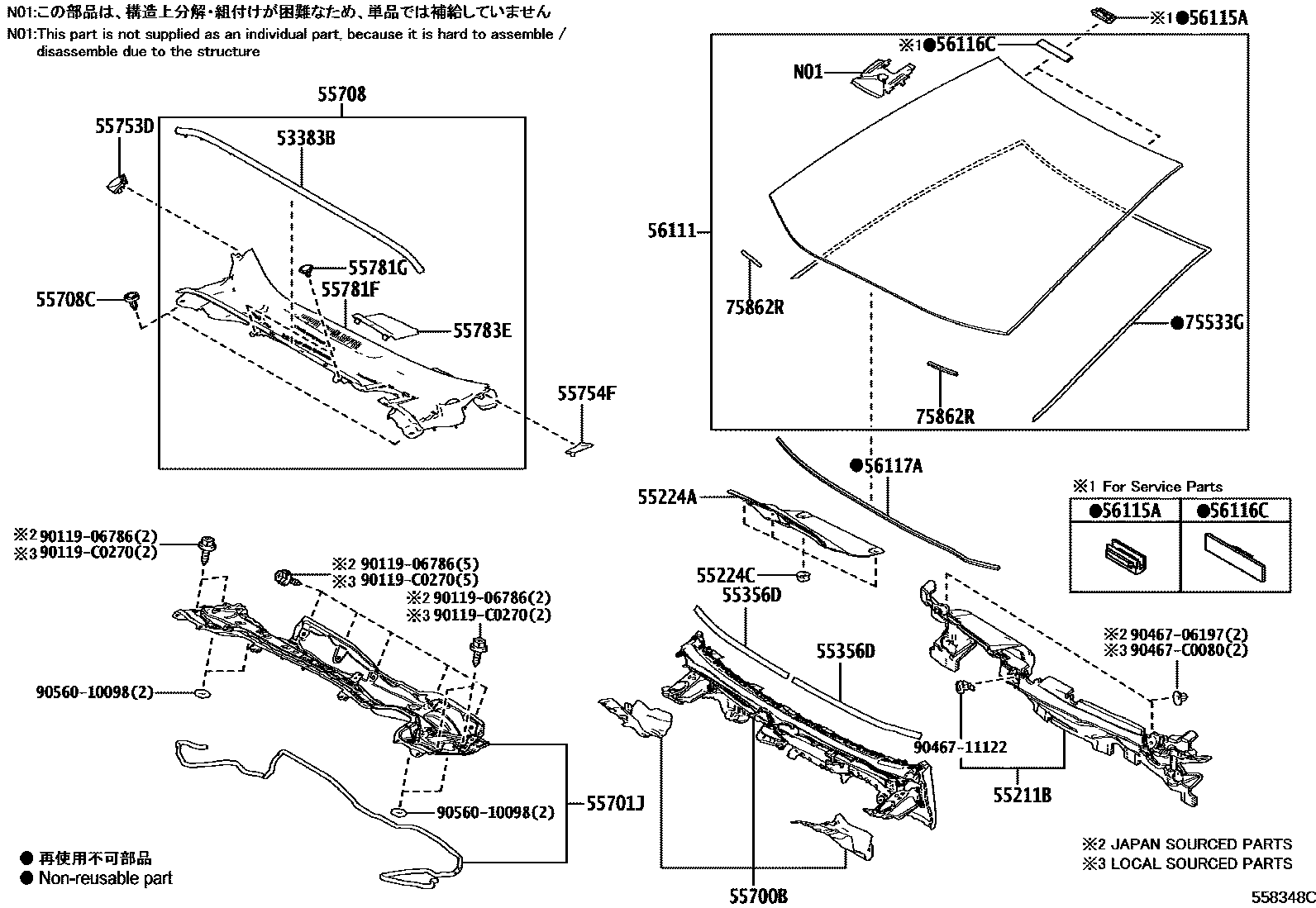

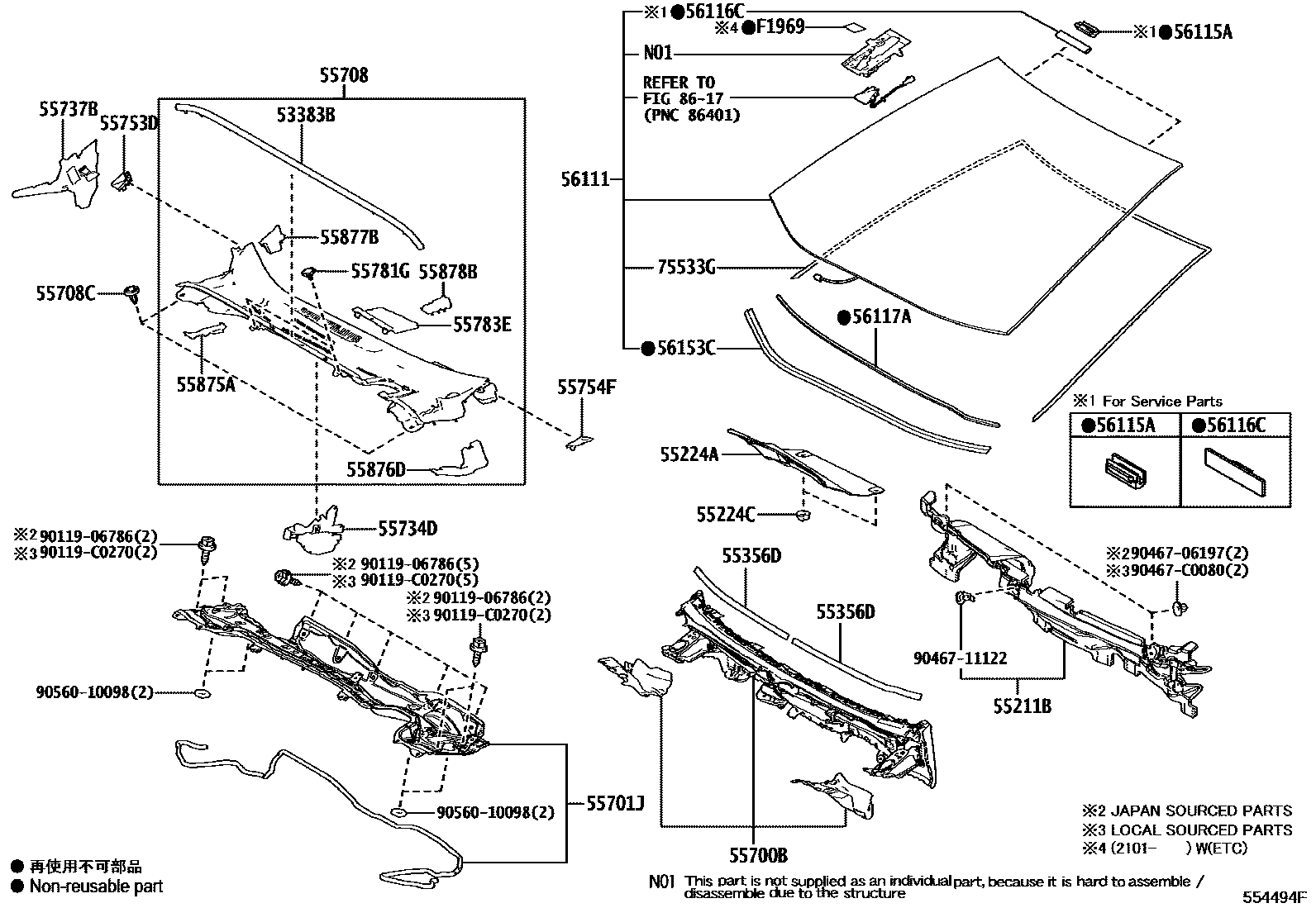

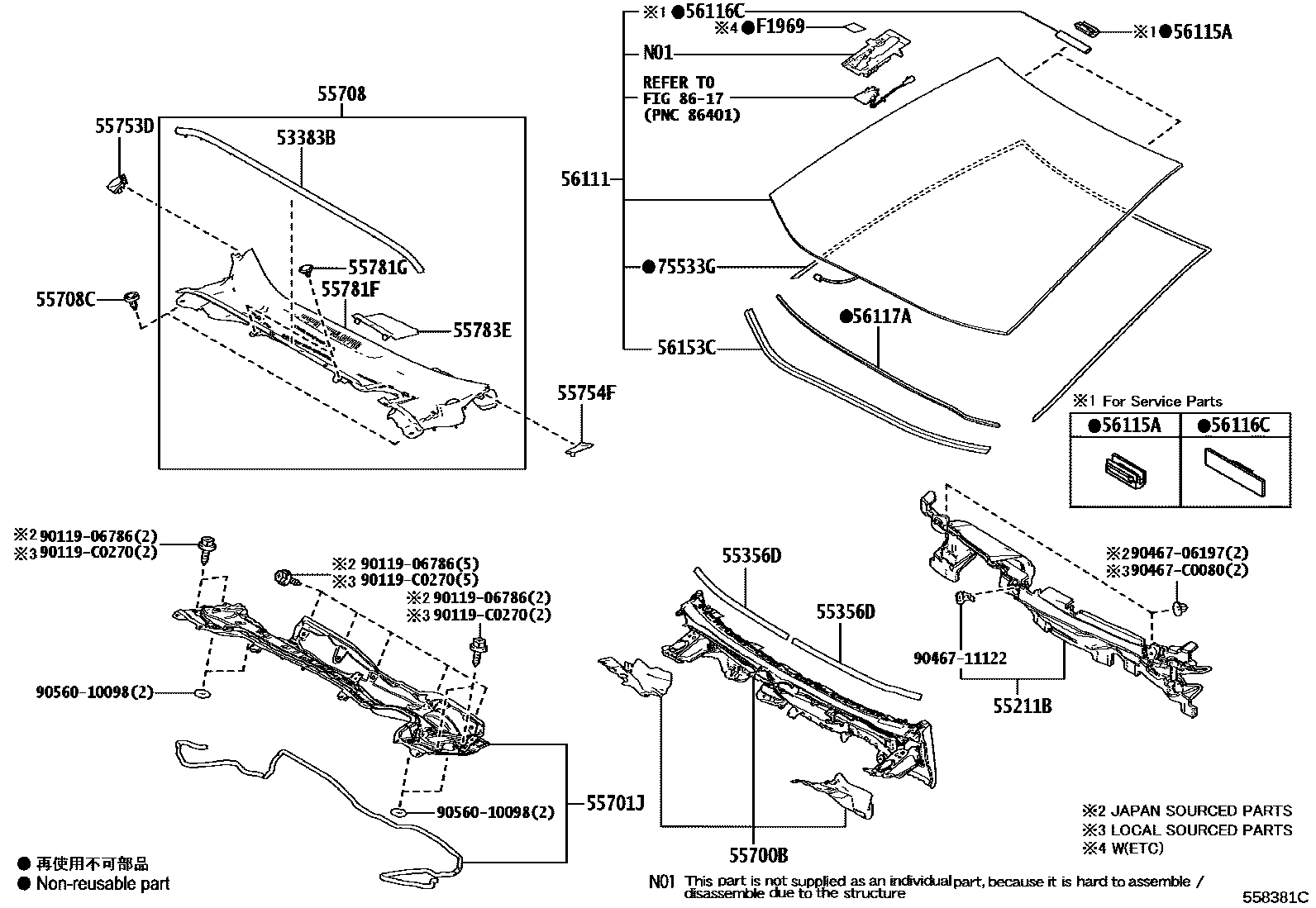

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02330 |
| 55211B | Front panel silencer | 55211-02370 · 55211-02420 · 55211-12790 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-02310 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-02560 |
| 55700B | Front apron assembly | 55700-02750 · 55700-02751 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-02690 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-02B40 · 55708-02C80 · 55708-02C81 · 55708-02D00 |
| 55708C | Ventilation grille clips on front apron | 90467-09242 · 90467-C0071 |
| 55734D | Waterproof cover panel | 55734-02490 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02320 |
| 55753D | Right front water pumping device guard | 55753-02250 · 55753-02300 |
| 55754F | Left front water pumping device guard | 55754-02260 · 55754-02310 |
| 55781F | Ventilation grille on front panel | 55781-02880 · 55781-02A00 |
| 55781G | Ventilation grille clips on front apron | 90467-07224 |
| 55783E | Ventilation grille on center cowl | 55783-02390 · 55783-02470 |
| 55875A | No. 5 air duct seal | 55875-02280 |
| 55876D | No. 6 air duct seal | 55876-02190 |
| 55877B | Right front panel vent cover | 55877-02340 |
| 55878B | Left front panel vent cover | 55878-02280 |
| 56111 | windshield | 56101-0Z180 · 56101-0Z190 · 56101-0Z200 · 56101-0Z210 · 56101-0Z510 · 56101-0Z520 · 56101-0ZD30 · 56101-0ZG20 · 56101-0ZK10 · 56101-0ZK20 · 56101-0ZK30 · 56101-0ZK31 · 56101-0ZK40 · 56101-0ZK41 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-02360 |
| 56153C | Front center window inner protective strip | 56153-02120 · 56153-02150 |
| 75533G | Windshield outer protective strip | 75533-02260 · 75533-02270 |
| 75862R | No. 2 door sill panel protective cover | 75862-02050 · 75862-02070 |
| F1969 | Sealing tape (for toll collection machine ECU) | F1969-YY010 |
