Toyota COROLLA 仪表板和手套箱 — Figure 5501

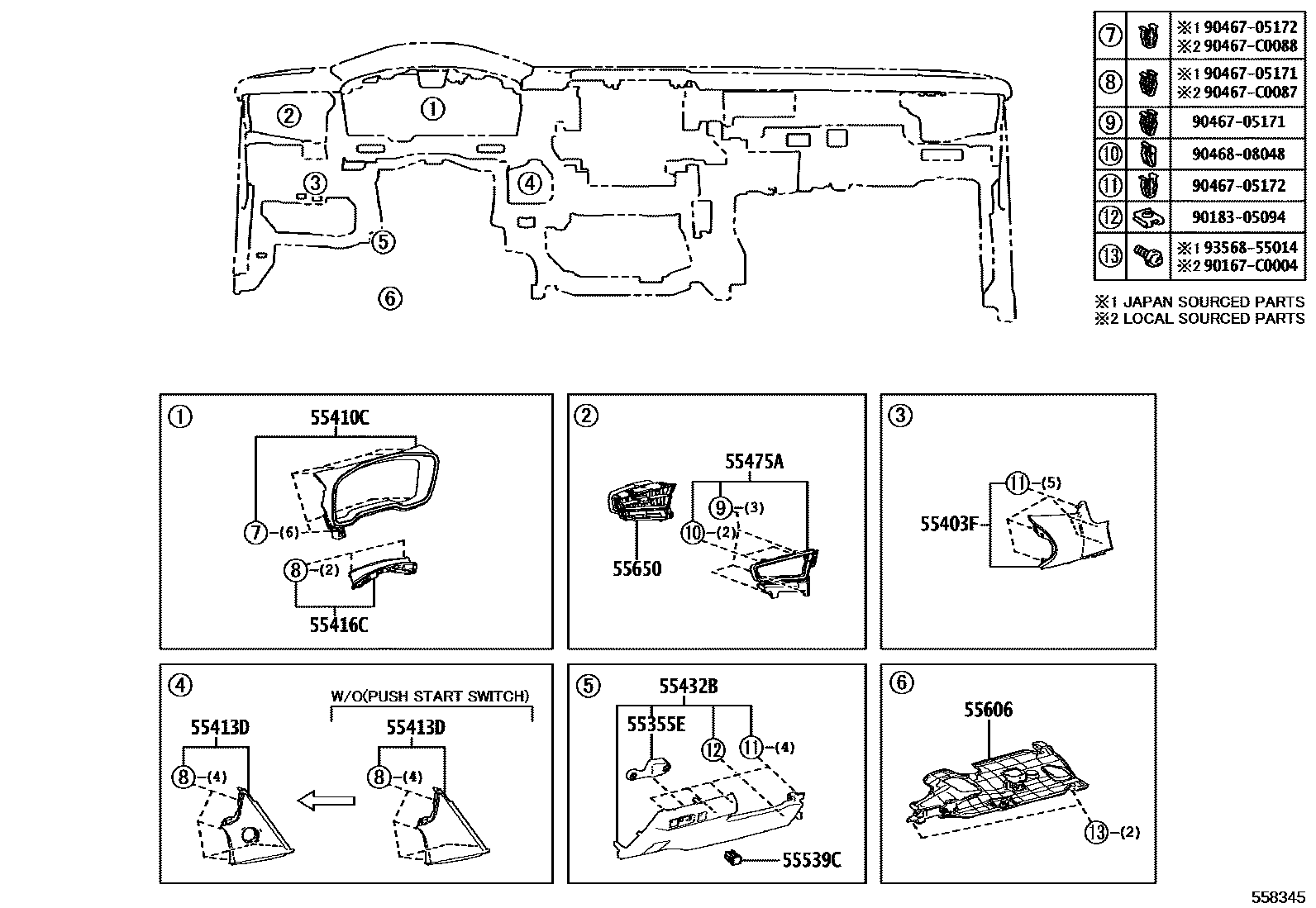

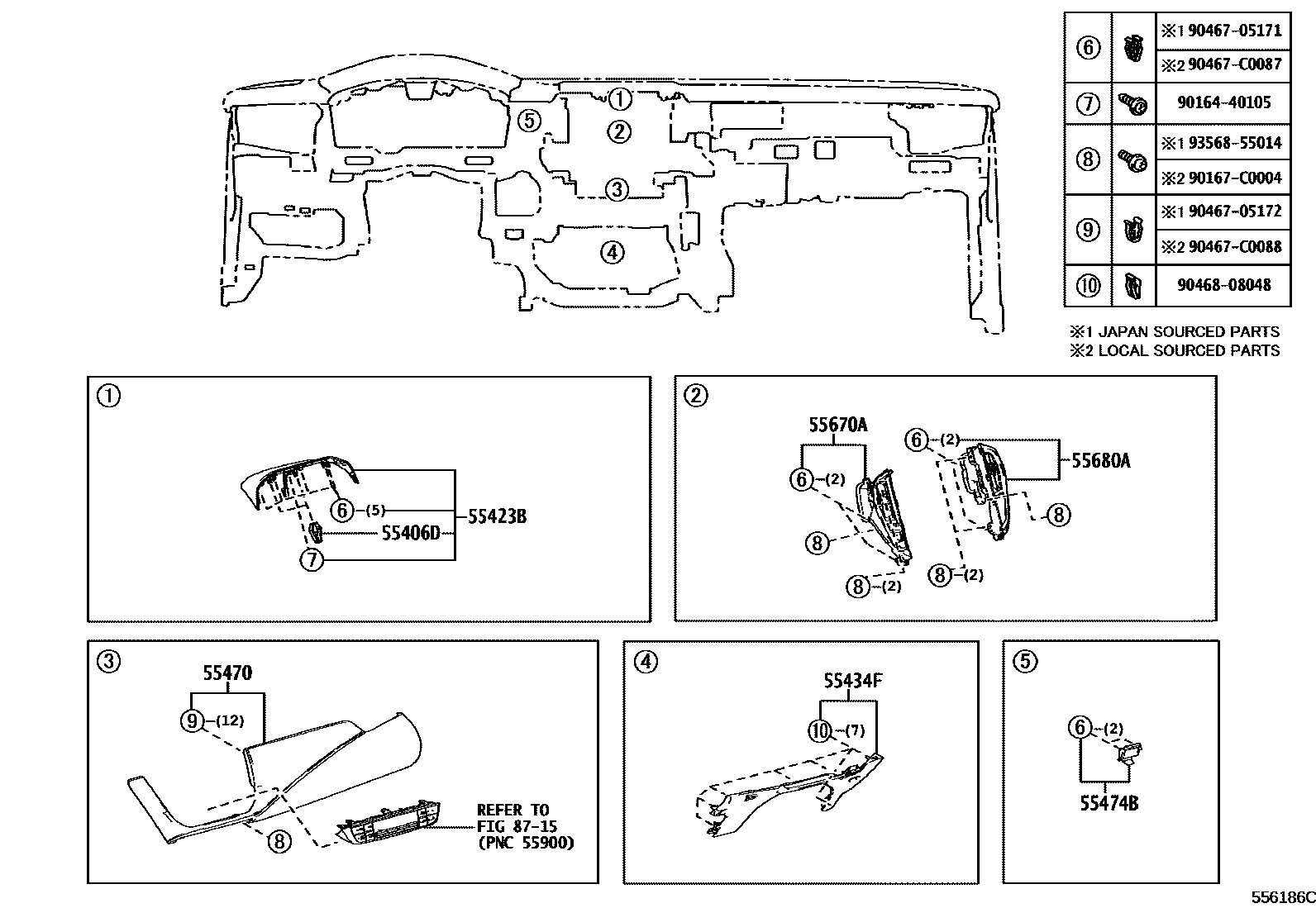

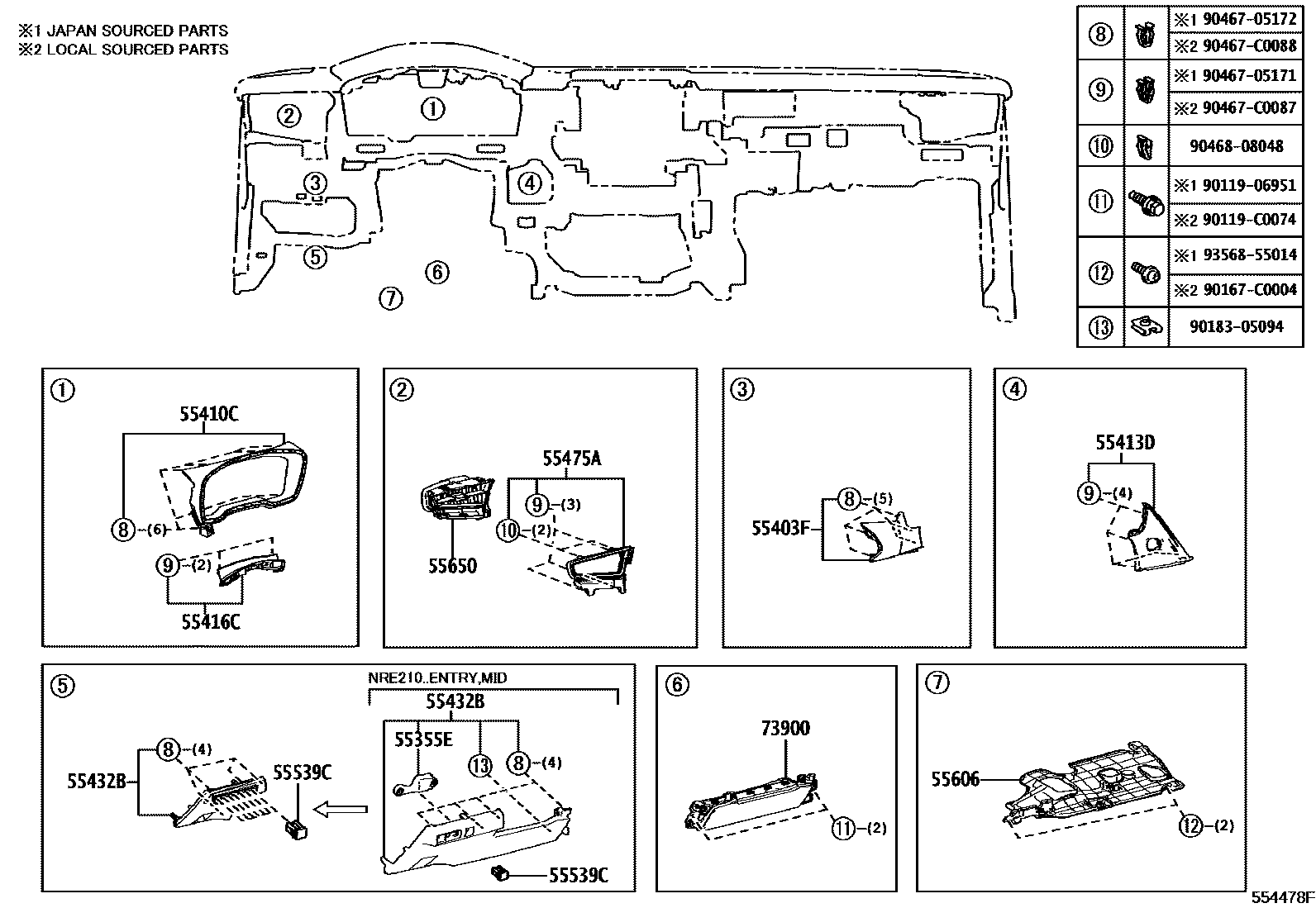

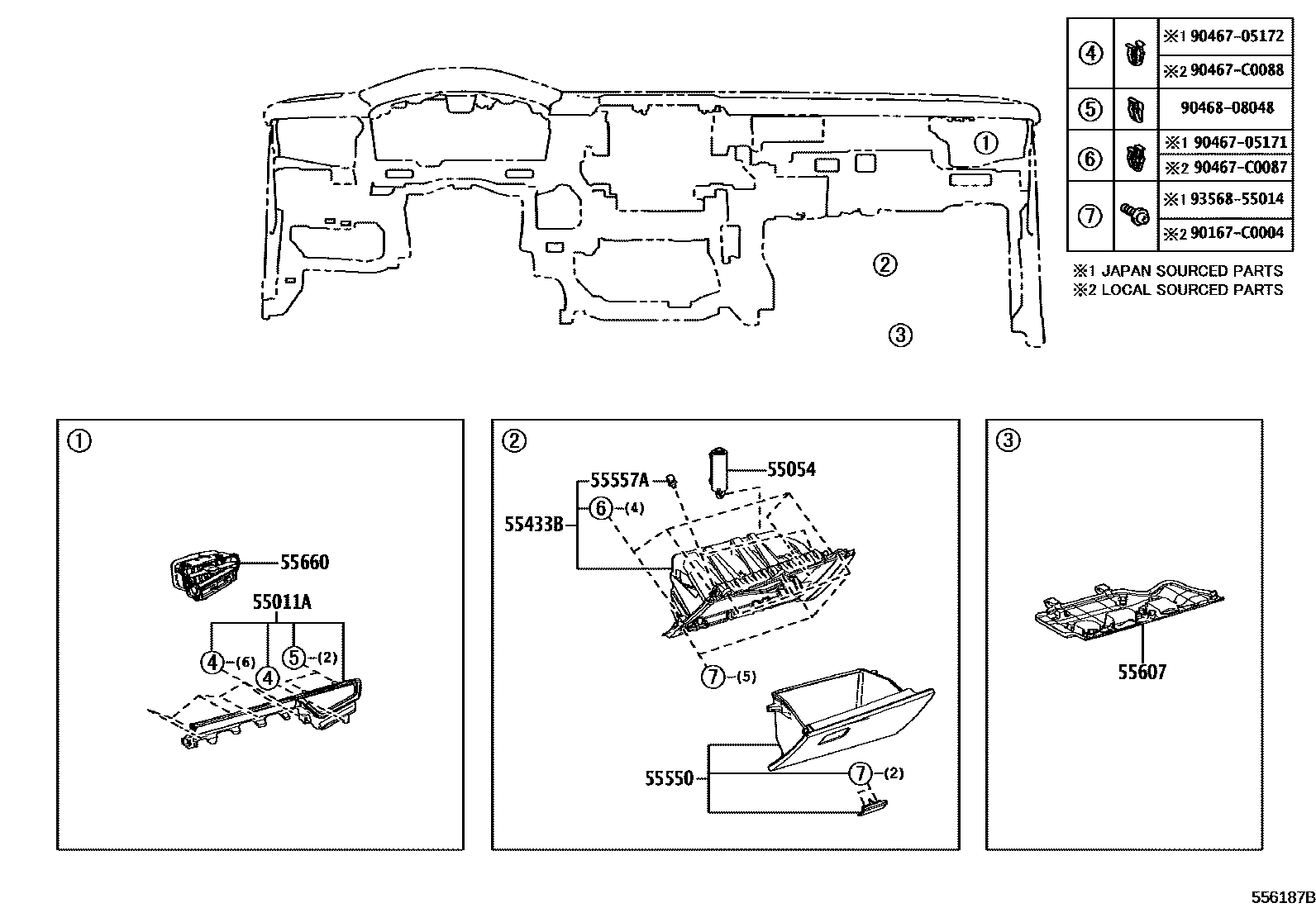

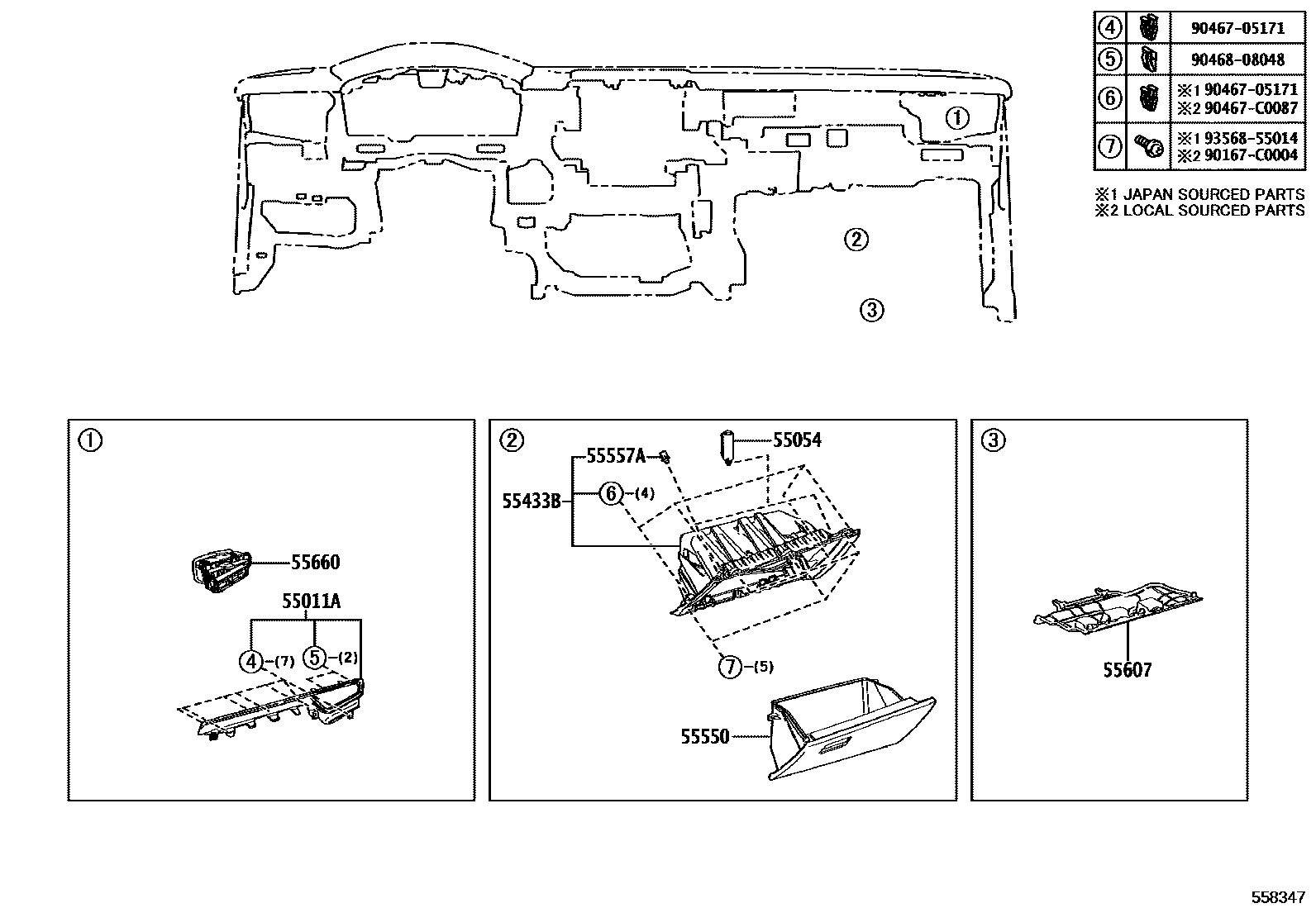

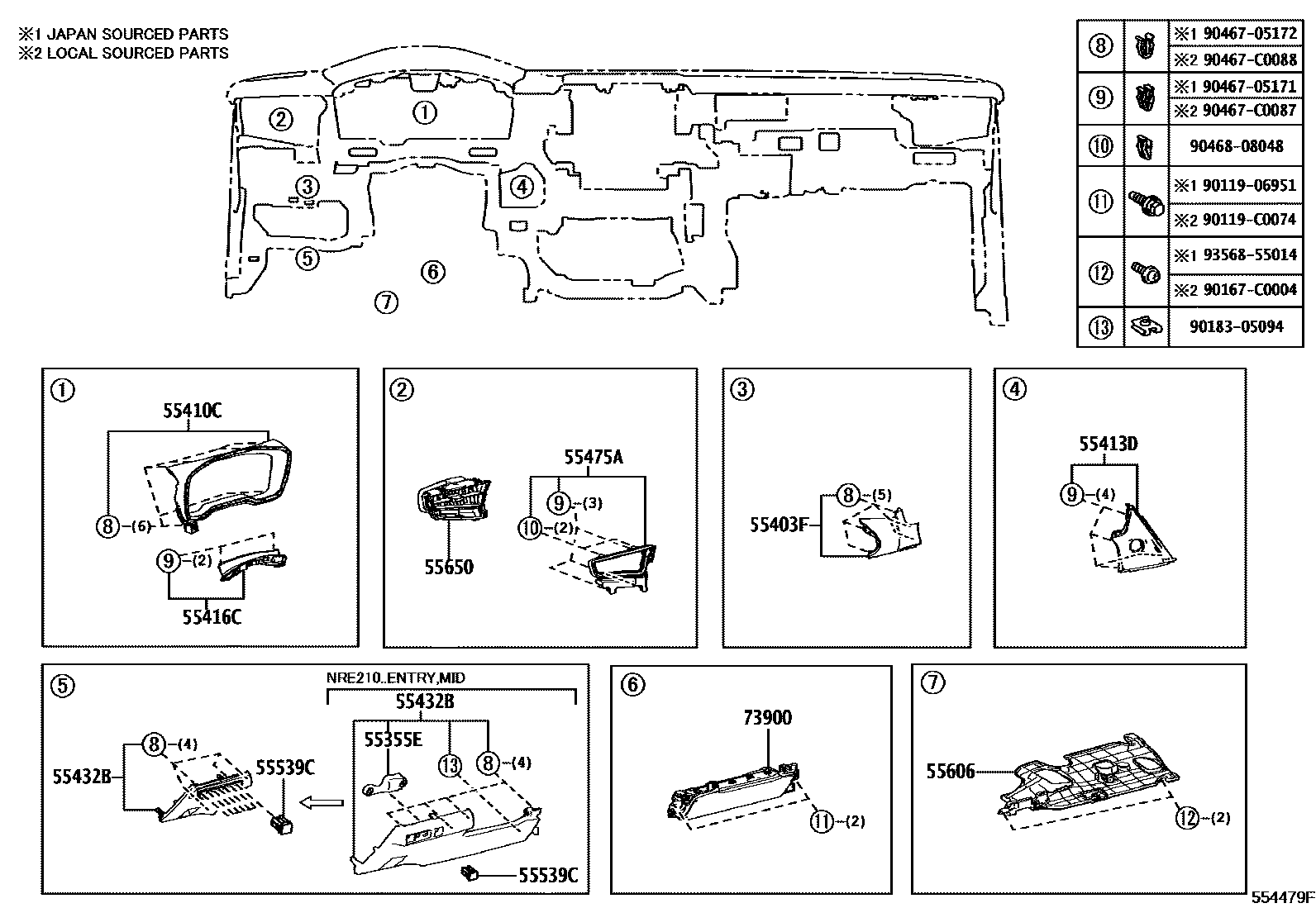

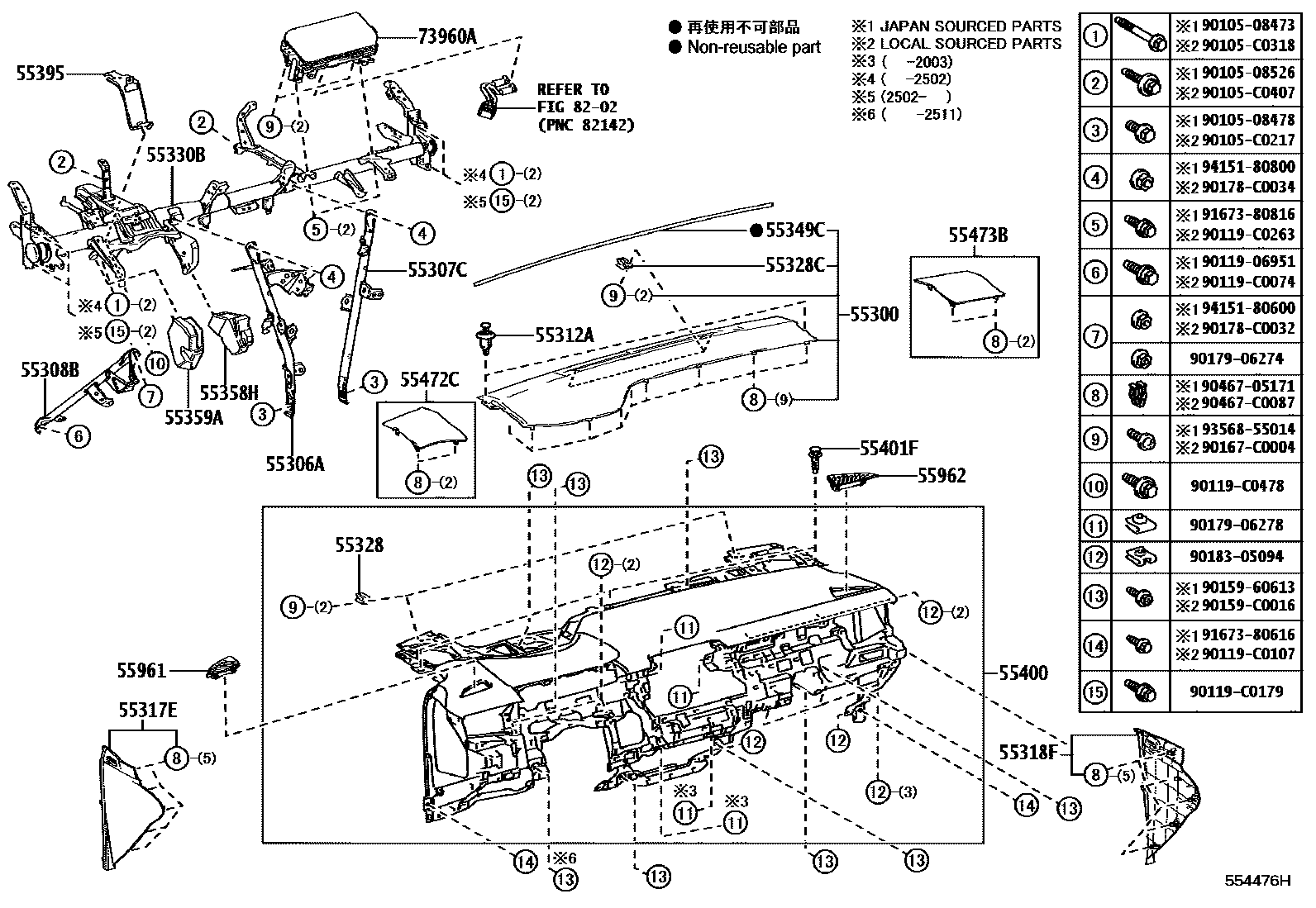

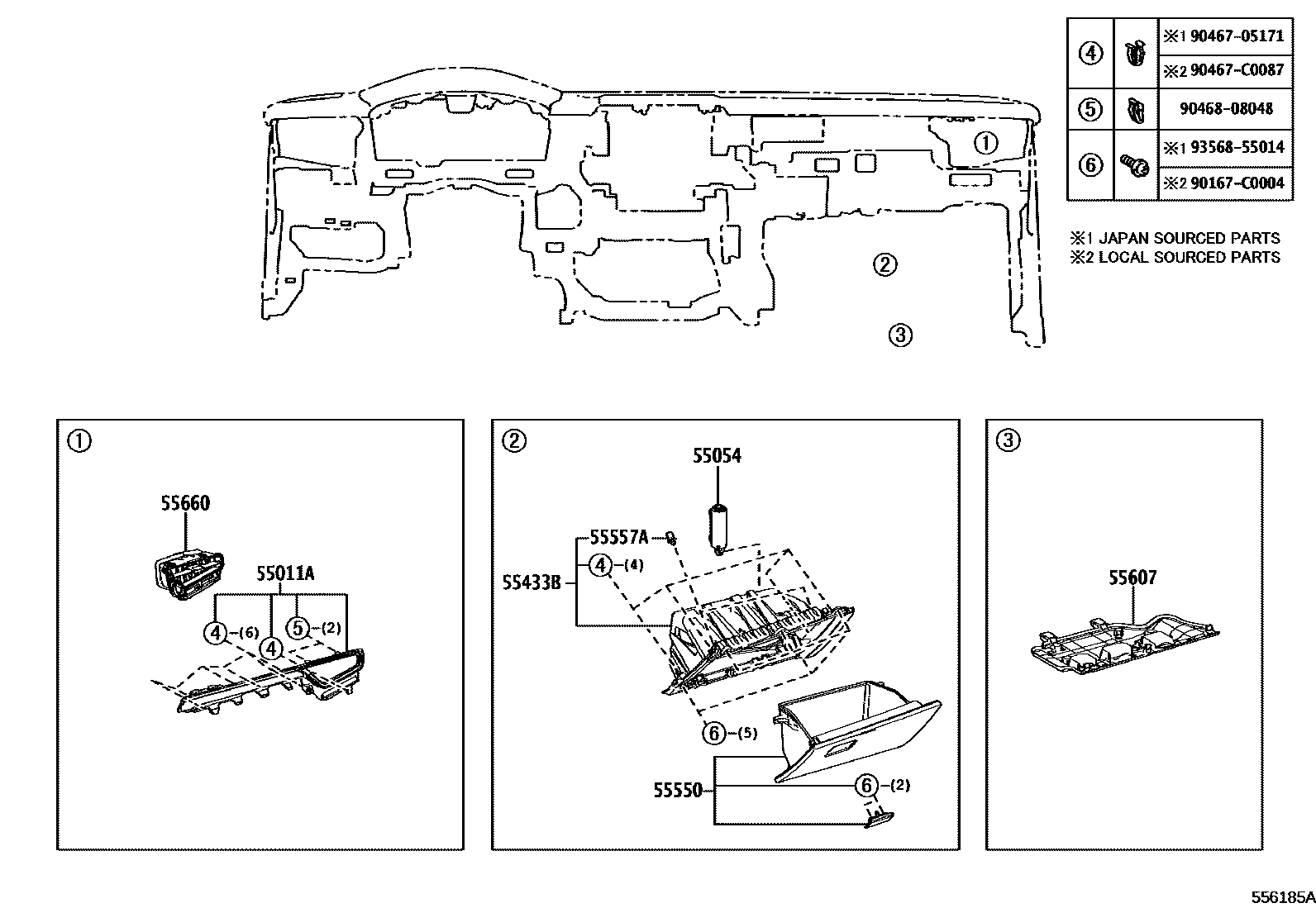

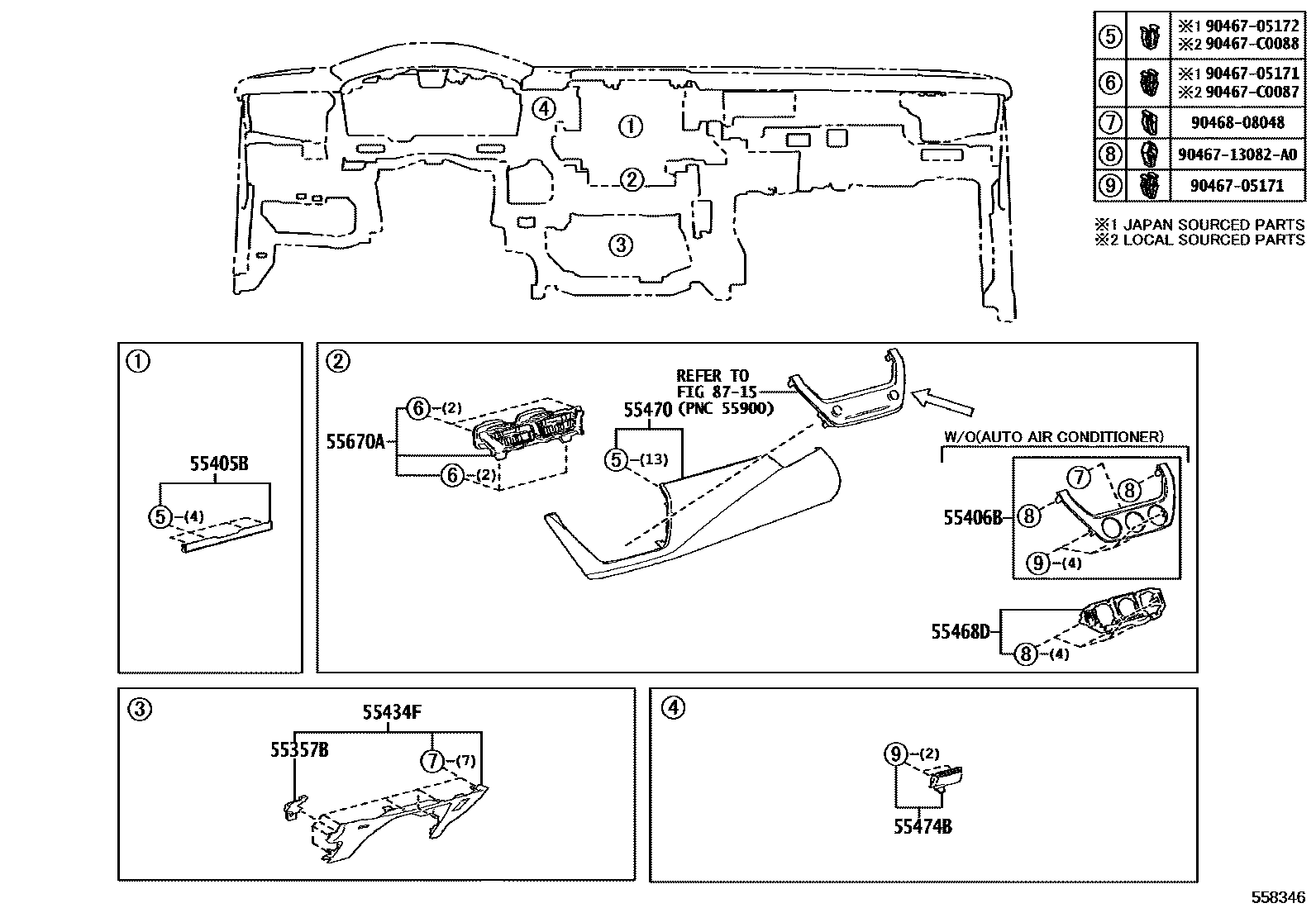

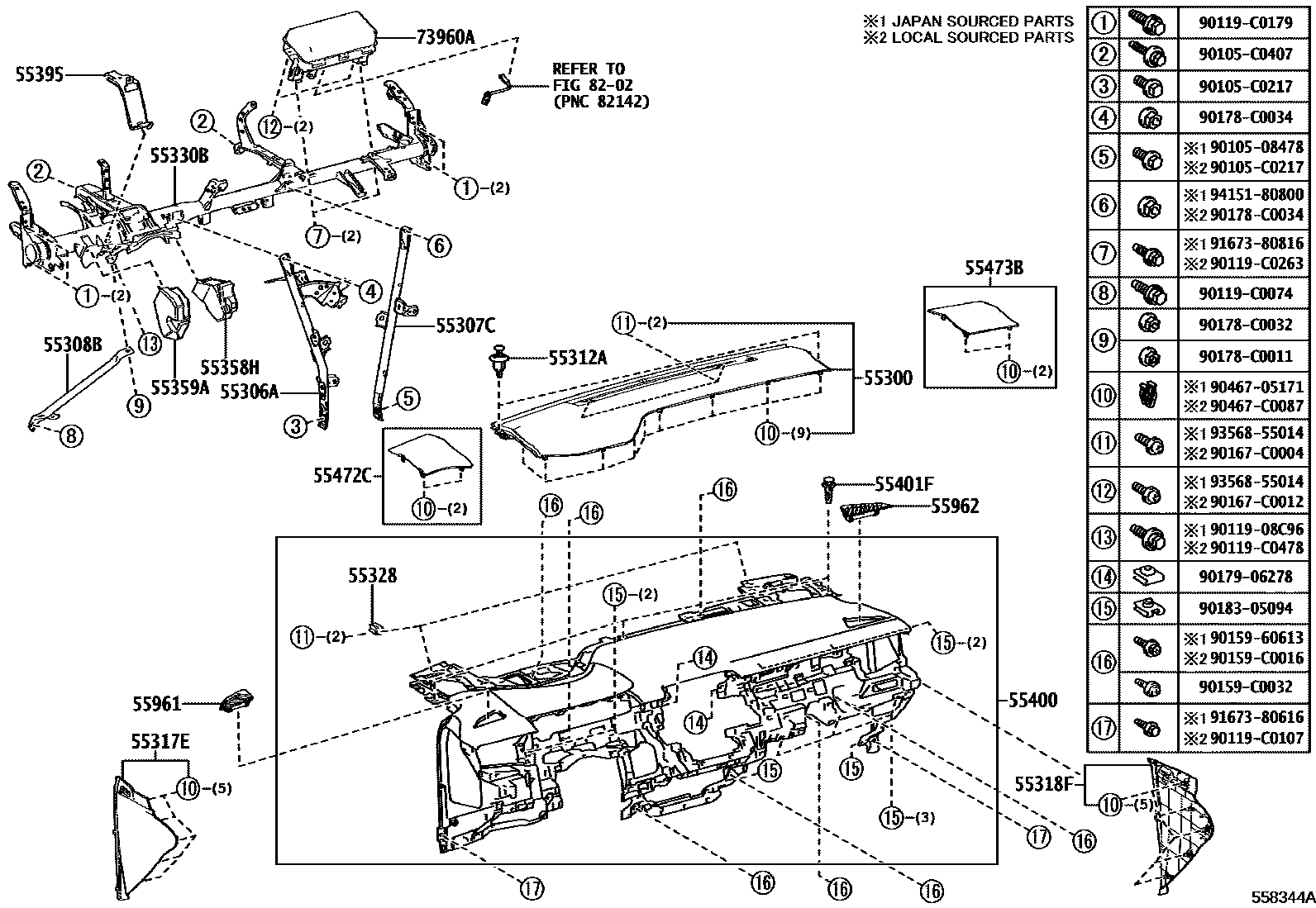

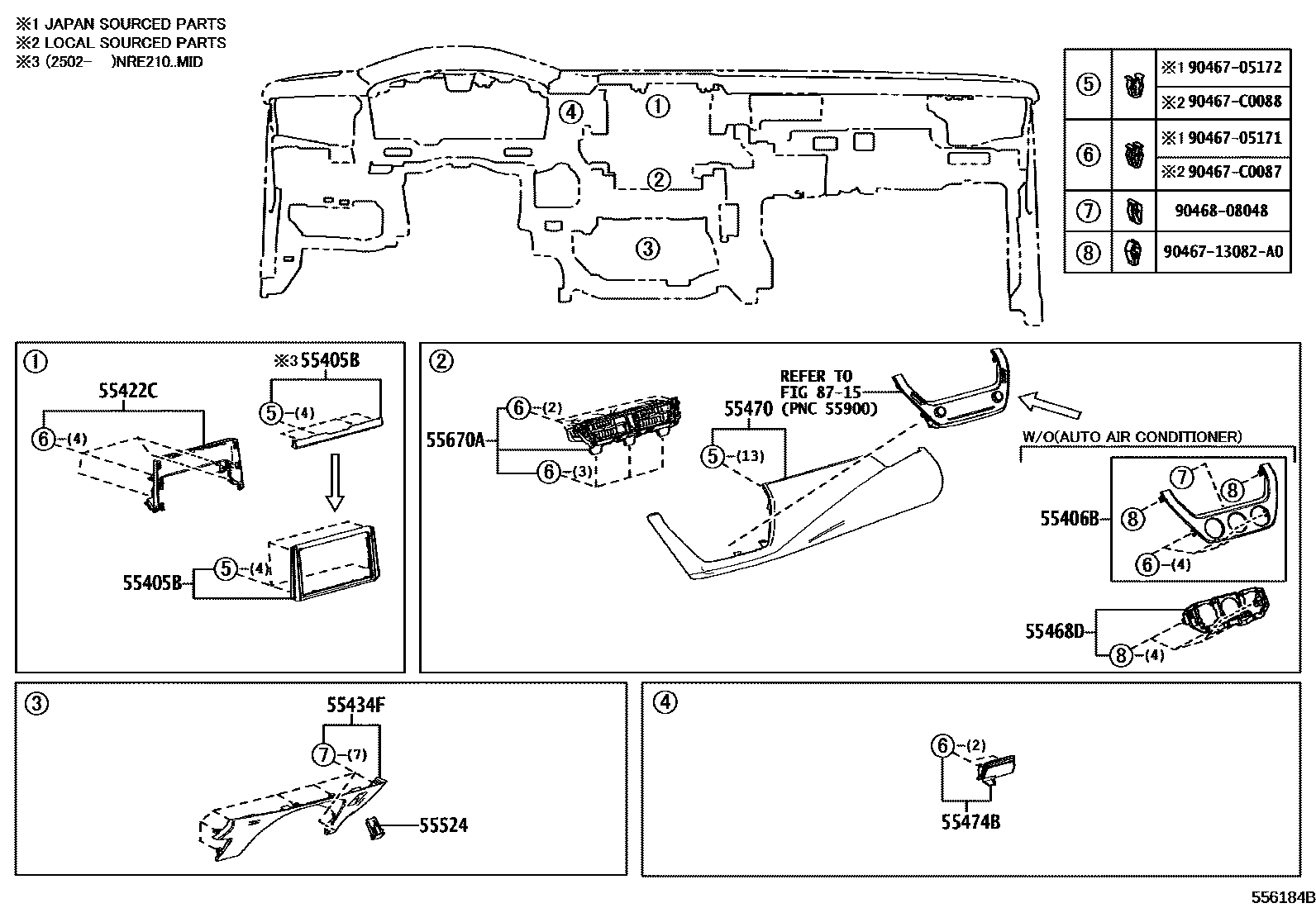

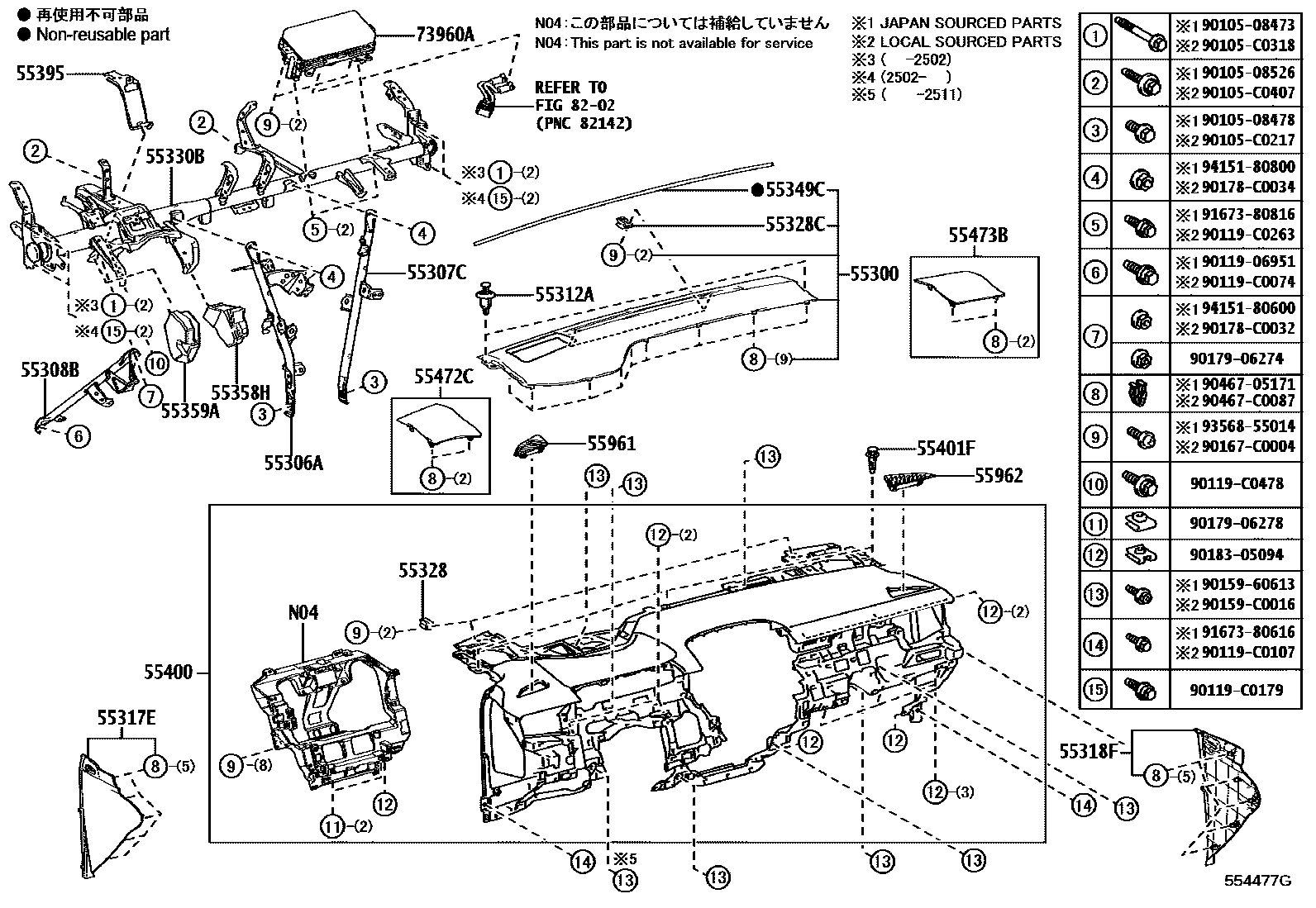

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 12 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-02050 · 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02510 · 55306-02790 · 55306-02880 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02620 · 55307-02670 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-02090 · 55308-02270 |
| 55312A | Dashboard clip | 90467-07217 · 90467-C0051 |
| 55328 | Instrument panel pin 1 | 55328-0E100 |
| 55328C | Instrument panel pin 2 | 55328-02800 |
| 55330B | Instrument panel reinforcement assembly | 55330-02710 · 55330-02C20 · 55330-02C30 · 55330-02D80 |
| 55349C | Dashboard cushion | 55349-02390 |
| 55355E | Dashboard cushion | 55355-02620 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-02280 |
| 55358H | Instrument panel protector | 55358-02200 |
| 55359A | Instrument panel No. 2 protective parts | 55359-02150 |
| 55395 | Dashboard to pedal bracket | 55395-02140 |
| 55401F | Clip (for safety mat) | 52161-02040 · 52161-16010 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02C80 · 55405-02G50 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-02620 · 55406-02720 · 55406-0A020 |
| 55406D | Clip (for instrument cluster decorative panel) | 90467-13082 |
| 55410C | Instrument cluster decorative panel assembly | 55410-02A20 · 55410-02A21 |
| 55416C | Instrument cluster decorative panel fixings | 55416-02600 |
| 55422C | Center instrument cluster upper decorative panel | 55422-02A00 |
| 55423B | Instrument cluster decorative panel cover | 55423-02210 |
| 55468D | Dashboard safety mat central fixing | 55468-02460 |
| 55470 | Instrument cluster decorative panel decorative parts assembly | 55470-YK010 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-02380 |
| 55539C | Spare switch hole cover | 55539-07020 |
| 55557A | Glove box cover limit pad | 55557-02030 · 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02400 · 55606-02420 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02170 · 55607-02410 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-02740 · 55650-02750 · 55650-02A60 · 55650-02A70 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-02460 · 55660-02630 · 55660-02640 · 55660-02670 |
| 55670A | Instrument panel central air register assembly | 55670-02A50 · 55670-02A60 · 55670-02B10 · 55670-02B11 · 55670-02B50 · 55670-02B60 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-02270 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02330 · 73960-02470 |
