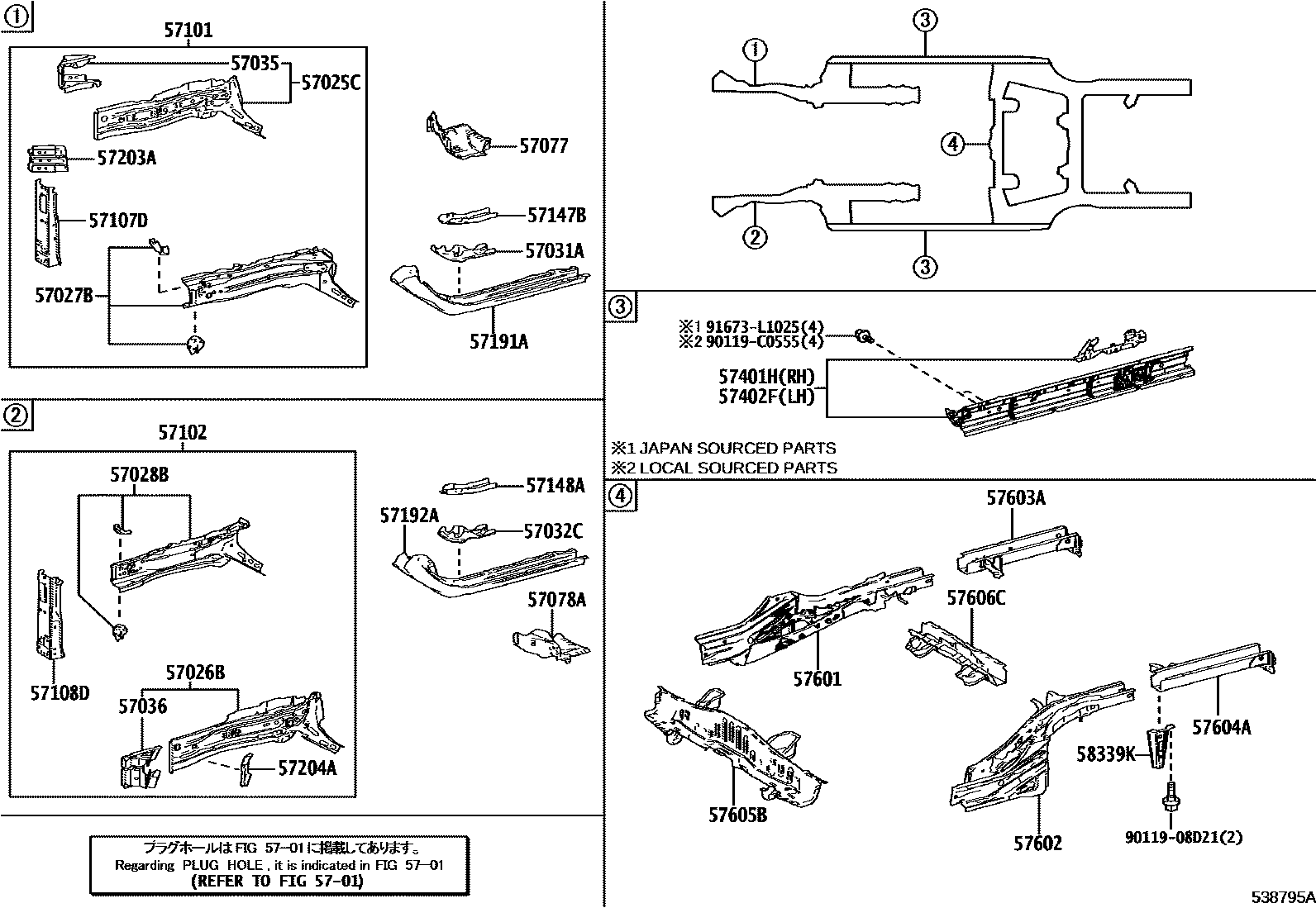

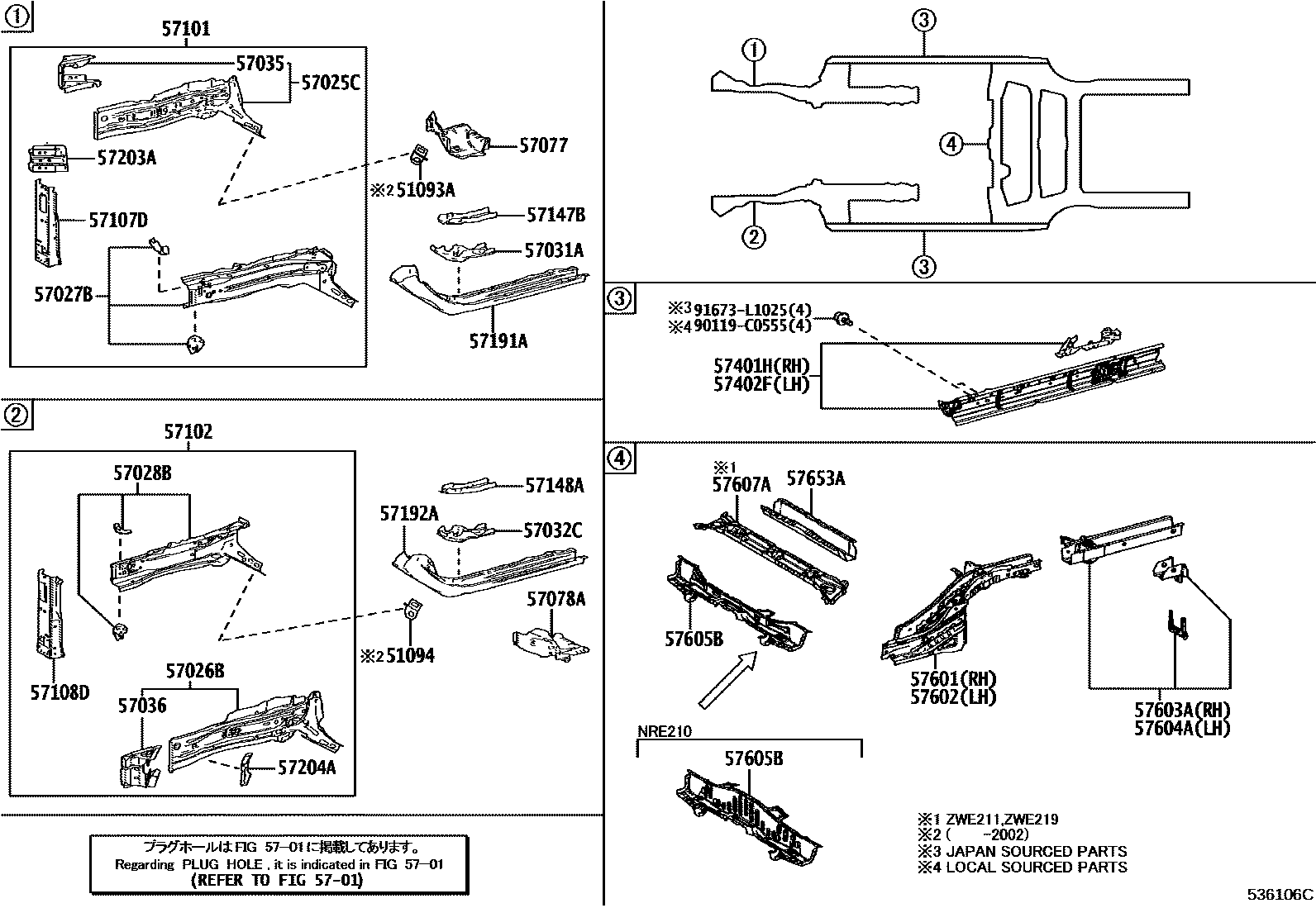

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51093A | Right front transport hook sub-assembly | 51093-F4020 |
| 51094 | Left front transport hook sub-assembly | 51094-F4020 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-F4030 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-F4030 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-F4030 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-F4030 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-F4030 |
| 57032C | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-F4030 |
| 57035 | Right front running board panel sub-assembly | 57035-F4031 |
| 57036 | Left front running board panel sub-assembly | 57036-F4031 |
| 57077 | Right front anti-torsion box-section sub-assembly | 57077-F4030 · 57077-F4031 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-F4030 · 57078-F4031 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-F4909 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-F4908 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-02170 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-02170 |
| 57147B | Right front longitudinal beam rear panel | 57147-F4030 |
| 57148A | Left front longitudinal beam rear panel | 57148-F4030 |
| 57191A | Right rear longitudinal member inside front floor | 57191-F4030 |
| 57192A | Left rear longitudinal member inside front floor | 57192-F4030 |
| 57203A | No. 2 right front longitudinal beam extension sub-assembly | 57203-F4031 |
| 57204A | No. 2 left front longitudinal beam extension sub-assembly | 57204-F4031 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-02420 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-02430 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-02590 · 57601-02610 · 57601-F4030 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-02690 · 57602-02710 · 57602-F4030 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-02280 · 57603-02310 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-02180 · 57604-02181 · 57604-02210 · 57604-02211 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-02390 · 57605-0A080 · 57605-F4060 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-02390 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-02070 |
| 57653A | No. 2 rear floor cross member | 57653-F4030 |
| 58339K | Lift the bracket | 58339-02070 |
