Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

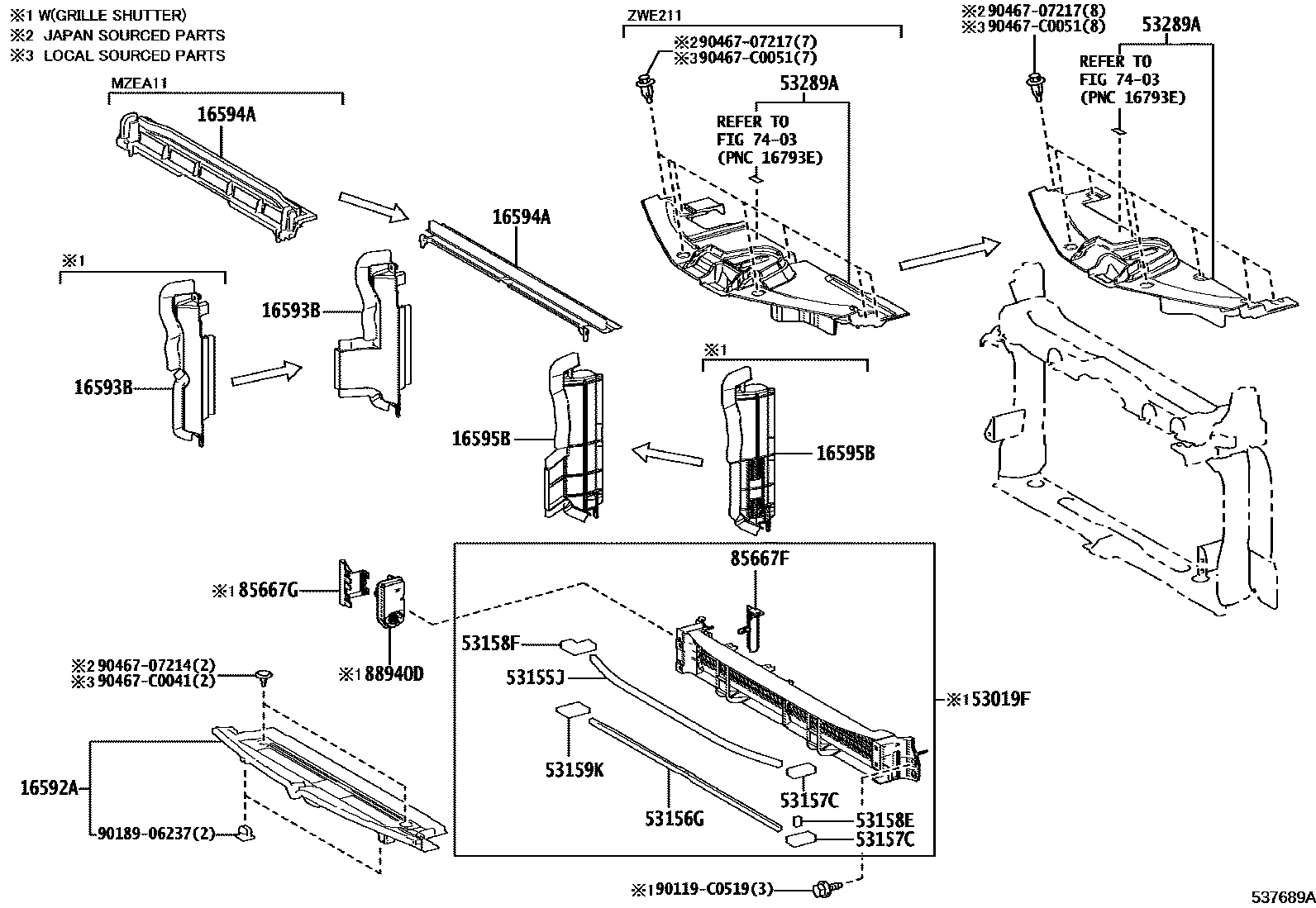

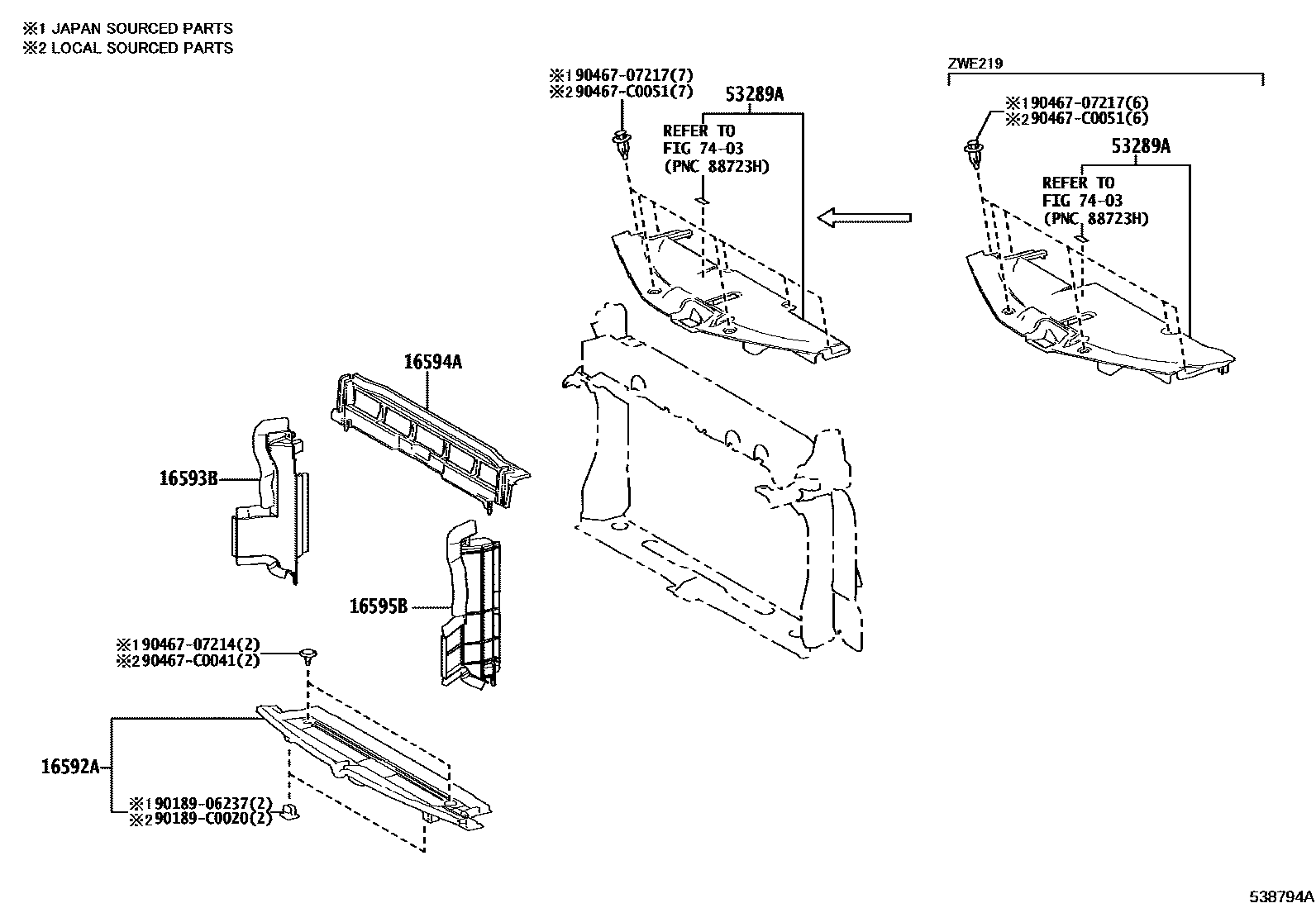

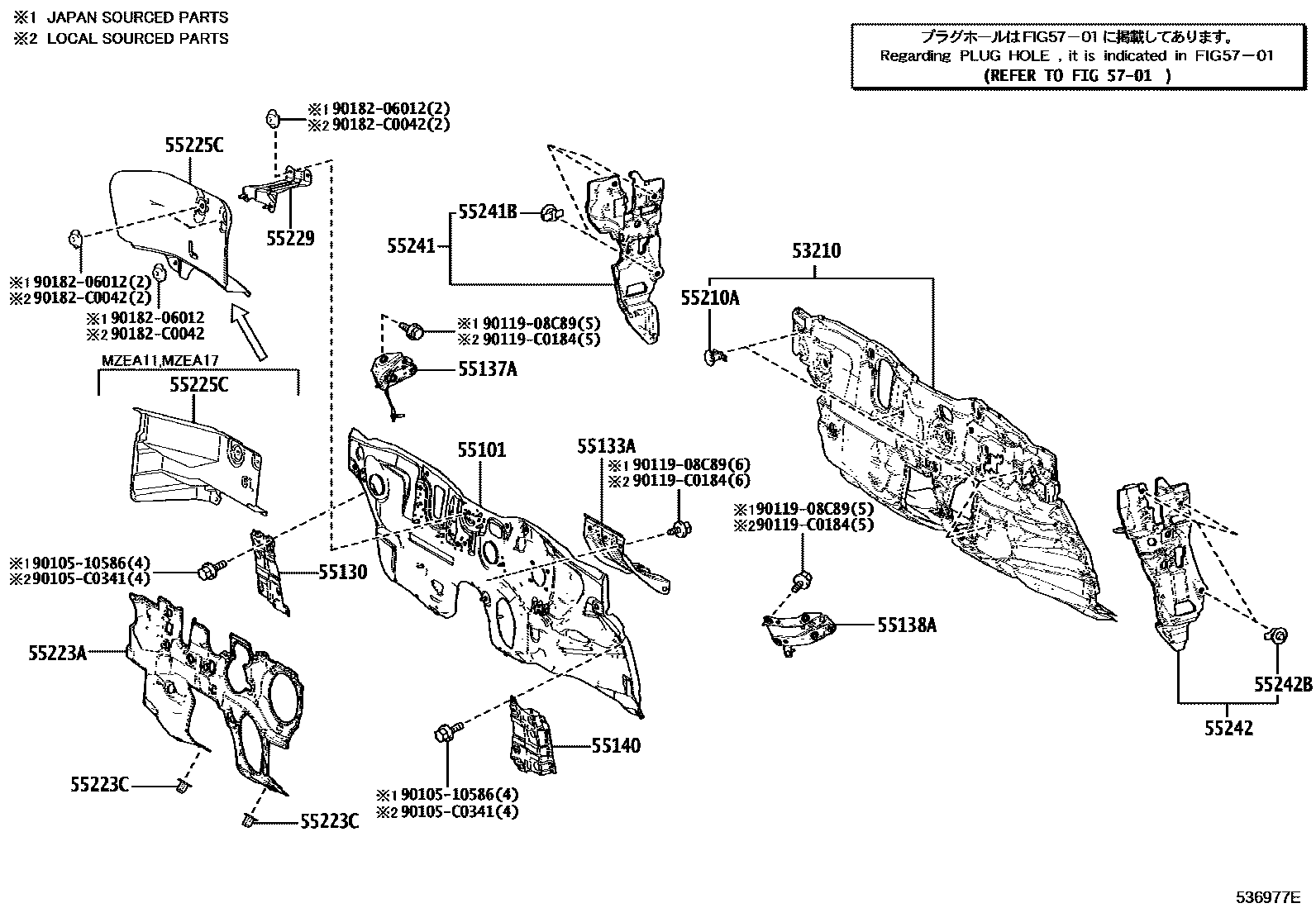

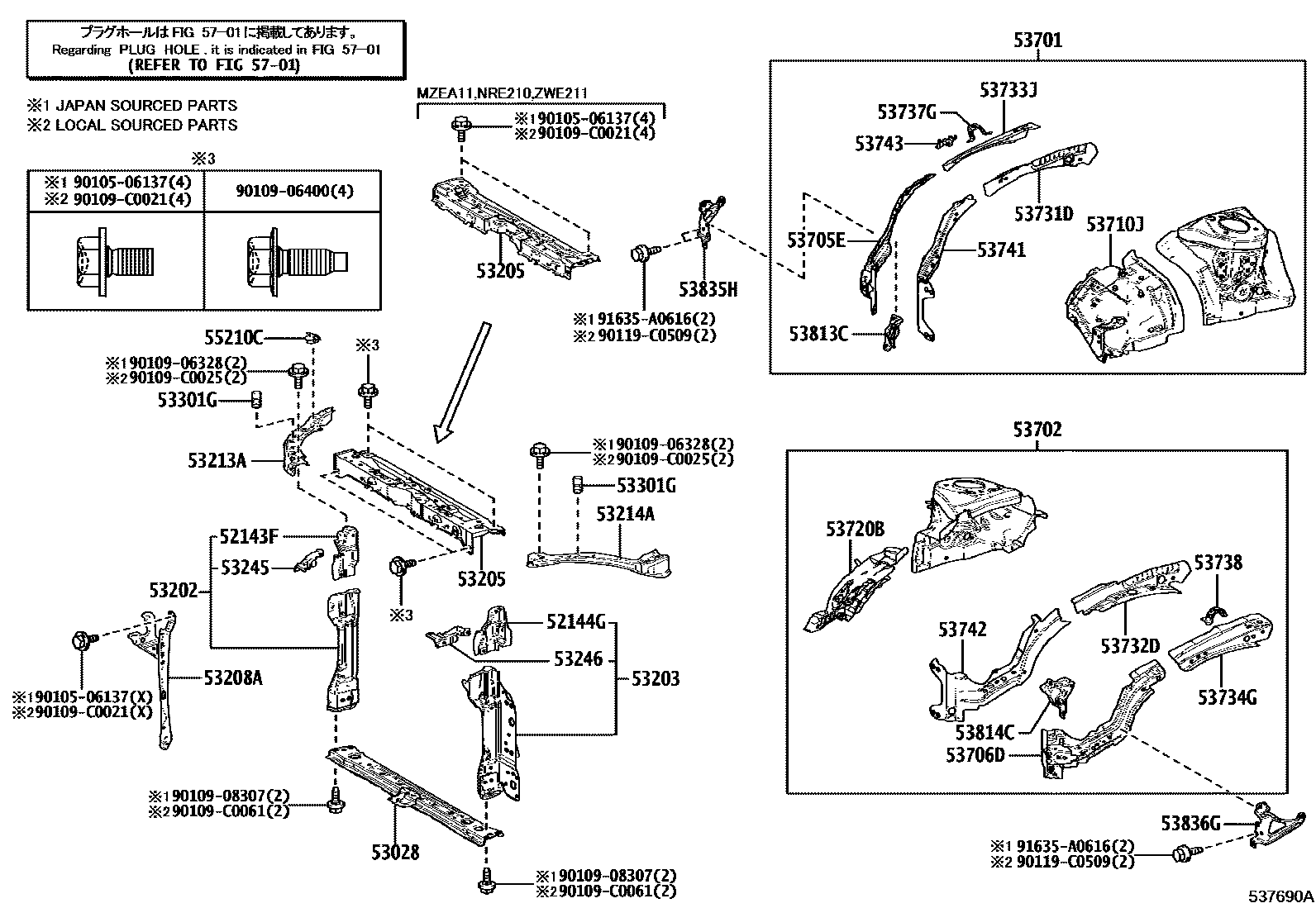

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 4 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | Radiator deflector No. 3 | 16592-0T210 · 16592-F2130 |
| 16593B | No. 1 radiator right deflector | 16593-0T220 · 16593-F3020 · 16593-F3050 |
| 16594A | Radiator deflector No. 2 | 16594-0T170 · 16594-0Y090 · 16594-F2040 · 16594-F3050 |
| 16595B | No. 1 radiator left deflector | 16595-0T270 · 16595-0Y170 · 16595-F3020 · 16595-F3060 |
| 52143F | Front bumper right side bracket | 52143-02130 |
| 52144G | Front bumper left bracket | 52144-02120 |
| 53019F | Radiator louver sub-assembly | 53019-02040 |
| 53028 | Radiator lower bracket sub-assembly | 53028-02160 · 53028-02161 · 53028-F4030 · 53028-F4031 |
| 53155J | Radiator grille seal No. 1 | 53155-02270 |
| 53156G | Radiator grille seal No. 2 | 53156-02150 |
| 53157C | Radiator grille seal No. 3 | 53157-02050 |
| 53158E | Radiator grille seal No. 4 | 53158-02070 |
| 53158F | Radiator grille seal No. 4 | 53158-02080 |
| 53159K | Radiator grille seal No. 5 | 53159-02040 |
| 53202 | Radiator right side bracket sub-assembly | 53202-02912 · 53202-02916 |
| 53203 | Radiator left bracket sub-assembly | 53203-02908 · 53203-02911 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02410 · 53205-02420 · 53205-02460 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-02330 |
| 53210 | Radiator bracket assembly | 55210-02660 · 55210-02770 · 55210-02790 · 55210-02830 |
| 53213A | Radiator upper right bracket | 53213-02270 |
| 53214A | Radiator upper left bracket | 53214-02270 |
| 53245 | Right headlight bracket | 53245-02110 |
| 53246 | Left headlight bracket | 53246-02110 |
| 53289A | Radiator bracket opening cover | 53289-02170 · 53289-02171 · 53289-02190 · 53289-02300 · 53289-02340 |
| 53301G | engine cover cushion | 90541-15037 · 90541-C0006 |
| 53701 | Right front fender fender sub-assembly | 53701-02480 |
| 53702 | Left front fender fender sub-assembly | 53702-02410 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-F4030 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-F4030 · 53706-F4031 |
| 53710J | Right front fender fender assembly | 53710-F4030 |
| 53720B | Left front fender fender assembly | 53720-F4030 |
| 53731D | Right front fender to cowl side upper beam | 53731-F4030 |
| 53732D | Left front fender to cowl side upper beam | 53732-F4030 |
| 53733J | Right front fender to front wall side outer beam | 53733-F4030 |
| 53734G | Left front fender to front wall side outer beam | 53734-F4030 |
| 53737G | Right front fender to front wall side sill | 53737-02280 |
| 53738 | Left front fender to front wall side sill | 53738-02250 |
| 53741 | Right front fender fender air deflector | 53741-F4030 |
| 53742 | Left front fender fender air deflector | 53742-F4030 |
| 53743 | Front fender fender extension reinforcement | 53743-F4030 |
| 53813C | Right front fender extension | 53813-F4030 |
| 53814C | Left front fender extension | 53814-F4030 |
| 53835H | Right front fender to extension stay | 53835-02120 |
| 53836G | Left front fender to extension stay | 53836-02120 |
| 55101 | Front apron sub-assembly | 55101-02G00 · 55101-F4060 |
| 55130 | Right fender fender fixing plate assembly | 55130-02020 |
| 55133A | Right reinforcement (front wall to floor) | 55133-F4030 |
| 55137A | Right side bracket (front wall to frame) | 55137-02250 |
| 55138A | Left side bracket (front wall to frame) | 55138-02250 |
| 55140 | Left fender fender fixing plate assembly | 55140-02030 |
| 55210A | clip | 90467-11122 · 90467-C0094 |
| 55210C | clip | 53326-0D010 · 53326-52010 |
| 55223A | Front wall outer heat insulation pad | 55223-F4040 |
| 55223C | clip | 90467-06197 · 90467-C0080 |
| 55225C | Front wall insulation pad | 55225-02100 · 55225-F4030 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-F4020 |
| 55241 | Front panel No. 1 right side silencer | 55241-02130 · 55241-02160 · 55241-02170 |
| 55241B | Front panel side muffler clip | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-02120 · 55242-02150 · 55242-02160 |
| 55242B | Front panel side muffler clip | 90467-13079 |
| 85667F | Motor cover | 85667-02060 |
| 85667G | Motor cover | 85667-02040 |
| 88940D | Swing grille actuator assembly | 88940-02030 · 88940-02031 |
