Toyota COROLLA 发动机盖锁和铰链 — Figure 5303

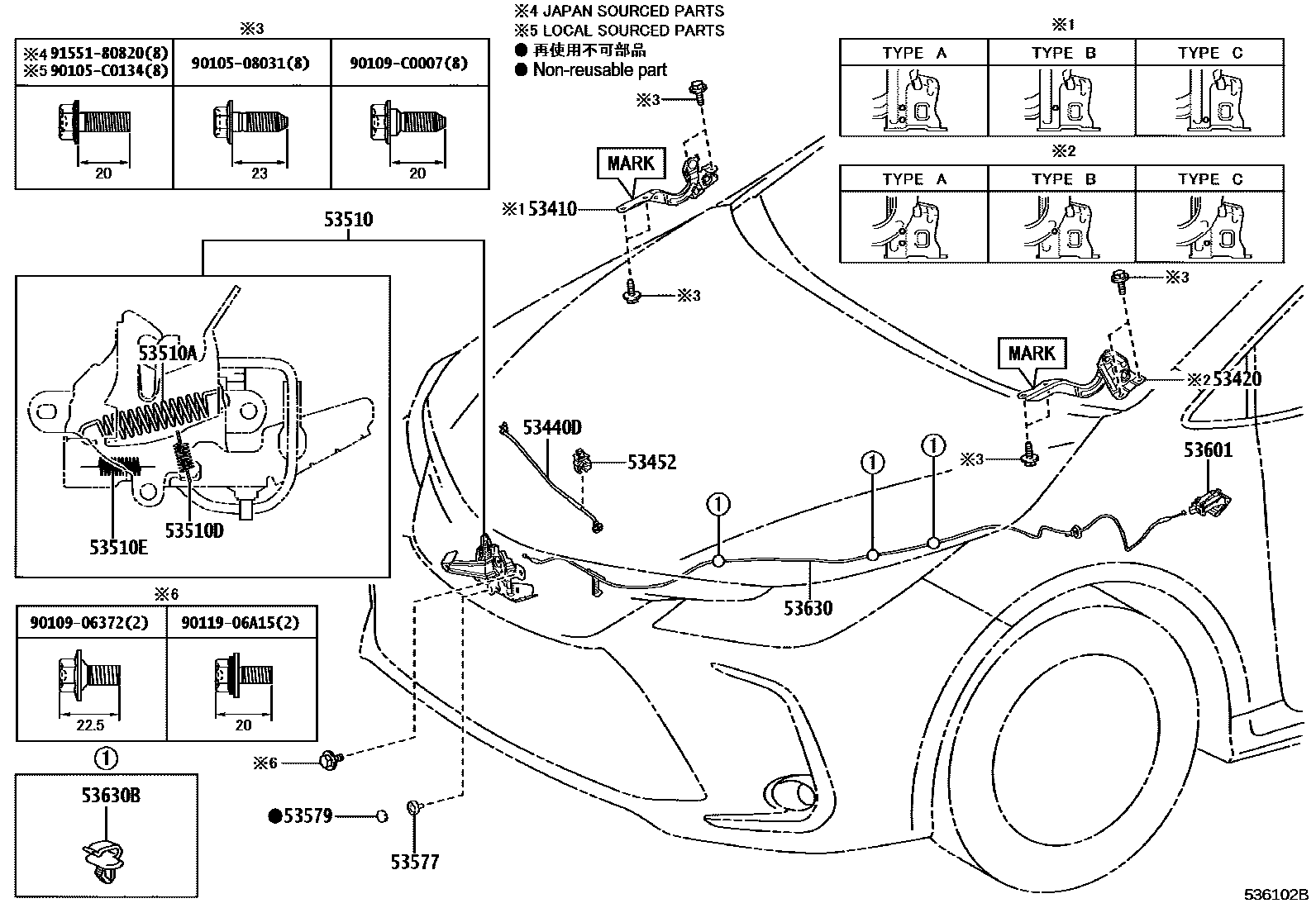

Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02750 · 53410-02760 · 53410-02770 · 53410-02810 · 53410-02820 · 53410-02830 |
| 53420 | Engine cover left hinge assembly | 53420-02730 · 53420-02740 · 53420-02770 · 53420-02780 · 53420-02790 · 53420-02830 |
| 53440D | Engine cover support rod assembly | 53440-02370 |
| 53452 | Engine cover stay rod fixing | 53452-0A020 · 53452-15020 |
| 53510 | Engine cover lock assembly | 53510-02A70 · 53510-02A80 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53510E | Tension spring (for hood lock) | 53524-02030 · 90506-14085 |
| 53577 | engine cover lock bolt | 53577-33010 |
| 53579 | Engine hood lock nut cover | 53579-0E020 · 53579-50010 |
| 53630 | Engine hood lock control cable assembly | 53630-02540 · 53630-02541 |
| 53630B | Clip (for hood lock control cable) | 90469-C0004 |
