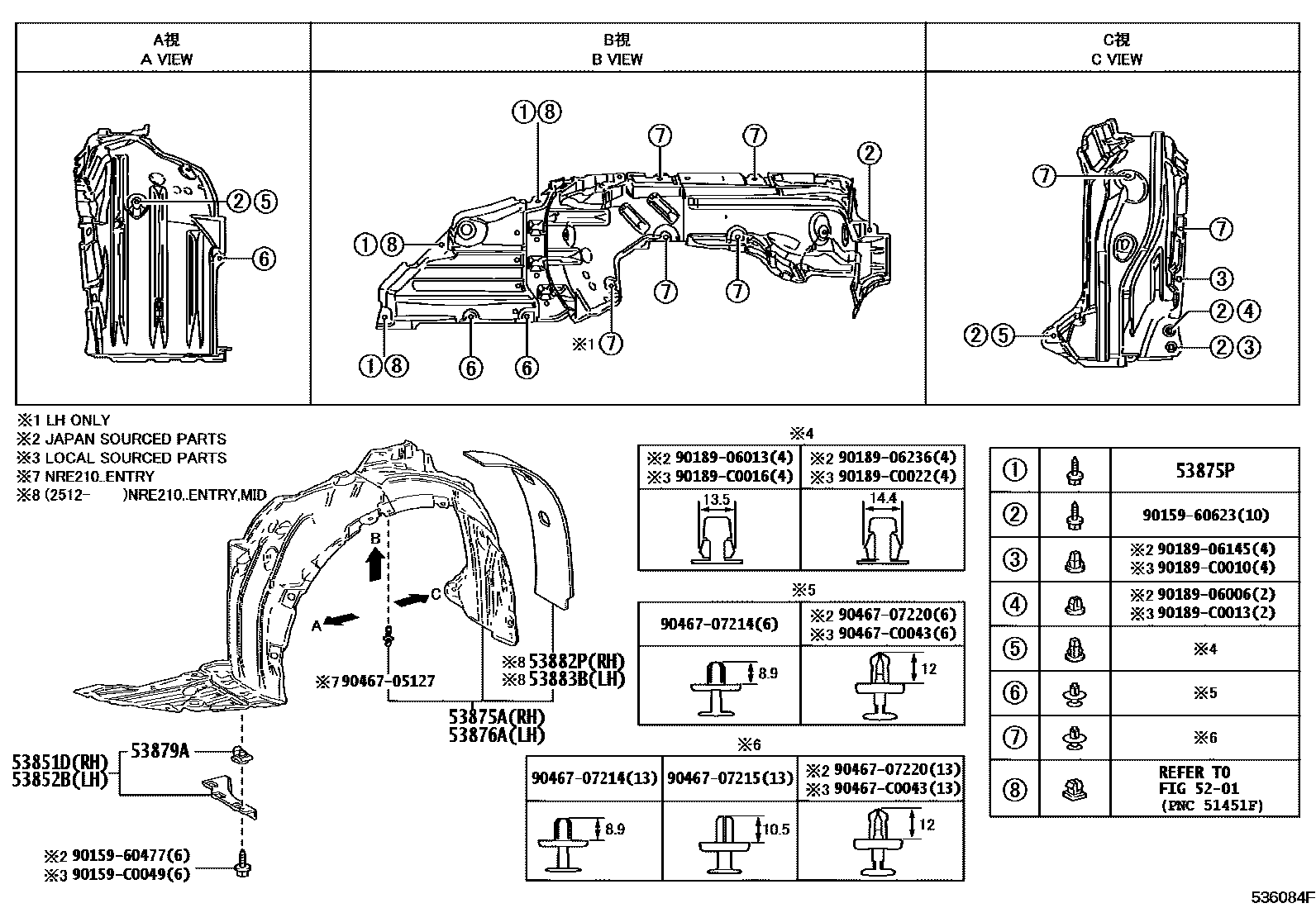

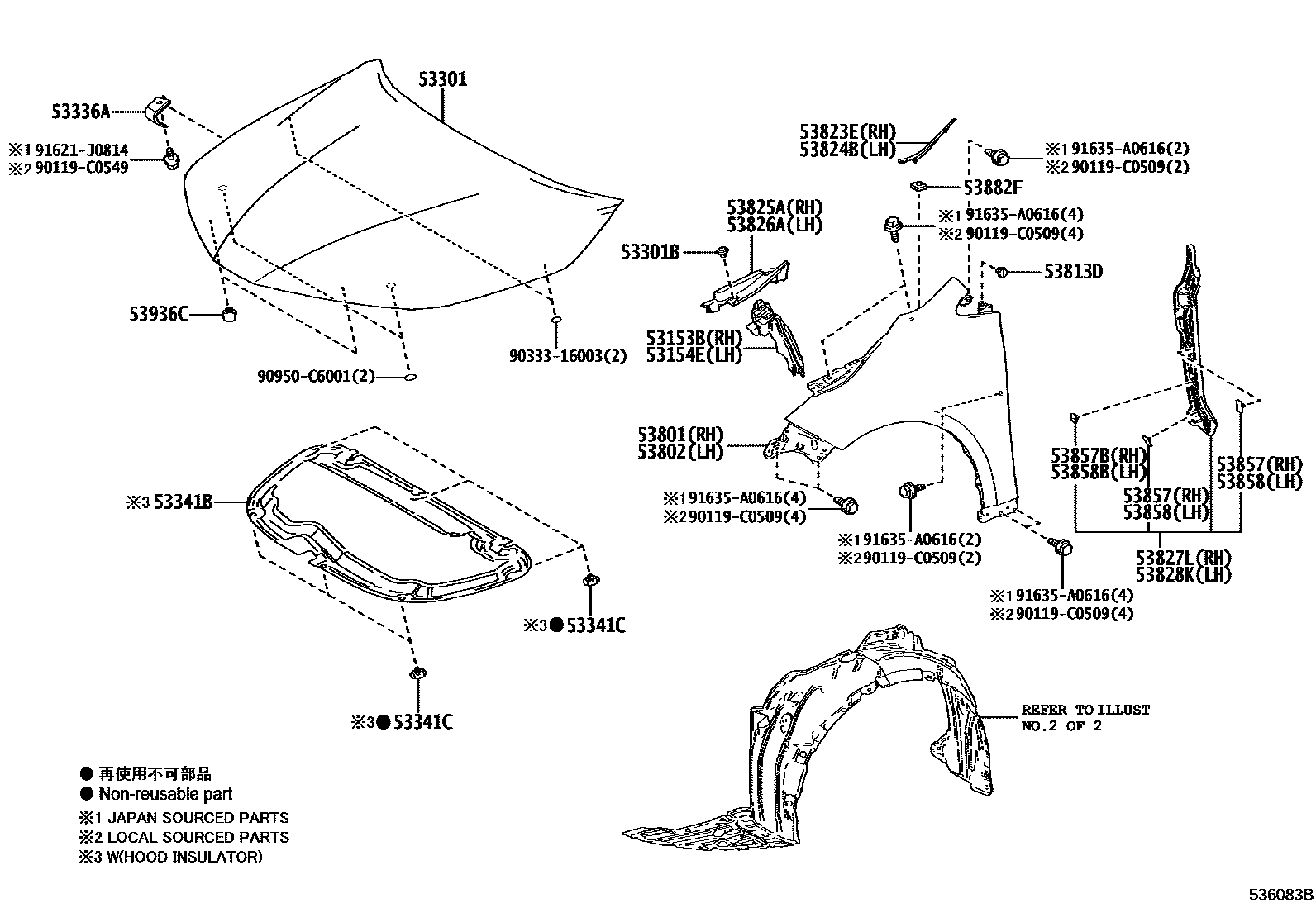

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-02170 |
| 53154E | No. 2 front side deflector | 53154-02170 |
| 53301 | Engine cover sub-assembly | 53301-02450 |
| 53301B | engine cover cushion | 53384-02030 · 53384-78010 |
| 53336A | Engine cover strut bracket | 53336-02030 |
| 53341B | engine cover gasket | 53341-02460 · 53341-02500 · 53341-02510 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-C0025 |
| 53801 | Right front fender sub-assembly | 53801-02350 |
| 53802 | Left front fender sub-assembly | 53802-02340 |
| 53813D | front fender extension | 53813-48011 |
| 53823E | No. 2 right front side panel protector | 53823-02260 · 53823-02320 |
| 53824B | No. 2 left front side panel protector | 53824-02260 · 53824-02320 |
| 53825A | Right front fender protection piece | 53825-02240 |
| 53826A | Protection piece on left front fender | 53826-02240 |
| 53827L | Right front fender side panel protector | 53827-02320 |
| 53828K | Left front fender side panel protector | 53828-02320 |
| 53851D | Right front fender outer panel pad | 53851-02290 |
| 53852B | Left front fender exterior panel pad | 53852-02270 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-02740 · 53875-02860 · 53875-02861 · 53875-02862 · 53875-02A10 · 53875-02A11 |
| 53875P | Screw No. 1 | 90159-60477 · 90159-C0049 |
| 53876A | Left front fender lining | 53876-02780 · 53876-02A00 · 53876-02A01 · 53876-02A02 · 53876-02A50 · 53876-02A51 |
| 53879A | Front fender lining fixing parts | 53879-47020 |
| 53882F | front fender seal | 53882-0D020 · 53882-33060 |
| 53882P | Right front fender seal | 53882-02200 |
| 53883B | Left front fender seal | 53882-02200 |
| 53936C | Cushion pad | 90541-09117 |
