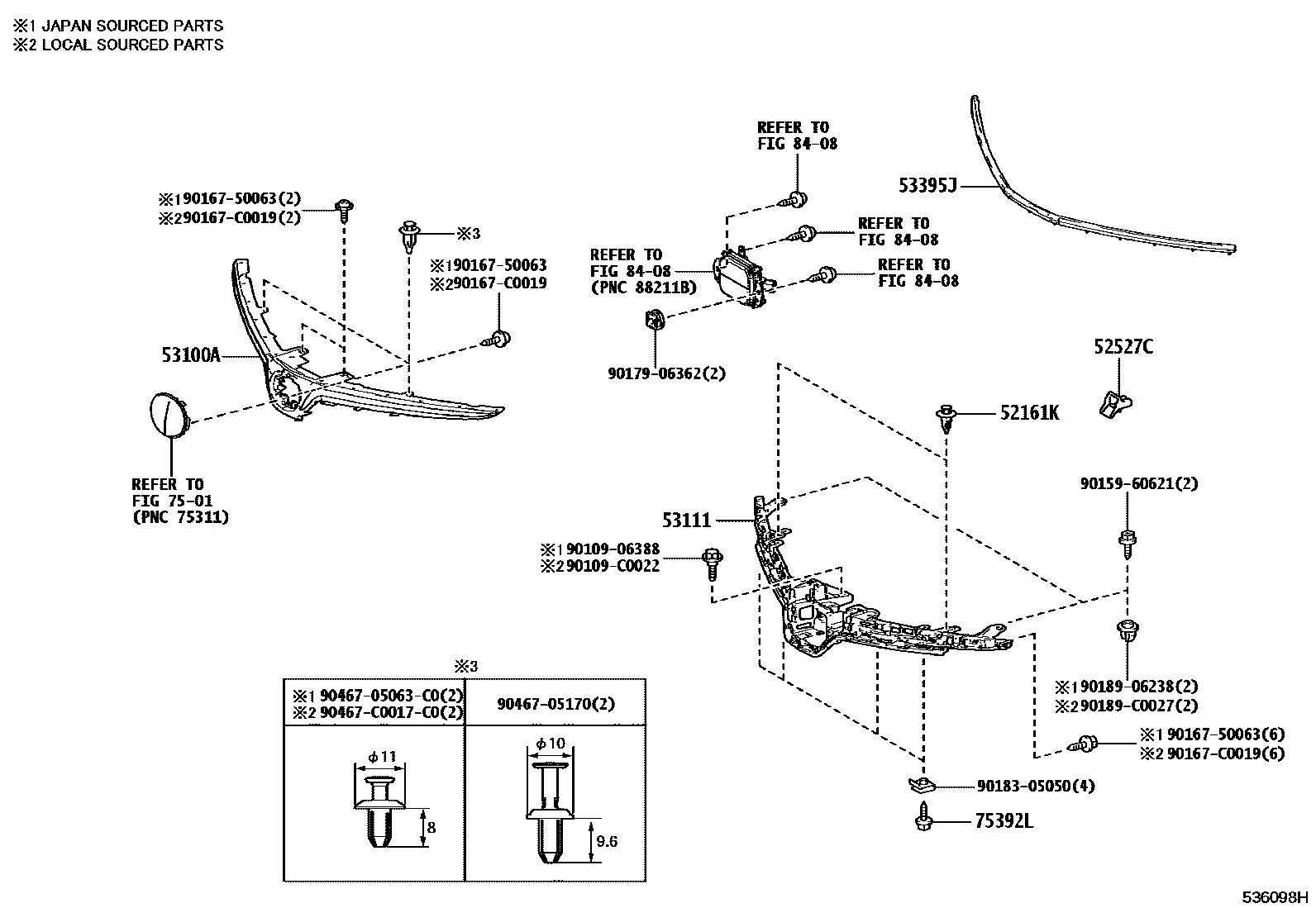

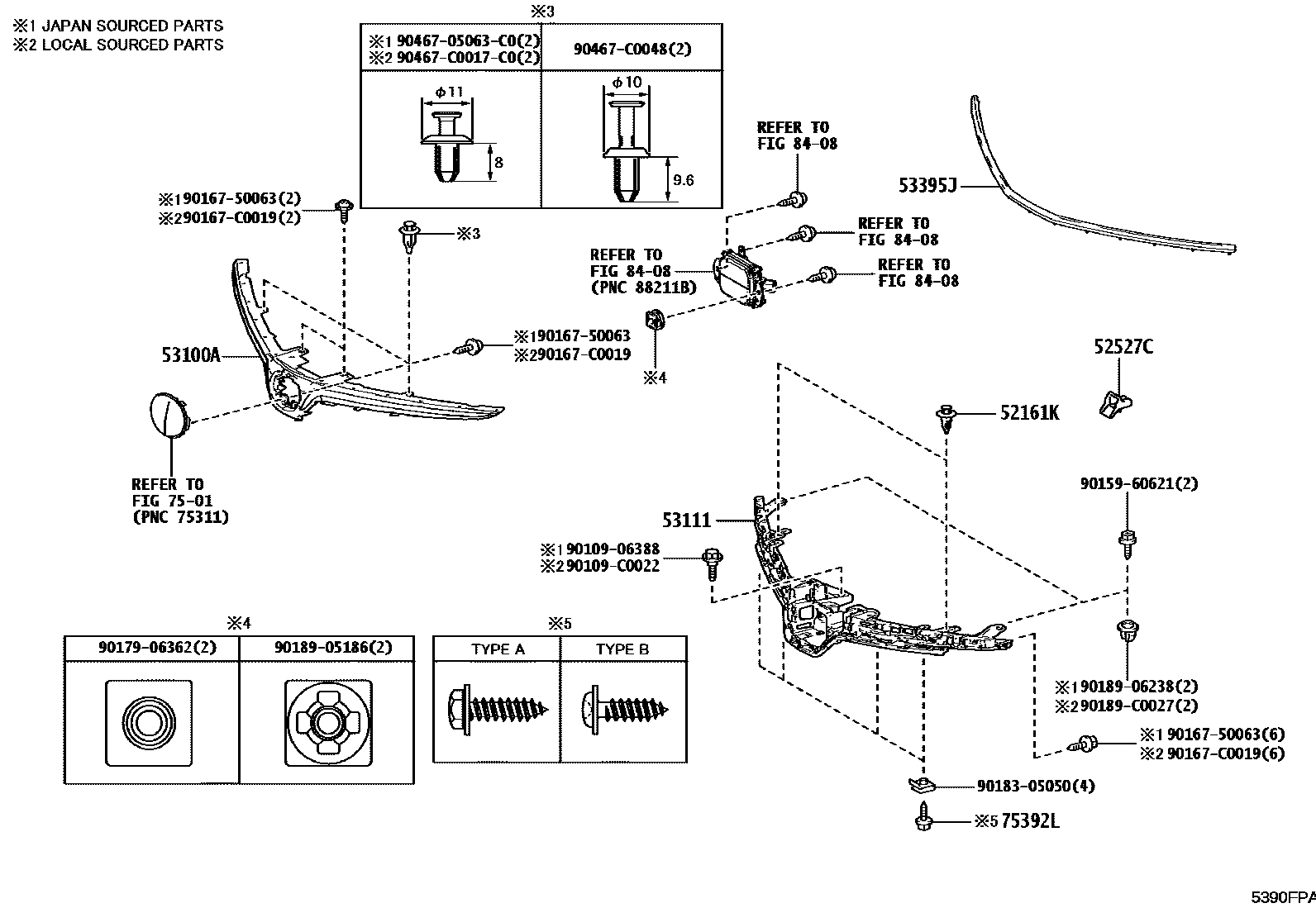

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161K | front bumper insert | 52161-02040 · 52161-16010 |
| 52527C | Front bumper No. 2 lower fixing bracket | 52527-02100 |
| 53100A | Radiator grille assembly | 53100-02860 · 53100-02G30 · 53100-02G40 |
| 53111 | radiator grille | 53111-02B80 · 53111-02E40 |
| 53395J | Engine cover to front end plate seal | 53395-02170 |
| 75392L | External protective strip fixings | 75392-42030 · 90167-50063 · 90167-C0019 |
