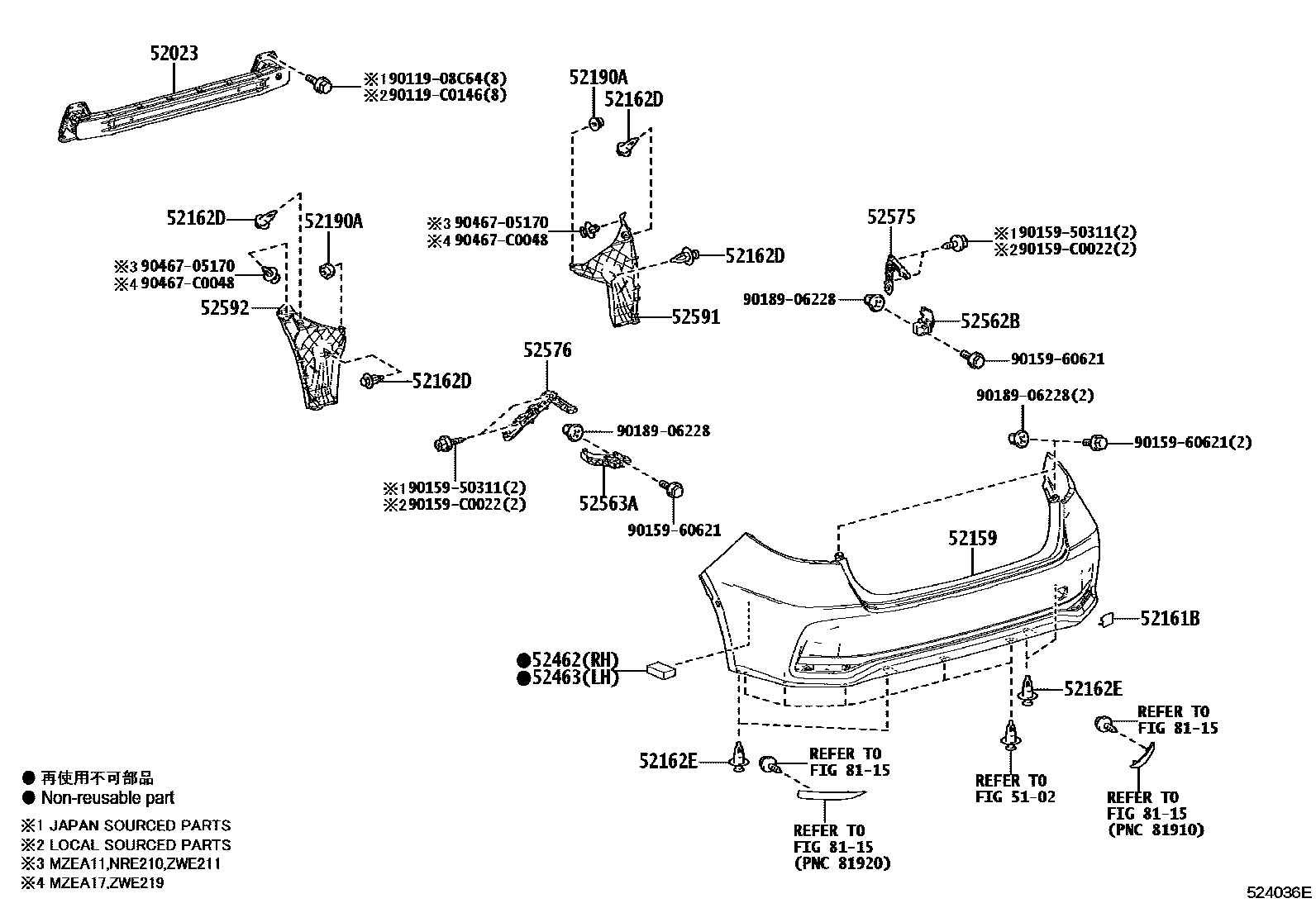

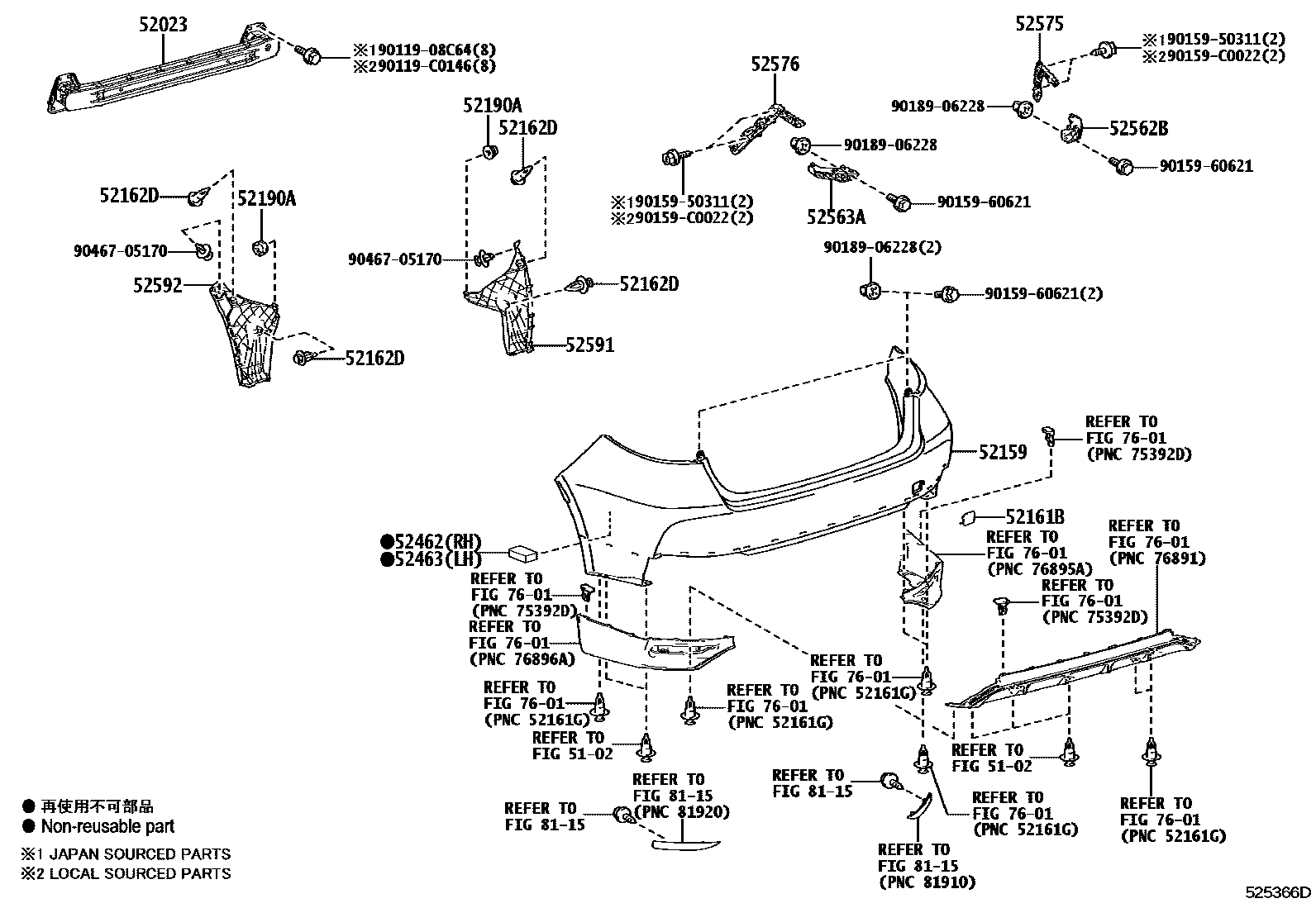

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-02310 |
| 52159 | rear bumper cover | 52159-0Z965 · 52159-0Z966 · 52159-YK900 |
| 52161B | Rear bumper insert | 52161-02904 |
| 52162D | Rear bumper insert | 52161-02040 · 52161-16010 |
| 52162E | Rear bumper insert | 52161-02040 · 52161-16010 |
| 52462 | Rear bumper right side lining | 52462-02360 · 52462-02380 |
| 52463 | Rear bumper left lining | 52462-02360 · 52462-02380 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02380 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02350 |
| 52575 | Rear bumper right side fixing bracket | 52575-02250 |
| 52576 | Rear bumper left side fixing bracket | 52576-02250 |
| 52591 | Rear bumper right seal | 52591-02460 |
| 52592 | Rear bumper left seal | 52592-02420 |
