Toyota COROLLA 前保险杠及附件 — Figure 5201

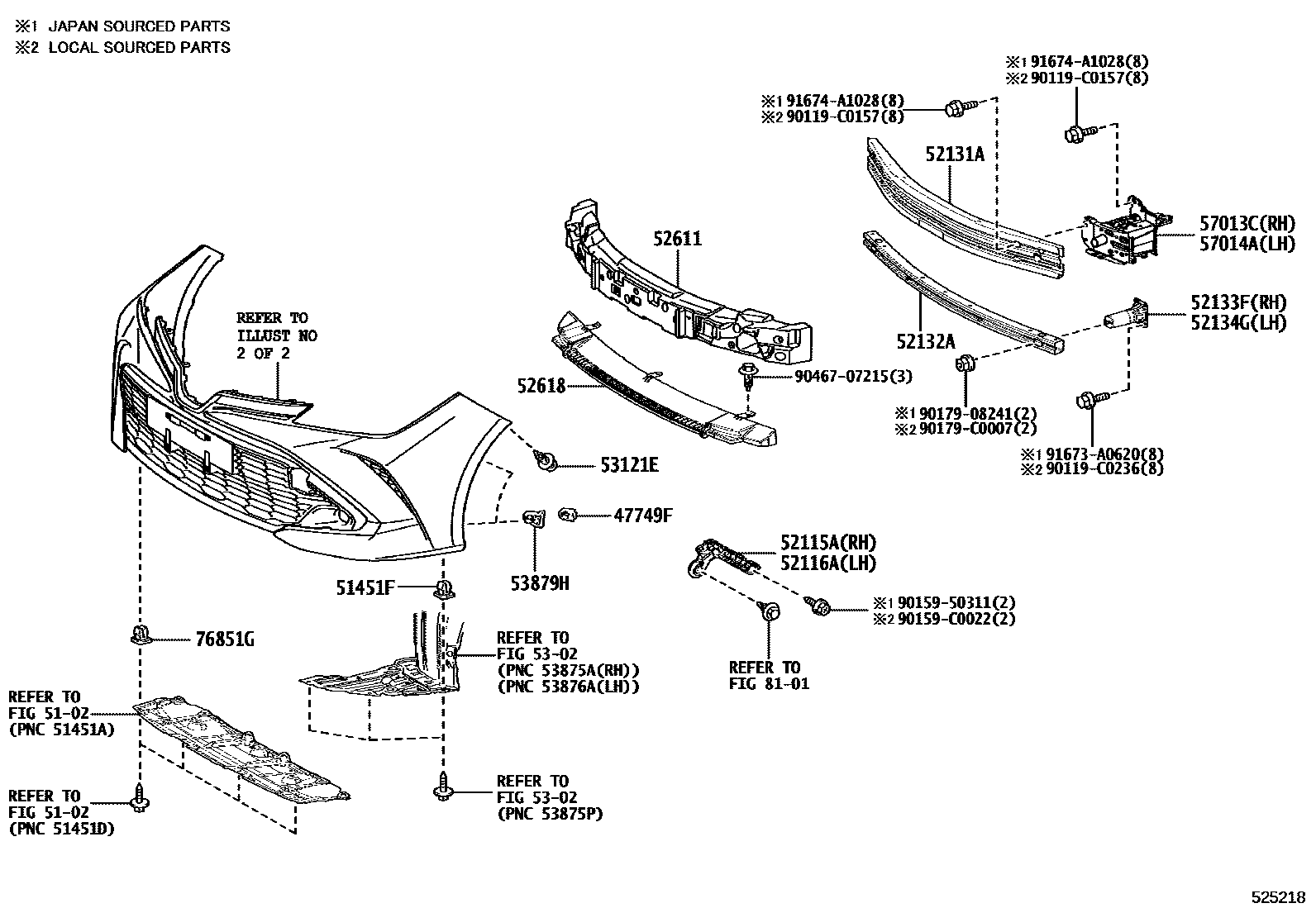

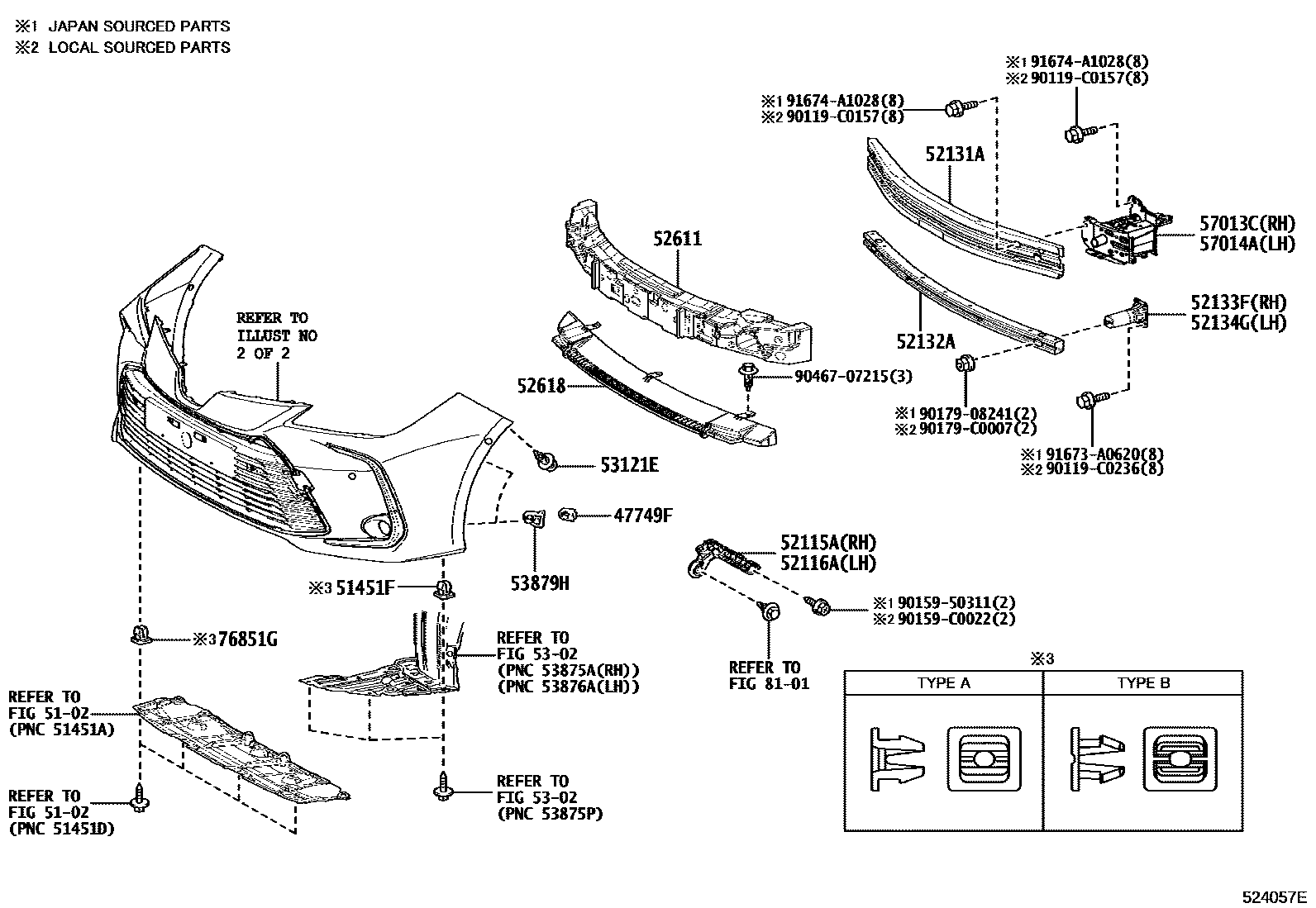

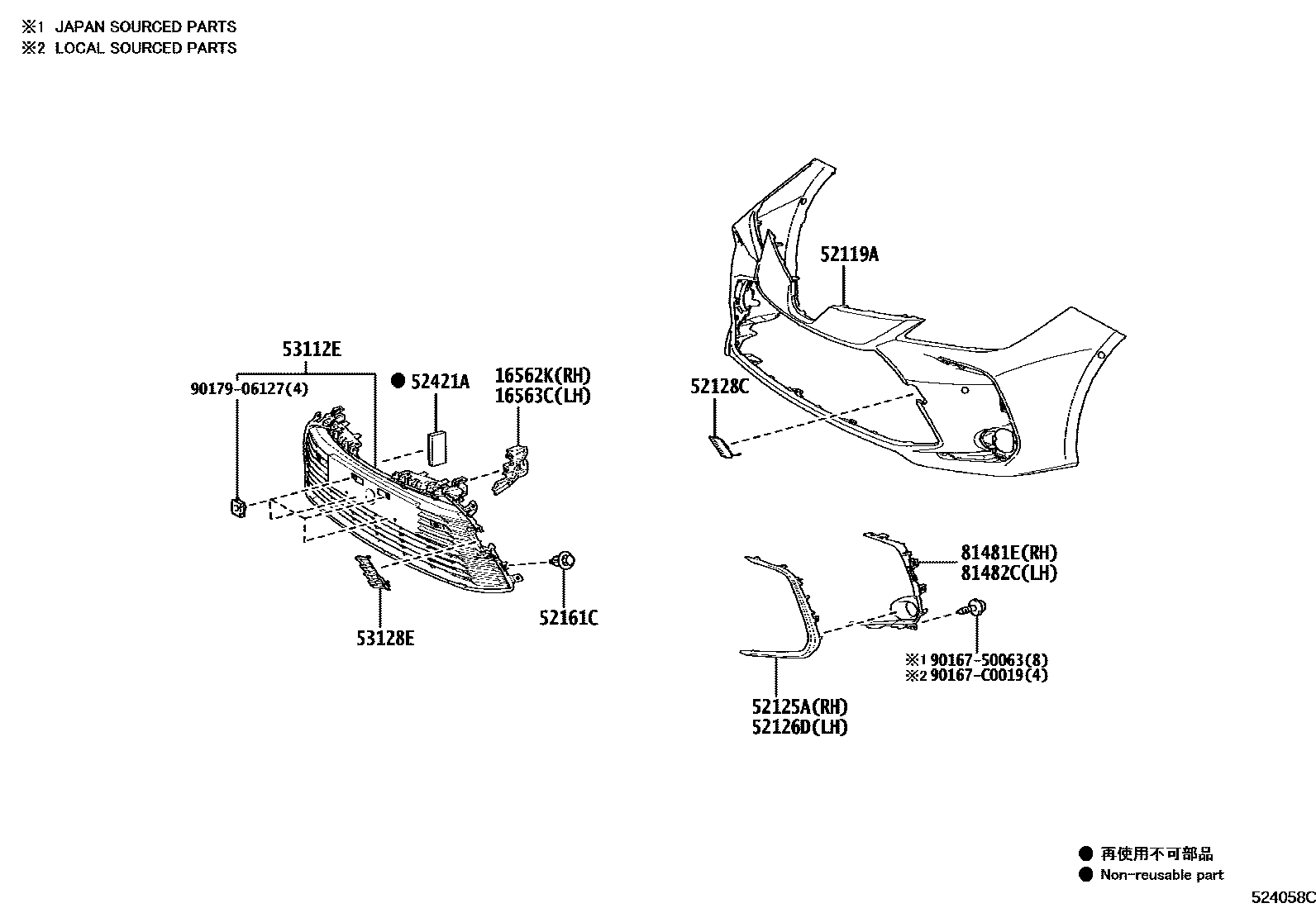

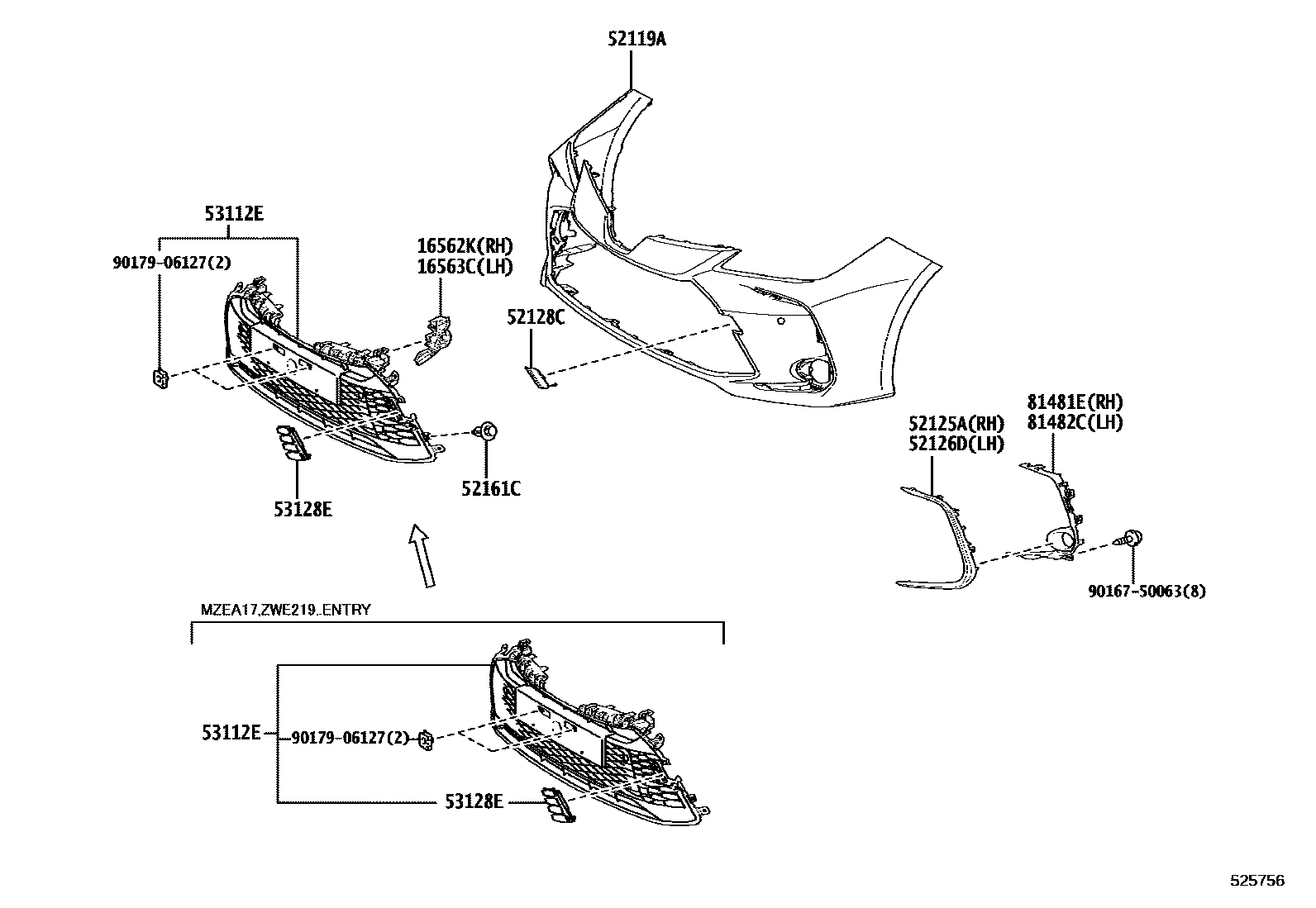

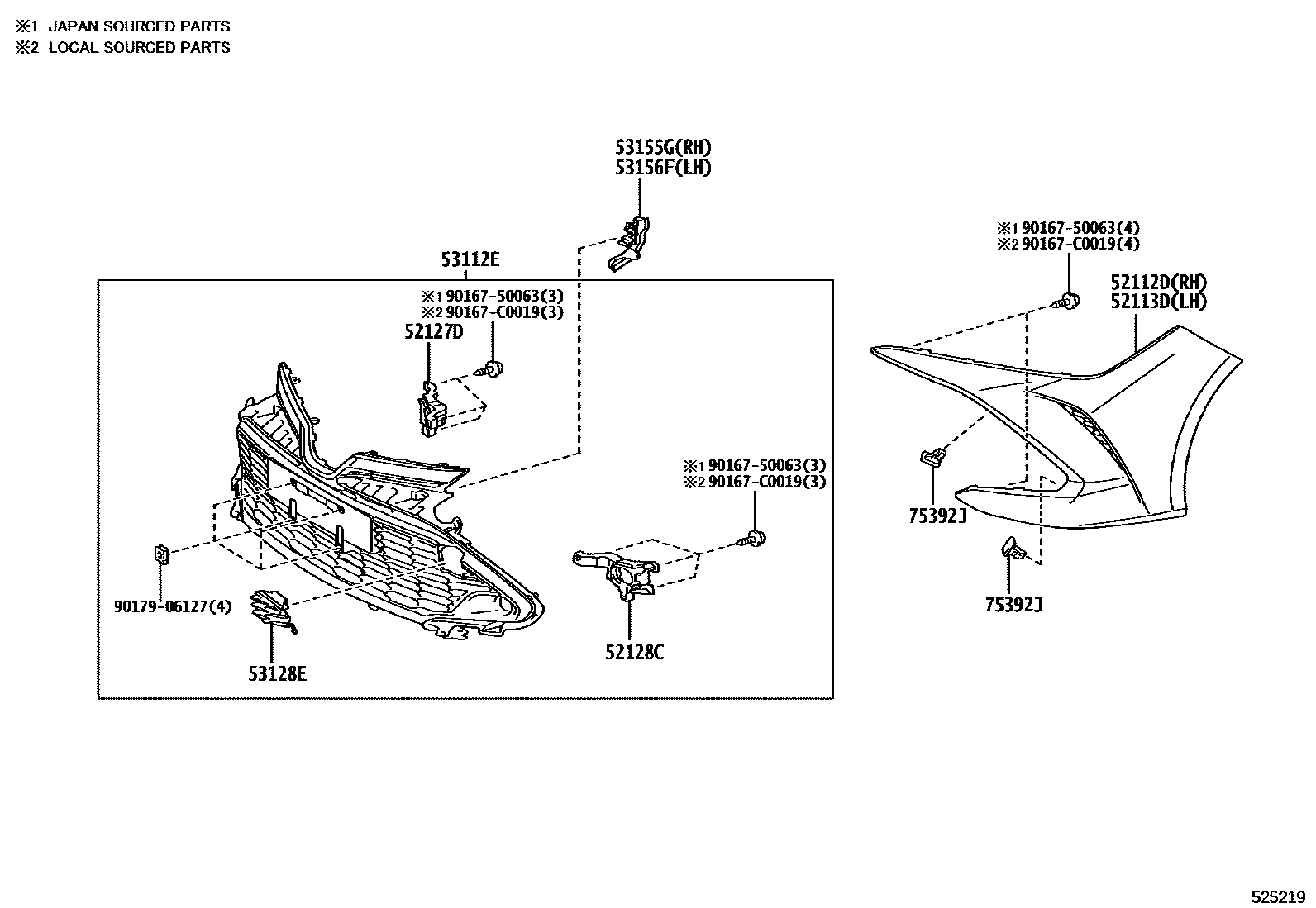

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 5 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16562K | Seal No. 2 (radiator to bracket) | 16562-0T120 |
| 16563C | Seal No. 3 (radiator to bracket) | 16563-0T120 |
| 47749F | pin fixing clip | 47749-02010 · 47749-33030 |
| 51451F | Gasket No. 1 | 90189-06193 · 90189-06237 · 90189-C0015 · 90189-C0020 |
| 52112D | Front bumper right extension | 52112-YK020 |
| 52113D | Front bumper left extension | 52113-YK020 |
| 52115A | Front bumper right side bracket | 52115-02550 |
| 52116A | Front bumper left bracket | 52116-02540 |
| 52119A | front bumper cover | 52119-F2929 · 52119-F2930 |
| 52125A | Right fog light mounting bracket | 52125-02490 · 52125-02500 · 52125-02530 · 52125-02540 |
| 52126D | Left fog light mounting bracket | 52126-02480 · 52126-02490 · 52126-02500 · 52126-02510 |
| 52127D | Front bumper right hole cover | 52127-YK040 |
| 52128C | Front bumper left hole cover | 52128-02923 · 52128-YK040 |
| 52131A | Front bumper reinforcement | 52131-02340 |
| 52132A | No. 2 front bumper reinforcement | 52132-02120 |
| 52133F | Front bumper right side bracket | 52133-02180 · 52133-02200 |
| 52134G | Front bumper left bracket | 52133-02180 · 52133-02200 |
| 52161C | front bumper insert | 52161-02040 · 52161-16010 |
| 52421A | front bumper lining | 52421-02100 |
| 52611 | front bumper energy absorber | 52611-02640 · 52611-02750 · 52611-YK050 |
| 52618 | Front bumper lower shock absorber | 52618-02260 |
| 53112E | No. 1 radiator lower grille | 53102-02500 · 53102-02510 · 53102-02690 · 53102-02700 · 53102-YK070 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-05170 · 90467-C0048 |
| 53128E | Lower left radiator grille | 53128-02300 · 53128-02310 · 53128-02450 · 53128-02460 · 53128-YK030 |
| 53155G | Radiator grille seal | 53155-YK020 |
| 53156F | Radiator grille seal No. 2 | 53156-YK020 |
| 53879H | Front fender lining fixing parts | 53879-02050 · 53879-33030 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-02250 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-02250 |
| 75392J | External protective strip fixings | 75392-0R030 · 75392-35220 |
| 76851G | No. 1 screw seal | 90189-06193 · 90189-06237 · 90189-C0015 · 90189-C0020 |
| 81481E | Right fog light cover | 81481-02B90 · 81481-02C60 |
| 81482C | Left fog light cover | 81482-02B90 · 81482-02C50 |
