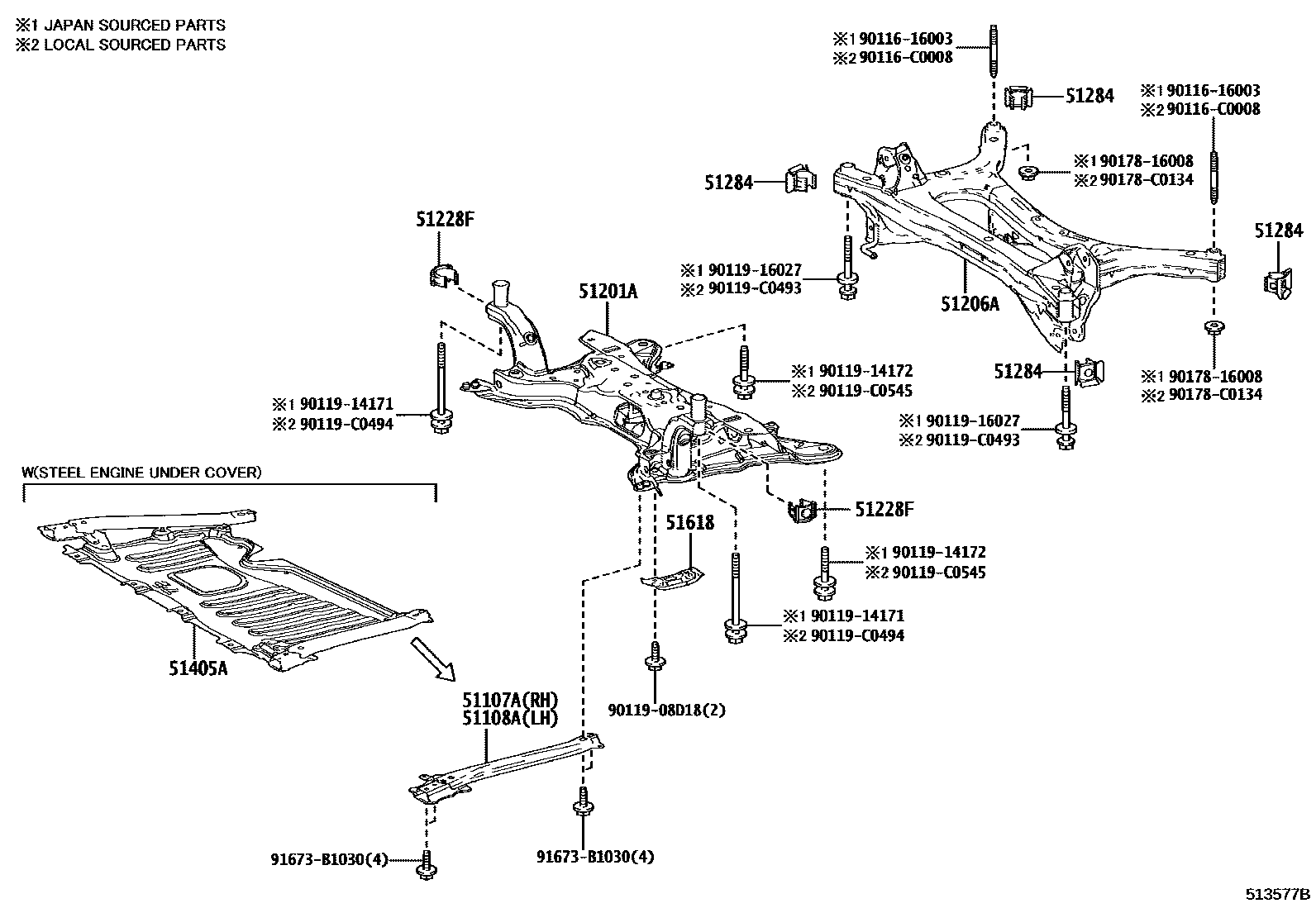

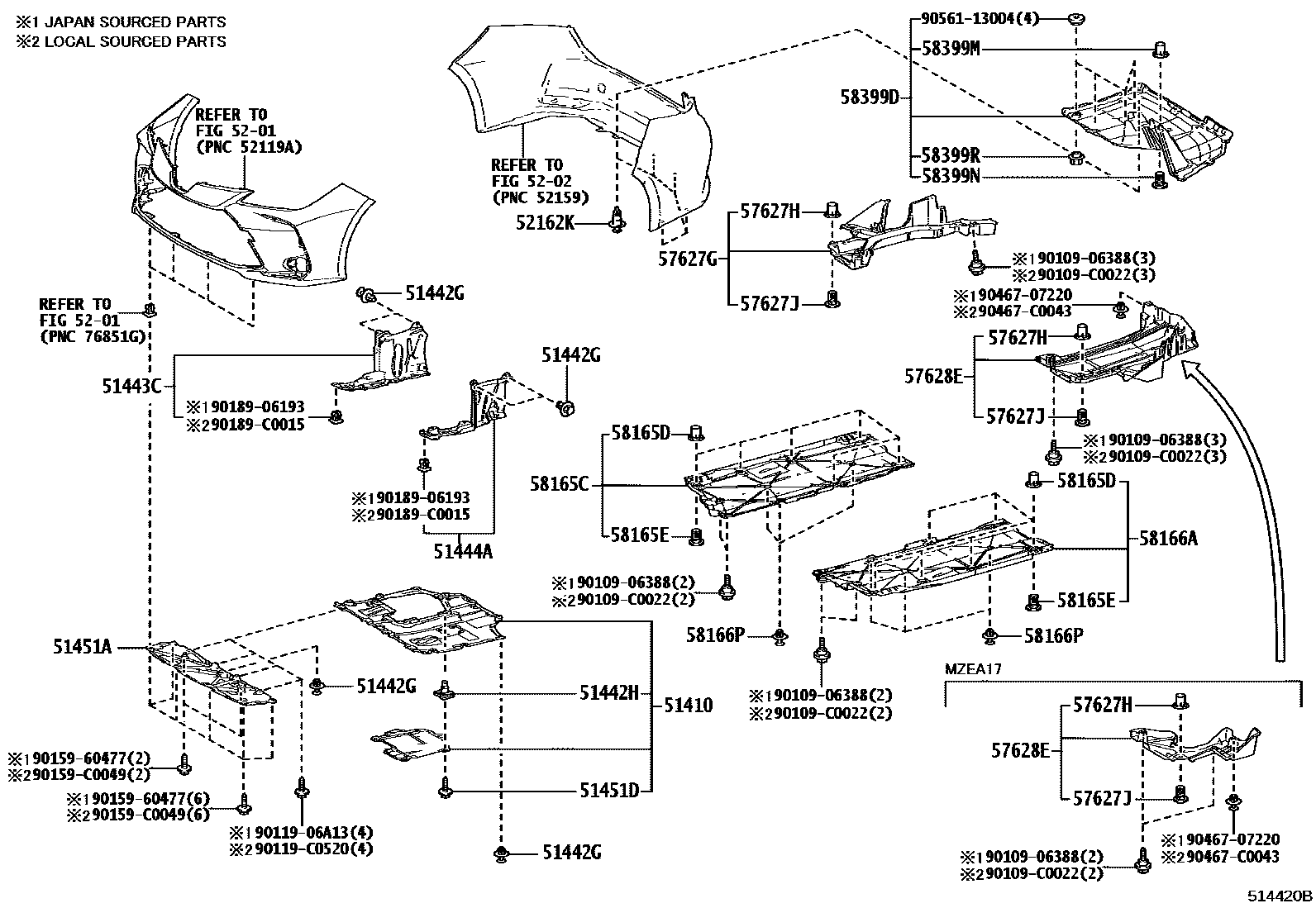

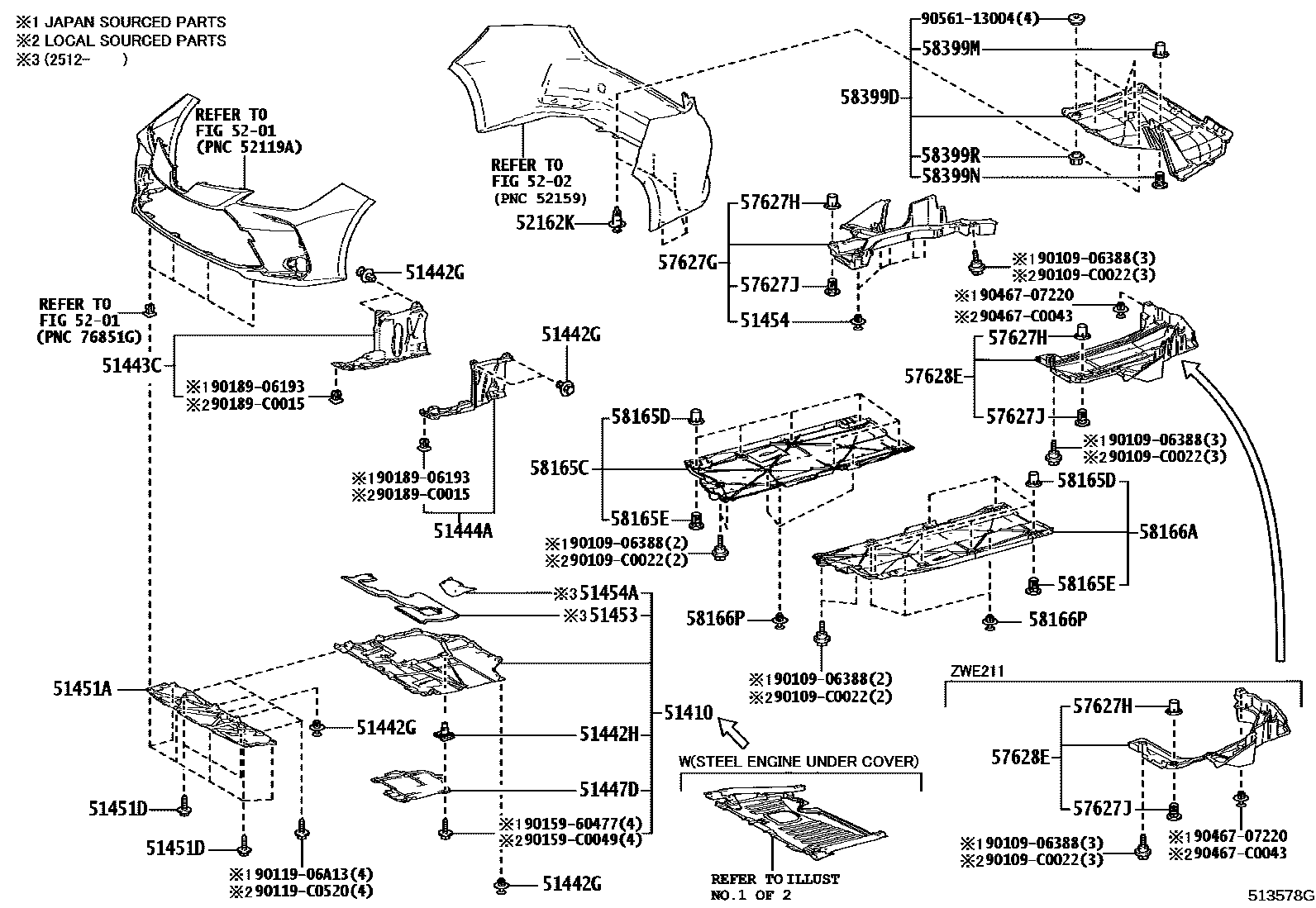

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-02130 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-02130 |
| 51201A | Front frame cross member sub-assembly | 51201-02311 · 51201-02312 |
| 51206A | Rear suspension cross member sub-assembly | 51206-02160 |
| 51228F | Front suspension cross member damper plate | 51228-F4030 |
| 51284 | Rear suspension cross member hole cover | 51284-F4030 |
| 51405A | No. 1 engine bottom cover sub-assembly | 51405-02020 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-02420 · 51410-02450 · 51410-02470 · 51410-02480 |
| 51442G | No. 1 engine bottom cover clip | 90467-07220 · 90467-C0043 |
| 51442H | No. 2 engine bottom cover clip | 90179-06104 · 90467-05176 · 90467-C0097 |
| 51443C | Engine right rear bottom cover | 51443-02220 |
| 51444A | Engine left rear bottom cover | 51444-02290 |
| 51447D | No. 4 engine center bottom cover | 51447-02170 · 51447-02190 · 51447-02240 |
| 51451A | Engine center cover | 51451-02230 |
| 51451D | Screw No. 1 | 90159-60477 · 90159-C0049 |
| 51453 | Engine front bottom cover silencer panel | 51464-02010 |
| 51454 | clip | 90467-07220 · 90467-C0043 |
| 51454A | Engine rear cover silencer | 51464-02020 |
| 51618 | Left front differential bracket guard | 51618-02060 |
| 52162K | Rear bumper insert | 52161-02040 · 52161-16010 |
| 57627G | Rear floor right longitudinal member cover | 57627-02230 · 58390-02100 |
| 57628E | Rear floor left longitudinal member cover | 57628-02250 · 57628-02260 · 57628-02261 · 57628-02280 |
| 58165C | Front floor right cover | 58165-02310 · 58165-02320 |
| 58166A | Front floor left cover | 58166-02250 · 58166-02251 |
| 58166P | Front floor cover clip | 90467-07220 · 90467-C0043 |
| 58399D | Floor No. 2 lower cover | 58399-02260 |
| 58399R | Lower floor cover clip No. 3 | 90467-14053 · 90467-14054 · 90467-C0098 |
