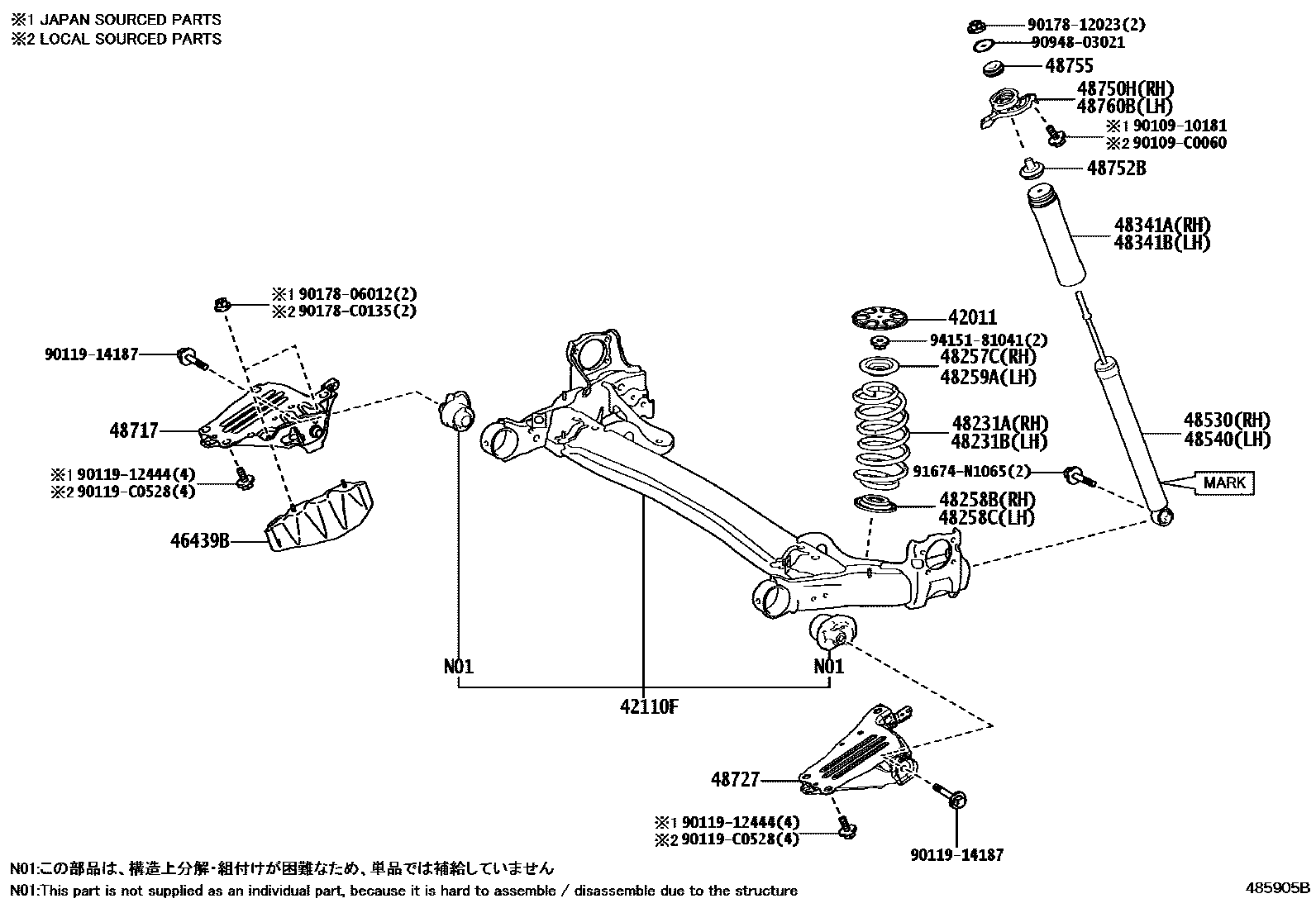

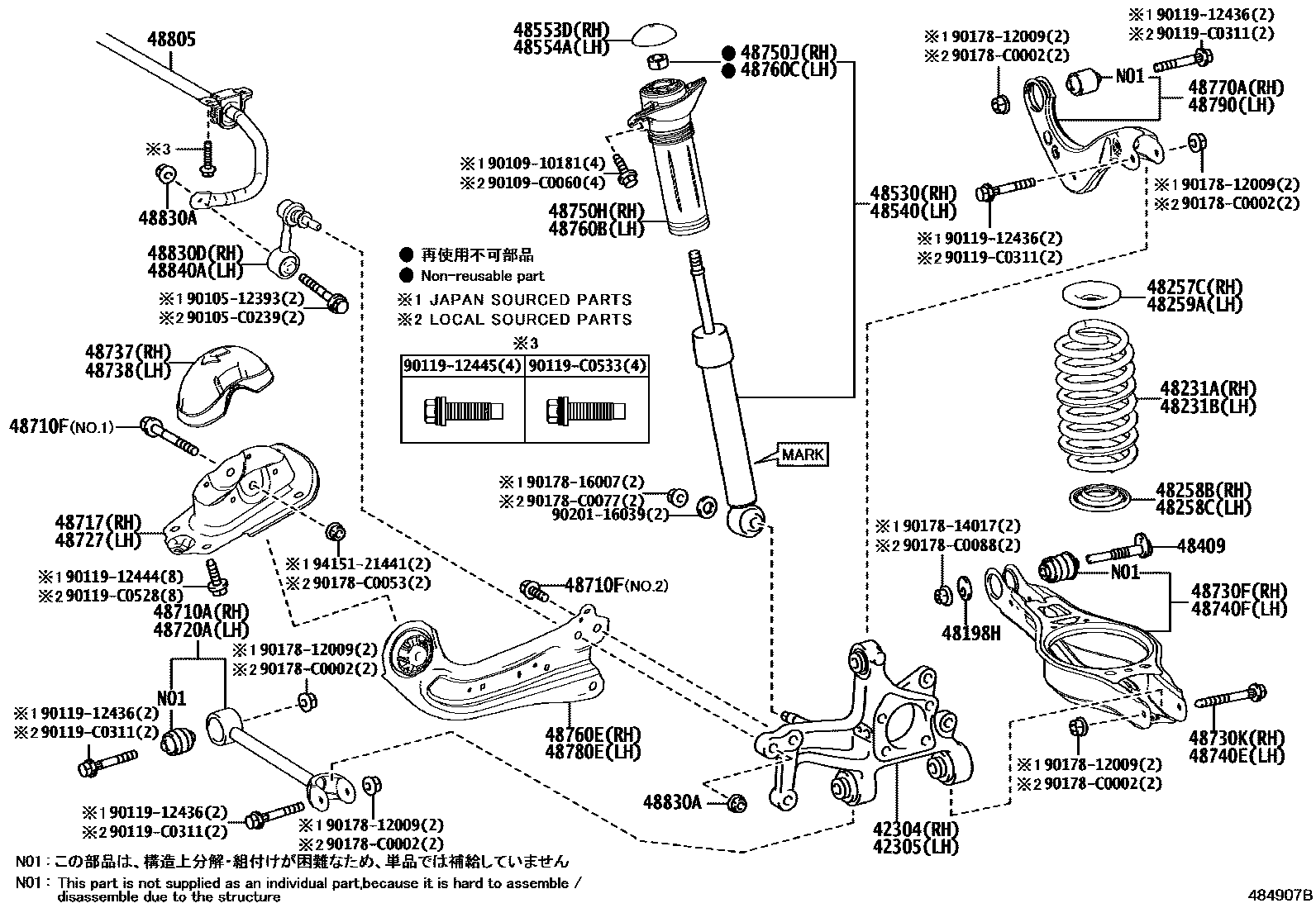

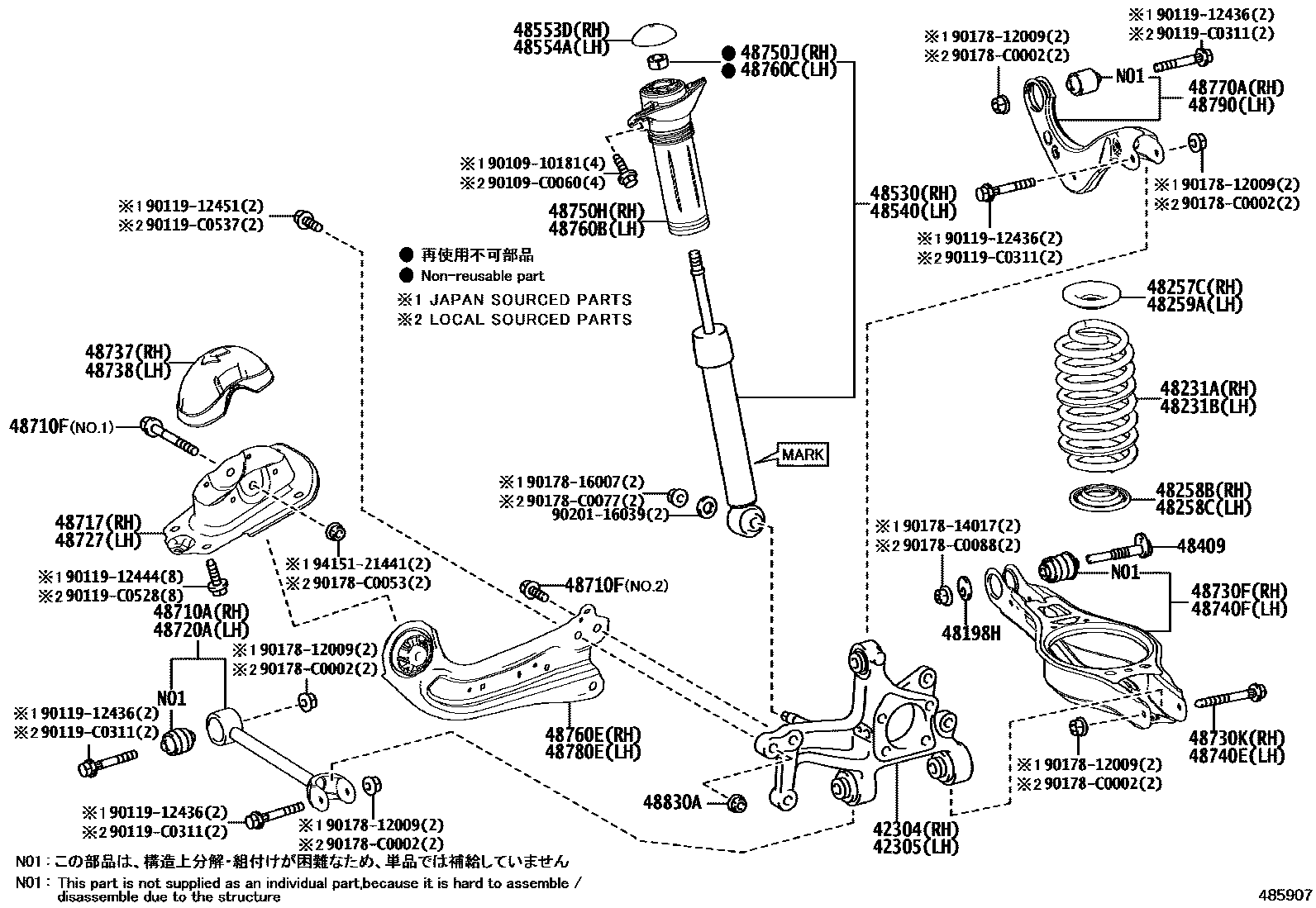

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 4 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42011 | Rear spring seat sub-assembly | 42011-0A070 |
| 42110F | rear axle assembly | 42110-02830 |
| 42304 | Rear axle right bracket sub-assembly | 42304-02390 |
| 42305 | Rear axle left bracket sub-assembly | 42305-02390 |
| 46439B | Parking brake cable insulation pad | 46439-0A060 |
| 48198H | No. 2 camber angle adjustment cam | 48198-02020 · 48198-47010 |
| 48231A | Right rear coil spring | 48231-02S40 · 48231-02S50 · 48231-02S60 · 48231-02S70 · 48231-02U70 · 48231-02U80 · 48231-02U90 · 48231-02V00 · 48231-02V70 · 48231-02Y20 · 48231-02Y30 |
| 48231B | Left rear coil spring | 48231-02S40 · 48231-02S50 · 48231-02S60 · 48231-02S70 · 48231-02U70 · 48231-02U80 · 48231-02U90 · 48231-02V00 · 48231-02V70 · 48231-02Y20 · 48231-02Y30 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-06040 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-06240 · 48258-0A050 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-06240 · 48258-0A050 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-06040 |
| 48341A | No. 1 right rear spring buffer block | 48341-0A060 |
| 48341B | No. 1 left rear spring buffer block | 48341-0A060 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-02010 · 48409-47011 |
| 48530 | Right rear shock absorber assembly | 48530-8Z143 · 48530-8Z144 · 48530-8Z235 · 48530-8Z236 · 48530-8Z336 |
| 48540 | Left rear shock absorber assembly | 48530-8Z143 · 48530-8Z144 · 48530-8Z235 · 48530-8Z236 · 48530-8Z336 |
| 48553D | Right rear shock absorber cover | 48553-F4020 |
| 48554A | Left rear shock absorber cover | 48553-F4020 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-F4030 |
| 48710F | Bolt (for rear trailing arm) | 90105-14195 · 90105-14197 · 90105-C0241 · 90105-C0245 |
| 48717 | Right rear suspension arm bracket | 48717-06040 · 48717-0A060 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-F4030 |
| 48727 | Left rear suspension arm bracket | 48727-06070 · 48727-0A060 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-F4020 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 90119-12426 · 90119-C0310 |
| 48737 | Right rear suspension arm cover | 48753-06100 |
| 48738 | Left rear suspension arm cover | 48753-06110 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 90119-12426 · 90119-C0310 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-F4020 |
| 48750H | Right rear suspension support assembly | 48750-0A070 · 48750-F4020 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90170-C0010 · 94130-61200 |
| 48752B | Rear suspension support block 2 | 48752-0A051 |
| 48755 | rear suspension mount | 48755-0A051 |
| 48760B | Left rear suspension support assembly | 48750-F4020 · 48760-0A080 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90170-C0010 · 94130-61200 |
| 48760E | Right rear trailing arm assembly | 48760-F4040 |
| 48770A | Right rear upper control arm assembly | 48770-F4020 |
| 48780E | Left rear trailing arm assembly | 48780-F4040 |
| 48790 | Left rear upper control arm assembly | 48790-F4020 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-02170 · 48805-YK010 |
| 48830A | Nut (for rear stabilizer link) | 90178-C0018 · 94151-21241 |
| 48830D | Right rear stabilizer bar link assembly | 48830-02050 · 48830-F4020 |
| 48840A | Left rear stabilizer bar link assembly | 48830-02050 · 48830-F4020 |
