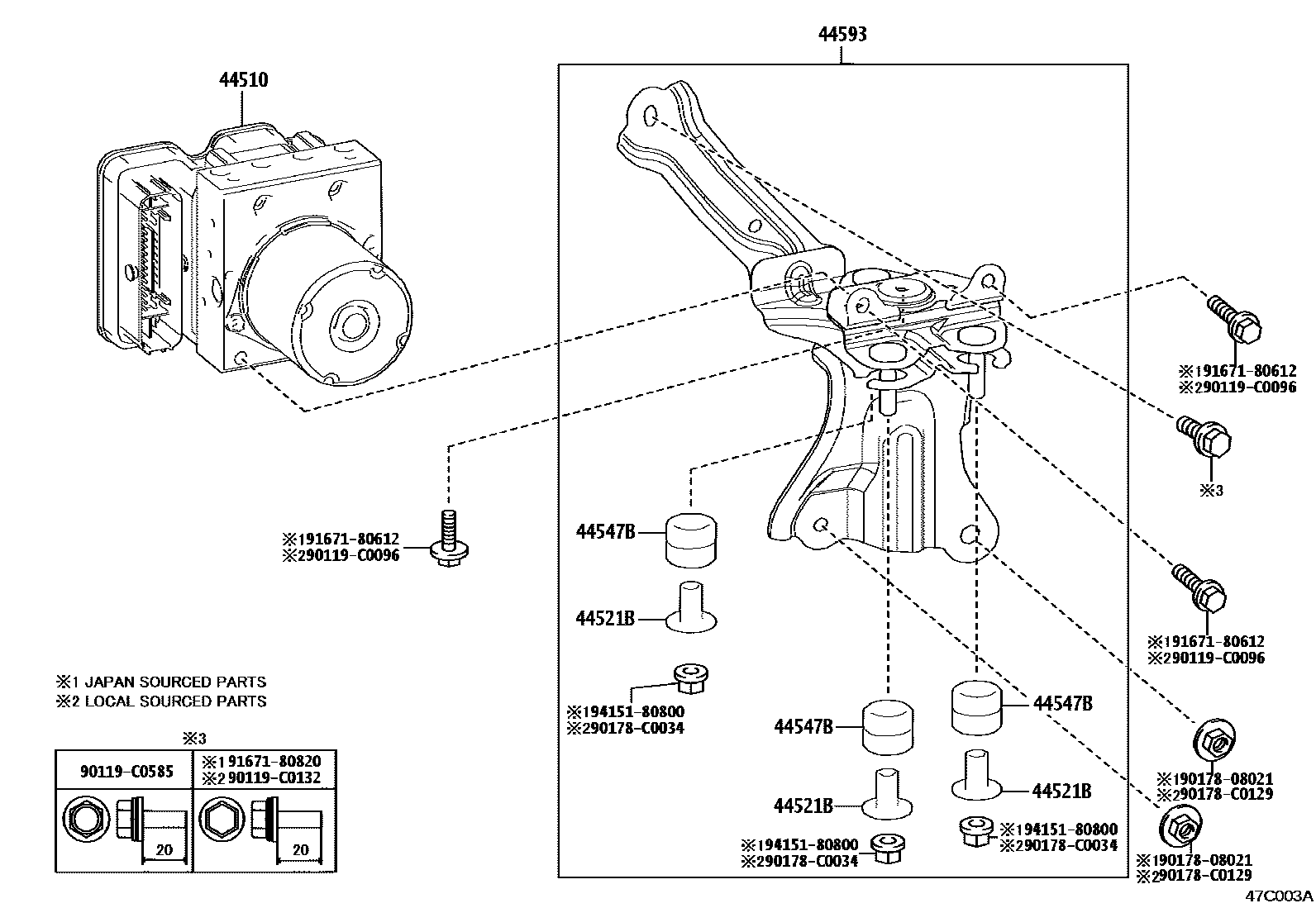

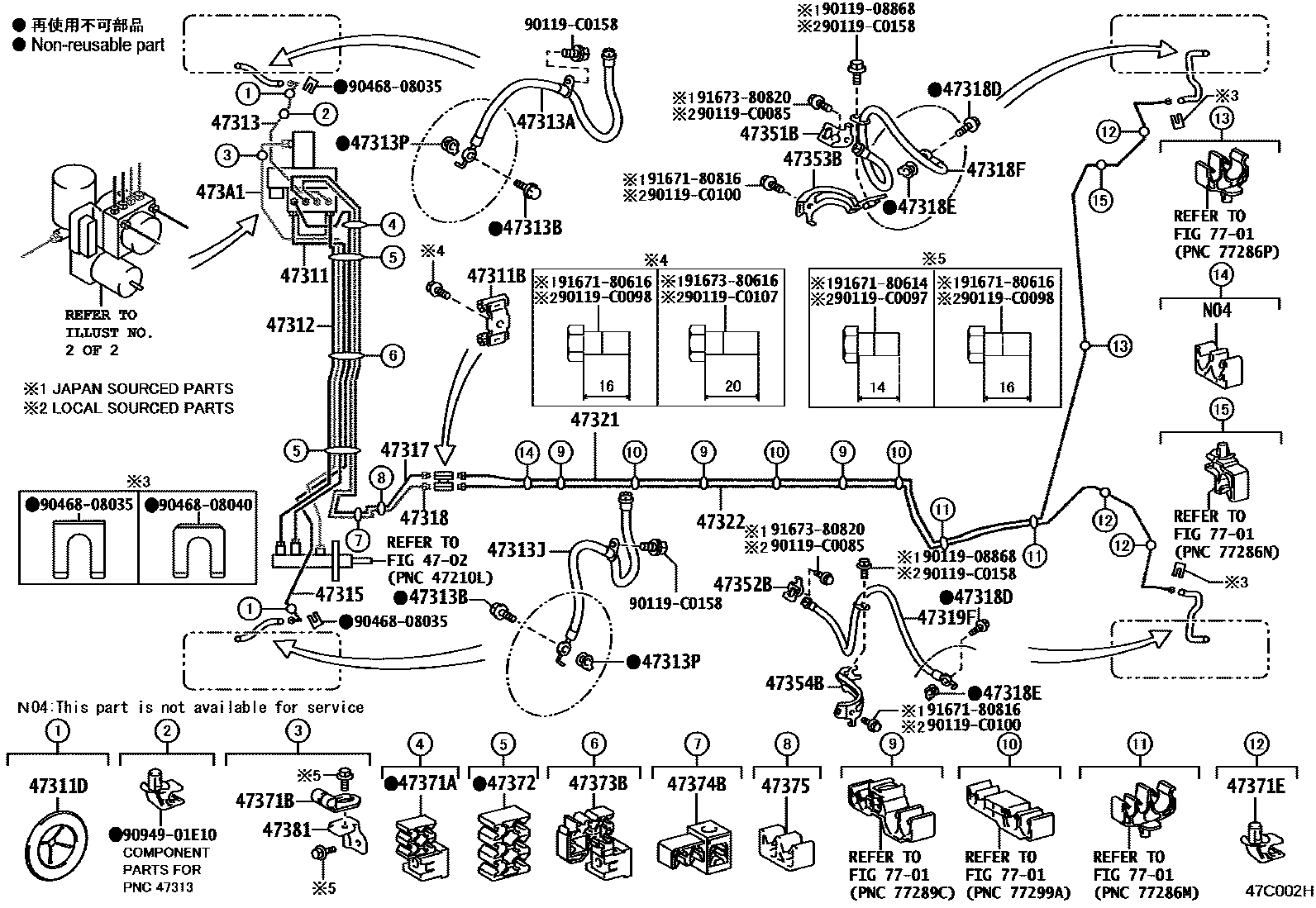

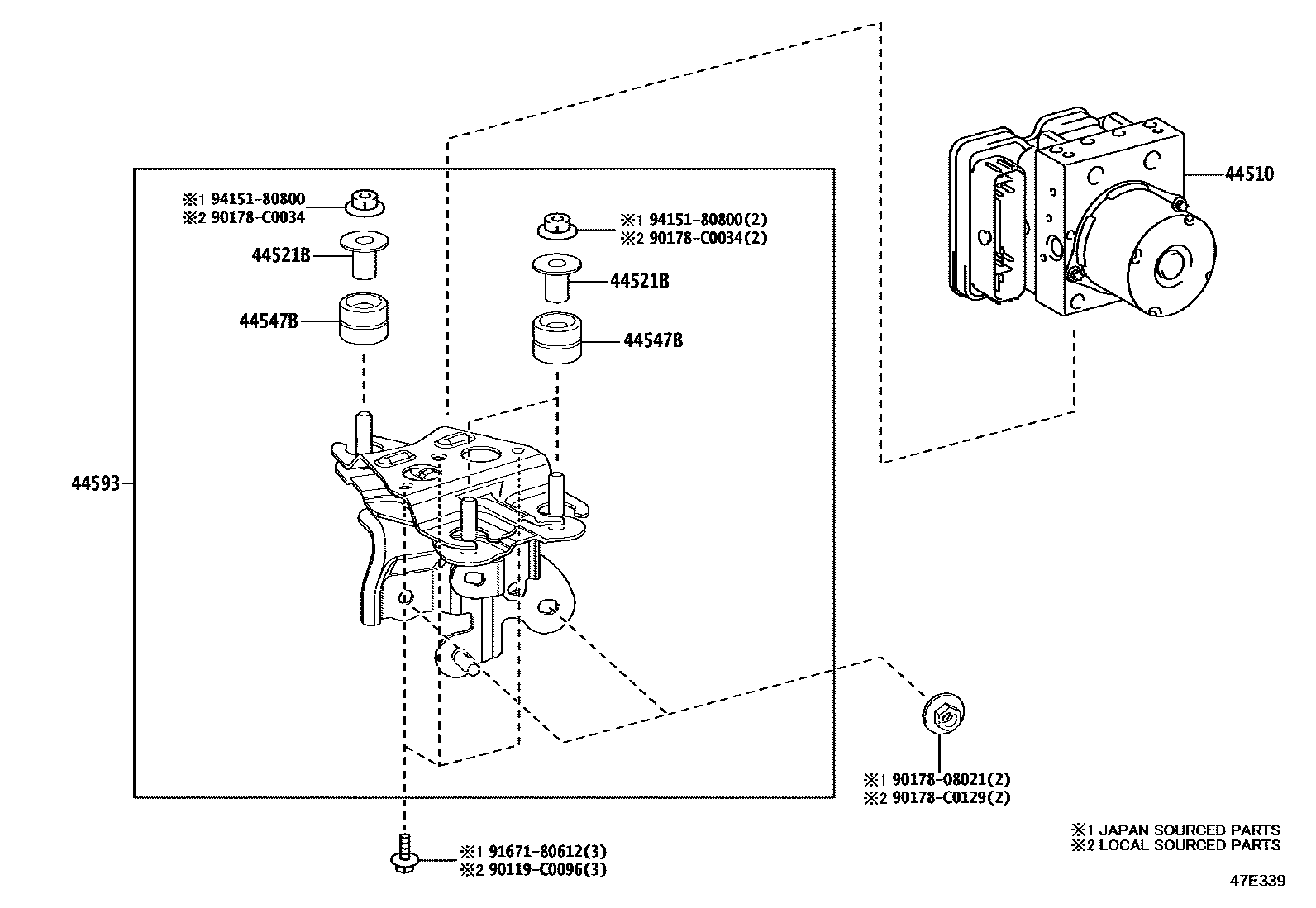

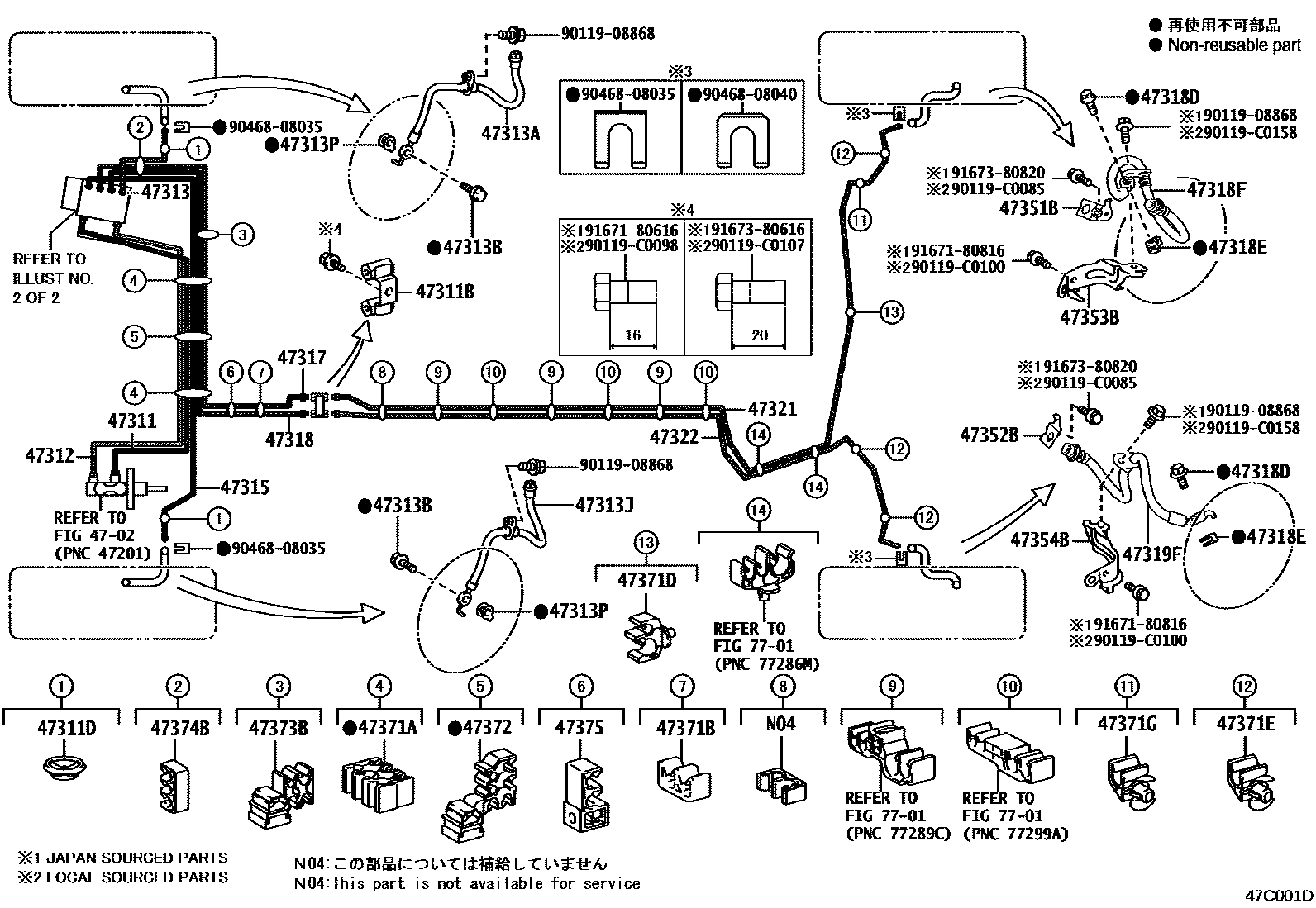

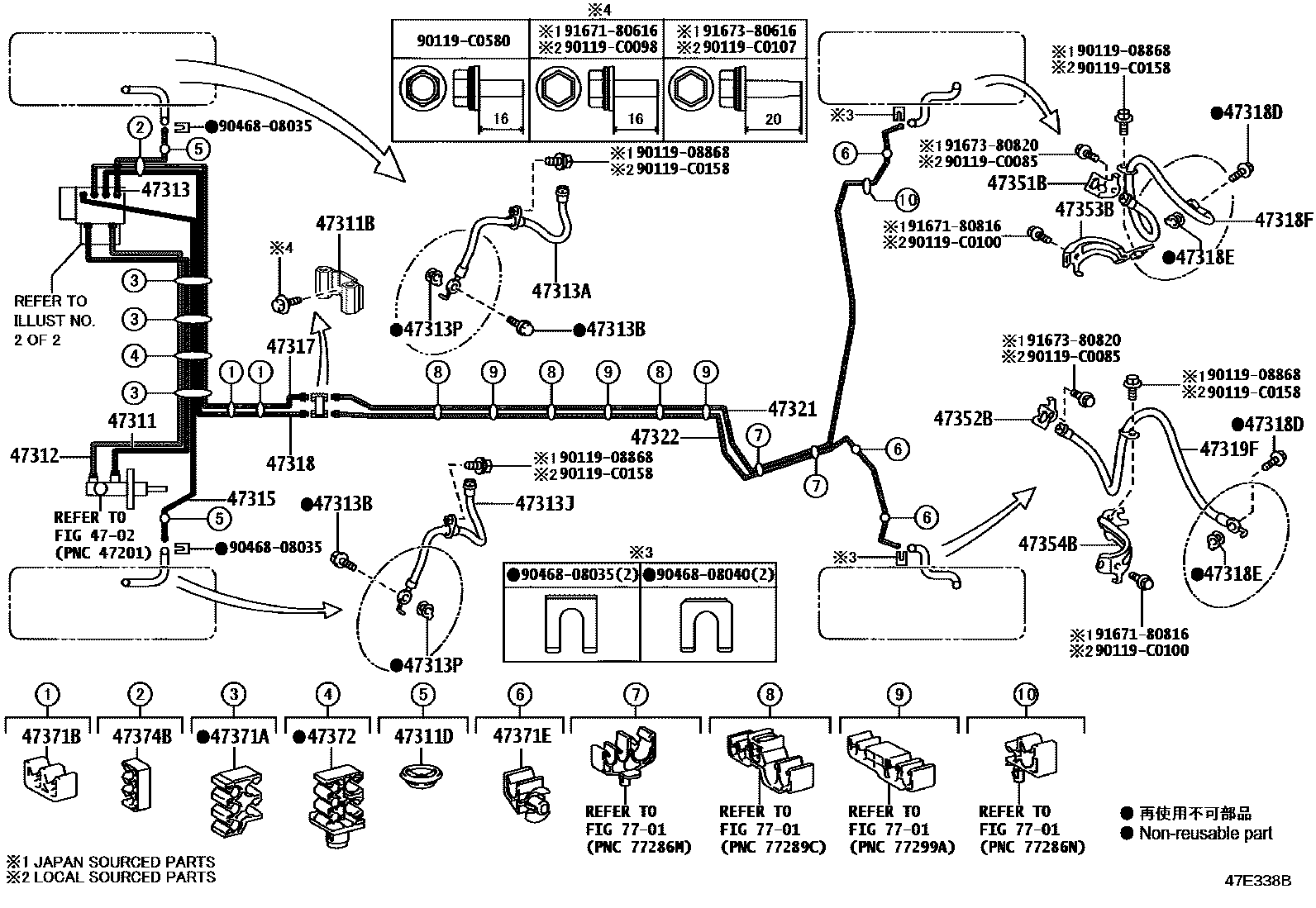

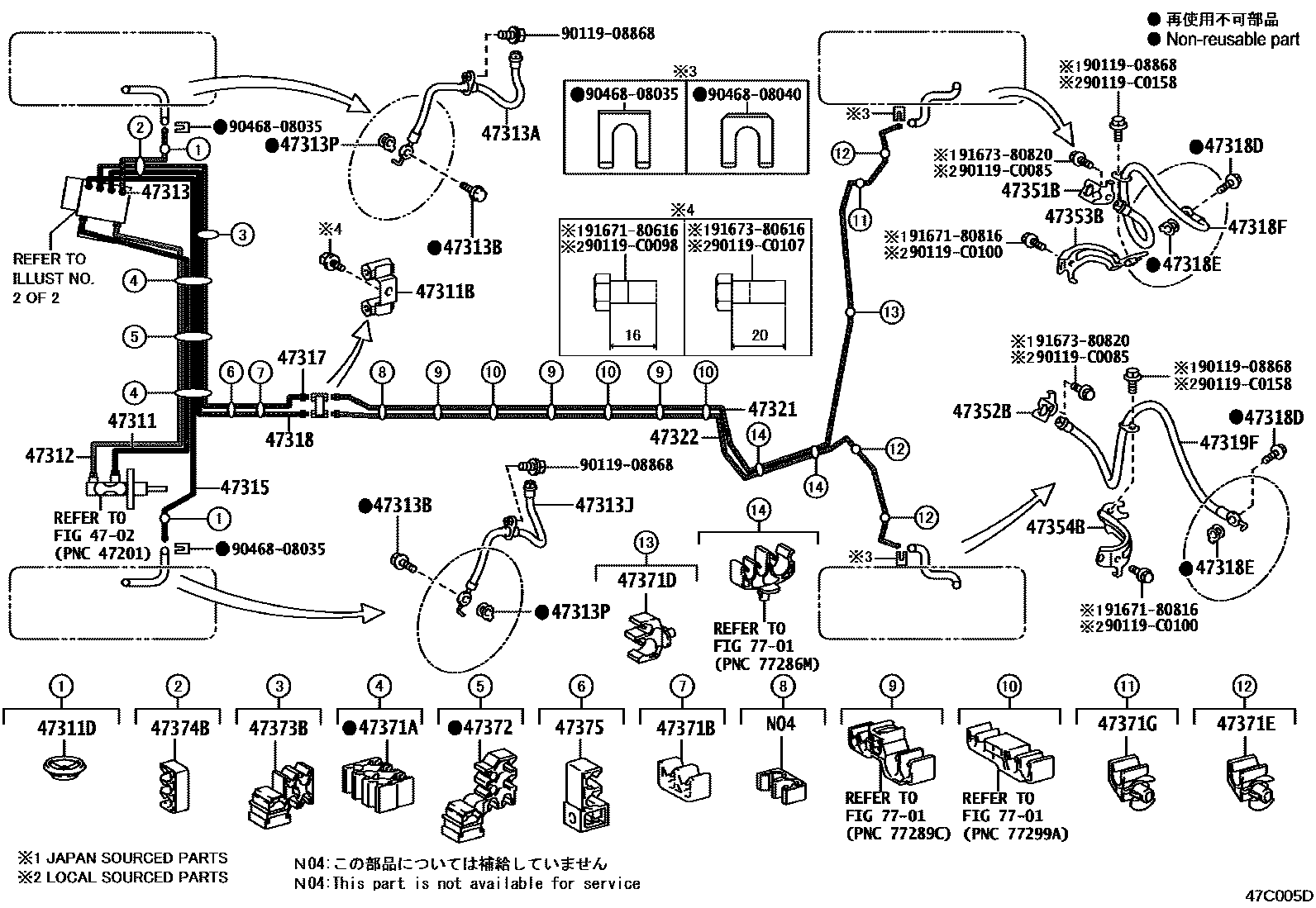

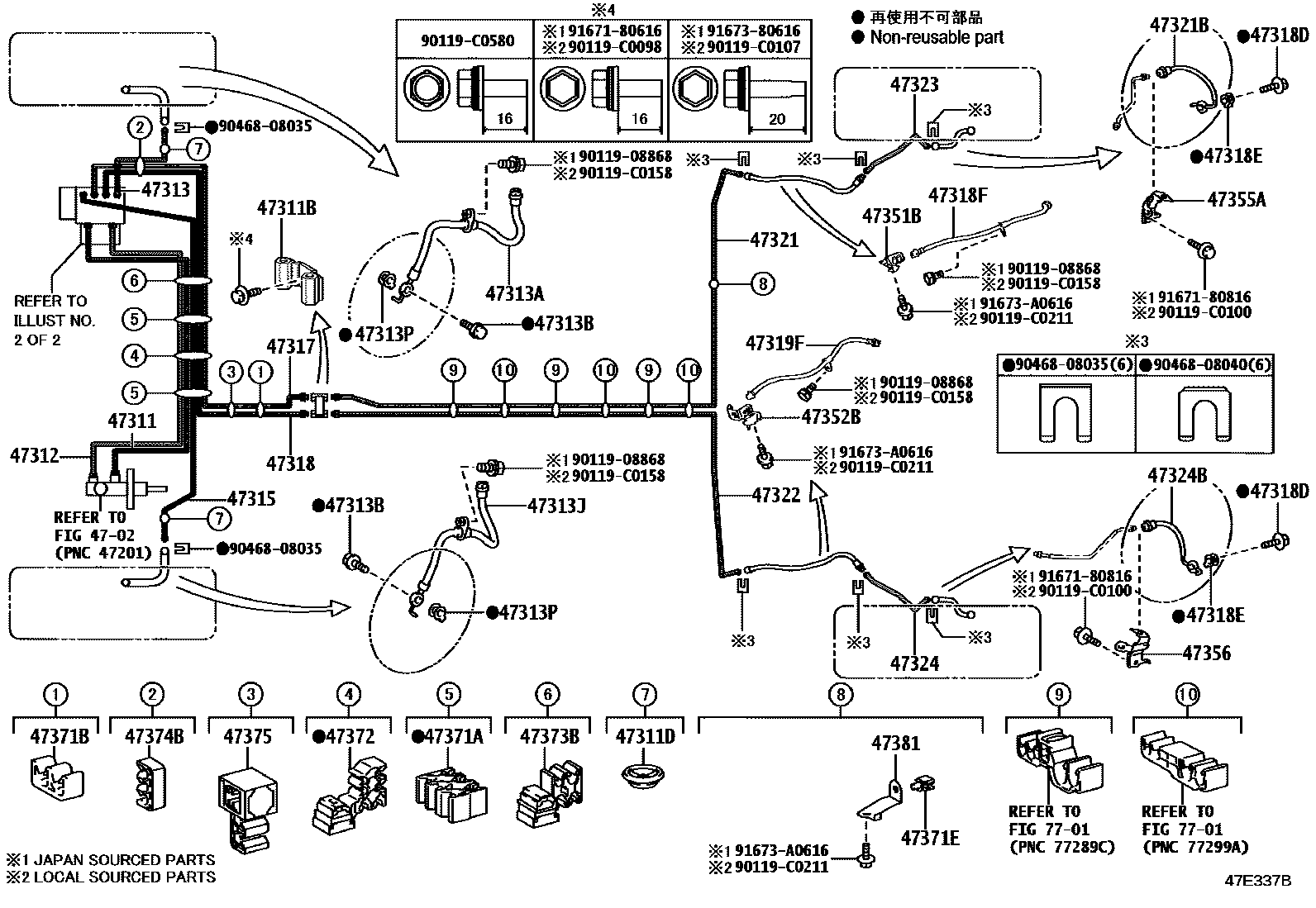

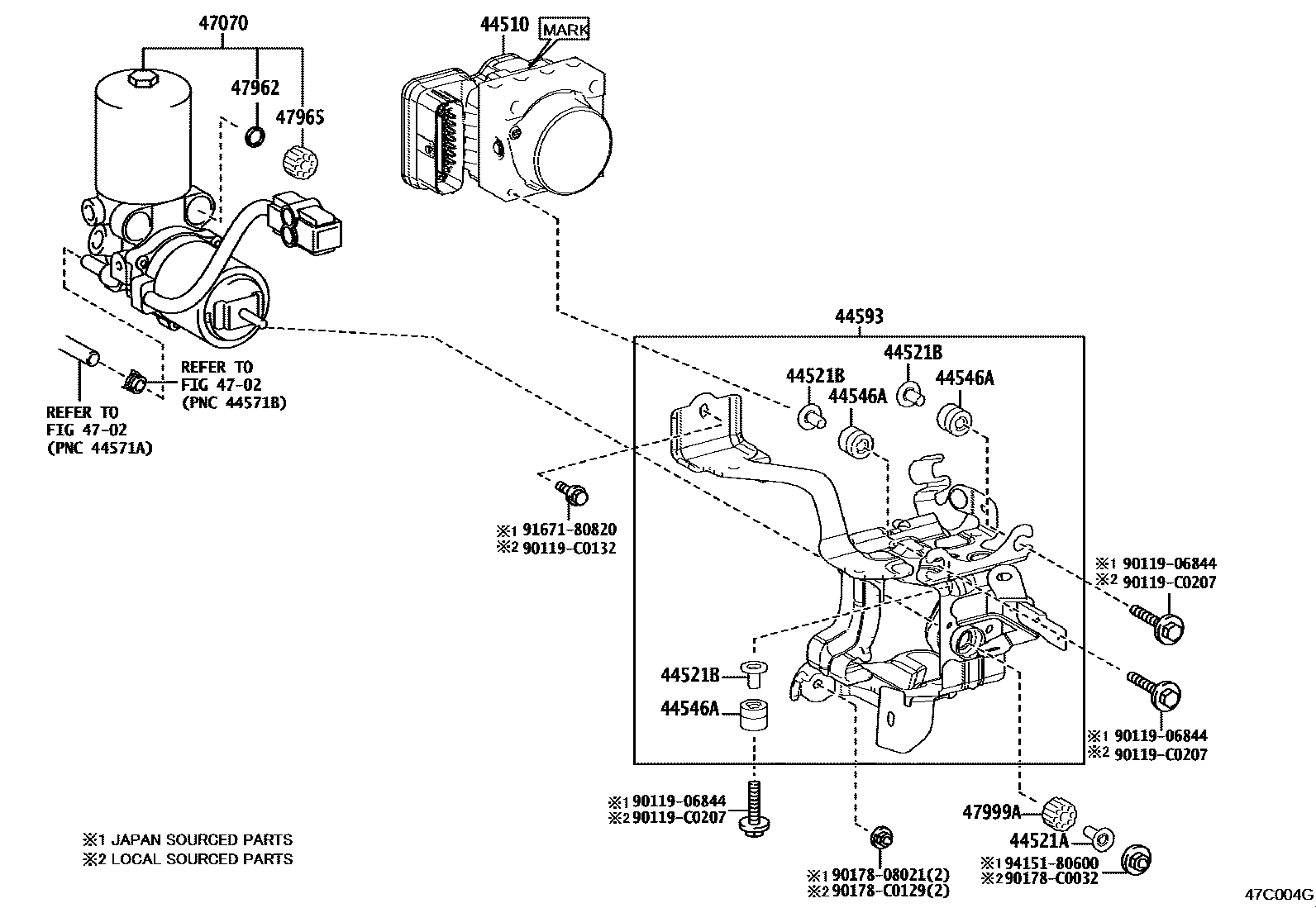

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 8 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02F50 · 44050-02J40 · 44050-02K60 · 44050-02L20 · 44050-02L50 · 44050-12D90 |
| 44521A | No. 1 brake actuator housing collar | 44521-02030 |
| 44521B | No. 2 brake actuator housing collar | 44521-12050 · 44521-33020 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-02070 · 44547-33100 |
| 44593 | No. 3 brake actuator bracket | 44590-02630 · 44590-02640 · 44590-02650 · 44590-02670 |
| 47070 | Brake booster pump assembly | 47070-47090 |
| 47311 | No. 1 front brake pipe | 47311-02C30 · 47311-02J10 · 47311-02J40 · 47311-F4070 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 · 90412-C0004 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-02E40 · 47312-02F70 · 47312-F4070 |
| 47313 | No. 3 front brake pipe | 47313-02D10 · 47313-02J30 · 47313-F4070 |
| 47313A | No. 1 front flexible hose | 90947-C2082 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-C0001 |
| 47313J | No. 2 front flexible hose | 90947-C2083 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-02600 · 47315-02660 · 47315-02730 |
| 47317 | No. 7 front brake pipe | 47317-02C00 · 47317-02G30 · 47317-F4070 |
| 47318 | No. 8 front brake pipe | 47318-02C20 · 47318-02G50 · 47318-F4070 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-C0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-C2086 · 90947-C2110 |
| 47319F | Left rear flexible hose | 90947-C2087 · 90947-C2111 |
| 47321 | No. 1 rear brake pipe | 47321-02730 · 47321-02790 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-C2126 |
| 47322 | No. 2 rear brake pipe | 47322-02730 · 47322-02790 |
| 47323 | No. 3 rear brake pipe | 47323-02260 |
| 47324 | No. 4 rear brake pipe | 47324-02260 |
| 47324B | Flexible hose (for No. 2 rear brake pipe) | 90947-C2127 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-0A200 · 47351-F4040 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-0A200 · 47352-F4040 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-02260 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-02260 |
| 47355A | No. 5 Flexible Hose Bracket | 47351-02340 |
| 47356 | No. 6 Flexible Hose Bracket | 47352-02320 |
| 47371A | No. 1 brake pipe clamp | 90949-01E40 · 90949-01E44 · 90949-01E51 |
| 47371B | No. 6 brake pipe clamp | 90461-10854 · 90949-01D91 |
| 47371D | No. 8 brake pipe clamp | 77285-02270 |
| 47371E | No. 9 brake pipe clamp | 90949-01E01 · 90949-01E10 |
| 47371G | No. 11 brake pipe clamp | 90949-01E10 |
| 47372 | No. 2 brake pipe clamp | 90949-01D99 · 90949-01E42 · 90949-01E79 |
| 47373B | No. 3 brake pipe clamp | 90949-01E50 · 90949-01E51 |
| 47374B | No. 4 brake pipe clamp | 90949-01D92 · 90949-01E33 |
| 47375 | No. 5 brake pipe clamp | 90949-01D91 · 90949-01E33 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-02190 · 47381-0A020 |
| 473A1 | Pipe from accumulator to brake master cylinder | 473A1-02120 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47999A | Bushing (for brake pull actuator bracket) | 47965-30010 |
