Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707

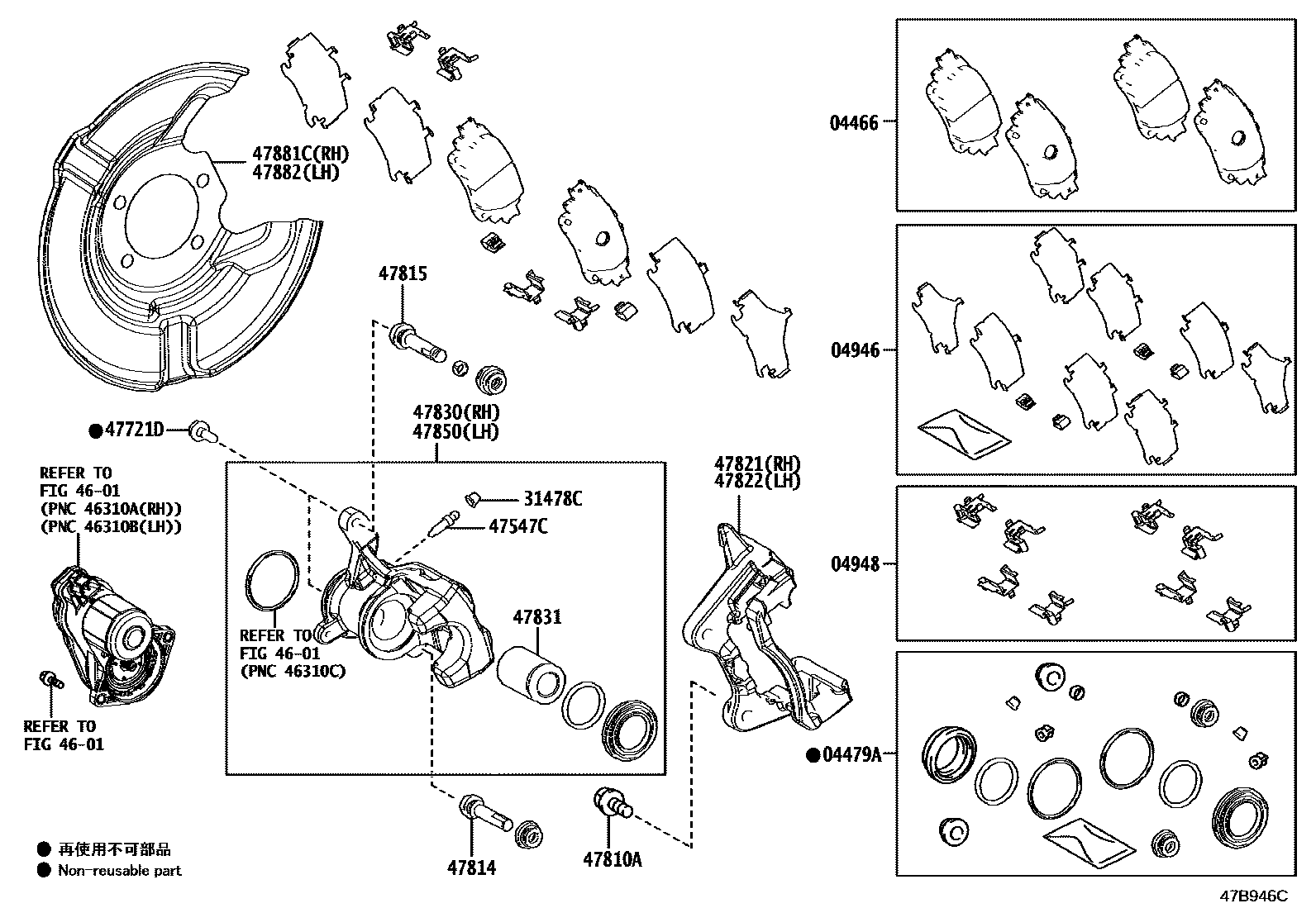

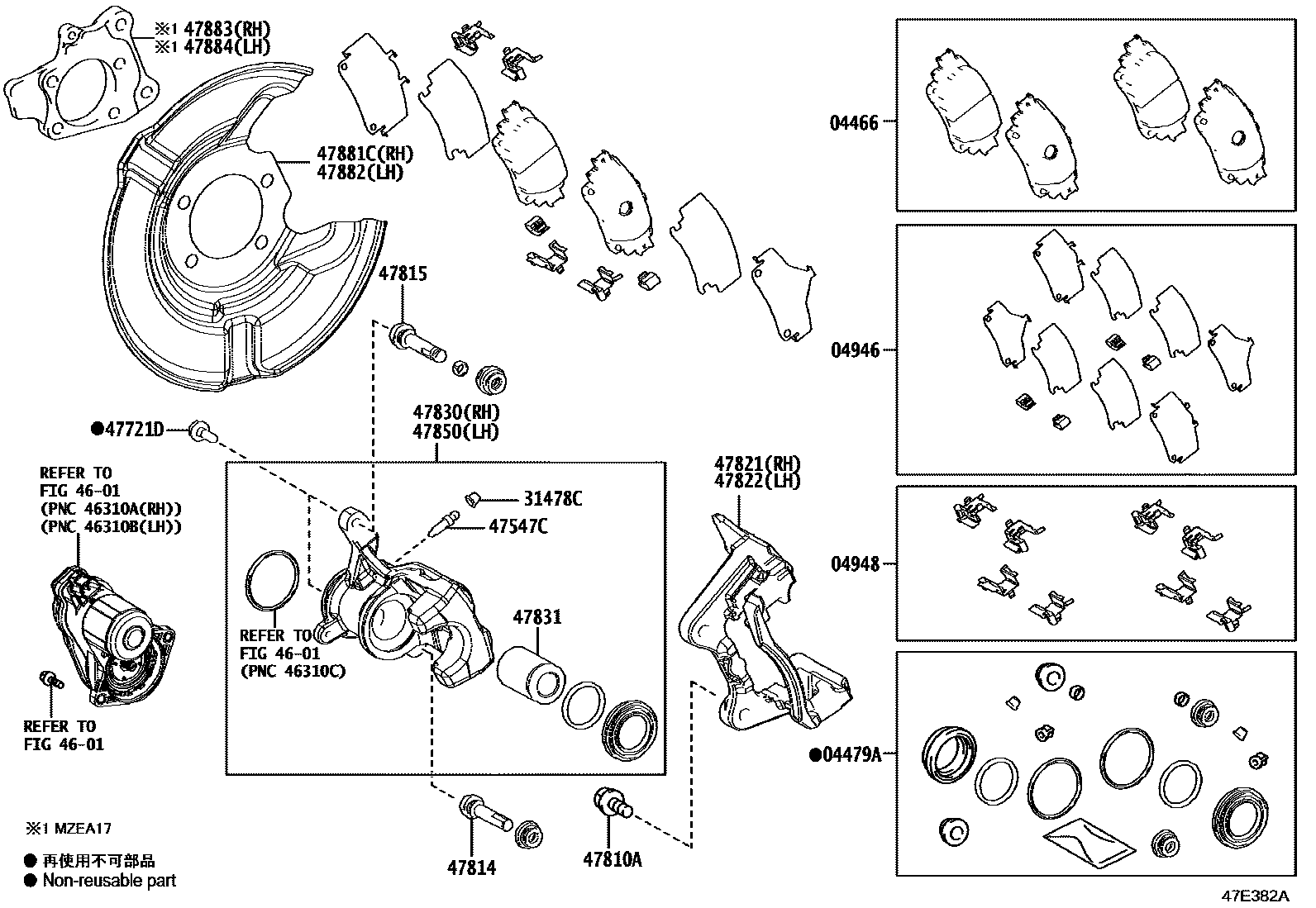

Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-02420 · 04466-02500 |
| 04479A | Rear disc brake cylinder assembly | 04479-02450 · 04479-02451 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-02150 · 04946-02220 |
| 04948 | Rear disc brake mounting assembly | 04948-02170 · 04948-02171 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-0N010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90016-AA612 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-12174 · 90105-12208 · 90105-C0021 · 90105-C0255 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-06180 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-06180 |
| 47821 | Right rear disc brake cylinder retainer | 47821-02390 · 47821-02430 |
| 47822 | Left rear disc brake cylinder retainer | 47822-02380 · 47822-02420 |
| 47830 | Right rear disc brake cylinder assembly | 47830-02390 · 47830-02430 |
| 47831 | rear disc brake piston | 47831-02400 · 47831-02430 |
| 47850 | Left rear disc brake cylinder assembly | 47850-02380 · 47850-02420 |
| 47881C | Right rear disc brake dust cover | 47881-02300 · 47881-02330 |
| 47882 | Left rear disc brake dust cover | 47882-02300 · 47882-02330 |
| 47883 | Right rear brake caliper bracket | 47883-02110 |
| 47884 | Left rear brake caliper bracket | 47884-02110 |
