Toyota COROLLA 制动助力器和真空管 — Figure 4703

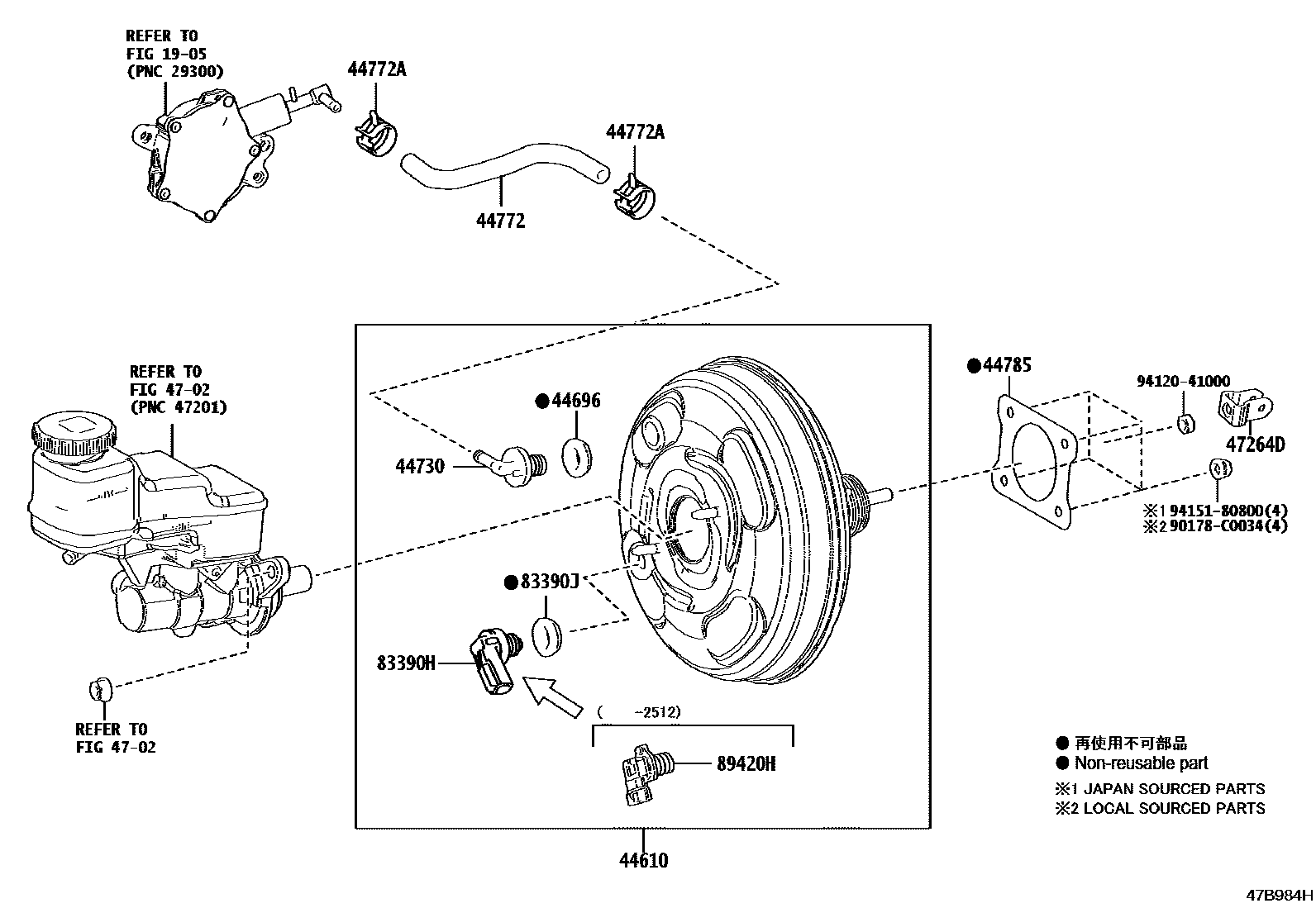

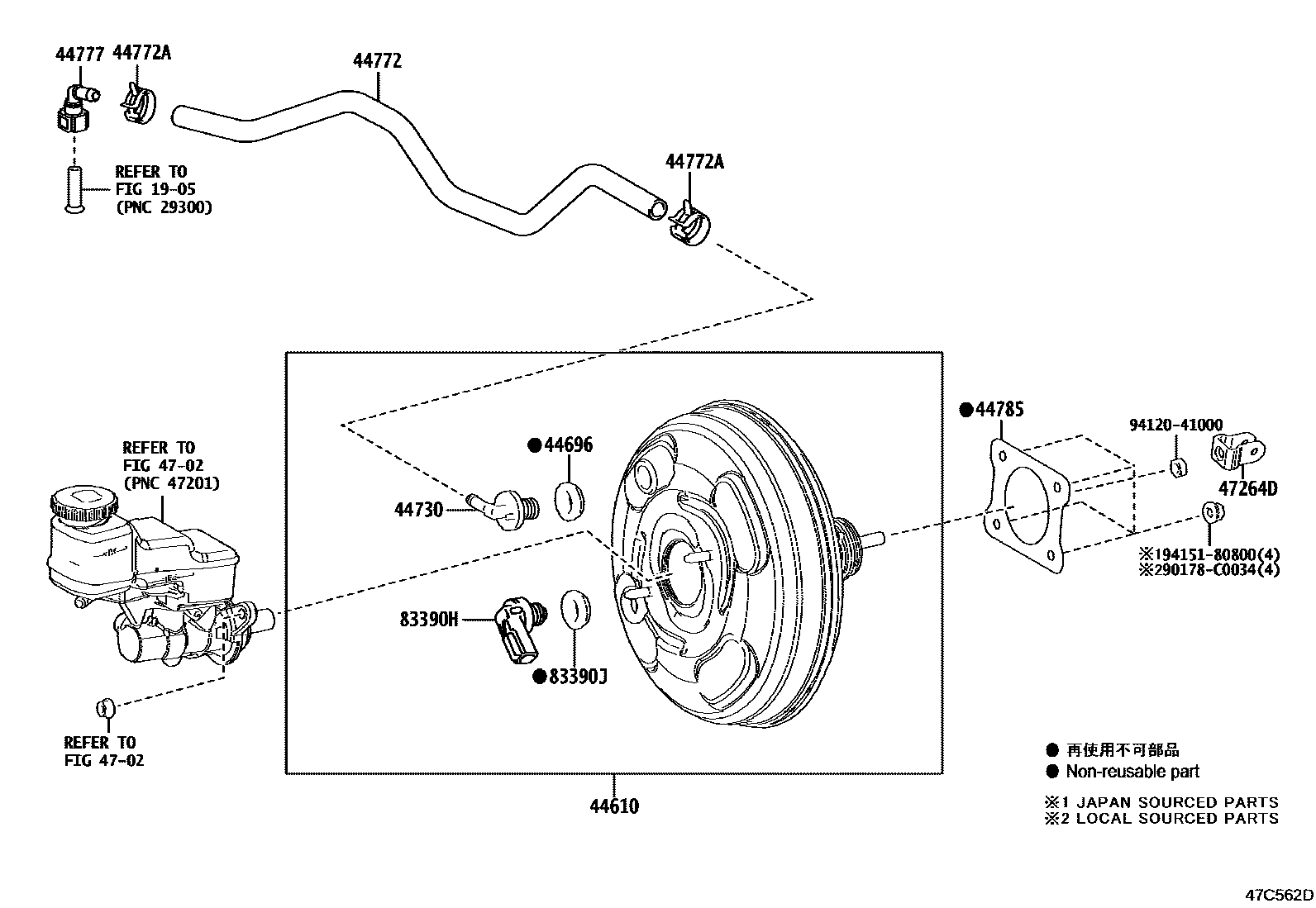

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-02K20 · 44610-02K30 |
| 44696 | One-way valve seal | 90016-AT003 · 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-52010 |
| 44772 | Hoses (check valve to connector tube) | 44772-02320 · 44772-02330 |
| 44772A | Clip (for check valve to connector tube) | 90466-C0034 · 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-12010 · 44777-F4010 |
| 44785 | brake booster pad | 44785-02050 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0P010 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 83390J | Vacuum warning switch seal | 90016-AT003 · 90080-48071 |
| 89420H | Vacuum sensor assembly | 89421-52020 |
