Toyota COROLLA 制动总泵 — Figure 4702

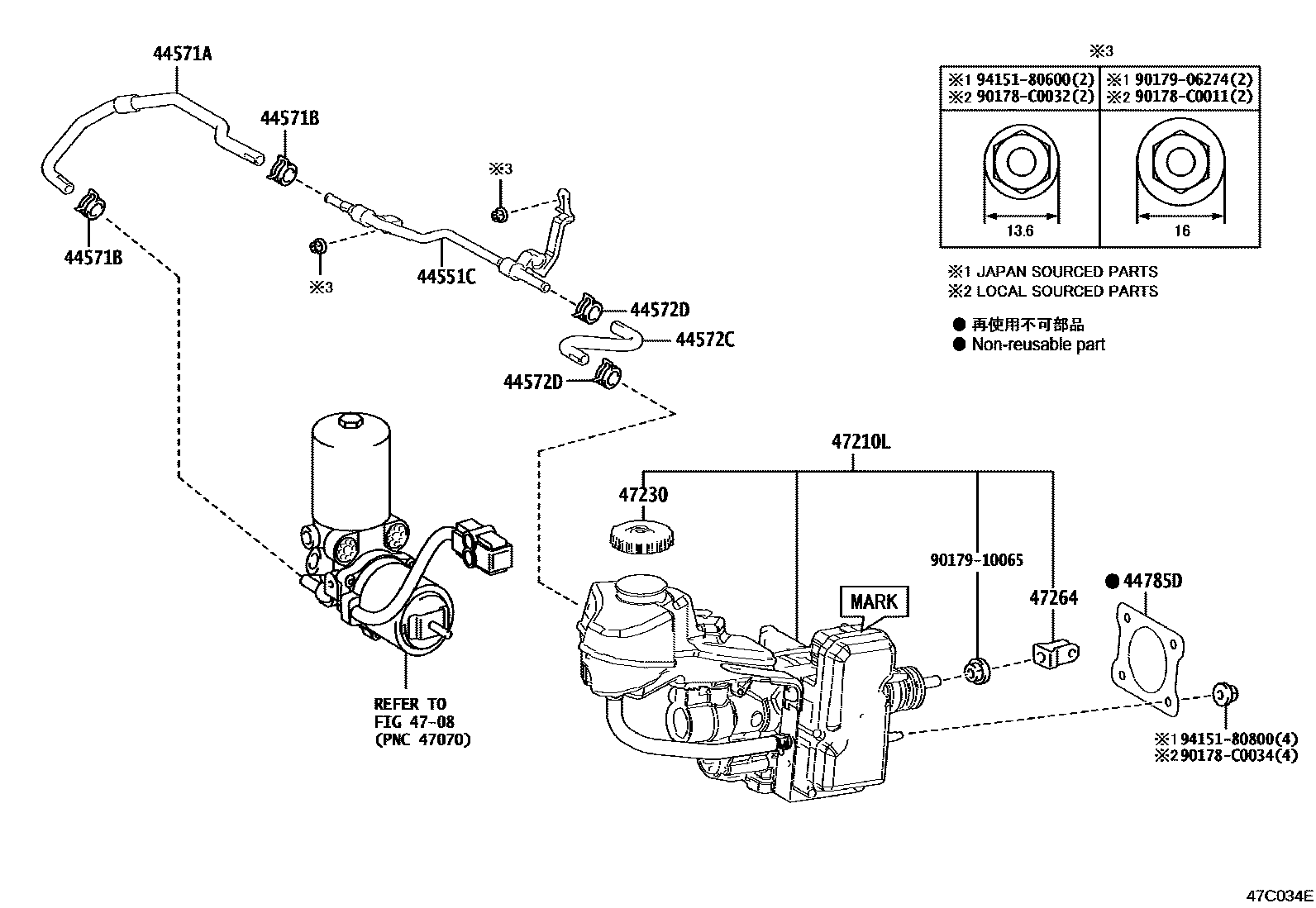

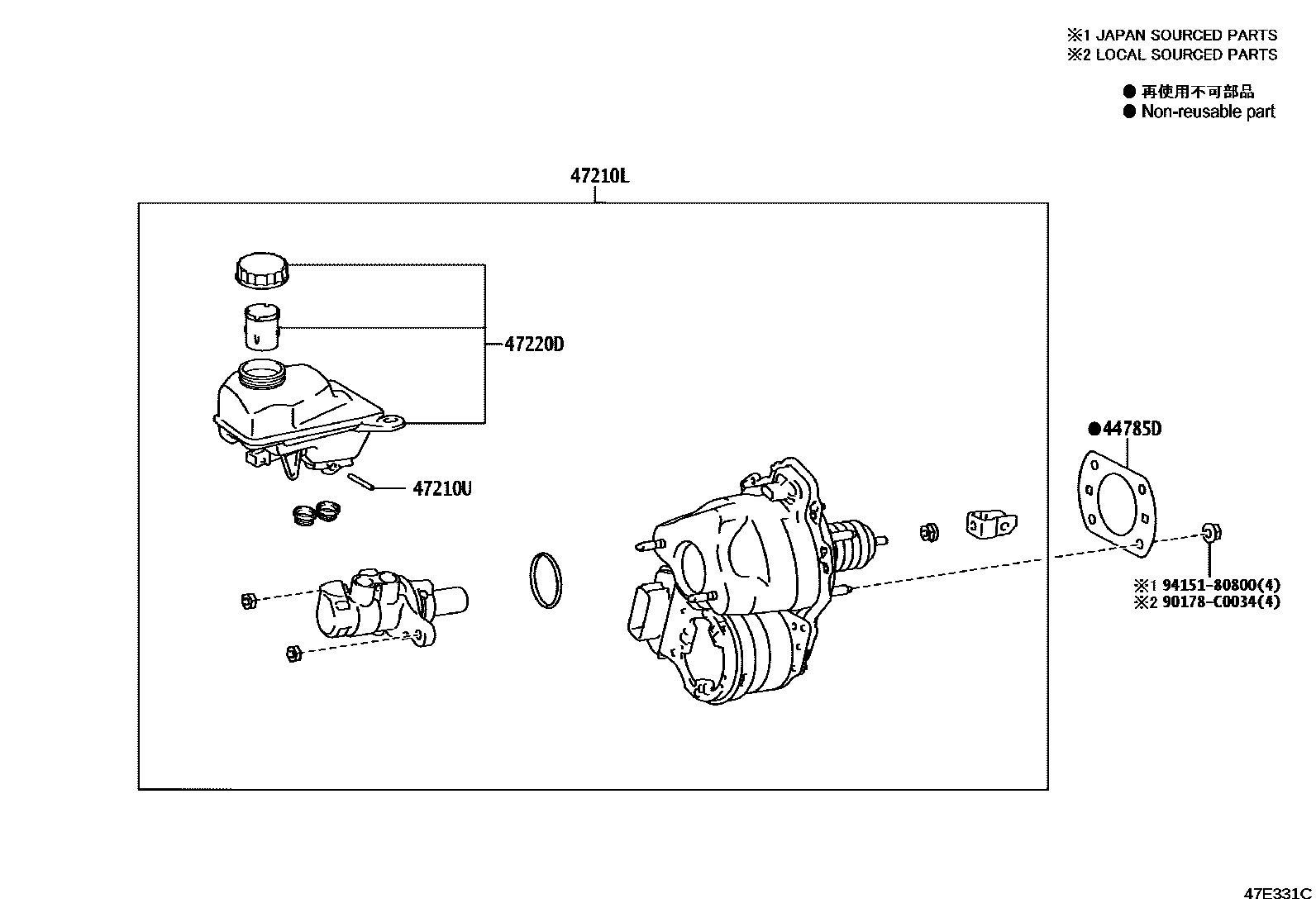

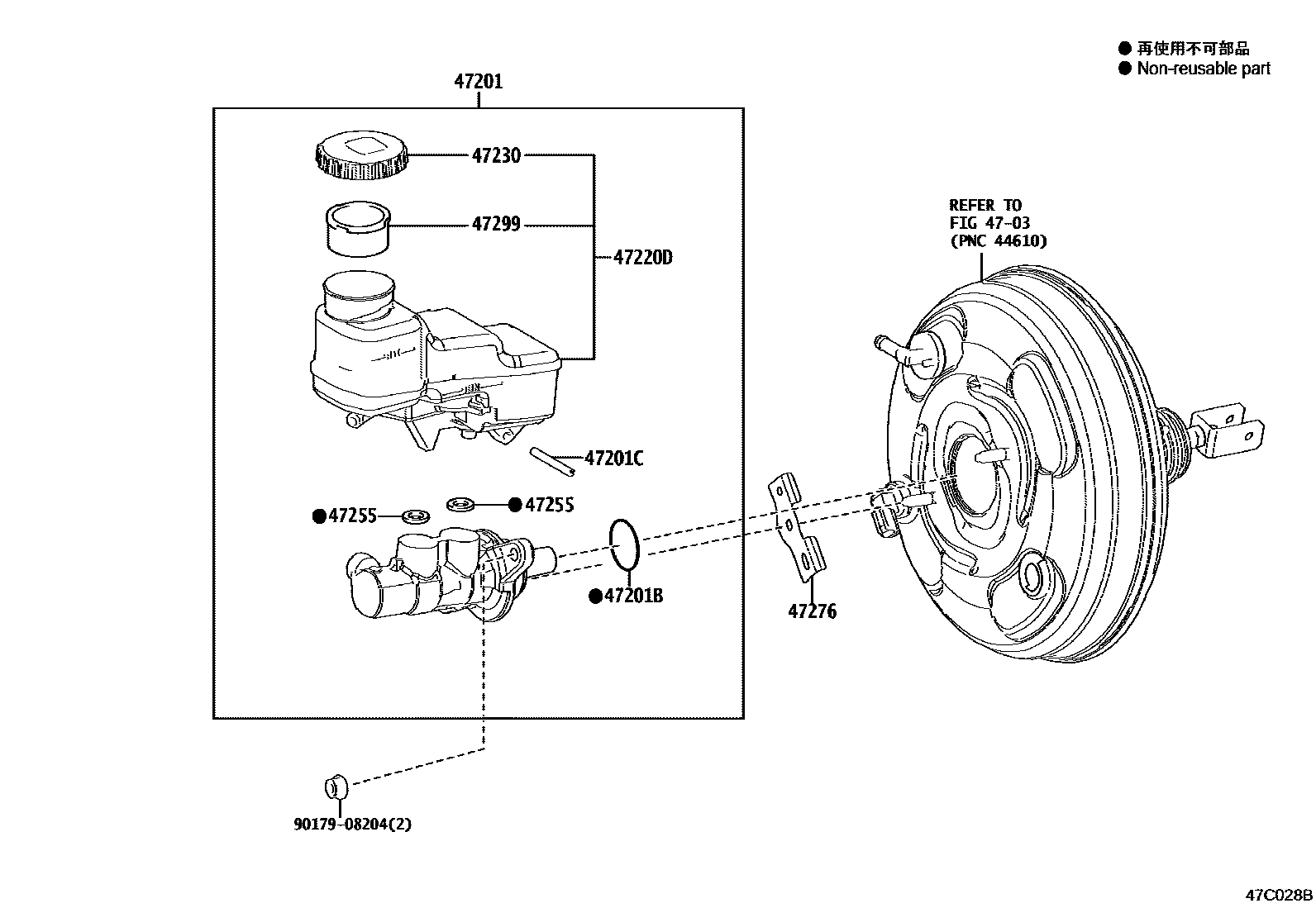

Toyota COROLLA EPC diagram 4702, 制动总泵, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-02090 |
| 44571A | No. 1 brake actuator hose | 44571-02120 |
| 44571B | Hose clip (for brake actuator hose No. 1) | 90466-C0026 · 96137-41501 |
| 44572C | No. 2 brake actuator hose | 44572-02090 |
| 44572D | Hose clip (for brake actuator hose No. 2) | 90466-C0026 · 96137-41501 |
| 44785D | brake master cylinder gasket | 44785-02050 · 44785-02080 |
| 47201 | Brake master cylinder sub-assembly | 47201-02A80 · 47201-02A90 |
| 47201B | O-ring (for brake master cylinder) | 90016-AH902 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47210L | Brake booster assembly with master cylinder | 47050-02040 · 47050-02060 · 47210-02090 |
| 47210U | Direct sales (for brake master cylinder) | 90069-35007 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-02490 · 47220-02530 · 47220-F4030 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0R100 · 47230-33330 · 47230-47090 |
| 47255 | Master pump reservoir seal | 90016-AT002 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47276 | brake master cylinder bracket | 47276-F4010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
