Toyota COROLLA Brake Pedal & Bracket — Figure 4701

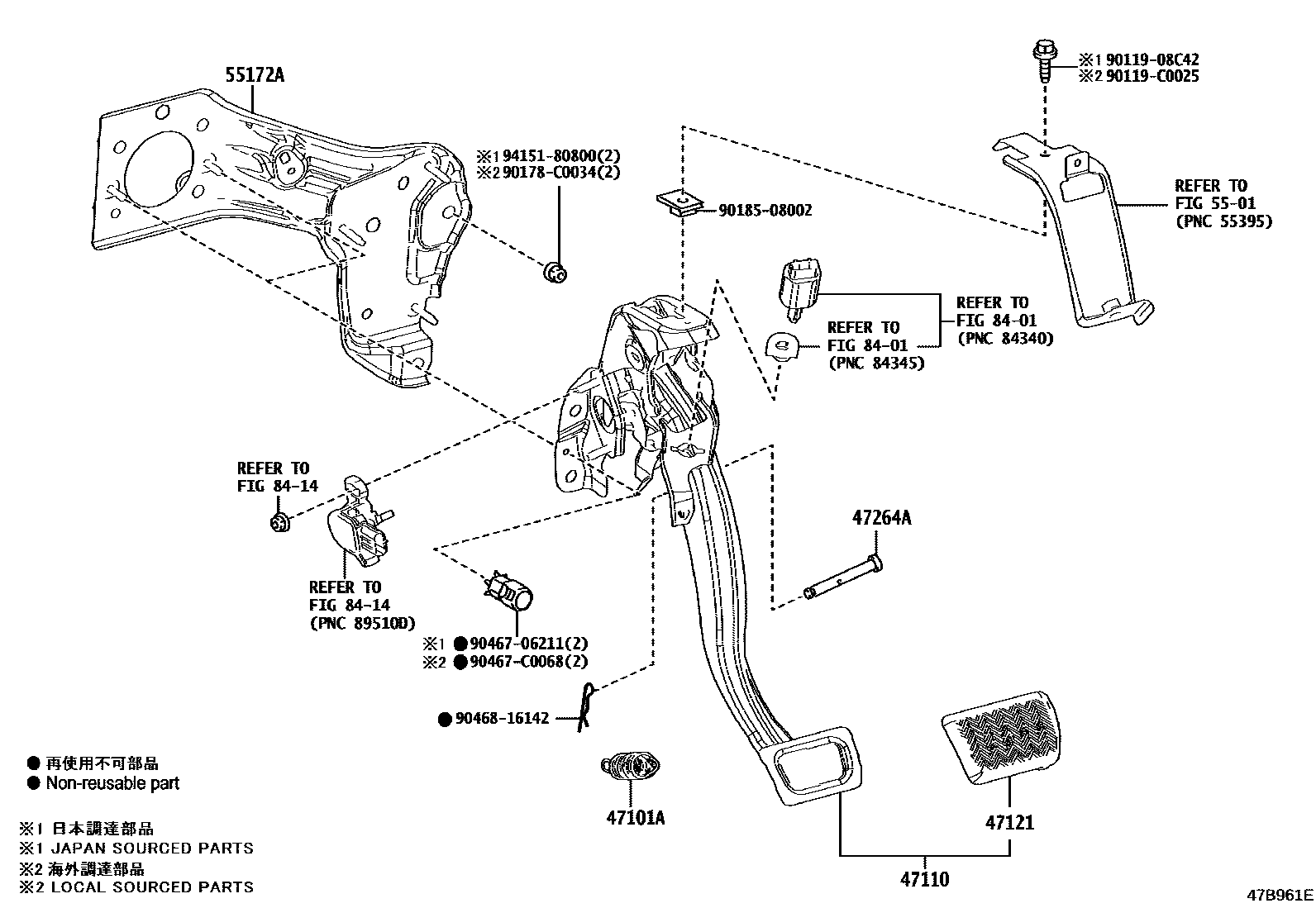

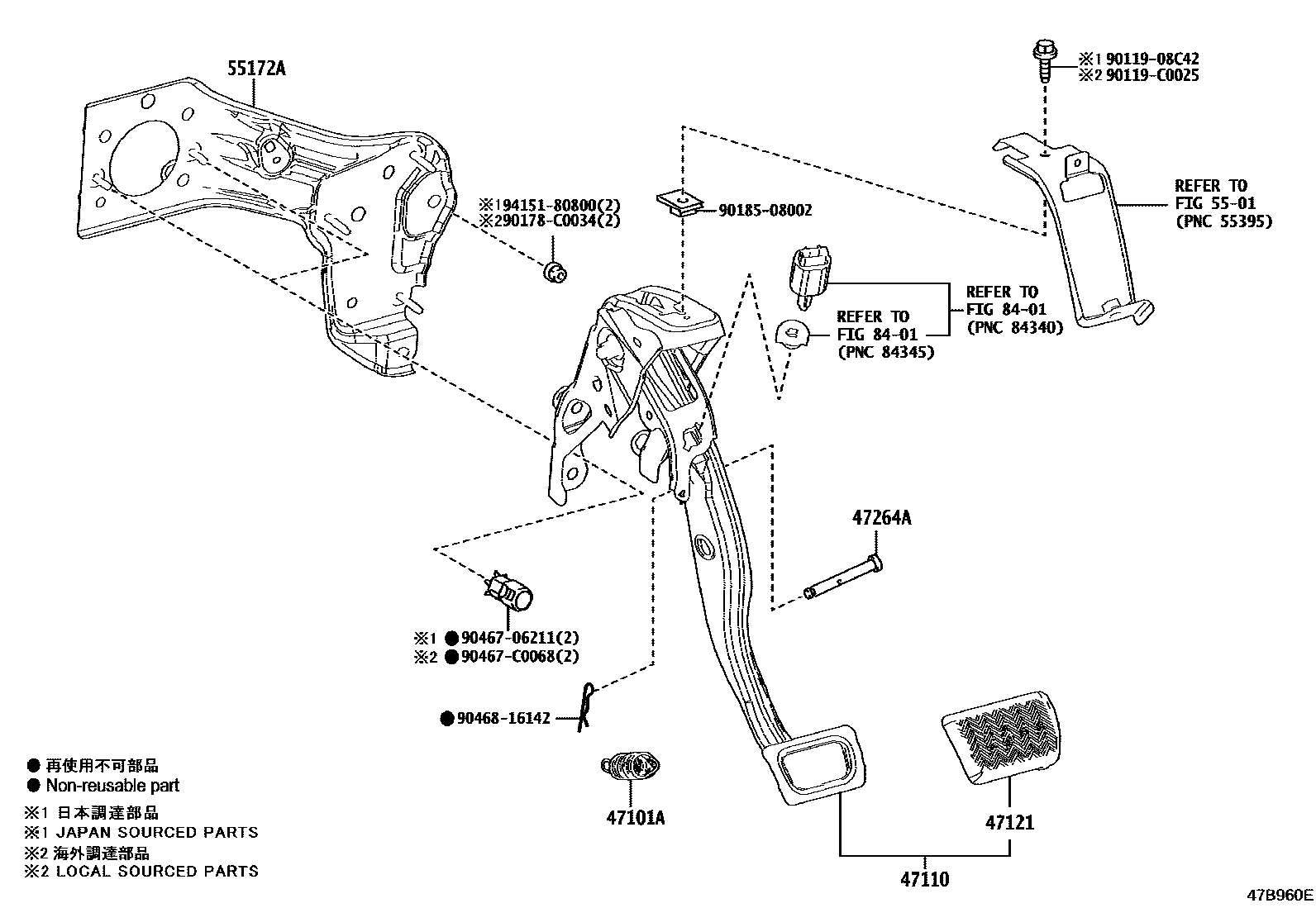

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90507-15009 · 90507-15010 · 90507-C0006 · 90507-C0010 |
| 47110 | Brake pedal bracket assembly | 47110-02850 · 47110-02860 · 47110-02870 · 47110-02880 |
| 47121 | brake pedal pad | 47121-02130 · 47121-02180 · 47121-02190 |
| 47264A | Pin (for push rod) | 90249-08221 |
| 55172A | Brake pedal bracket base | 55172-02210 |
