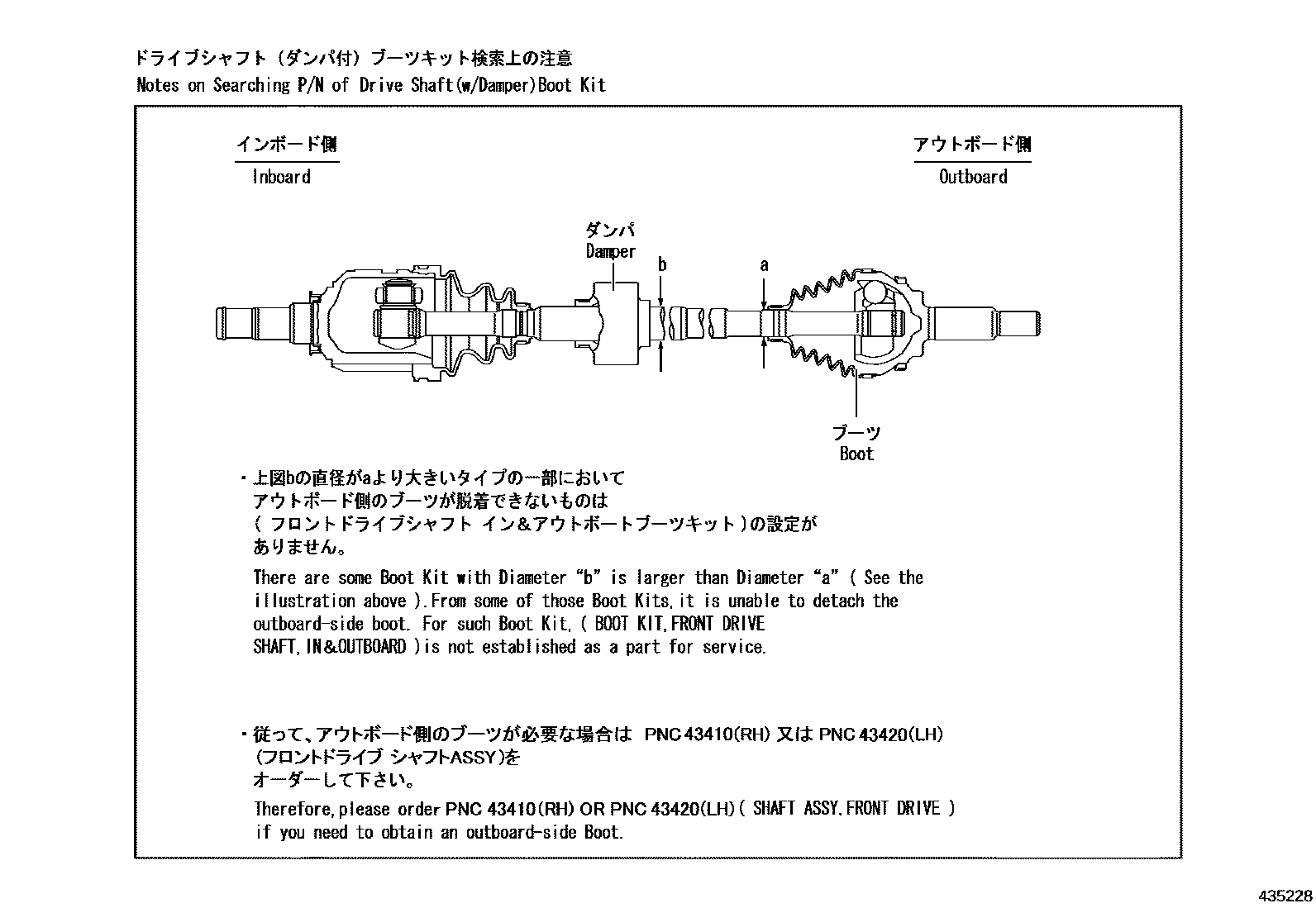

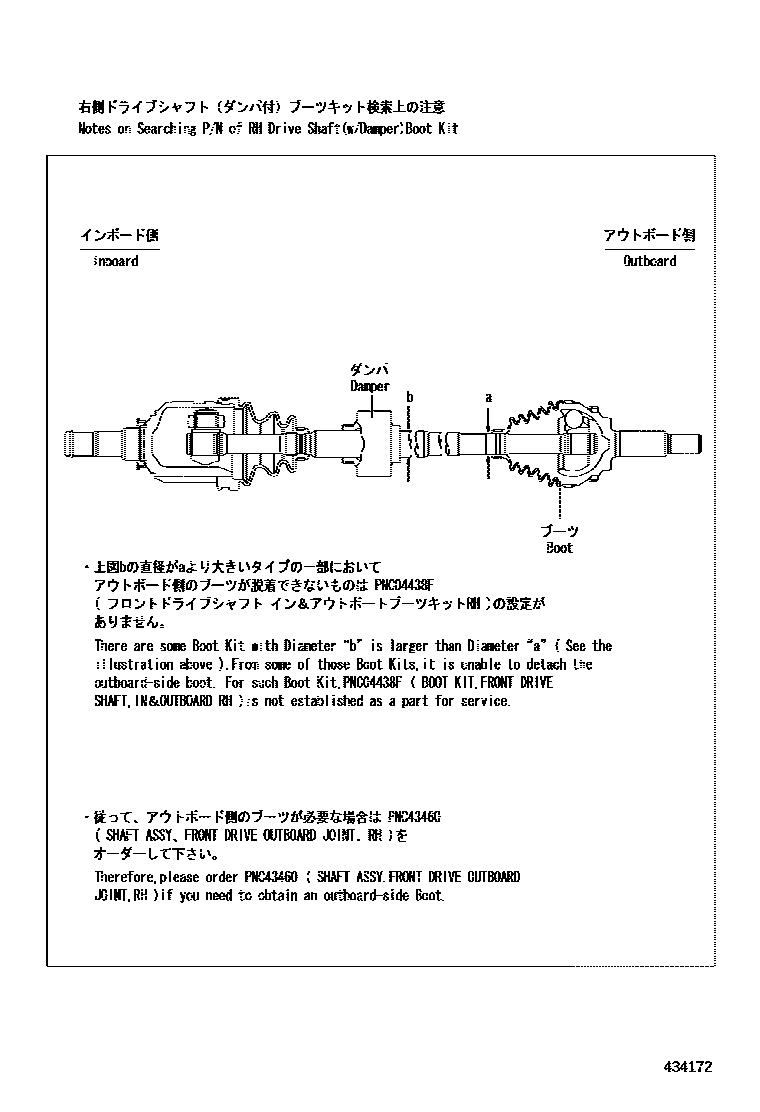

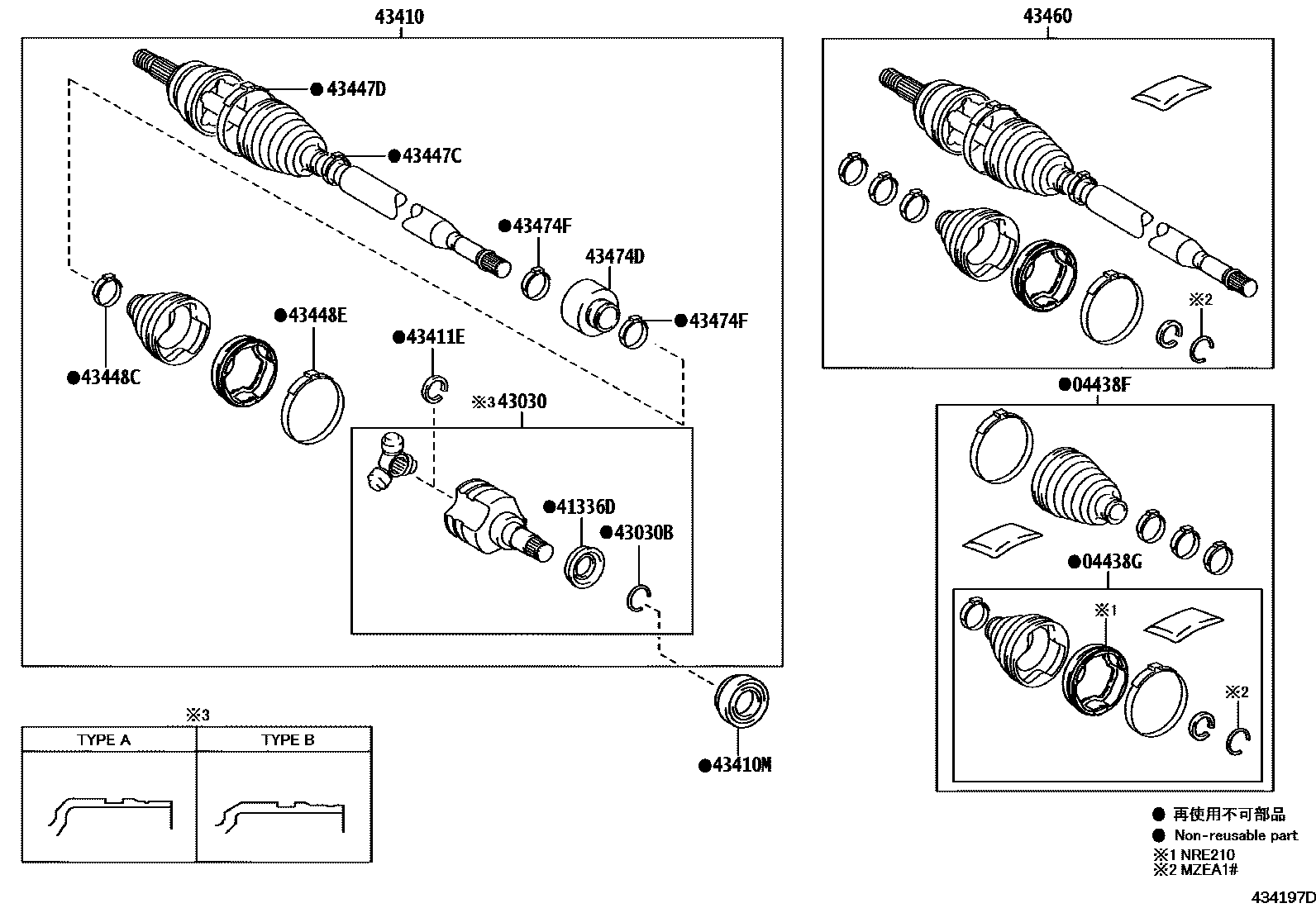

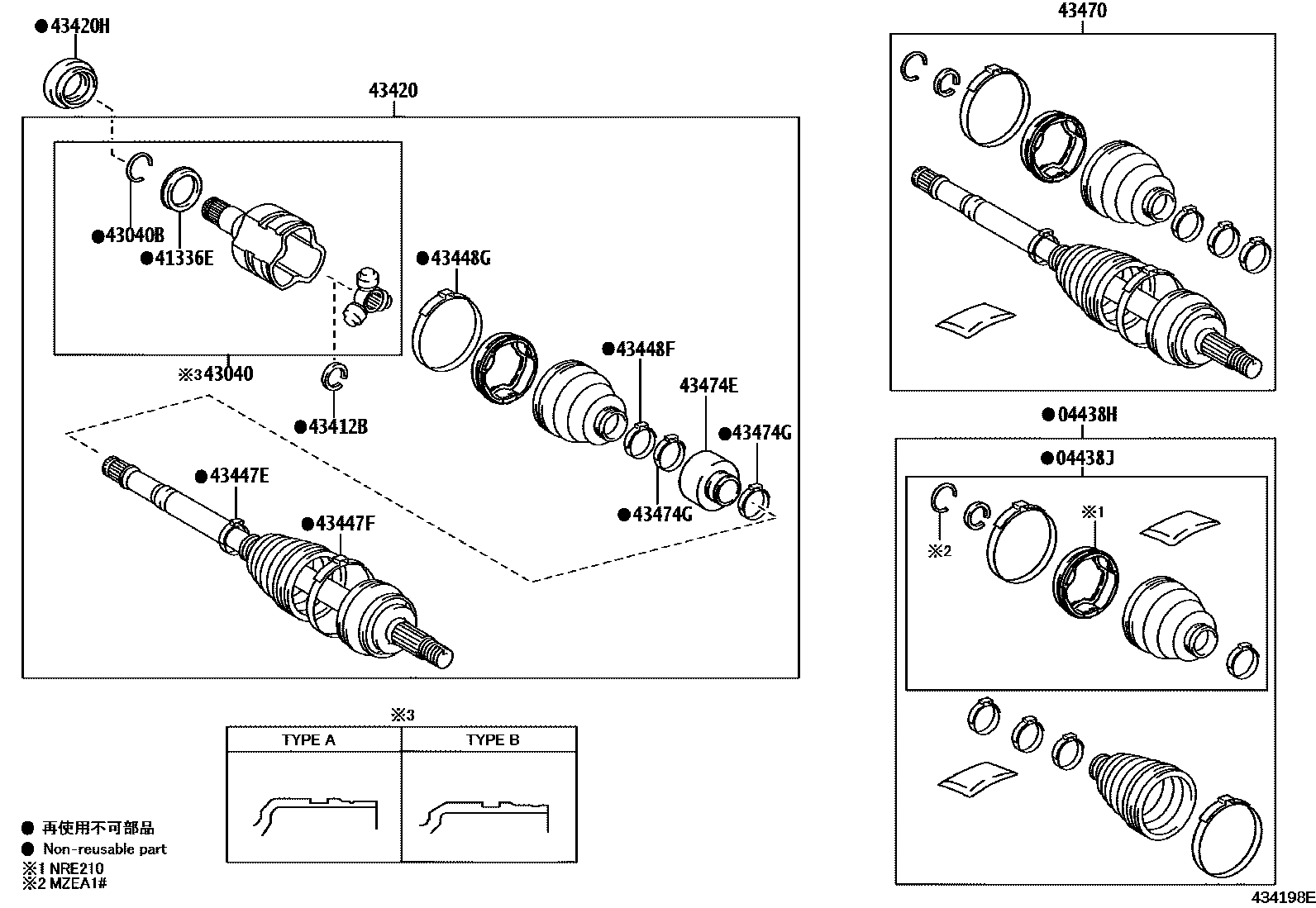

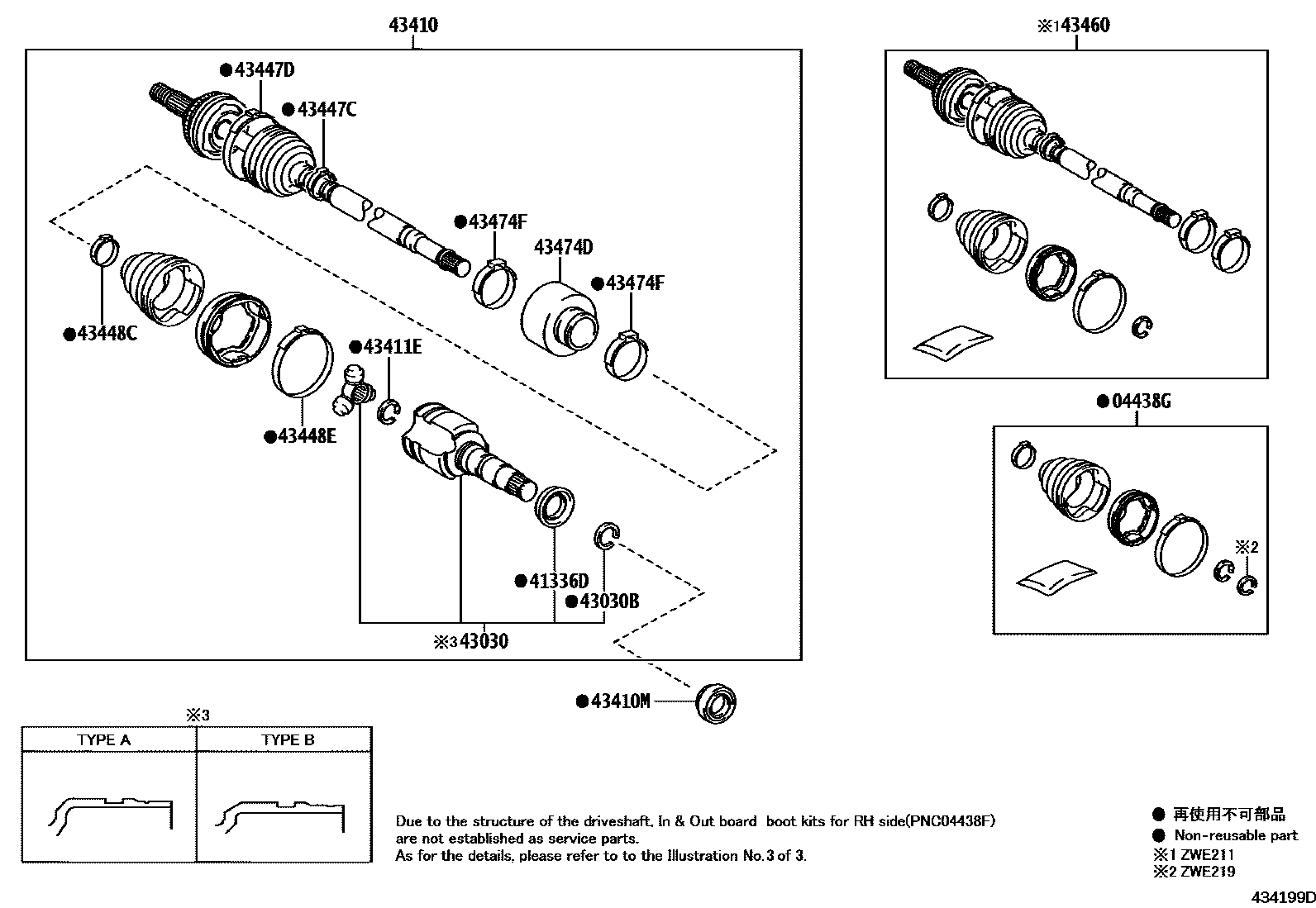

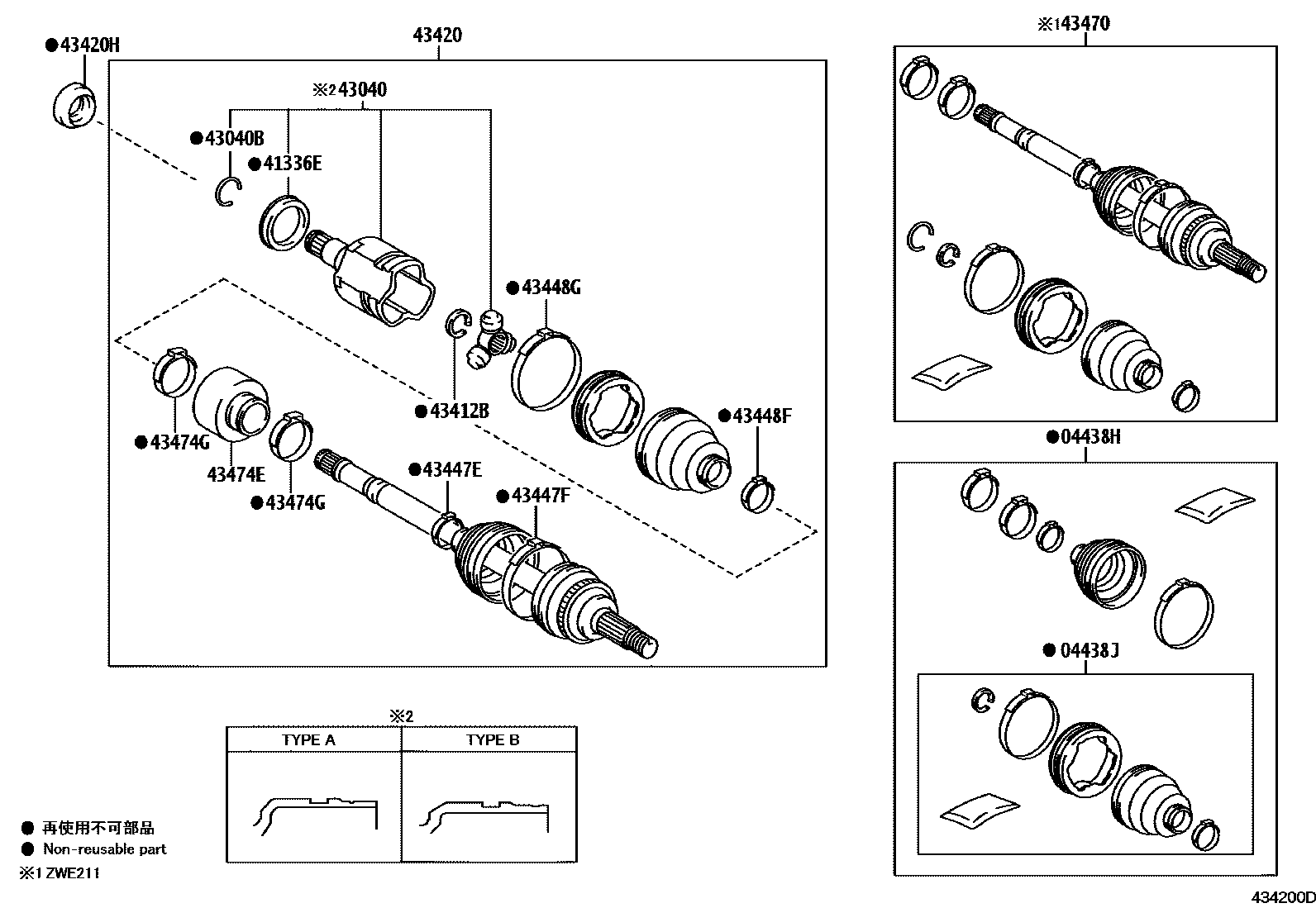

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 6 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02820 · 04427-02821 · 04427-02A60 · 04427-02A61 · 04427-12840 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02790 · 04437-02890 · 04437-10040 · 04437-12460 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-02830 · 04427-02831 · 04427-02832 · 04427-02840 · 04427-02841 · 04427-02A60 · 04427-02A61 · 04427-12840 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02790 · 04437-02890 · 04437-12460 |
| 41336D | Right front driveshaft dust cover | 41336-02350 · 41336-02380 · 41336-02390 · 41336-02520 · 41336-12020 · 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-02350 · 41336-02510 · 41336-02520 · 41336-06340 · 41336-12060 · 41336-28020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-02120 · 43040-02121 · 43040-02350 · 43040-02460 · 43040-02461 · 43040-F4070 · 43040-F4071 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90520-C0036 · 90520-C0040 · 90521-27005 · 90521-33002 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02120 · 43040-02121 · 43040-02360 · 43040-02460 · 43040-02461 · 43040-F4080 · 43040-F4081 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90520-C0036 · 90520-C0040 · 90521-27005 · 90521-33002 |
| 43410 | Right front driveshaft assembly | 43410-02D50 · 43410-02D71 · 43410-02F50 · 43410-02F60 |
| 43410M | Front drive shaft right oil seal | 90311-35076 · 90311-35081 · 90311-35083 · 90311-40038 · 90311-40051 · 90311-C0052 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-12070 · 90520-C0029 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-12070 · 90520-C0029 |
| 43420 | Left front drive shaft assembly | 43420-02G50 · 43420-02G61 · 43420-02G71 · 43420-02K50 |
| 43420H | Front drive shaft left oil seal | 90311-35080 · 90311-35082 · 90311-50062 · 90311-50064 · 90311-9U001 · 90311-C0038 · 90311-C0050 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12230 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12240 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12230 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12240 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02J10 · 42345-12230 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02J20 · 42345-12140 · 42345-12180 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-12230 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12180 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-8Z008 · 43460-8Z009 · 43460-8Z013 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-8Z821 · 43470-8Z840 · 43470-8Z850 |
| 43474D | Right front driveshaft shock absorber | 43474-02570 · 43474-02890 |
| 43474E | Left front driveshaft shock absorber | 43474-02580 · 43474-02A00 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02310 · 42345-06420 · 42345-12090 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06420 · 42345-12090 |
