Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

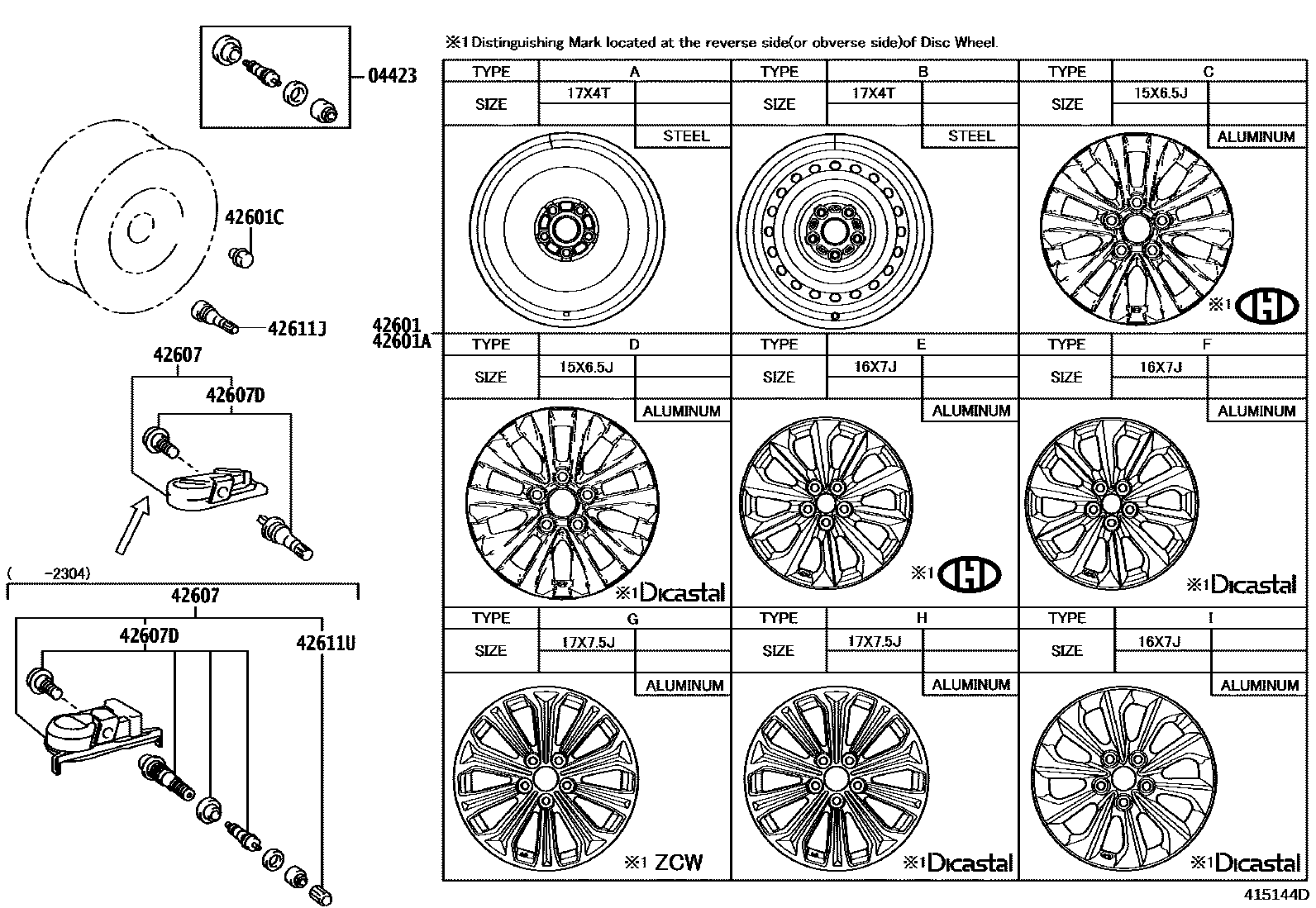

| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0N010 |

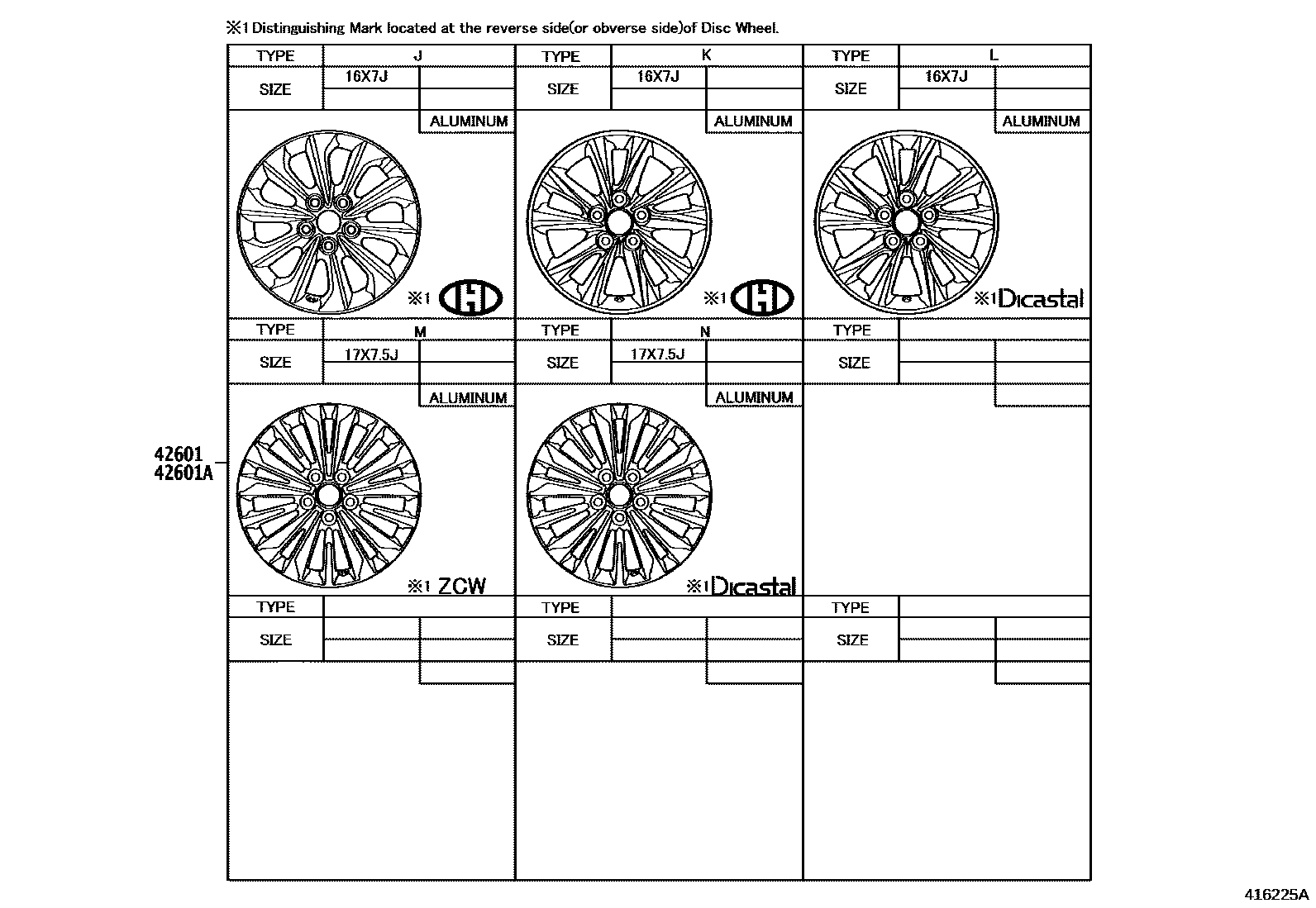

| 42601 | spoke wheel | 42611-02U20 · 42611-02U21 · 42611-02U30 · 42611-02U31 · 42611-02U40 · 42611-02U50 · 42611-02U60 · 42611-02U70 · 42611-0Z020 · 42611-0Z030 · 42611-0Z040 · 42611-0Z050 · 42611-YK050 · 42611-YK060 |
| 42601A | Spoke wheel (for spare tire) | 42611-02Q10 · 42611-02Q11 · 42611-02Q20 · 42611-02Q21 |
| 42601C | Hub nut (for axle) | 90942-C1001 |

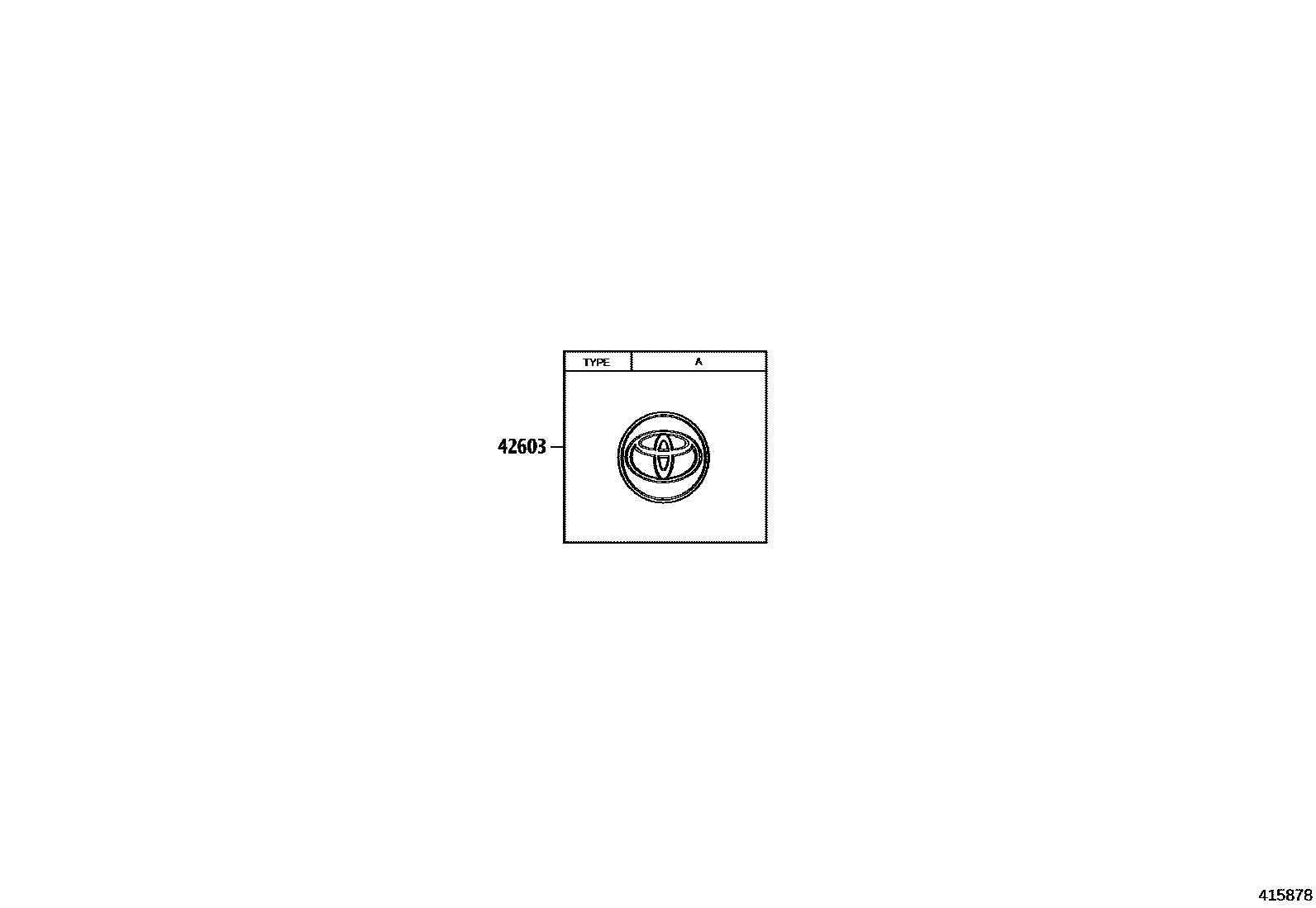

| 42603 | Wheel hub decorative parts sub-assembly | 42603-02320 · 42603-0R020 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02080 · 42607-02090 |
| 42607D | tire pressure monitoring valve | 90942-C5003 · 90942-C5008 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 · 90942-C5004 |
| 42611U | tire valve cover | 90942-C5001 |
