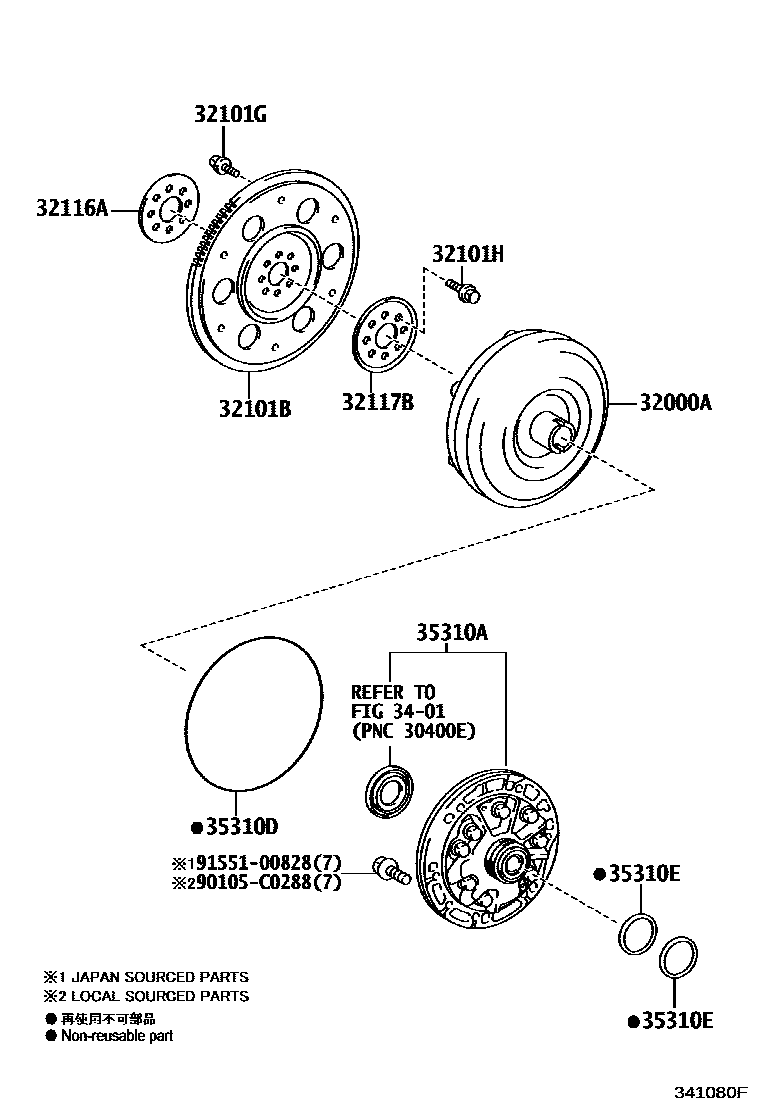

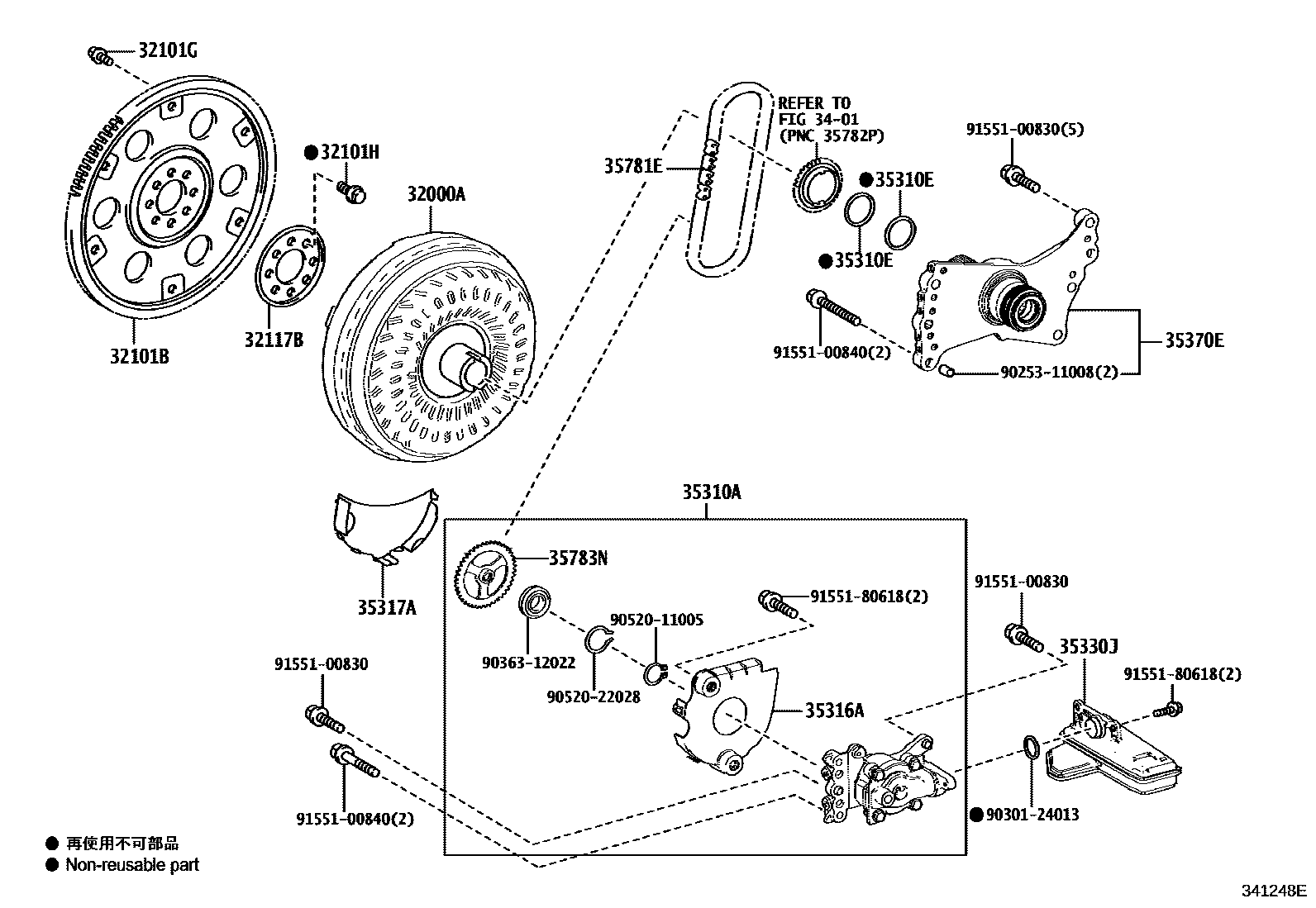

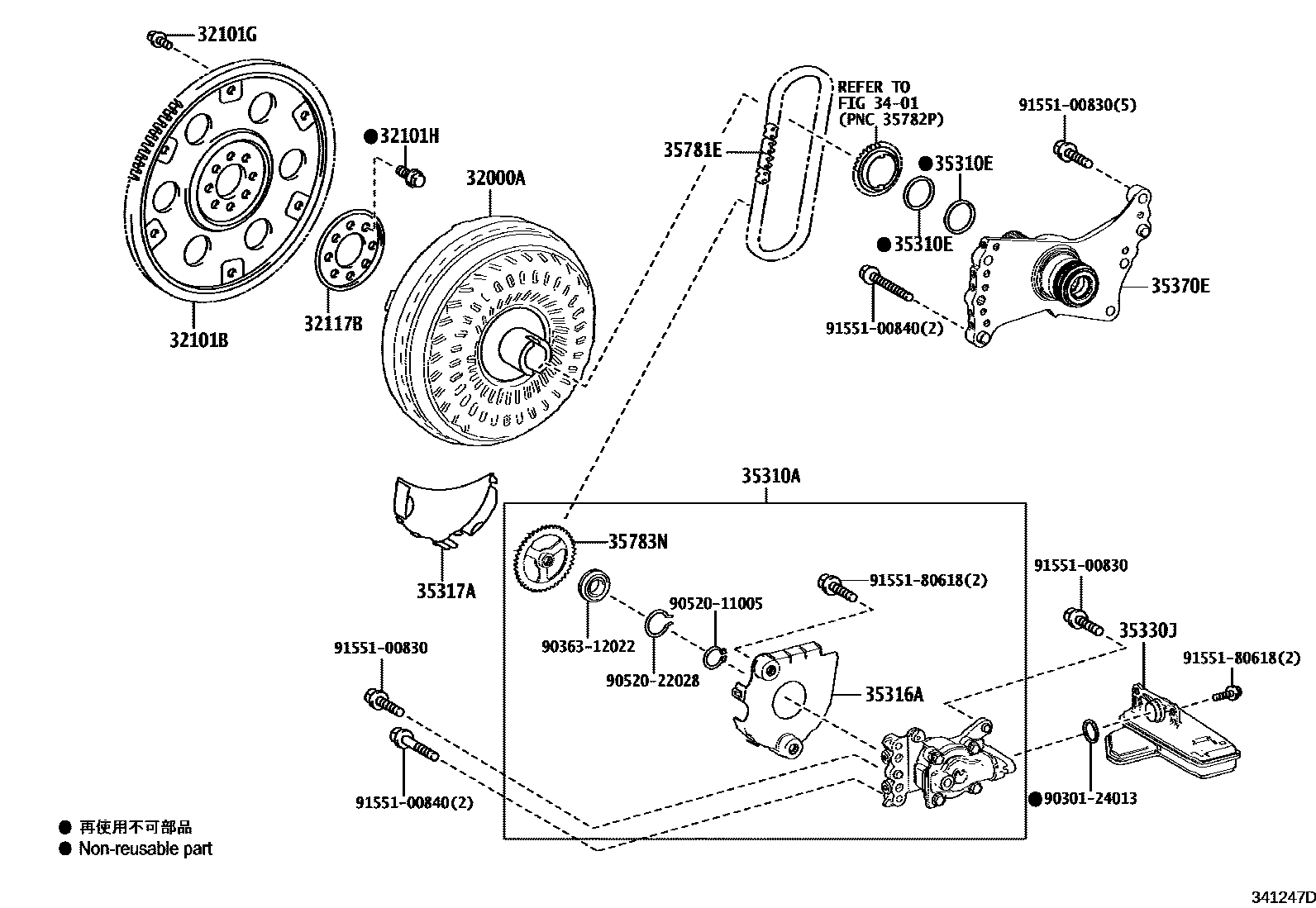

Toyota COROLLA 变矩器、前油泵(CVT) — Figure 3402
Toyota COROLLA EPC diagram 3402, 变矩器、前油泵(CVT), with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000A | Torque converter assembly | 32000-02050 · 32000-12530 · 32000-12540 · 32000-12610 · 32000-K0010 |
| 32101B | Transmission plate and ring gear sub-assembly | 32101-02070 · 32101-0D030 · 32101-12100 · 32101-52100 |
| 32101G | Bolts (for securing transmission plate and torque converter) | 90109-08113 · 90119-08498 |
| 32101H | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 · 90105-12404 |
| 32116A | Front transmission plate spacer | 32116-02020 · 32116-12030 |
| 32117B | Rear transmission plate spacer | 32117-02020 · 32117-0R010 · 32117-12040 · 32117-33010 |
| 35310A | Front oil pump assembly | 35300-12020 · 35300-52050 · 35310-02020 · 35310-12170 |
| 35310D | O-ring (for front oil pump) | 90301-99202 · 90301-C0067 |
| 35310E | T-type oil seal (for front oil pump) | 35617-02030 · 35617-12031 · 35617-12080 · 35617-K0010 |
| 35316A | Transmission No. 1 oil pump separator plate | 35316-12010 · 35316-12020 |
| 35317A | Transmission No. 2 oil pump separator plate | 35317-12010 · 35317-12020 |
| 35330J | Oil filter assembly | 35330-12070 · 35330-K0020 |
| 35370E | Stator shaft assembly (CVT) | 35370-12140 · 35370-12141 · 35370-K0010 · 35370-K0011 |
| 35781E | Transmission drive chain | 35781-12010 |
| 35783N | Driven sprocket | 35783-12060 |
