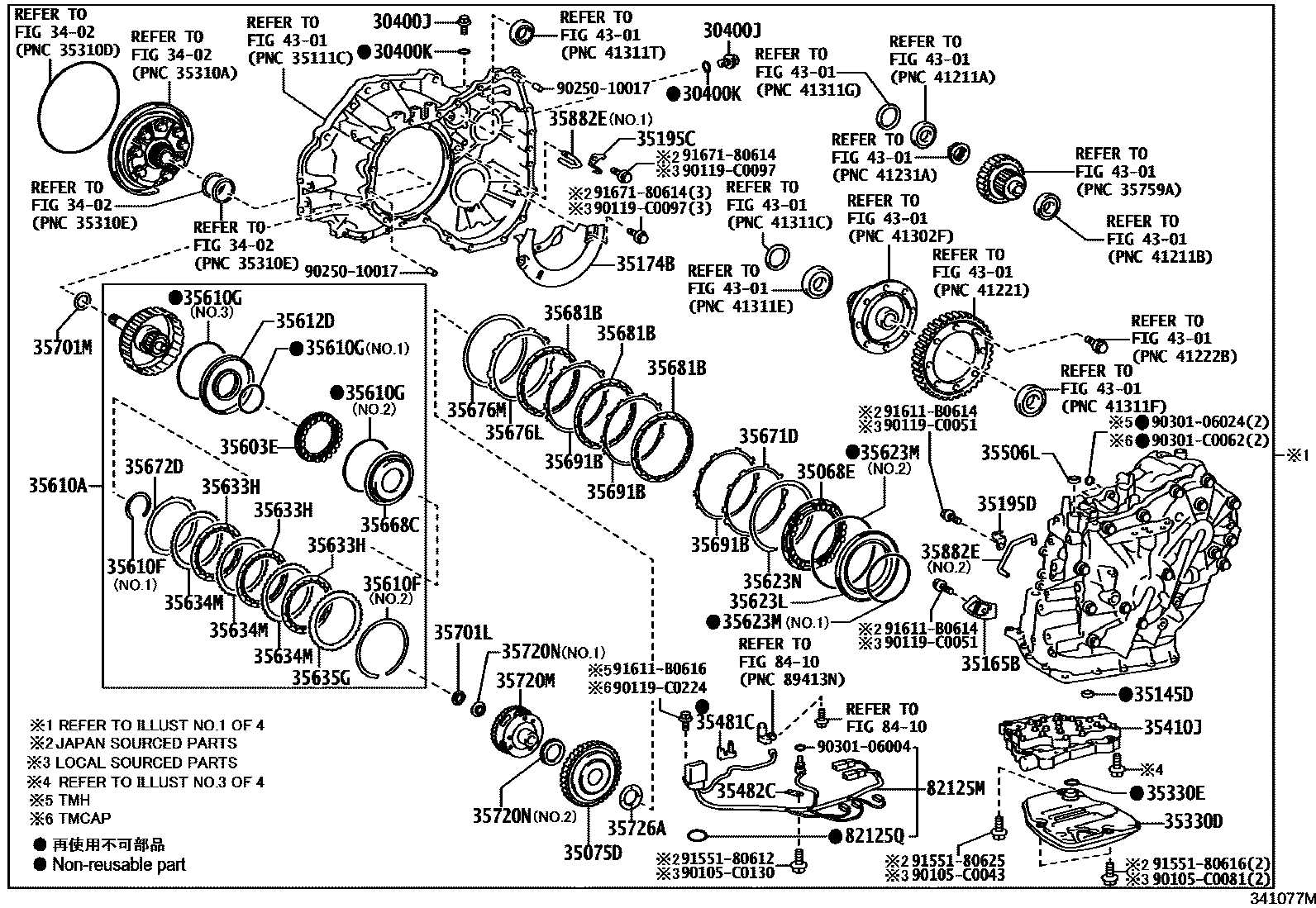

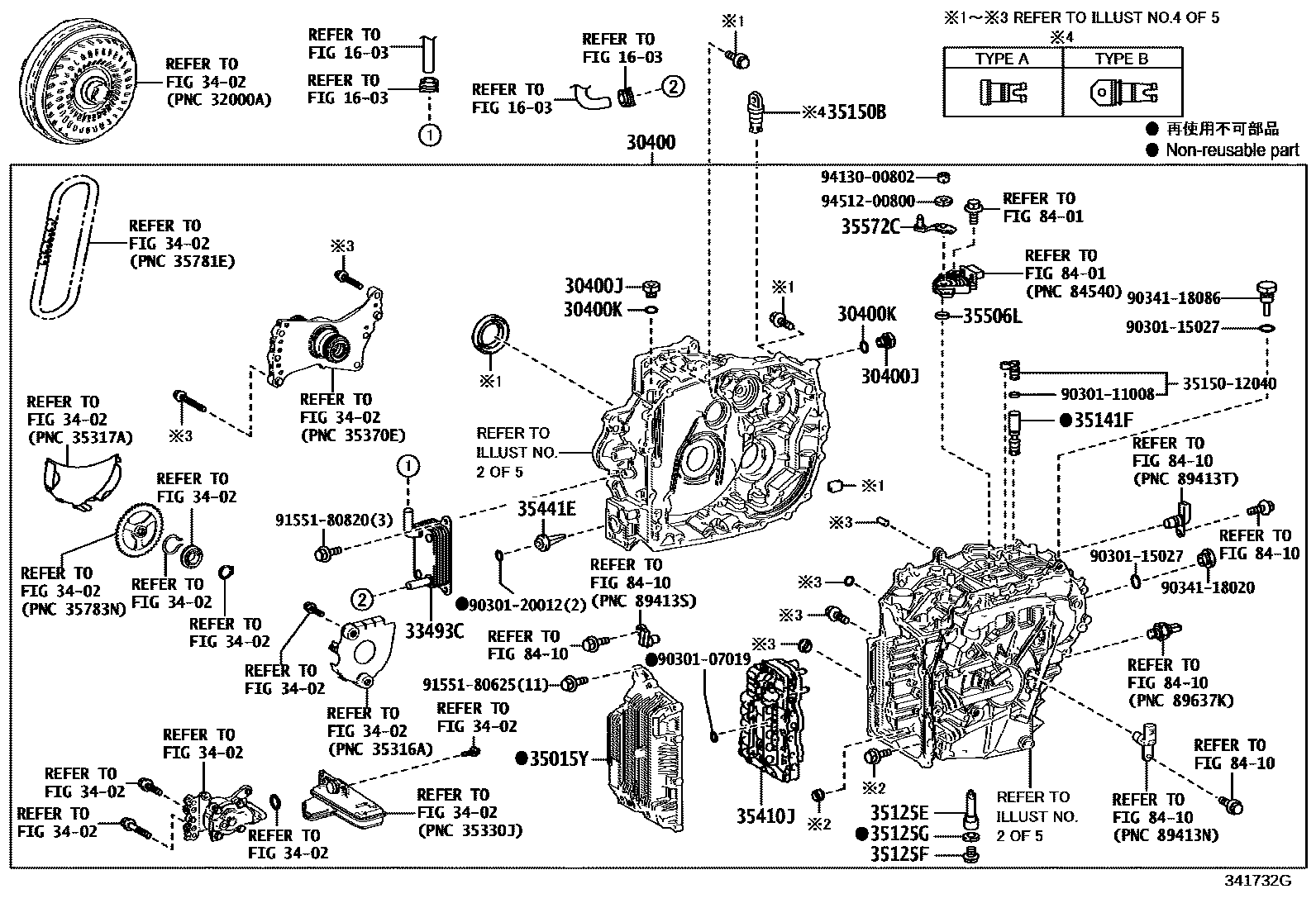

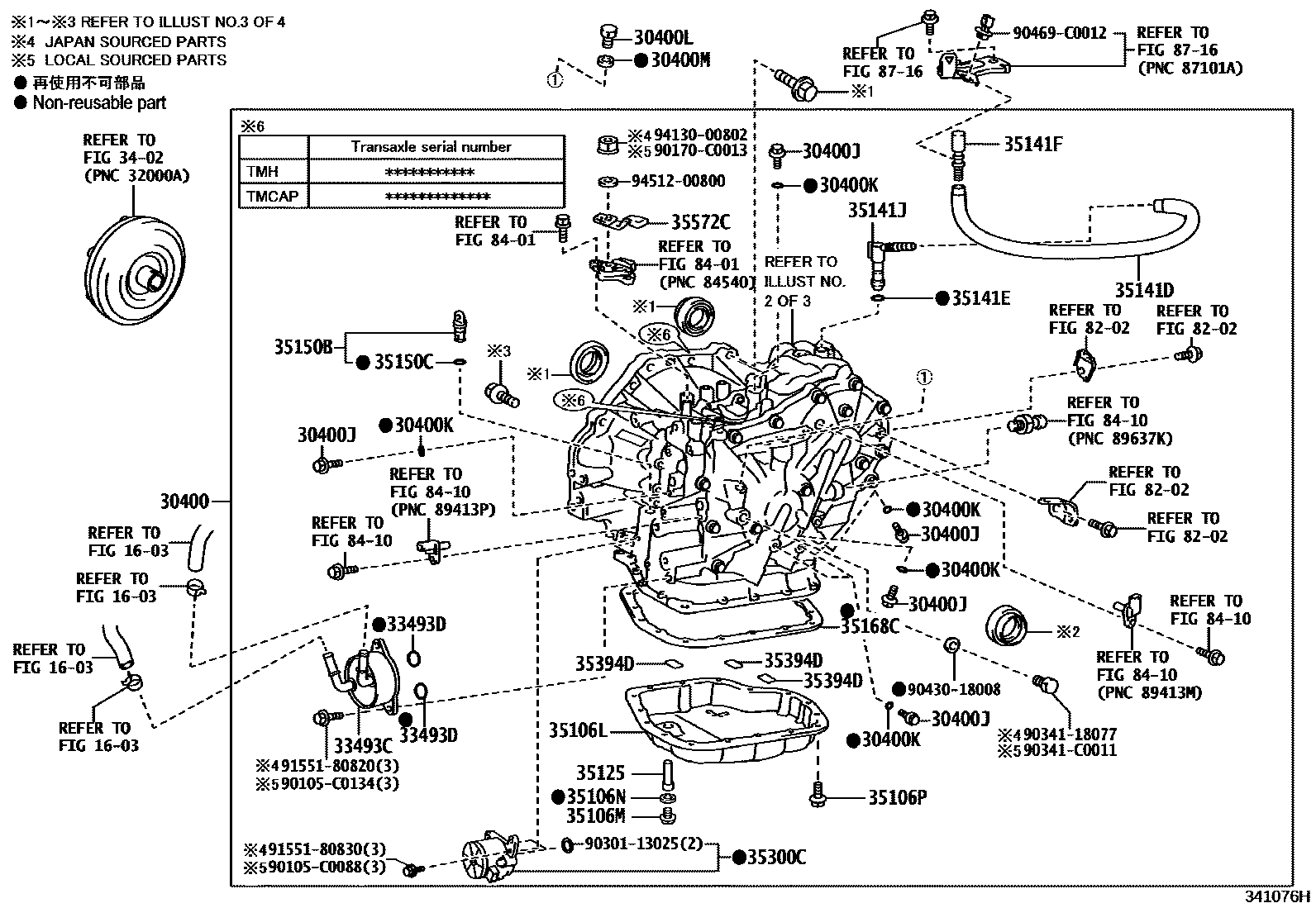

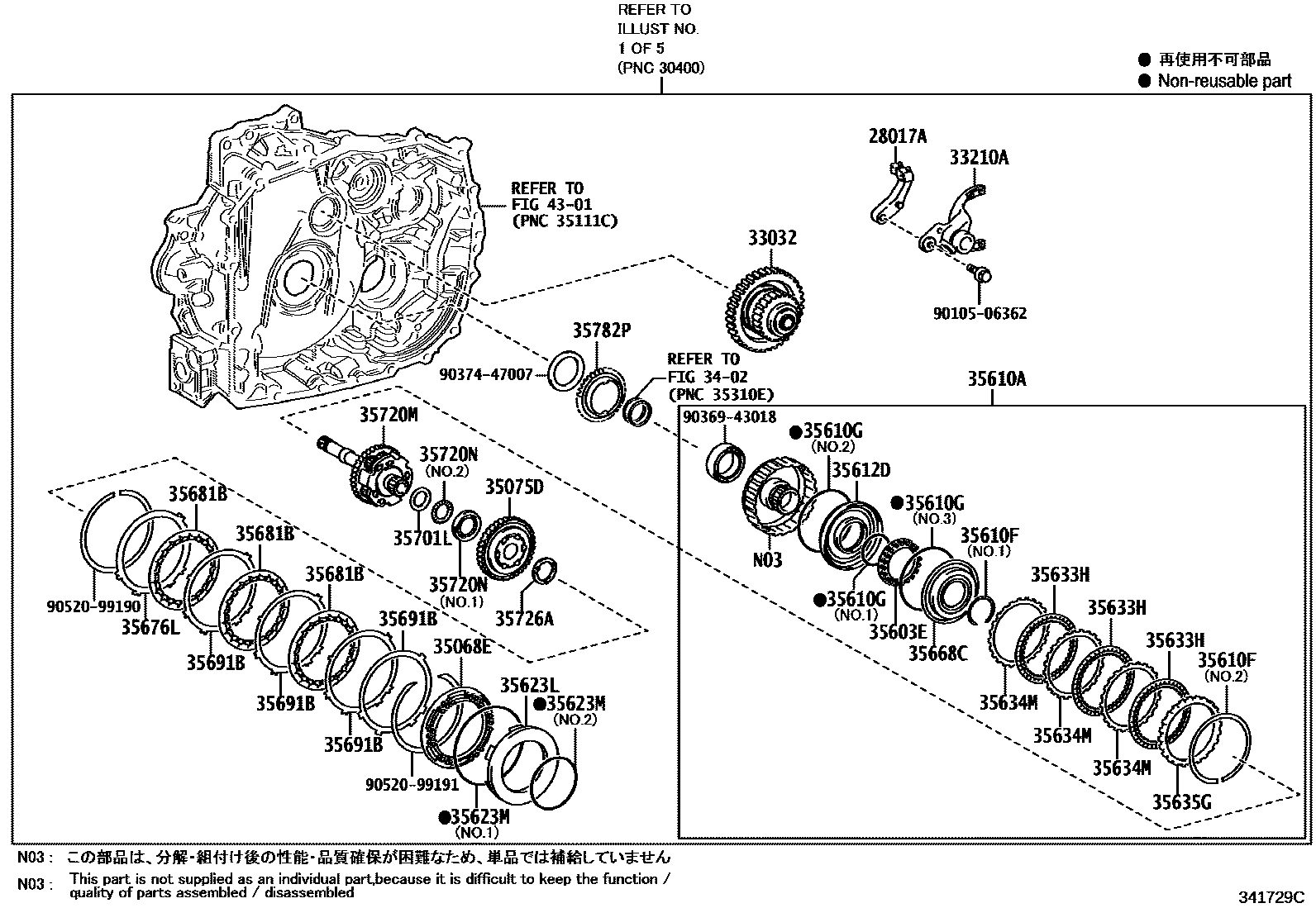

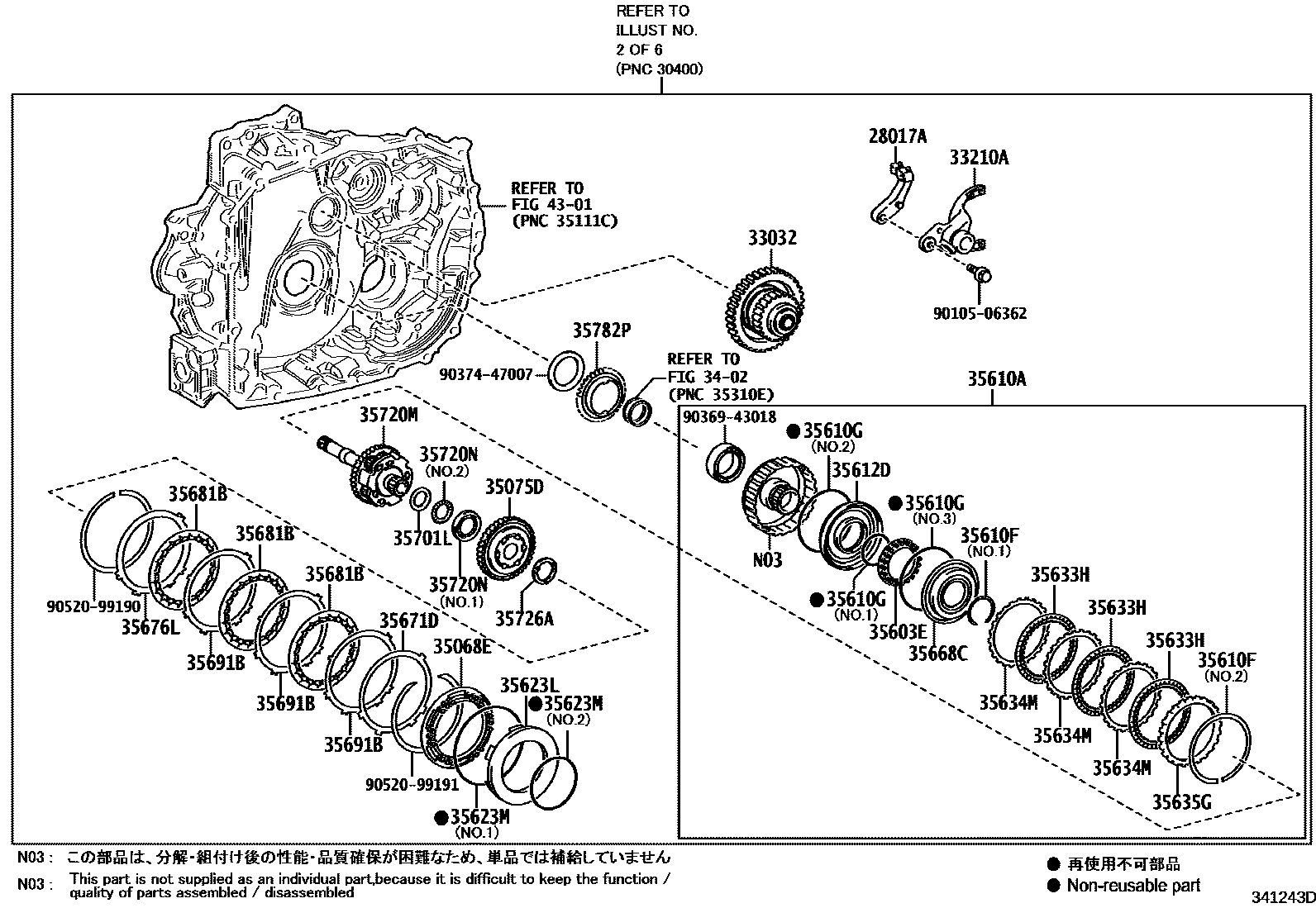

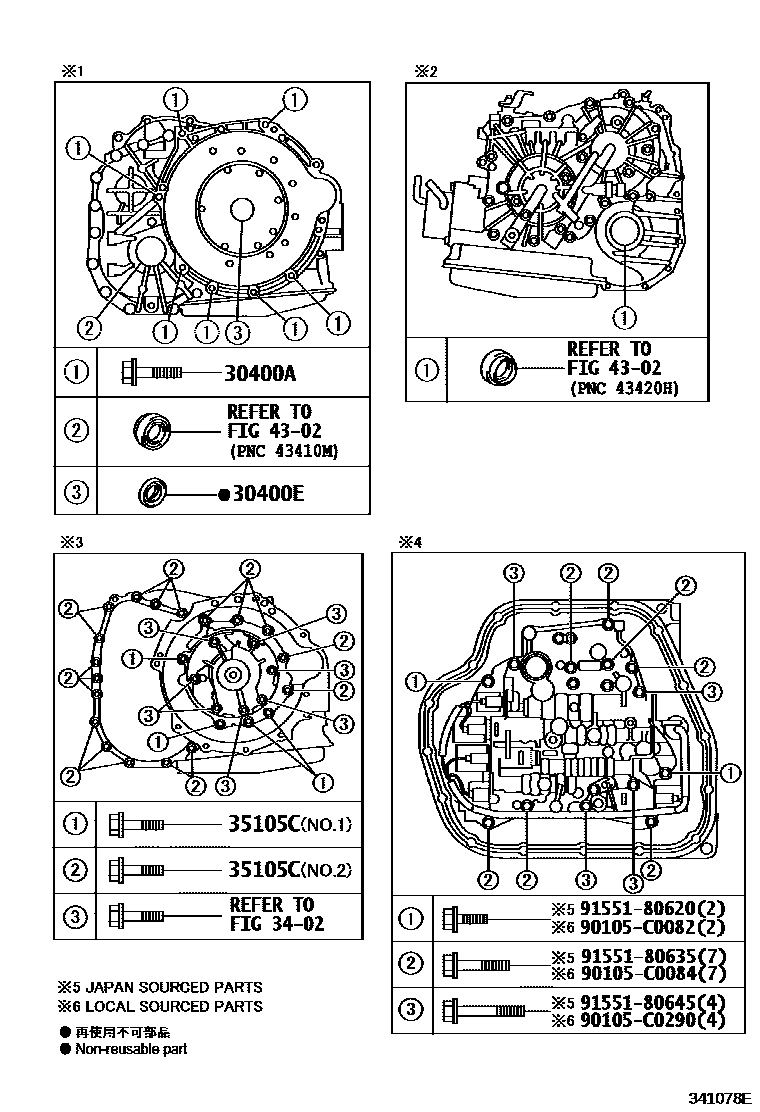

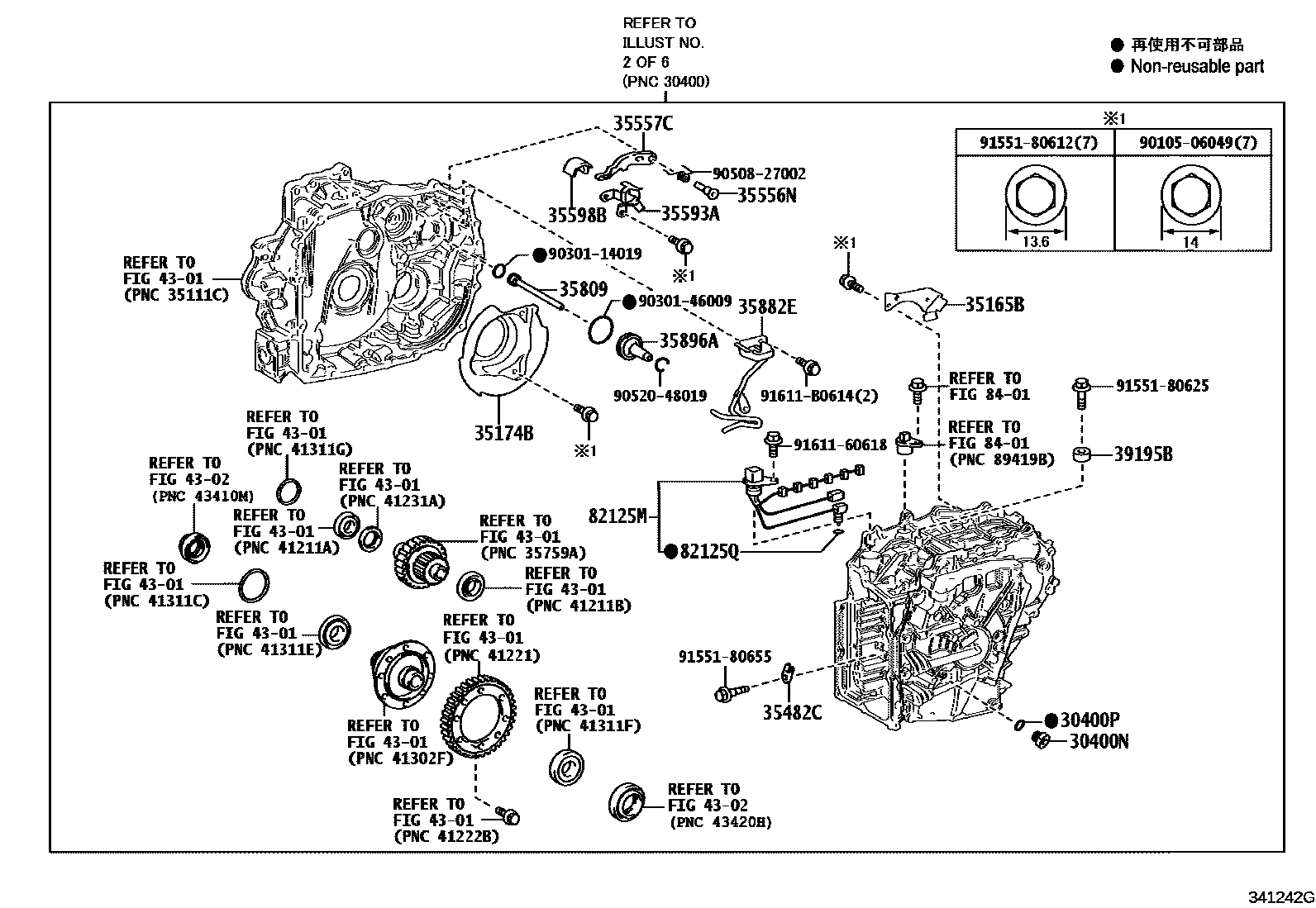

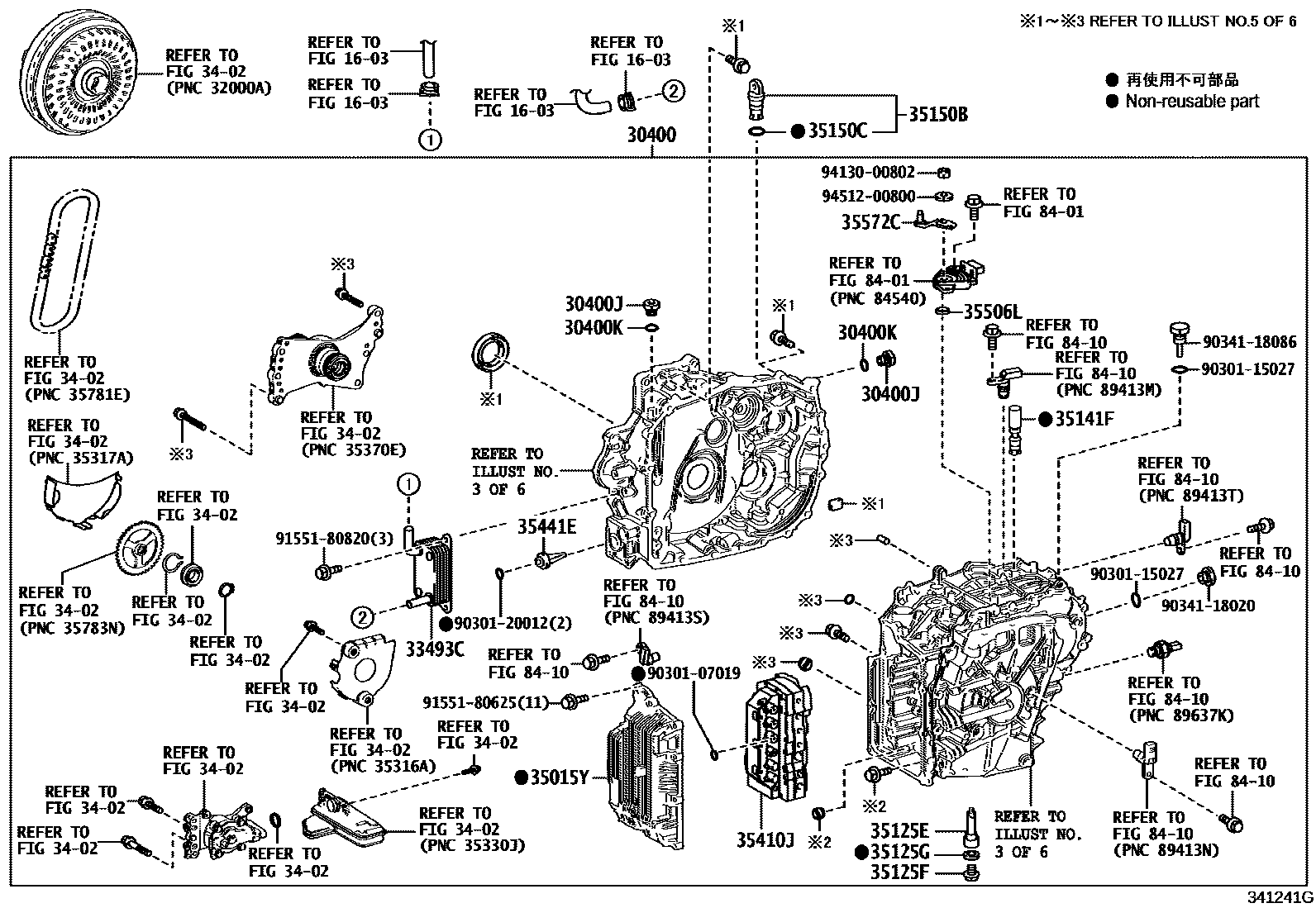

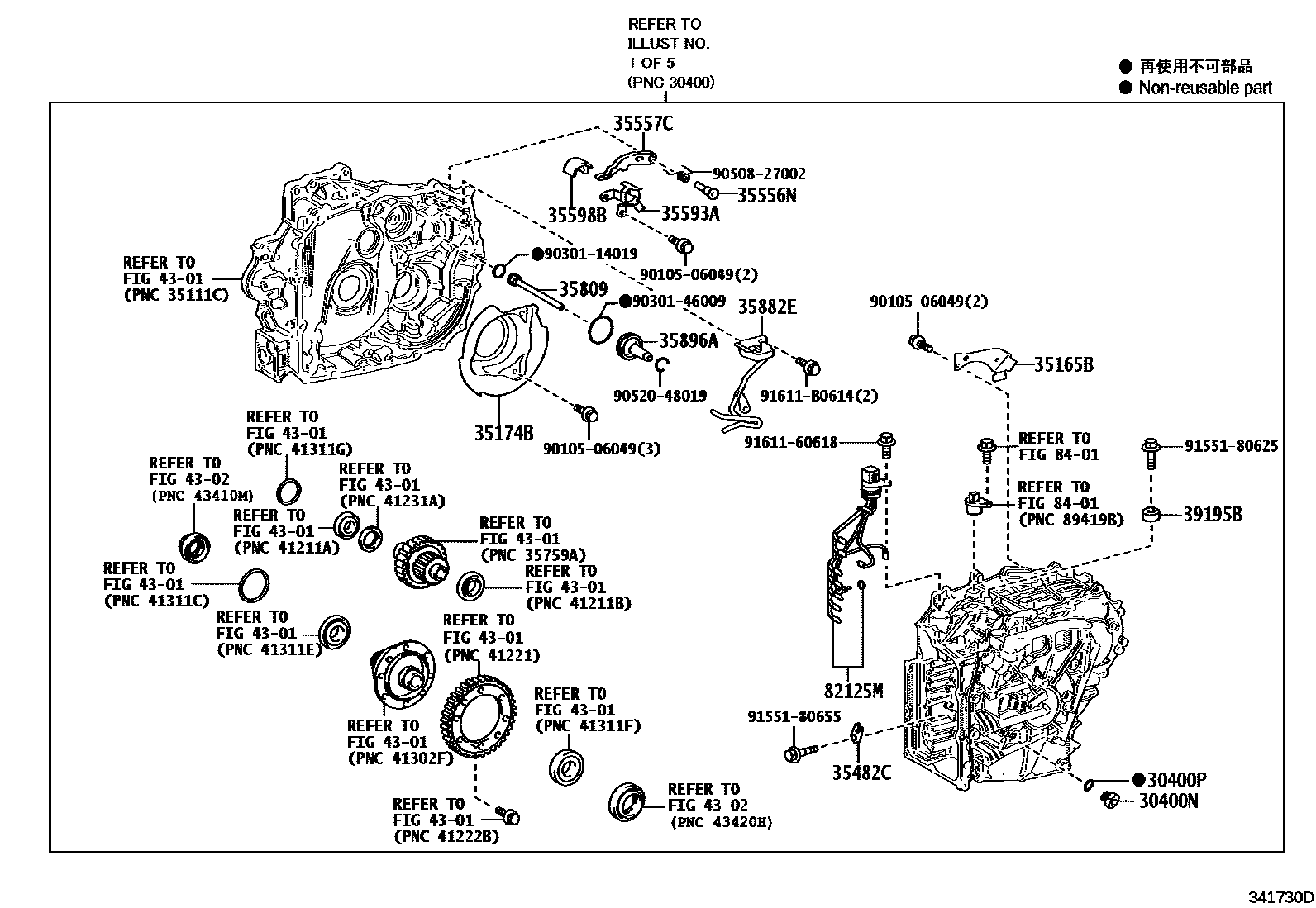

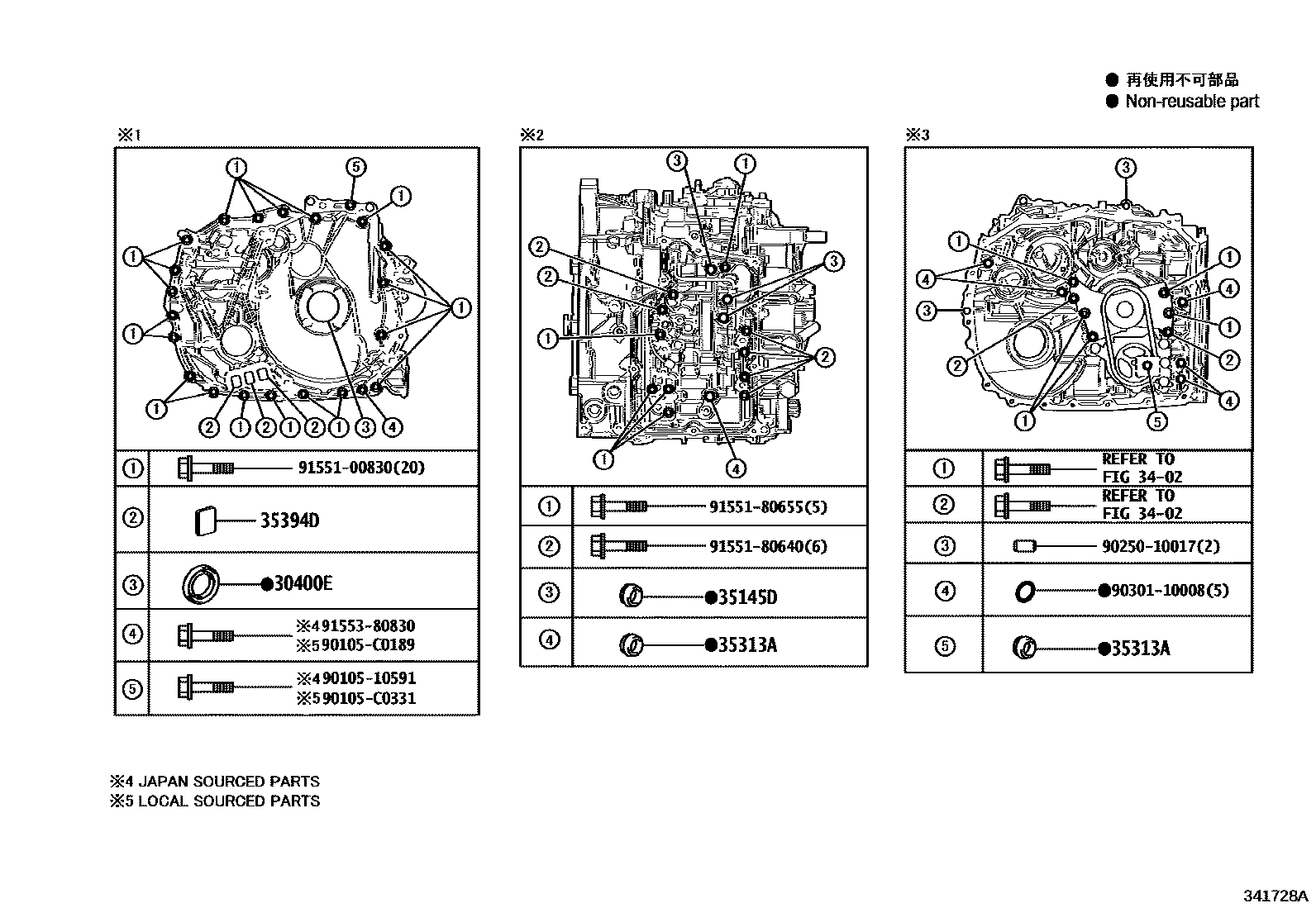

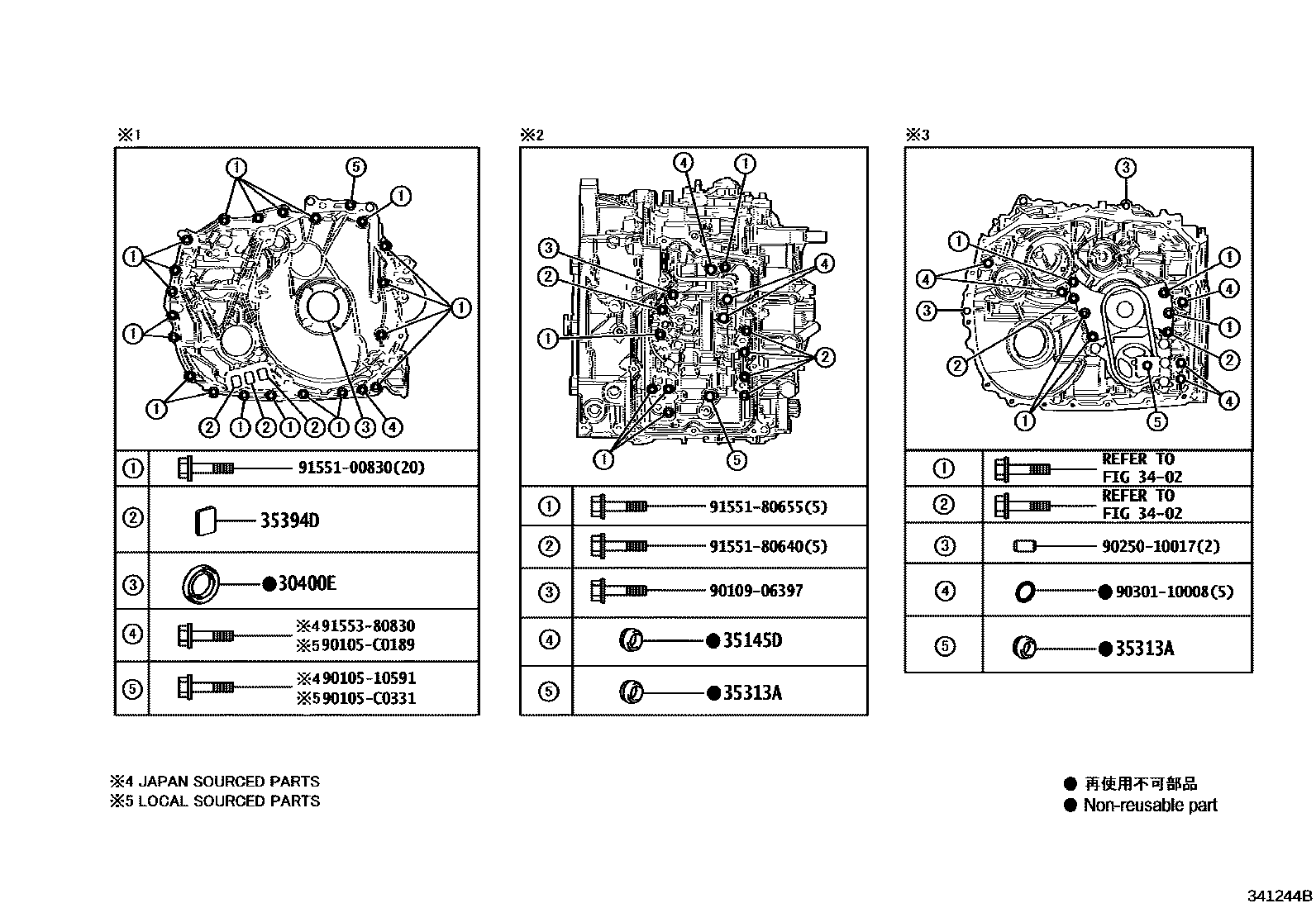

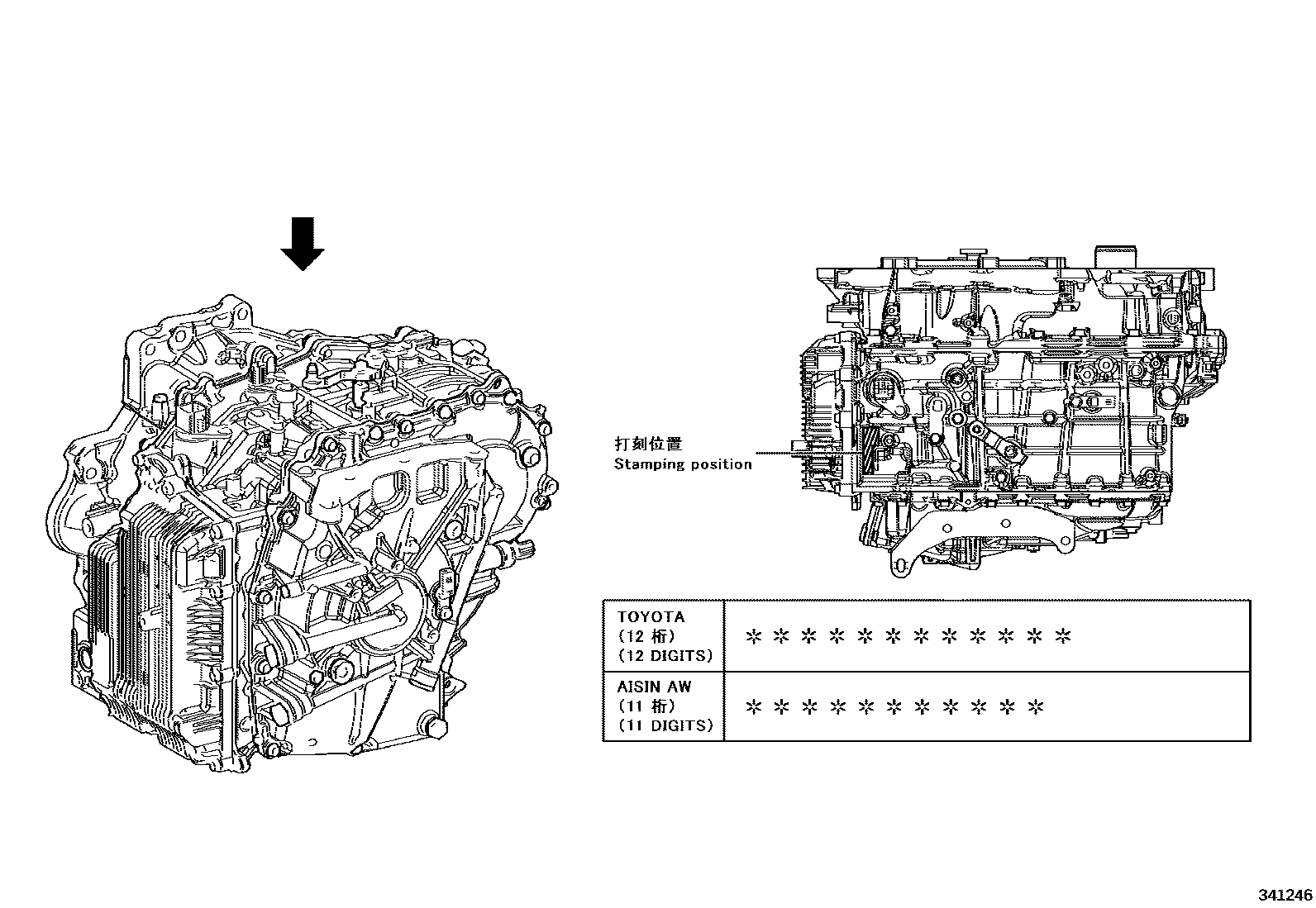

Toyota COROLLA 传动桥总成(CVT) — Figure 3401
Toyota COROLLA EPC diagram 3401, 传动桥总成(CVT), with 15 images and 84 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

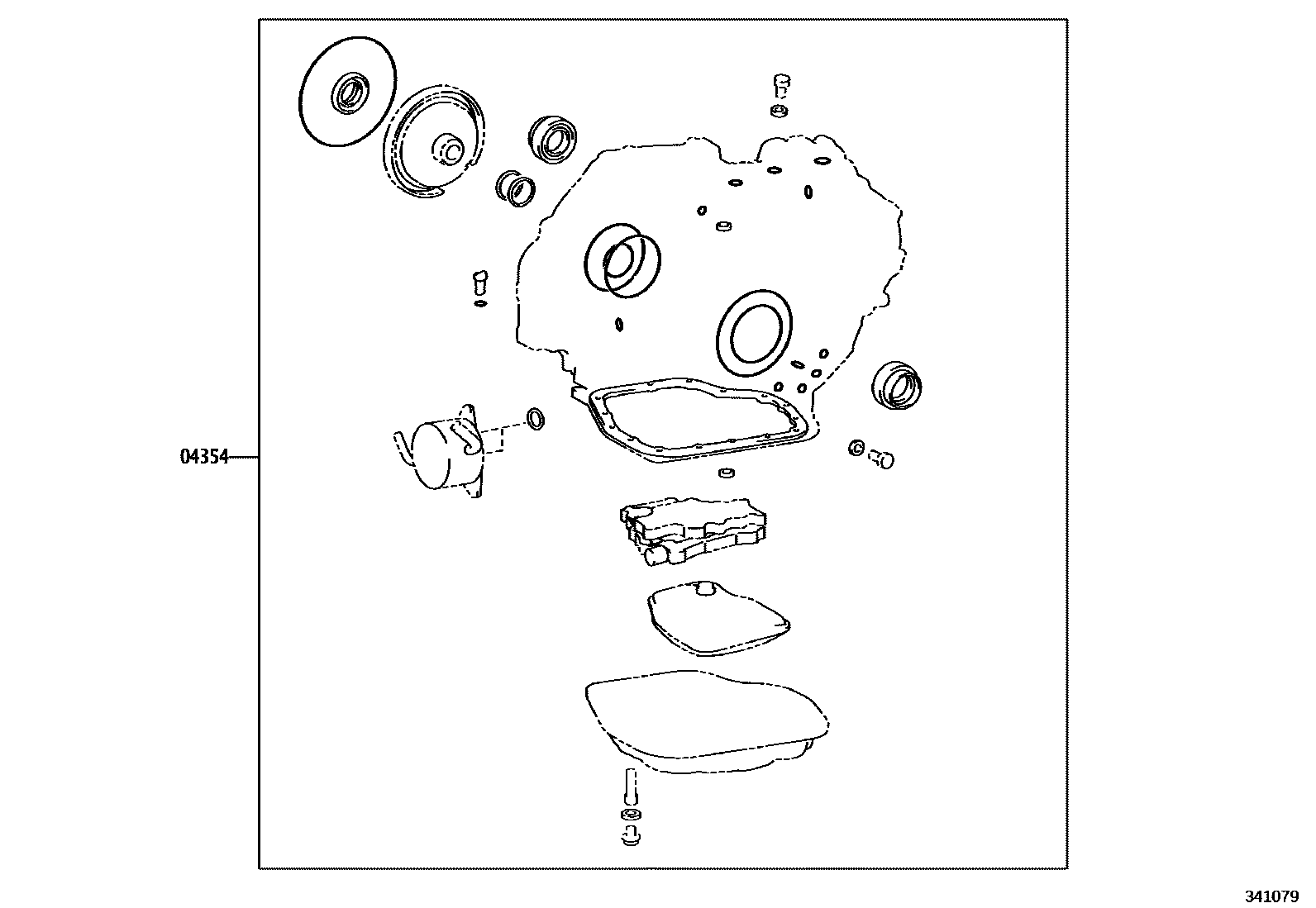

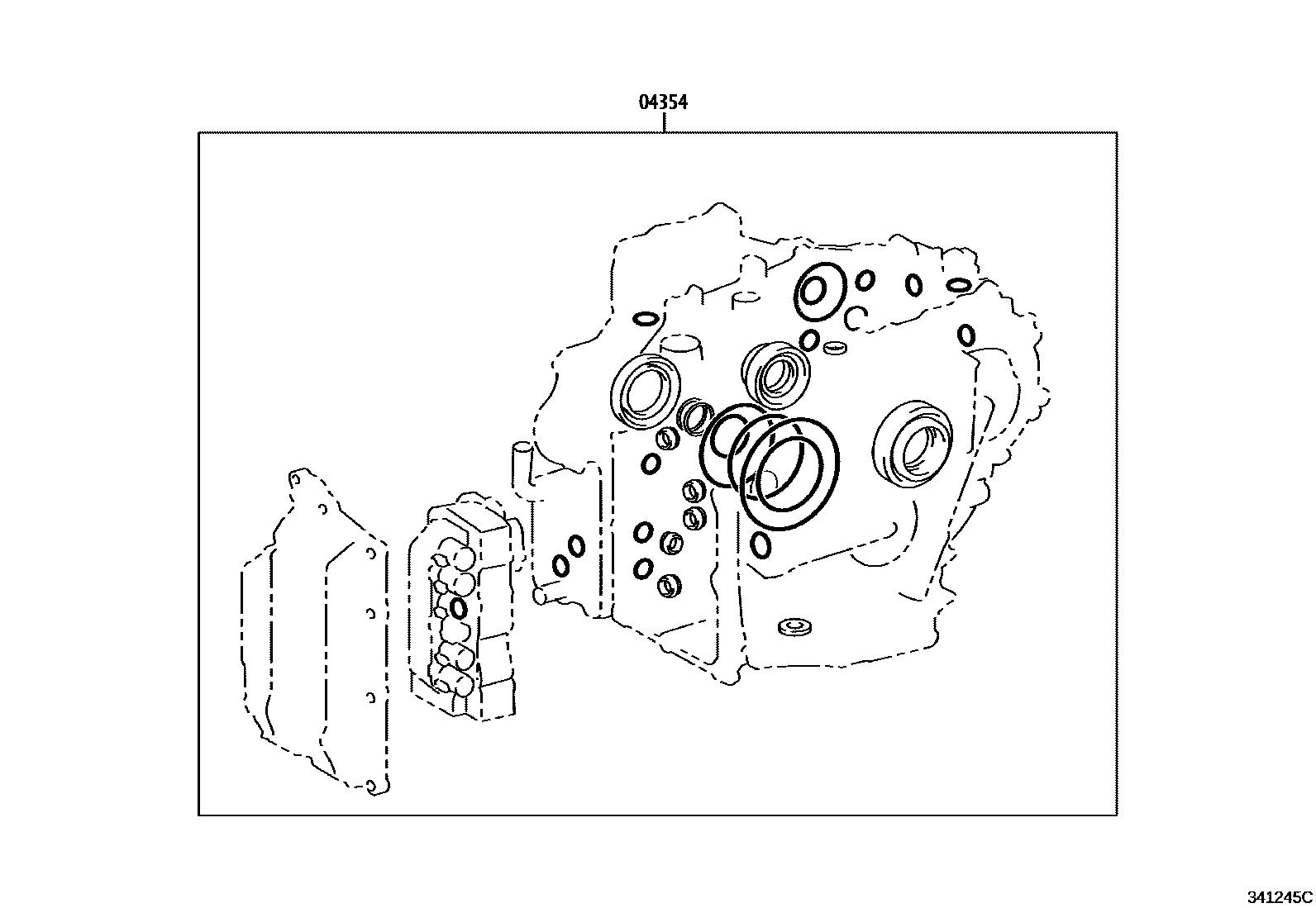

| 04354 | CVT Transaxle Overhaul Kit | 04354-02011 · 04354-12021 · 04354-K0010 |
| 28017A | Bracket (for shift fork) | 28017-K2010 |
| 30400 | Continuously variable transmission axle assembly | 30400-02050 · 30400-12151 · 30400-12320 · 30400-12550 · 30400-12580 · 30400-12750 |
| 30400A | Bolts (for securing transaxle and engine) | 90119-C0139 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-41019 · 90311-45027 · 90311-C0032 |
| 30400J | Transmission axle hole plug | 90341-08001 |
| 30400K | Transaxle hole plug gasket | 90301-06196 · 90301-C0061 |
| 30400L | Oil filling plug (CVT) | 90341-12025 · 90341-C0007 |
| 30400M | Oil filling plug gasket (CVT) | 90430-12221 |
| 30400N | Oil filling plug (CVT) | 90341-18077 |
| 30400P | Oil filling plug gasket (CVT) | 90430-18008 |
| 33032 | First gear gear sub-assembly | 33032-12170 · 33032-K0010 |
| 33210A | No. 1 shift fork assembly | 33210-12010 · 33210-K0010 |
| 33493C | Transmission oil cooler | 33493-02010 · 33493-12080 · 33493-12100 |
| 33493D | O-ring (for transmission oil cooler) | 90301-20012 · 90301-C0028 |
| 35015Y | Transmission axle half shaft cover sub-assembly | 35015-12010 · 35015-12020 · 35015-52010 |
| 35068E | First and reverse brake return spring sub-assembly | 35068-02010 · 35068-12020 · 35068-12060 · 35068-12061 · 35068-K0010 |
| 35075D | Front planetary ring gear sub-assembly | 35075-02010 · 35075-12031 · 35075-12070 · 35075-K0010 |
| 35105C | Bolts (for transaxle housing and transaxle housing) | 90105-08071 · 90105-C0285 · 90105-C0289 · 91551-00828 · 91551-10830 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-02020 · 35106-12200 |
| 35106M | Drain plug sub-assembly (CVT) | 90341-12034 |
| 35106N | Drain plug gasket (CVT) | 90430-12008 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35125 | No. 1 transmission oil pipe | 35125-02160 · 35125-12440 |
| 35125E | Overflow pipe (CVT) | 35125-12490 · 35125-K0010 |
| 35125F | Overflow plug (CVT) | 90341-18016 |
| 35125G | Overflow plug gasket (CVT) | 90430-18008 |
| 35141D | Hoses (for breather plug) | 35121-0D020 · 35121-52020 |
| 35141E | O-ring (for breather plug) | 90301-06021 · 90301-C0060 |
| 35141F | No. 1 vent plug (CVT) | 90930-03216 · 90930-03233 · 90930-C3019 |
| 35141J | No. 2 vent plug (CVT) | 90930-03191 · 90930-C3022 |
| 35145D | Transmission axle housing gasket | 35145-33010 |
| 35150B | gearbox plug assembly | 35150-02010 · 35150-44010 · 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35165B | No. 1 gearbox block | 35165-02020 · 35165-12060 · 35165-12100 · 35165-52080 · 35165-K0020 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-02020 · 35168-12091 |
| 35174B | Oil storage tank locking plate | 35174-02010 · 35174-12010 · 35174-12070 · 35174-K0020 |
| 35195C | No. 1 transmission axle fuel supply pipe clamp | 35195-02020 · 35195-12040 |
| 35195D | No. 2 transmission axle fuel supply pipe clamp | 35195-02030 · 35195-12050 |
| 35300C | Oil pump assembly with motor | 35300-12011 |
| 35313A | Front oil pump cover gasket | 35313-48020 |
| 35330D | Oil filter assembly | 35330-02020 · 35330-12050 |
| 35330E | O-ring (for oil filter) | 90301-22019 · 90301-C0066 |
| 35394D | Oil filter magnet (CVT) | 35394-02010 · 35394-30011 · 35394-48010 |
| 35410J | Transmission valve body assembly | 35410-02040 · 35410-12871 · 35410-12A40 · 35410-12A70 · 35410-52290 |
| 35441E | Solenoid valve oil filter | 35441-12130 · 35441-52040 |
| 35481C | Valve body wiring harness clip | 35481-02010 · 35481-12030 |
| 35482C | temperature sensor clip | 35482-02010 · 35482-73010 |
| 35506L | Oil seal (for manual valve stem shaft) | 90311-12002 · 90311-C0033 |
| 35556N | Parking lock pawl shaft | 35556-12040 · 35556-12050 |
| 35557C | Parking pawl | 35557-12080 · 35557-K0020 |
| 35572C | transmission control lever | 35572-12160 · 35572-12190 |
| 35593A | Cam guide bushing | 35593-12050 · 35593-12060 |
| 35598B | Parking lock cover | 35598-12060 · 35598-K0010 |
| 35603E | Forward gear clutch return spring sub-assembly | 35603-02010 · 35603-12040 · 35603-12070 · 35603-12071 · 35603-K0010 |
| 35610A | Forward gear multi-plate clutch assembly | 35610-02020 · 35610-12242 · 35610-12310 · 35610-K0010 |
| 35610F | Snap ring (for forward multi-plate clutch) | 90520-44041 · 90520-99087 · 90520-99192 · 90520-C0014 · 90520-C0022 |
| 35610G | O-ring (for forward multi-plate clutch) | 90301-48007 · 90301-50001 · 90301-95003 · 90301-99155 · 90301-C0017 · 90301-C0055 · 90301-C0068 · 90302-89002 · 90302-92001 |
| 35612D | forward clutch piston | 35612-02010 · 35612-12072 · 35612-12110 · 35612-K0010 |
| 35623L | Reverse brake piston | 35623-02020 · 35623-12080 · 35623-12120 · 35623-12140 · 35623-K0010 |
| 35623M | O-ring (for reverse brake piston) | 90301-93002 · 90301-98002 · 90301-99087 · 90301-99208 · 90301-C0057 · 90301-C0058 |
| 35623N | Snap ring (for reverse brake piston) | 90520-99090 · 90520-C0013 |
| 35633H | Clutch disc (for forward multi-plate clutch) | 35633-02020 · 35633-12092 · 35633-12170 · 35633-K0010 |
| 35634M | No. 1 clutch plate (for forward multi-plate clutch) | 35634-02010 · 35634-12050 · 35634-12120 · 35634-K0010 |
| 35635G | forward clutch flange | 35635-02010 · 35635-02020 · 35635-02030 · 35635-12150 · 35635-12160 · 35635-12170 · 35635-12410 · 35635-12480 · 35635-12490 · 35635-12500 · 35635-12510 · 35635-12520 · 35635-12530 · 35635-12540 · 35635-12550 · 35635-12560 · 35635-12570 · 35635-12580 · 35635-12590 · 35635-52270 · 35635-52280 · 35635-52290 · 35635-52300 · 35635-52310 · 35635-52320 · 35635-52330 · 35635-52340 · 35635-52350 · 35635-52360 · 35635-52370 · 35635-52380 · 35635-K0010 |
| 35668C | No. 1 clutch balancer | 35668-02010 · 35668-12011 · 35668-12070 · 35668-12071 · 35668-K0010 |
| 35671D | brake cushion | 35671-02010 · 35671-12040 · 35671-12070 · 35671-K0010 |
| 35672D | clutch cushion | 35672-02010 · 35672-12040 |
| 35676L | brake flange | 35676-02010 · 35676-12110 · 35676-12140 · 35676-K0010 |
| 35676M | Snap ring (for brake flange) | 90520-99086 · 90520-C0012 |
| 35681B | No. 1 brake disc | 35681-02020 · 35681-12050 · 35681-12080 · 35681-K0010 |
| 35691B | No. 1 brake pad | 35691-02010 · 35691-12040 · 35691-12070 · 35691-K0010 |
| 35701L | Thrust bearing race (for input shaft) | 35789-02020 · 35789-12090 · 35789-12110 · 35789-12120 |
| 35701M | Thrust needle roller bearing (for input shaft) | 90374-20005 · 90374-C0018 |
| 35720M | Planetary gear assembly | 35720-02011 · 35720-12061 · 35720-12080 · 35720-K0010 |
| 35720N | Thrust needle roller bearings (for planetary gears) | 90374-18008 · 90374-24008 · 90374-29012 · 90374-34014 · 90374-C0019 · 90374-C0020 |
| 35726A | Planetary ring gear thrust washer | 35726-12010 · 35726-12020 |
| 35782P | drive sprocket | 35782-12070 |
| 35809 | C-2 clutch pressure oil supply pipe sub-assembly | 35809-12030 · 35809-K0010 |
| 35882E | Differential gear lubricant oil supply pipe | 35882-02040 · 35882-02050 · 35882-12030 · 35882-12040 · 35882-12080 · 35882-K0010 |
| 35896A | Countershaft lubricating oil supply pipe | 35896-12030 · 35896-K0010 |
| 39195B | Transaxle mass damper | 39195-12010 · 39195-52010 |
| 82125M | Transmission wiring harness | 82125-02440 · 82125-12642 · 82125-12670 · 82125-42030 |
| 82125Q | O-ring (for transmission wiring harness) | 90301-06004 · 90301-21009 |
