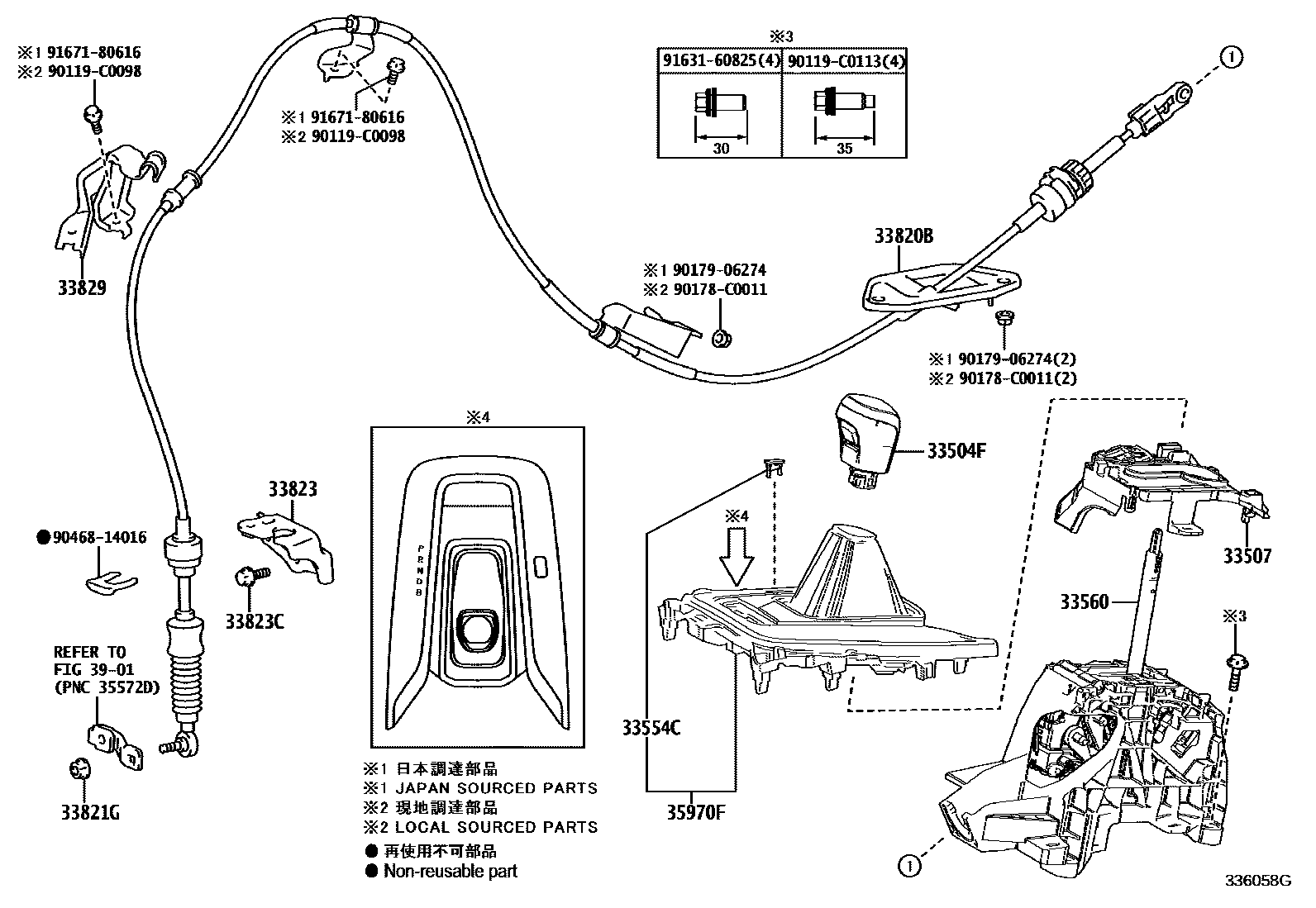

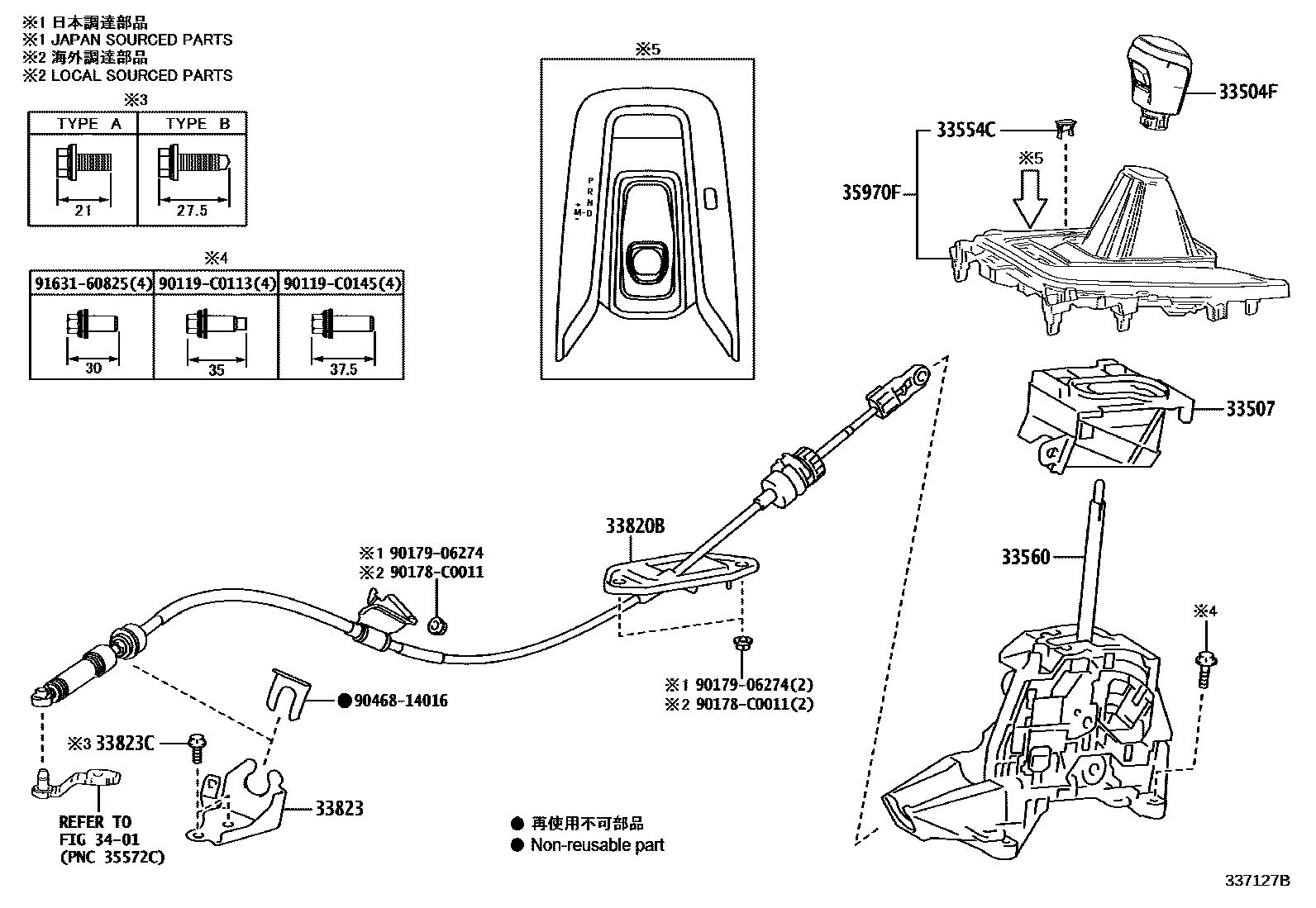

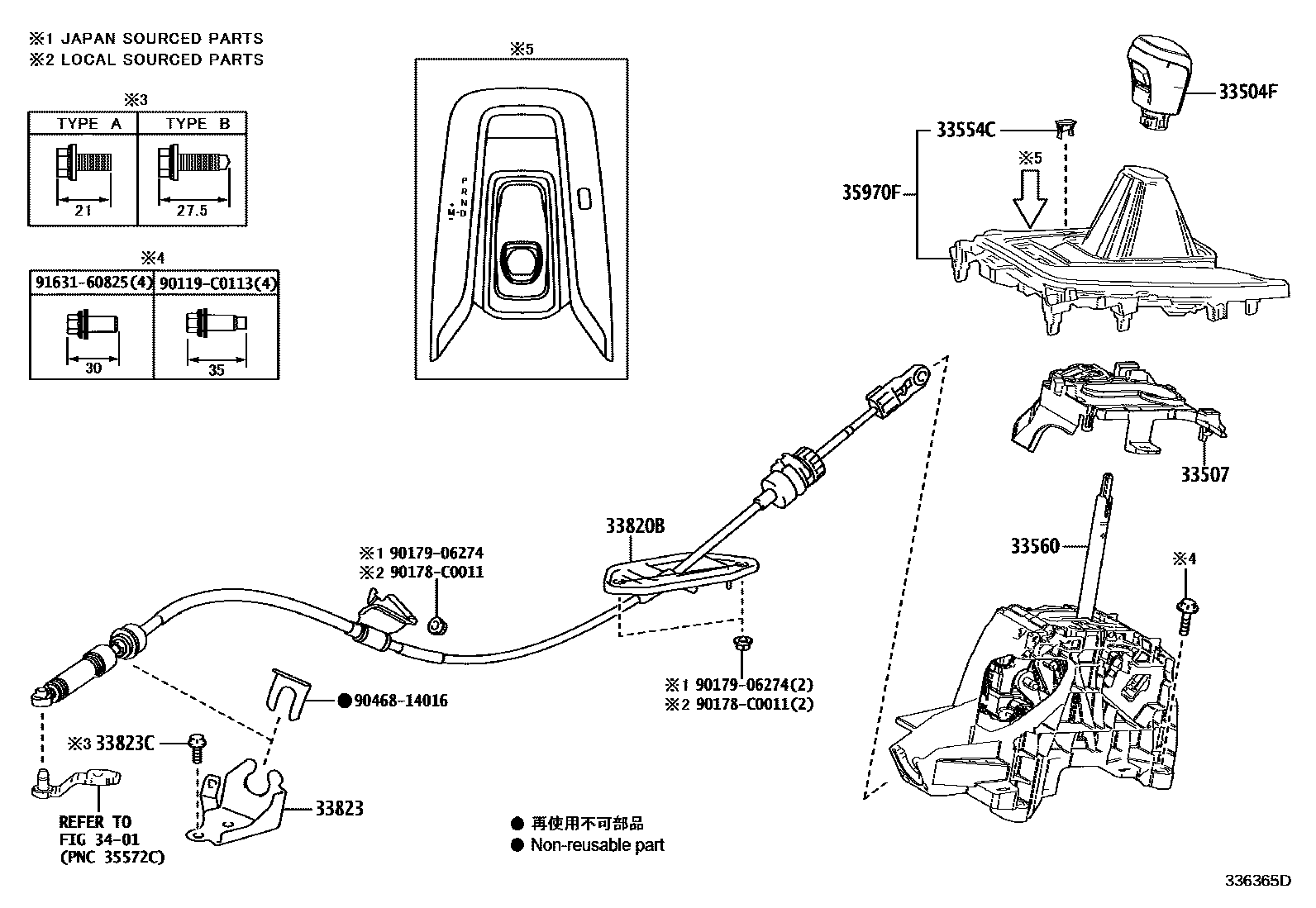

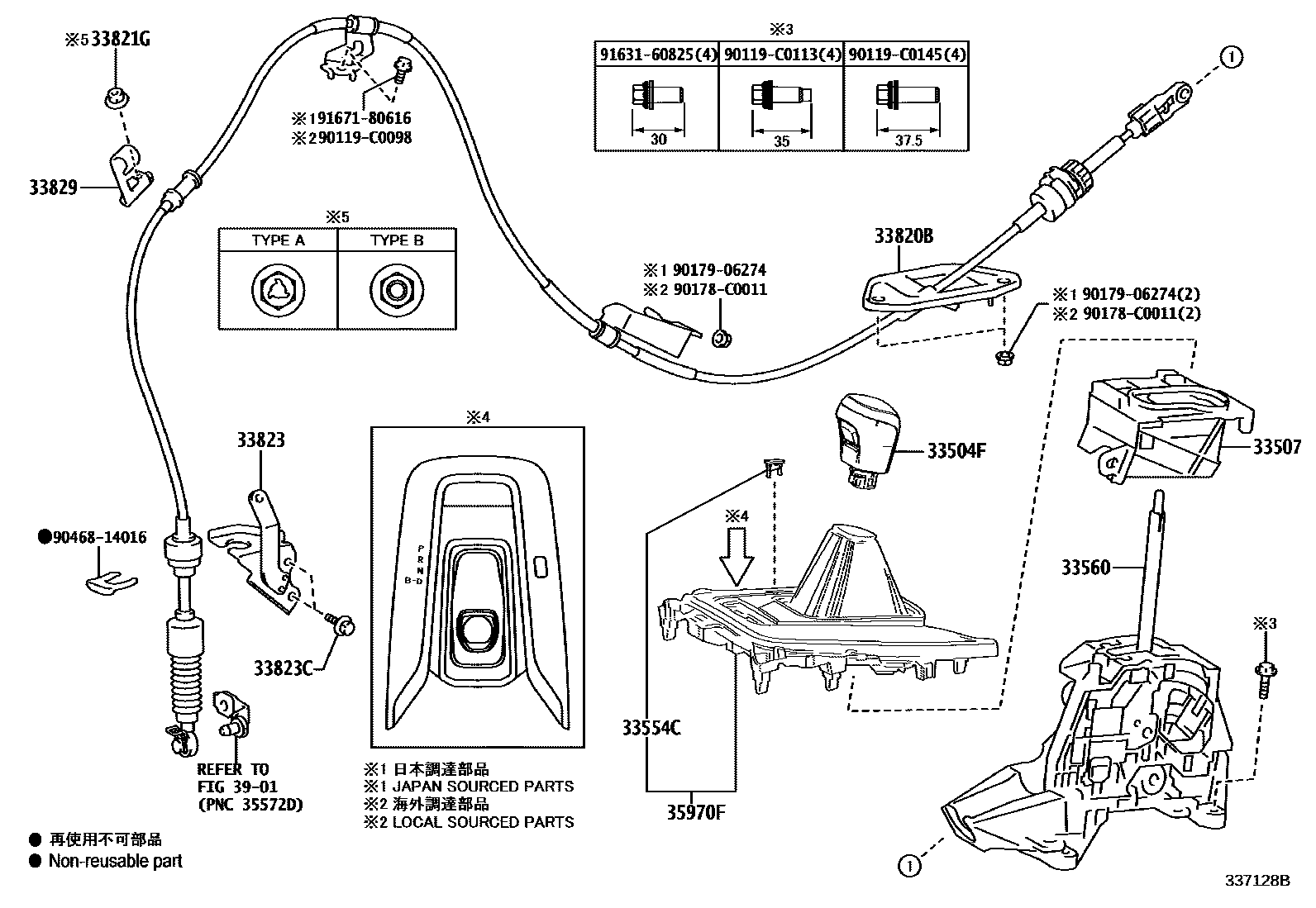

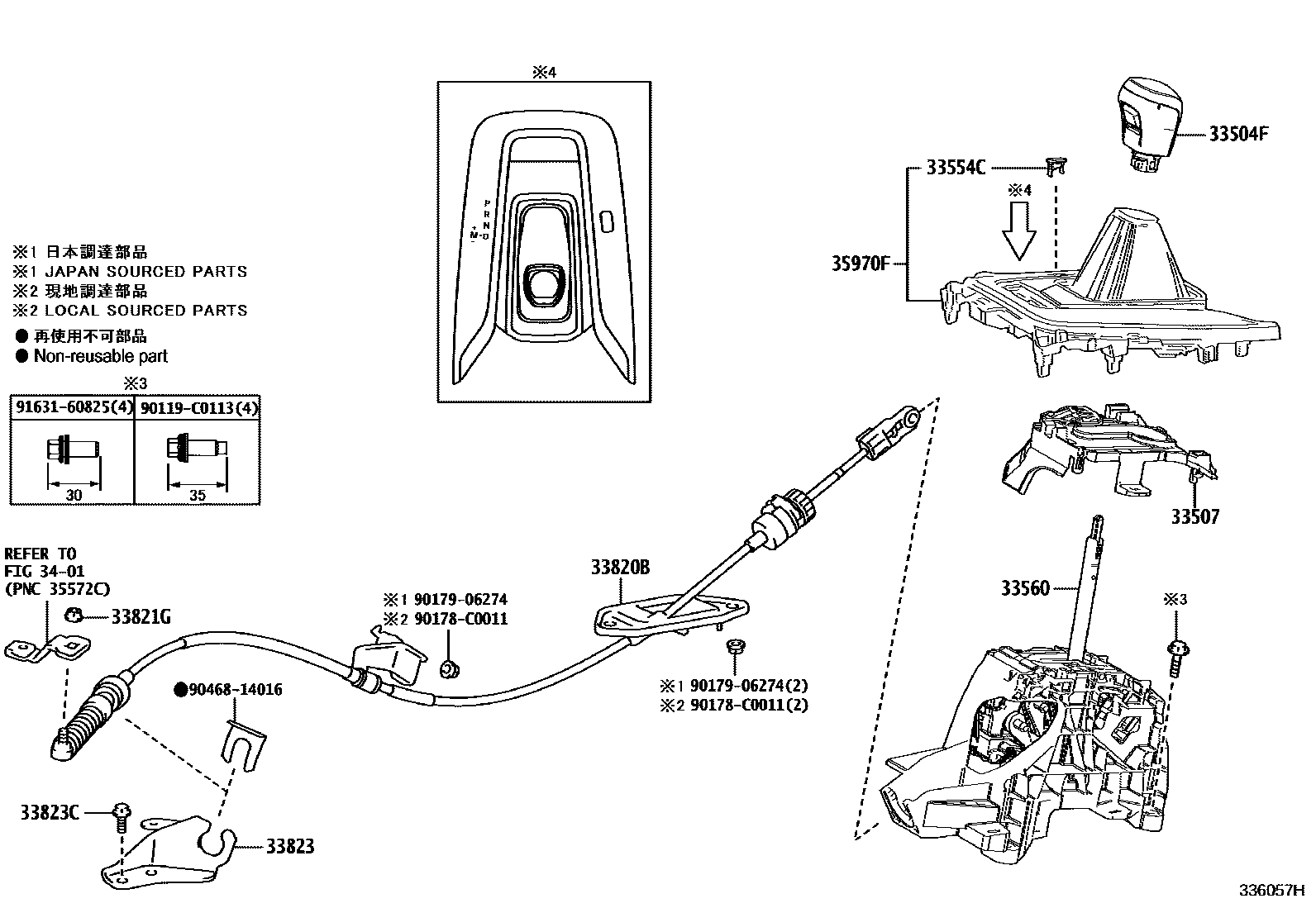

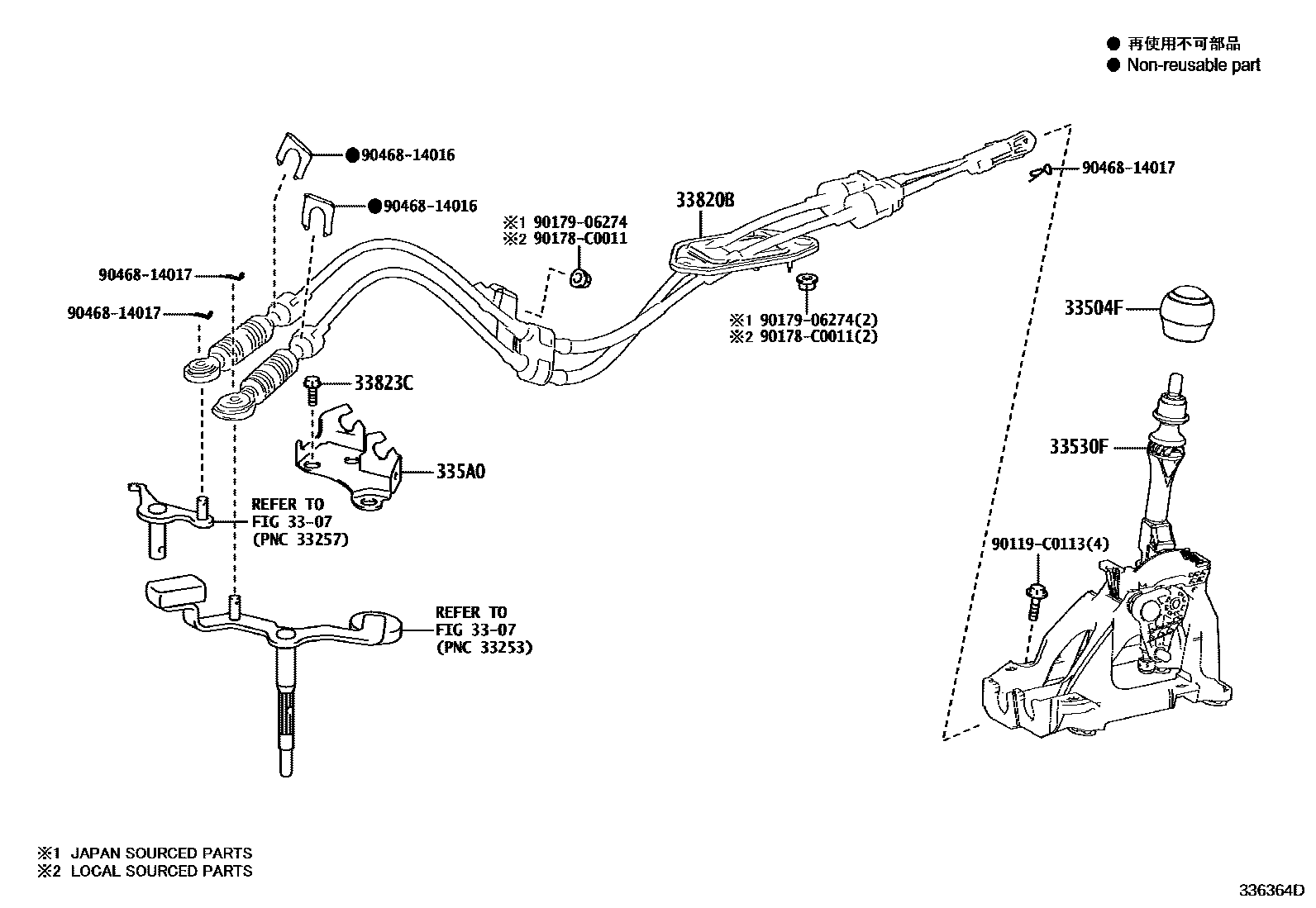

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 6 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33507 | Shift lever housing bracket sub-assembly | 33507-02080 · 33507-0A010 · 33507-0A030 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12C50 |
| 33554C | Shift lock release button cover | 33554-02220 · 33554-0A010 |
| 33560 | Shift lock control unit assembly | 33560-02620 · 33560-02670 · 33560-02750 · 33560-02760 · 33560-02820 · 33560-0A010 · 33560-F4100 · 33560-F4110 |
| 335A0 | Control cable bracket assembly | 335A0-20010 |
| 33820B | Transmission control cable assembly | 33820-02C20 · 33820-02C40 · 33820-02C50 · 33820-02C70 · 33820-02C71 · 33820-02E40 · 33820-02E80 |
| 33821G | Nut (for transmission control cable) | 90178-C0034 · 90178-C0135 · 90179-06274 · 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-02250 · 33823-02430 · 33823-02440 · 33823-02470 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 90119-08C60 · 90119-C0132 · 90119-C0212 · 91671-80820 |
| 33829 | Transmission control cable bracket | 33829-02360 · 33829-02380 |
| 35970F | Position indicator light housing assembly | 35970-YK010 |
